Extra Large Pipe Wrench Handles Large-Diameter Pipe Repair and Maintenance
2026-09-08 10:04:40
When you're dealing with large-diameter pipes and high-torque applications, an extra large pipe wrench becomes your most reliable partner. These specialized heavy-duty tools deliver the leverage and gripping force necessary to tackle industrial-scale plumbing, pipeline assembly, and maintenance challenges that standard wrenches simply cannot handle. Built from premium alloy steel and cast iron, these wrenches ensure secure holds and maximum torque transfer during critical operations across construction sites, municipal utilities, oil and gas facilities, and manufacturing plants.
Specifications
| Model | Total Length | Total Width | Maximum Opening | Product Weight |
|---|---|---|---|---|
| European Heavy Duty 10" | 24.5cm | 6.5cm | 5.5cm | 0.68kg |
| European Heavy Duty 12" | 27.5cm | 7.5cm | 6.5cm | 0.97kg |
| European Heavy Duty 14" | 31.5cm | 8.0cm | 8.7cm | 1.28kg |
| European Heavy Duty 18" | 40cm | 9.0cm | 9.5cm | 1.89kg |
| European Heavy Duty 24" | 51cm | 10cm | 11.0cm | 3.00kg |

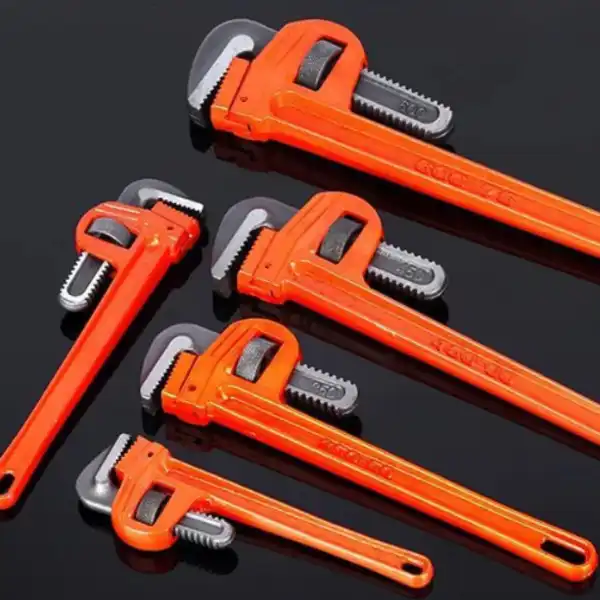

Understanding Extra Large Pipe Wrenches and Their Role in Large-Diameter Pipe Maintenance
What Sets Extra Large Pipe Wrenches Apart
Heavy-duty pipe wrenches are different from regular ones because they are made for large-diameter jobs. They have longer handles (36 to 60 inches), and their jaws can open up to eight inches or more. This big difference in size directly leads to more mechanical advantage, which lets workers make the huge torque needed to break loose fittings, fix large threaded connections, and move pipes that weigh hundreds of pounds.
These tools use basic engineering ideas, like how a floating hook jaw creates a wedge effect that makes grip pressure stronger as force grows. The I-beam handle cross-section gives the most bending resistance while keeping the weight manageable. This solves the main problem in the industry, which is how to balance strength with operator fatigue during long use.
Material Composition and Manufacturing Excellence
The success of these industrial tools depends a lot on the materials used and how they are made. Most handle housings are made of high-tensile malleable iron, which is very strong for its weight and doesn't break easily when hit. Aluminum options are about 40% lighter than steel ones, which makes it much easier for workers to move heavy things around job sites or install things from above.
Differential heat treatment is done after the jaw parts are forged from chrome molybdenum or chrome vanadium alloy steels. The teeth are made with Rockwell hardness levels of 55–60 HRC so they can grip pipes well, while the stem stays at 40–45 HRC to prevent shear stress. Precision forging, advanced machining, and specialized heat treatment are all used together at FLA Industrial & Trading Co., Ltd. to make tools that meet ISO9001 and CE certification standards.
Adjustable Versus Fixed Jaw Configurations
The most popular type of Extra Large Pipe Wrench is one with adjustable jaws, which can fit pipes of different sizes without the need for multiple separate tools. The knurled adjustment nut lets the tool be quickly moved along threaded rails, which lets workers work quickly on pipes of different diameters within the same project. Even when they are exposed to drilling mud, building dust, or other contaminants that are common in industrial settings, precision-engineered threads keep the change smooth.
Some people find the "play" in the hook jaw design confusing, but it's important for the design to work. This moving motion lets the teeth turn a little and bite into pipe surfaces more firmly as torque loads rise. This makes a self-tightening ratcheting effect that keeps the teeth from slipping during high-force uses.
How to Choose the Right Extra Large Pipe Wrench for Your Operations
Matching Tool Capacity to Pipe Diameter Requirements
There's more to choosing the right wrench size than just matching the jaw capacity to the pipe width. The relationship between handle length and torque generation is something that procurement managers should think about. They should know that longer handles are better mechanically, but they might be hard to use in tight spaces like trenches or equipment rooms.
A 48-inch wrench can usually handle pipes with a diameter of four to six inches, and a 60-inch wrench can handle pipes with a diameter of up to eight inches. But the actual working capacity also depends on the type of pipe, the condition of the threads, and whether you're putting together brand-new parts or taking apart old installations that are corroded.
Material Strength and Durability Considerations
Aluminum options are good for mobile teams, utility workers who climb towers or work from lifts, and businesses that put ergonomic safety first. Even though the original cost is usually higher, the extra money is usually worth it because workers are less stressed over time and tasks are finished faster. At FLA Industrial & Trading Co., Ltd., our alloy steel and cast iron tools go through a strict process of checking their material makeup and dimensions to make sure they meet high standards for heavy-duty performance.
Evaluating Supplier Reliability and Support
In addition to product specifications, the relationship you have with your supplier has a big effect on the success of your operations. Established makers with decades of experience offer more than just reasonable prices. They also offer expert advice, clear warranties, and quality that stays the same for big orders. Suppliers must show that their Products" target="_blank" style="color:blue" >products meet government standards like GGG-W-651 Type II Class A and ANSI B107. These standards make sure that tools can handle pressure levels above 3,000 ft-lbs without permanently deforming.
Ask for proof that the product has been tested at 125% of its rated capacity, that the jaw hardness has been confirmed by Rockwell testing, and that the casting's integrity has been confirmed by non-destructive testing. These quality control steps keep tools from breaking in terrible ways that could hurt workers or damage costly pipeline equipment.
Best Practices for Using and Maintaining Extra Large Pipe Wrenches
Proper Gripping and Force Application Techniques
The right placement of the wrench is the first step to safe operation. Place the hook jaw in the direction you want to turn. The floating jaw should lead the movement, so that adding torque makes the grip tighter instead of looser. For the best control and the least amount of handle flex, put the wrench as close to the work piece as you can.
Instead of moving, use smooth, steady pressure to apply force. If you can, pull the wrench toward your body instead of pushing it away. This gives you more control and lowers the risk of getting hurt if it slips. Do not add "cheater bars" or pipe extensions to the handle because they are too strong and can break the handle or jaws. If you need more force, you should order a bigger wrench instead of making dangerous leverage multipliers on the spot.
Routine Maintenance for Extended Service Life
A wire brush should be used to clean the jaw teeth after each use to get rid of pipe scale, thread sealant residue, and other things that can make the grip less effective. Check your teeth for chips or thinning that is more than 20% of their original shape. Worn teeth can slip when they're loaded, which means you need a new mouth.
Heavy machine oil should be used once a month on the adjustment threads and the hook jaw pivot point, or more often in dusty or wet places. The self-cleaning thread system cuts down on upkeep, but it can't completely get rid of it. Field adjustment speed is directly affected by thread tolerance, which makes this simple maintenance step very important for operational efficiency.
Look along the I-beam profile of the Extra Large Pipe Wrench to see if the handle is warped. If you can see that the tool is bent or twisted, it means it has been overused and should be taken out of service. In the same way, if the wrench has been hit hard, check the casting surfaces for cracks by visual inspection or by using magnetic particle testing.
Addressing Common Wear Issues
Handle surface rust seems to happen naturally in wet places, but it can be kept to a minimum by storing things correctly. After cleaning, put rust inhibitor on steel surfaces that haven't been painted and store them somewhere dry. Marine settings and places where chemicals are processed need stronger corrosion protection through special coatings that keep the surface intact even when exposed to chemicals and salt spray.
"Sloppiness" in the hook jaw worries new users, but it's actually a design choice and not a flaw. However, excessive looseness beyond the normal design tolerances means that the pivot pins are worn and need to be replaced or serviced by a professional. In the same way, adjustment nuts that won't turn or need too much force may have broken threads that need to be cleaned, oiled, or replaced.
Comparing Top-Rated Extra Large Pipe Wrenches in Industrial Applications
Performance Characteristics Across Leading Brands
Leading makers set their products apart by choosing the right materials, making their products more ergonomic, and giving warranties. RIDGID tools are made of cast iron and have their famous red handles. They are strong and durable, making them perfect for stationary shops and city repair work. Their self-cleaning threads and replaceable heel jaws make them last longer in tough situations.
Milwaukee puts a lot of effort into ergonomic innovation. For example, the contoured handle grips make long periods of use less tiring on the hands. Their aluminum models are lighter without losing any of their power, which is why utility teams working from aerial lifts or scaffolds prefer them. DEWALT uses both traditional cast iron durability and new heat treatment methods that make the jaws harder and more resistant to wear.
Crescent focuses on precise cutting and tight manufacturing tolerances, which makes it possible for the jaws to be adjusted smoothly and the grip pressure to stay the same. As part of their quality control, they check the sizes of the parts to make sure they fit correctly with the pipe diameters and make sure the torque capacity matches the published specifications.
Real-World Suitability for Different Industrial Environments
For oil and gas drilling, you need tools that can keep their grip even when they're dirty with drilling mud and that work reliably in temperatures ranging from freezing cold in the Arctic to scorching hot in the desert. For these kinds of settings, tools need coats that don't rust, and jaw shapes that can cut through pipe coatings and surface dirt well.
The most important tools for municipal water utilities are those that can break seized valves and corroded couplings in tight spaces and wet trenches. When working below grade in unstable soil, the combination of leverage, grip security, and operator safety becomes very important. Contractors in the construction and HVAC industries like that the pipes can be made of a variety of materials, such as PVC, CPVC, steel, and cast iron. They also like how quickly they can switch between different diameter fittings as the installation goes on.
In places where explosives are common, like factories and chemical plants, spark-risk limits mean that powered tools can't be used. When it comes to safety, manual wrenches are the only way to get the torque needed to maintain slurry lines and hydraulic assemblies. In these specific situations, the ability of an Extra Large Pipe Wrench to safely deliver huge amounts of manual power becomes the deciding factor in the decision process.
Procurement Guide: Buying Extra Large Pipe Wrenches for Industrial Use
Verifying Supplier Credentials and Product Authenticity
Fake tools are always a problem in the industrial supply chain because they are made with cheap materials and inefficient methods that put workers in danger. Check the credentials of the provider by looking at their business license, certifications for their production site, and references from past customers. Ask for proof that the company follows ISO9001 quality standards and that the product meets CE requirements.
Sample testing before big orders gives real proof of claims about performance. Send sample tools to independent testing labs so that they can analyze the materials, confirm the wrench's hardness, and confirm its torque capacity. This takes more time and costs more up front, but it's worth it because it stops people from buying broken tools that could hurt workers or damage infrastructure.
Negotiating Bulk Purchase Terms and Warranty Coverage
When you buy in bulk, you can get better prices, longer payment terms, and unique packaging that fits your needs for distribution or managing your goods. Make sure everyone knows what you need each year and when you'd like it delivered so you can best use your buying power. Suppliers that have been around for a long time, like FLA Industrial & Trading Co., Ltd., which has over 1,000 product specifications and has been making things for almost 40 years, can meet custom needs that smaller vendors can't.
The warranty should cover both problems with the way the product was made and normal wear and tear. Find out what situations will void the warranty. Common ones are misuse, illegal changes, and not doing the suggested upkeep. Before signing a purchase deal, make sure you understand how to make a replacement, who is responsible for sending the return, and when the problem will be fixed.
Logistics Considerations and After-Sales Support
When you buy something from another country, things like shipping costs, import duties, and delivery times become more complicated. Check to see if suppliers offer combined shipping for orders of different products. This can lower the cost of freight per unit when buying a lot of different types of tools. Make sure the packaging is good enough for long-distance shipping, especially for heavy cast iron tools that are likely to get damaged during shipping.
Premium suppliers are different from commodity suppliers because they offer technical support. Access to application engineers who can help you choose the best tool for a problem, maintenance training for your teams, and quick contact routes for dealing with problems in the field adds a lot of value on top of the unit price. Companies that work with Fortune Global 500 partners and foreign markets in the US, Germany, and Australia usually keep up the support systems that are needed for long-term business-to-business partnerships.
Conclusion
When fixing and maintaining large diameter pipes, you need tools that are made for high-torque jobs because regular tools aren't good enough. An Extra Large Pipe Wrench is designed to handle demanding applications where strong gripping force and reliable performance are required. The process of choosing tools makes sure that they are safe for workers, have good ergonomics, work well in the workplace, and come from a reliable source. This is done over many years of heavy use. Procurement professionals can make choices that meet both short-term project needs and long-term operating efficiency goals by fully understanding the technical specifications, correct application methods, and upkeep needs. These tools aren't just pieces of hardware; they’re smart investments in your ability to maintain your infrastructure thanks to their high-quality construction, thorough testing, and full support.
FAQ
What jaw opening capacity do I need for common industrial pipe sizes?
A 48-inch wrench can usually hold pipes with a diameter of four to six inches, and a 60-inch wrench can hold pipes with a diameter of up to eight inches. Always check the jaw capacity against the largest diameter of the pipe, leaving some room for surfaces that are worn or corroded and make gripping harder.
How often should I replace wrench jaws?
If the teeth are chipping or flattening more than 20% of their original shape, or if you notice slipping when applying standard force, you should replace the jaws. By looking at it visually after each use, you can spot wear and tear before it becomes a safety risk.
Can I use extensions for additional leverage?
Manufacturers warn against using extension pipes or "cheater bars" because they exceed the design power limits and could cause the handle or jaw to break. When you need more leverage for your uses, you should specify bigger wrench sizes.
What distinguishes cast iron from aluminum models?
Aluminum wrenches are about 40% lighter than steel ones, which makes them much easier to use for long periods of time or when working high. Cast iron is the most durable material and usually costs the least. This makes it the best choice for stable uses where toughness is more important than weight.
Partner with FLA Industrial & Trading Co., Ltd. for Your Heavy-Duty Wrench Requirements
To achieve operational success in maintaining big diameter pipes, you need to work with manufacturers who have decades of experience in the field and understand what the needs of the industry are. FLA Industrial & Trading Co., Ltd. has been making hardware tools for almost 40 years and uses cutting-edge manufacturing technology and strict quality control systems. Our Extra Large Pipe Wrench supplier can provide ISO9001 and CE-approved products made from high-quality alloy steel and cast iron, giving your important infrastructure projects the strength and dependability they need. Contact our team at sales@flaindustrial.com to talk about your unique application needs, get expert advice, and take advantage of our low prices on bulk orders that come with full warranty support.
References
1. American National Standards Institute. "Hand Tools - Wrenches - Performance Requirements and Test Methods." ANSI/ASME B107 Standards Manual, 2022.
2. Federal Specifications and Standards Division. "Wrench, Pipe: Heavy Duty." GGG-W-651 Type II Classification Guidelines, General Services Administration, 2021.
3. Industrial Tool Safety Council. "Best Practices for Large-Diameter Pipe Maintenance Tools." Occupational Safety in Heavy Industries, Volume 34, 2023.
4. Materials Engineering Society. "Heat Treatment Protocols for Alloy Steel Hand Tools." Journal of Industrial Metallurgy, Issue 8, 2023.
5. National Association of Pipe Fabricators. "Tool Selection and Maintenance for Pipeline Construction." Industry Standards and Recommendations, 2024.
6. Occupational Safety and Health Administration. "Hand and Power Tools Safety Guidelines." OSHA Technical Manual Section III: Chapter 2, U.S. Department of Labor, 2022.
