How Does a Grooved Equal Tee Prevent Leakage Risks in Commercial Fire Sprinkler Systems?

Grooved equal tee fittings prevent leakage risks in commercial fire sprinkler systems through their innovative mechanical coupling design that creates a secure, resilient seal around pipe connections. Unlike traditional welded or threaded joints, these three-way ductile iron fittings utilize precision-engineered grooves that lock with coupling housings and rubber gaskets, forming a tight barrier against water escape. This mechanical joint system accommodates thermal expansion, absorbs vibration, and maintains integrity under pressure fluctuations—addressing the primary causes of sprinkler system leakage while simplifying installation and reducing human error during assembly.+

Specification

Nominal Diameter (mm)	Pipe Fitting Outer Diameter D (mm)	Nominal Pressure (MPa)	Basic Outline Dimension L (mm)
32	42.4	2.5	60
40	48.7	2.5	60
50	57	2.5	70
50	60.3	2.5	70
65	76.1	2.5	76
80	88.9	2.5	85
100	108	2.5	95
100	114.3	2.5	95
125	133	2.5	110
125	139.7	2.5	110
150	159	2.5	120
150	165	2.5	120
150	168.3	2.5	120
200	219.1	1.6	165
250	273	1.6	215
300	323.9	1.6	230
350	377	1.6	280

Introduction

In business buildings, fire safety is still a must. A single leak in your sprinkler system not only wastes water, but it also makes it harder for everyone to get help in an emergency. Over the past 30 years, we've worked with building companies and property managers and seen how failed connection points cause costly repairs and code violations.

The grooved mechanical piping technology of today changes how we think about fire safety reliability. The Grooved Equal Tee is an important dividing part that is used where distribution mains split into zone lines, which are common places for problems to happen. This piece talks about the engineering concepts, material science, and installation methods that make grooved connections better at stopping leaks in tough industrial fire sprinkler situations. This article gives procurement workers, project engineers, and maintenance leaders useful information on how to choose parts that work well for a long time and meet strict UL and FM certification standards.

Understanding Leakage Risks in Commercial Fire Sprinkler Systems

Commercial fire sprinkler systems are always under pressure, usually between 150 and 300 psi. This puts stress on every connection point. Leakage doesn't make a big noise when it happens. Most failures start as tiny seepage that gets worse over time as stress cycles happen.

Common Causes of Sprinkler System Leakage

Angled movement at pipe joints is caused by mechanical stress from building sinking. When wind blows, high-rise buildings move slightly, which transfers shear forces to rigid connections. Vibrations from nearby HVAC or elevator equipment cause cyclic loading that wears out traditional threaded joints after months of use. When temperatures change, metal pipes expand and contract at rates that threaten the stability of fixed connections. This is a big problem for systems that are open to temperature changes.

The threat of corrosion is also always there. Even in closed-loop wet systems, the minerals and oxygen in the trapped water slowly break down metallic materials at weak junctions. When metals that are not compatible touch each other without being properly separated, electrochemical reactions happen that weaken and pit the fitting walls. This speeds up galvanic corrosion in systems not utilizing a Grooved Equal Tee.

Impact on Safety and Operations

When leaks happen, the problems go beyond damage to property. System pressure drops make it less likely that sprinklers will work when there is a real fire. A lot of money is lost when water damages finished rooms, electrical systems, and goods. Regulatory compliance is at risk because NFPA 25 inspection standards say that visible leaks must be fixed right away, which could mean expensive emergency service calls and system shutdowns during business hours.

Maintenance teams have more work to do than ever before, like reacting to reports about leaks, checking the pressure, and writing up what they did to fix the problem for insurance purposes. These operational interruptions make the building less useful and make tenants less confident in the facility management team's abilities.

What is a Grooved Equal Tee and Its Role in Fire Sprinkler Systems?

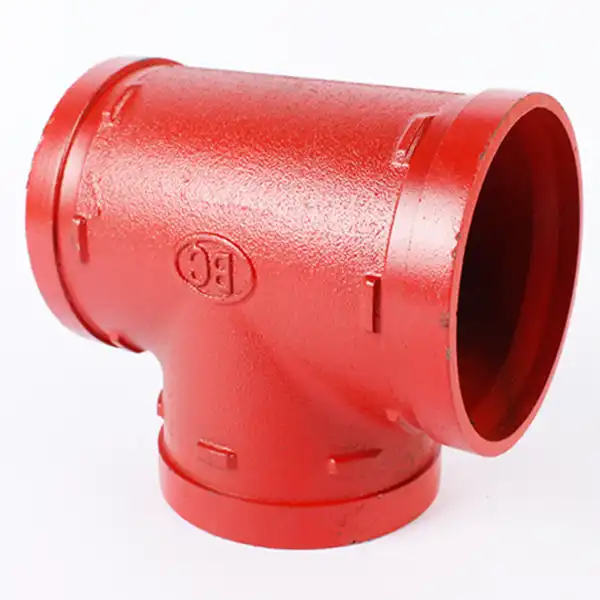

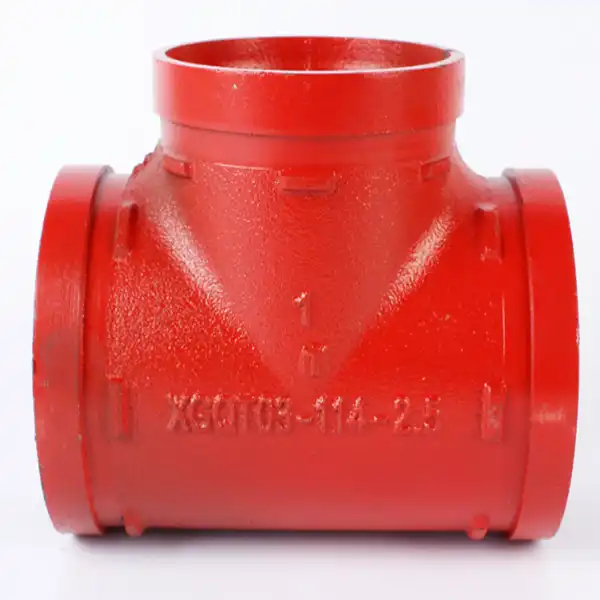

A Grooved Equal Tee is a three-way hydraulic joint where a main supply pipe splits into two secondary lines with the same width. The unique feature is the grooves that are rolled or cut into each exit end. These grooves make mechanical interlock points for attaching the coupler.

Construction and Material Specifications

Good grooved tee fittings are made from ductile iron that meets the standards of ASTM A536 Grade 65-45-12. This material has a tensile strength of more than 65,000 psi, which is much higher than gray cast iron options. It is also flexible, so it doesn't get damaged by impacts during shipping and installation. The casting process makes the wall thickness the same all the way through the fitting body, so there are no thin spots that are likely to break soon.

Manufacturing involves precision casting followed by CNC machining of groove dimensions. ANSI/AWWA C606 standards must be followed to the letter for the groove geometry, and depth tolerances are usually within ±0.015 inches. This level of detail in measurements makes sure that the gaskets compress properly and that the couplings connect properly with parts from different manufacturers. Red alkyd enamel coating or hot-dip galvanization according to ASTM A153 are two surface finishes that offer corrosion protection suitable for wet fire sprinkler settings.

How Grooved Connections Create Leak-Proof Seals

During the building process, a rubber gasket is put around the end of the pipe and slid into the gap. The two-piece coupler housing clamps over the joint, and bolts pull the housing pieces together. This pushes the gasket into the slot. This compression makes a seal that works from all angles and stays strong even when pressure is applied. The mechanical connection can handle linear movement caused by temperature expansion, usually allowing 0.25 to 0.5 inches of axial movement without affecting the integrity of the seal. This flexibility keeps the stress from building up, which is what breaks rigid joints.

The ability to deflect at an angle allows for minor misalignment during installation and building settlement afterward. The gasket material, which is generally EPDM rubber that can handle water up to 230°F, stays flexible even after decades of use, adapting to surface imperfections that would make metal-to-metal bonding impossible.

Technical Advantages of Grooved Equal Tees in Leakage Prevention

Grooved mechanical joints improve performance in measured ways that directly address the failure modes we talked about earlier. Knowing these benefits helps buying teams defend their choices about specifications and guess how reliable a Grooved Equal Tee system will be in the long run.

Rapid Installation Reduces Human Error

For traditional welded or threaded connections to work, skilled workers have to hurry through difficult steps. Welding uses heat that can change the alignment of pipes and needs to follow fire watch rules. It's important to be precise when using a die to cut threads and when applying sealant—mistakes in either step can lead to leaks.

Grooved fitting makes the process a lot easier. Technicians use movable roll grooving tools to groove the ends of the pipes, then place the tee, put the seals into place, and use standard wrenches to lock the connections. The branch connection is finished in minutes instead of hours. This slower speed means that installation mistakes are less likely to happen. Visual confirmation of proper gasket seating and coupling alignment lets you confirm quality right away, before the pressure is applied. According to separate studies, installing grooved systems takes about half as long as installing welded systems. This saves money on labor and speeds up the project finish timeline.

Superior Durability Under Operational Stress

The metallurgical structure of ductile iron makes it very resistant to wear stress. The spheroidal graphite microstructure lets the material absorb impact energy without breaking, which is very important when water hammer events cause pressure spikes that last for a short time and reach over 1,000 psi. When made to the right standards, grooved tees can normally handle working pressures of up to 500 psi with safety factors higher than 4:1.

Corrosion resistance comes from both the materials used and the coverings that protect them. In normal installs, red enamel finishes act as a shield, and in harsh settings, galvanized finishes offer protective zinc that is used as a sacrifice. Since there are no threaded parts, there are no stress lifters, which are where crevice rust usually starts. Case studies from hospitals and data centers show that grooved systems can work without leaks for more than 30 years with little upkeep. This level of dependability supports lifetime cost analysis that favors grooved technology.

Accommodation of Thermal Movement

When the temperature changes by 100°F, steel pipe expands by about 0.72 inches for every 100 feet. This growth puts a lot of stress on sprinkler systems that are exposed to process heat sources or to temperature changes that happen with the seasons. Welded tee connections hold things in place rigidly, putting stress on the adjacent pipe sections and support hangers to expand.

Joints with grooves work as controlled expansion points. The contact between the coupling and the gap lets the pipe move axially by a few millimeters without the seal breaking down. Because it is flexible, thermal stress is spread across many joints instead of being concentrated at a few set places. This stops the buckling and joint separation that happen in rigid pipe systems when they are heated and cooled.

Comparing Grooved Equal Tee with Other Tee Types: Which Best Prevents Leakage?

Comparing connection technologies in a fair way helps with purchasing decisions. There are pros and cons to each method when it comes to stopping leaks in business fire protection uses. A quality Grooved Equal Tee offers distinct advantages over alternative joining methods.

Welded Tee Connections

When done right, welded joints make permanent, rigid connections that are great at keeping pressure in. Skilled welders can make links that are almost as strong as the parent pipe. Quality control is hard because the results of welding rest a lot on the skill of the user, the conditions of the work area, and how thoroughly the inspections are done. Porosity, incomplete fusion, and slag inclusions all make leak paths possible that can't be seen at first glance. When you weld, you leave behind residual stress and heat-affected zones that are more likely to rust. Cutting and re-welding is needed for repairs or modifications, which causes downtime and pollution issues in buildings that are already occupied.

Threaded Tee Fittings

Threaded connections are easy to use and only need a few simple hand tools. When used on pipes with larger diameters, their weakness becomes clear: threading makes the pipe wall thinner at the connection point, which makes the section weak. Thread seals and bands are what keep things closed, but if you don't use them right, they can leak. Threaded joints gradually become looser over time, so they need to be re-tightened from time to time. Takedowns for maintenance damage threads, making reassembly less reliable. Corrosion is very bad for thread roots, especially in systems where there are long times of stillness between flow events.

Performance Advantages of Grooved Technology

Mechanical joints with grooves have the power of welded links and the freedom and serviceability of mechanical systems. The full thickness of the pipe wall stays the same—removing material doesn't lessen the pressure limit. When it comes to surface flaws, gasket sealing technology works better than metal-to-metal thread sealing. Being able to take apart and put together links without damaging them makes system changes and upkeep easier, and you don't have to make scrap or use special tools. In commercial fire protection applications, grooved systems always show better value when looking at the total cost of ownership, which includes installation labor, system downtime, and maintenance over the system's lifetime.

Procurement Tips for Ensuring Quality Grooved Equal Tees for Fire Sprinkler Systems

When choosing the right Grooved Equal Tees, you need to pay attention to certifications, material verification, and the supplier's abilities. Professionals in procurement who want to keep their companies safe from low-quality parts should look at a number of important factors.

Certification Requirements

For fire safety purposes, fittings must be listed by well-known testing laboratories. UL and FM Global certifications make sure that Products" target="_blank" style="color:blue" >products meet performance standards by putting them through strict testing procedures such as fire endurance testing, pressure testing, and long-term reliability testing. These lists aren't just nice to have; they're required by law in most places and are part of your insurance policy. Check that the supplier's paperwork has up-to-date certification numbers that can be linked to specific product models and size ranges.

Having ISO 9001 certification means that the company uses quality management systems to make sure that the products they make are always the same. It's especially important to do this when buying from foreign sources and can't do direct factory checks. The CE mark shows that a product meets European safety standards, which is important for projects that need to follow international building standards or specifications.

Material and Dimensional Verification

Please ask for certified material test results that list the chemical make-up and mechanical qualities of the ductile iron that was used in the production. The standards in these reports should be based on ASTM A536 and they should include the outcomes of spectrochemical analysis and tension tests. Dimensional inspection certificates that show the groove geometry meets ANSI/AWWA C606 tolerances are proof that the couplings will work properly.

Reliable providers keep a lot of stock on hand, which lets them quickly fill common configurations. When space is limited, like in retrofit applications, custom sizing needs to be met. This means that manufacturers need to be able to offer engineering support and flexible production options. Custom orders with lead times of 7 to 15 days show that the manufacturing operation is responsive and can meet project deadlines without sacrificing quality.

Supplier Technical Support

A relationship with a source is valuable for more than just getting products. Technical advice during the design process helps choose the best fitting configurations and optimize pipe layouts. Three-dimensional CAD models make it easier to work together with other building systems, which means there are fewer problems in the field that require costly changes. Support after installation, such as troubleshooting tips and upkeep suggestions, saves your investment over the life of the system.

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and can help with commercial fire protection. Before they are shipped, our ductile iron grooved fittings go through strict quality control checks that include making sure the materials are correct, checking the sizes, and testing the product's resistance to water pressure. Our parts meet foreign standards for fire sprinkler use because they are certified by ISO9001, CE, and UL/FM. Our products are available in red-painted or galvanized finishes and range in nominal diameter from 32mm to 350mm. Standard setups can be shipped right away from our 2,000-ton collection, while custom sizes take 7–15 days to ship.

Conclusion

In conclusion, Grooved Equal Tee fittings stop commercial fire sprinklers from leaking by having an engineered design that lets heat move, absorbs vibration, and makes seals that are strong and can handle operational stresses. The mechanical coupling technology gets rid of the typical mistakes that happen during fitting that happen with welded and threaded options. It also makes the products last longer. Ductile iron construction is strong and doesn't rust, which are both important for years of solid work. When purchasing UL/FM approved grooved fittings from ISO-qualified makers, procurement professionals protect their buildings from the safety risks and financial costs that come with sprinkler system leaks. Grooved technology is the best choice for current business fire protection systems that need to be reliable. It is easy to install, can be easily maintained, and has been shown to work in the past.

FAQ

Are grooved equal tees suitable for high-pressure fire sprinkler systems?

Grooved Equal Tees made of malleable iron can handle working pressures of up to 500 psi, which is higher than the 150–300 psi that most industrial fire sprinklers need. UL and FM certifications make sure that pressure ratings are correct by testing them in destructive ways. Always make sure that the certificates of a product meet the pressure and safety factor needs of your system design.

How can I verify authentic UL/FM listed grooved fittings?

Genuine listed fittings have permanent markings that include the name of the maker, the grade of the material, the size number, and a certification mark that is cast or stamped into the body of the fitting. Use the model number to check these marks against UL's online certification listing or the FM Approval Guide. Reliable suppliers send certification paperwork with shipments so that it can be kept in the procurement file.

What maintenance prevents leakage in grooved connections?

Visual checks for gasket protrusion, coupling bolt tightness, and surface corrosion should be done on a regular basis to find problems before they happen. Every year, the torque on coupling nuts is checked to make sure they stay properly compressed. Vibration and temperature cycling can gradually weaken the clamping force. When changes are made to a system, replacing the gaskets keeps the seals from losing their effectiveness. Keeping the right water chemistry in the system reduces internal corrosion that could damage fittings over long periods of time.

Secure Your Fire Protection Investment with FLA Industrial & Trading Co., Ltd.

To protect commercial buildings, you need parts that are designed to be reliable. The FLA Industrial & Trading Co., Ltd. makes precise Grooved Equal Tee fittings for fire sprinkler systems that need certified leakage prevention. Our tees made of ductile iron have grooves that are the exact size required by ANSI/AWWA C606 standards and are certified by UL and FM. When purchasing managers are looking for reliable suppliers, we offer quick quotes (within 24 to 48 hours), the ability to make changes for unique designs, and expert help throughout the project. Email our team at sales@flaindustrial.com to talk about your needs and get more information about our products. You can look at our full line of pipe fittings, which are backed by ISO9001 quality assurance, at flaindustry.com.
