Heavy-Duty American F-Clamps for Steel Fabrication and Welding

If you need to hold something very precisely while fabricating or welding steel, the right clamping tool can mean the difference between a clean weld and a costly rework. A F-Clamps/heavy-duty-american-f-clamp">heavy-duty American F-clamp is an industrial-grade fastening tool with iron jaws that can be shaped and a reinforced steel rail that is reinforced. It is designed to hold clamping forces of up to 1,200 pounds without deflection. We make these clamps in seven sizes, from 6 inches to 36 inches, and are approved under ISO9001. Hardware dealers, builders, and manufacturers all over the United States buy them from us.

Specification

Model	Overall Length (mm)	Shearing Capacity (mm)	Standard
6 Inch	150	Ordinary	American Style
10 Inch	250	Ordinary	American Style
12 Inch	300	Ordinary	American Style
18 Inch	450	Ordinary	American Style
24 Inch	600	Ordinary	American Style
30 Inch	750	Ordinary	American Style
36 Inch	900	Ordinary	American Style

Understanding Heavy-Duty American F-Clamps: Features and Applications

Before you pick a clamping method, it's helpful to know what makes a heavy-duty F-clamp different from a smaller one and where each one works best.

What Defines a Heavy-Duty F-Clamp?

Bar clamps and g-clamps are not the same as heavy-duty F-clamps. They have a moving jaw that moves along a sharpened steel rail and a screw rod with an ACME thread that moves quickly. When the jaw body is torqued, it doesn't break, and the 1045 grade medium-carbon steel bar stops the "bar bowing" that can happen when high-pressure glue-ups are done or metal parts are made. The jaws and arms of lighter-duty clamp types often break when they're used. Both of those problems are fixed right away by this plan.

Materials and Finish Options

FLA makes F-clamps with precise steel tracks and screw rods that link to bodies made of cast iron that can be shaped. Paint is used on one finish, which is good for general workshop use inside. One is zinc-plated, which is better for places where there are chemicals or a lot of heat. ISO 9227 says that salt spray won't hurt the zinc finish. That way, the metal won't rust even on the roughest job sites.

Size Range and Capacity Overview

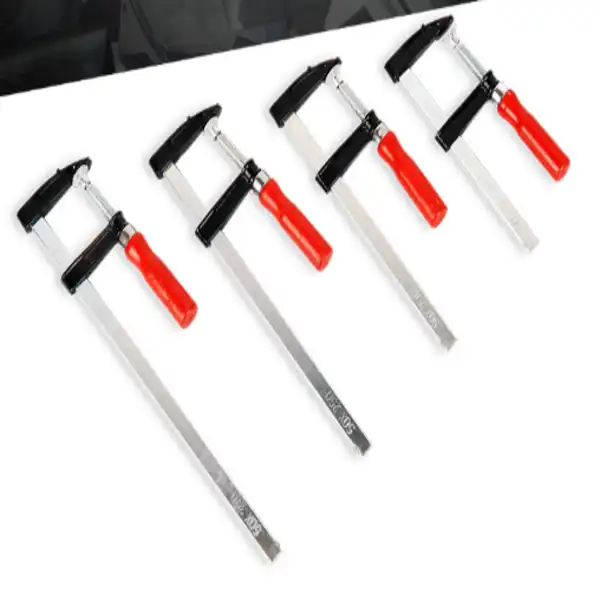

The line comes in seven lengths, ranging from 150 mm to 900 mm. Along with putting together small cabinets, this range can also be used to tack-weld big steel frames. It's helpful to have clamps in a variety of sizes when purchasing teams buy them for various jobs. It depends on the throat depth and opening capacity of the clamp to see if it can reach the workpiece without having to be moved.

How to Use Heavy-Duty American F-Clamps Effectively in Steel Fabrication and Welding?

When you use the clamp correctly, you protect both the workpiece and the clamp itself. In order to get consistent results on the shop floor, here is a useful method.

Preparing the Clamp and Workpiece

Brush the rail grooves with a wire brush and solvent to get rid of any oil or dirt before tightening. Serrations that are dirty stop the clutch plate from engaging all the way, which causes it to slip when it's loaded, especially when grinding or milling is vibrating the machine. Move the moving jaw by hand until it touches the object. Then, use steady, even pressure to apply force through the screw rod. Do not over-tighten with breaker bars because this goes beyond the steel's yield strength and deforms the bar permanently.

Safety Practices on the Job Site

When clamping metal pieces with a Heavy-Duty American F-Clamp, you should always wear safety glasses and gloves. When welding, move the clamp out of the direct weld zone if you can, and use a cloth or copper-coated screw variant to protect the ACME threads from spatter. The iron and steel design can take heat stress well, but over time, direct arc contact will weaken the thread.

Maintenance and Inspection Intervals

You should use machine oil on the screw rod threads every 20 to 30 hours. Regularly check the swivel pad—crimped or ball-joint pads last longer than snap-on ones and are easy to replace. Every three months, check the rail for surface rust and reapply a protective spray that works with zinc if the plating is worn down. These easy steps make the service last a lot longer.

Comparing Heavy-Duty American F-Clamps with Other Clamping Solutions

Not every clamp is good for every job. When purchasing managers know about the mechanical differences, they don't have to worry about over- or under-specifying for their needs.

F-Clamps vs. C-Clamps and Quick-Release Clamps

An F-clamp can be adjusted to have a longer reach, but a C-clamp's throat stays in place. This makes them good for light metalwork. Quick-release trigger clamps make repetitive tasks go faster, but they can only hold up to 300 pounds of steel, which is much less than what is needed for structural steel fabrication. The heavy-duty F-clamp fills in the blanks by being flexible and able to maintain a high level of force. This makes it the best choice for tack welding, formwork, and laminating wood.

When to Choose Each Clamp Type?

When used for concrete formwork or shuttering on building sites, the open-thread design of an F-clamp keeps working even when it gets dirty with cement dust, which is a big plus over options with closed mechanisms. For furniture assembly that needs seams that can't be seen, the rigid bar stops the lateral pressure shifts that ruin glue-ups of flat panels. When both reach and binding force are important at the same time, site leaders and plant managers always choose F-clamps.

Quality Benchmarks and Standards

ANSI B207.1 or DIN 5117 structural load requirements are often used to check the quality of industrial F-clamps. No more than 5% pressure creep should be seen after 24 hours of static load tests at full capacity. The Rockwell HRC scale must be used to check the clutch plate's hardness, and it must be within a range that lets it bite without breaking. The ISO9001-certified production process at FLA keeps an eye on every step, from casting and forging to cutting and final assembly, to make sure that the mechanical performance is always the same.

Procurement Guide for Heavy-Duty American F-Clamps: Sourcing and Buying Tips

It's not enough to just look at prices in ads to find the right F-clamp provider. These are the most important things for procurement managers and product category directors.

Evaluating Supplier Reliability

When searching for a Heavy-Duty American F-Clamp provider, give more weight to companies with clear quality control systems. ISO 9001 certification indicates established procedures for production control, material inspection, and performance testing. FLA Industrial has worked with Fortune Global 500 companies in the US, Germany, and Australia for almost 40 years. The company holds this certification. Its track record demonstrates supply chain stability, which is essential when your schedule depends on tools being available at all times.

Bulk Purchasing and SKU Diversity

It's good for hardware stores and tool wholesalers to work with suppliers who have a lot of SKUs. With seven sizes, from 6 inches to 36 inches, FLA lets buyers get everything they need from a single source. This makes business easier and lowers the cost of running the business. You can save money on each unit when you buy in bulk, and the quality of the package won't suffer, which is important for getting your goods ready to sell.

Customization and OEM Options

Direct involvement from the OEM can help fabrication shops or resellers who need custom solutions for issues like size or branding. At sales@flaindustrial.com, you can talk to FLA about making changes. You can talk about color choices, how to combine sizes, and how to pack the items. There is less of a supply chain when procurement experts talk to manufacturers directly. It is also easy for them to see wait times and quality controls.

Enhancing Steel Fabrication Efficiency Using Heavy-Duty American F-Clamps

Fixes are less likely to happen if the fittings are set up right, so work can keep going. In real life, these things are said to happen when they move from light clamps to heavy-duty ones.

When you put the right-sized F-clamps on steel production lines, they work better in these main ways:

• Accuracy in tack welding: Holding the steel channel and plate in exact alignment during tack welding stops the slippage in alignment caused by thermal expansion. When clamps keep contact force throughout the heat cycle, fabricators say they have to make fewer changes after the weld.
• Setting up multiple clamps on flat panels: Putting two or three clamps across a glue-up or lamination in opposite directions reduces the bow that single-point clamping causes. This method is commonly used to make tabletop and stair parts.
• Fewer tool failures during the middle of the shift: Buying iron-jaw clamps with tested load values will cut down on tool failures during the middle of the shift. When heavy-duty alternatives to trigger clamps were put on an assembly line, one production engineer saw a clear drop in unplanned stops.

Flat panel sets with more than one clamp: Do not clamp at just one point. Instead, spread two or three clamps across a glue-up or lamination to make it less likely to bow. This way of making things is often used to make stairs and table parts. Tools that break down less often: If you buy iron-jaw clamps with known load rates, your tools will break down less during the shift. When heavy-duty options to trigger clamps were added to an assembly line, one worker saw a clear drop in stops that were not planned.

Conclusion

The Heavy-Duty American F-Clamp is still one of the most lasting holding tools for steel manufacturing, welding, and building structures. Fabricators have to deal with real problems, like bars deflecting and slipping. This tool has a strong clamping force, a flexible reach, and is made of iron that can be shaped. Pick the right size and finish, keep the mechanism in good shape, and buy from a reputable seller to boost productivity and cut down on problems on the shop floor. FLA Industrial has seven sizes to choose from, and the styles can be white or zinc-plated. Quality standards under ISO 9001 and decades of experience making these goods back them up.

FAQ

What is the difference between a heavy-duty and standard F-clamp?

Heavy-duty types have stronger steel bars and parts made of iron. They can clamp down with up to 1,200 pounds of force. You can't weld or build with the light-duty ones that come in the box because they bend or slip around 300 pounds.

Can these clamps be used directly in welding environments?

Yes. They're made of steel and iron, so they can stand up to heat well. To be able to make changes to the ACME threads in the future, keep direct metal spatter away from them. Copper-coated screws are safer in places where spills happen a lot.

How often should I lubricate the screw rod?

Every twenty to thirty hours of use, oil the machine. Clean the shifter and rail grooves with fluid and a wire brush if they don't work well or are dirty.

What causes the bar to bend permanently?

A broken bar is often used to add extra force to the clamp's maximum load and push it past its yield strength. This makes the steel rail bend in a flexible way. Never put more than what the maker says the item can hold.

Are these clamps suitable for non-metal materials?

Yes. Its shape makes it work with wood, plastic, and a mix of the two. If you put pads between the mouth and the surface of the thing, it won't get marks.

Partner with FLA Industrial for Your F-Clamp Supply Needs

FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing experience to every heavy-duty F-clamp we produce. Our ISO9001-certified process, seven-size product range, and OEM support make us a dependable heavy-duty American F-clamp manufacturer for distributors, contractors, and fabricators across the U.S. market. Browse our full catalog at flaindustry.com or contact our sales team directly at sales@flaindustrial.com to discuss bulk pricing, custom specifications, and lead times.
