How to Choose a Pressure Reducing Regulator Valve for Plant Systems

Selecting the right pressure reducing regulator valve for your plant system is one of those decisions that directly affects safety, uptime, and long-term operating costs. Get it wrong, and you risk equipment damage, pressure instability, or costly downtime. Get it right, and your system runs steadily for years. This guide walks procurement managers, engineers, distributors, and site supervisors through the key selection factors — from material choice and flow specs to supplier credibility — so you can make a confident, informed purchase.

Specification

Model (DN)	Type
DN50	National Standard Body
DN65	National Standard Body
DN80	National Standard Body
DN100	National Standard Body
DN125	National Standard Body
DN150	National Standard Body
DN200	National Standard Body
DN250	National Standard Body
DN300	National Standard Body
DN50	National Standard Heavy Body
DN65	National Standard Heavy Body
DN80	National Standard Heavy Body
DN100	National Standard Heavy Body
DN125	National Standard Heavy Body
DN150	National Standard Heavy Body
DN200	National Standard Heavy Body
DN250	National Standard Heavy Body
DN300	National Standard Heavy Body
DN50	Stainless Steel Accessories
DN65	Stainless Steel Accessories
DN80	Stainless Steel Accessories
DN100	Stainless Steel Accessories
DN125	Stainless Steel Accessories
DN150	Stainless Steel Accessories
DN200	Stainless Steel Accessories
DN250	Stainless Steel Accessories
DN300	Stainless Steel Accessories

Understanding Pressure Reducing Regulator Valves: Function and Applications

How Does the Valve Work?

The Pressure Reducing Regulator Valve controls the flow of fluid and can be used by itself. Because of a force-balance device inside the pipe, the pressure on the downstream side stays the same even if the pressure on the upstream side changes. Most of the time, this is a spring pushing against a piston or diaphragm. The valve will change how wide it opens based on the pressure upstream as long as that pressure stays the same. No matter if there is flow or not, this will keep things the same further downstream.

Where These Valves Are Used?

These valves are used in a lot of different places. They check to see if the fire safety pipes in tall buildings can keep each floor at the right pressure. Because of these, things don't break when the water supply and HVAC systems of a building quickly gain pressure. To keep tools and pipes safe in water networks, chemical processing lines, and steam transport networks, the pressure needs to be kept in check.

PRV vs. Pressure Relief Valve vs. Pressure Control Valve

People often mess up these three words. The pressure further down the line is controlled by a Pressure Reducing Regulator Valve. A pressure relief valve opens automatically and lets fluid move to a runoff path if the pressure in a system rises above a safe level. After this, the valve needs to be fixed by hand most of the time. Many times, something outside needs to tell a pressure control valve what to do. You can avoid making design mistakes that cost a lot of money if you know the difference.

How much pressure is going into the system, how much pressure needs to go out, and how much flow needs to be at its highest point. The flow rate you want to use must match the valve's flow coefficient (Cv). When the choke flow limit of a valve is reached, it will "droop," which means that when demand rises, outlet pressure falls. The most stable valves have an operating range that is right in the middle of their Cv curve.

Core Criteria for Selecting the Right Pressure Reducing Regulator Valve

Define Your Operating Pressure and Flow Range

Start with your system's inlet pressure, required outlet pressure, and peak flow demand. The valve's Cv (flow coefficient) must match your flow rate — operating a valve near its choke flow limit causes "droop," where outlet pressure drops as demand rises. Select a valve whose operating range sits comfortably in the middle of its Cv curve for stable performance.

Match the Material to Your Media and Environment

Material selection determines the service life of a Pressure Reducing Regulator Valve. Brass works well for clean water, low-pressure air, and general building services. Cast iron suits larger pipe sizes in water mains and fire suppression systems. Stainless steel is ideal for corrosive media, high-temperature steam, or applications requiring strict cleanliness standards. Before ordering, always verify the body material against the fluid type, temperature range, and chemical compatibility requirements.

Choose Between Diaphragm and Piston Sensing Elements

The sensing element affects sensitivity and durability. Diaphragm models respond quickly to small pressure changes and suit outlet pressures generally below 500 psi — ideal for HVAC, water supply, and light industrial use. Piston-type regulators handle higher outlet pressures and tolerate hydraulic shock or vibration better, making them the practical choice for heavy-duty industrial environments. Neither type is universally superior; the right pick depends entirely on your system conditions.

Evaluating Market Options: Comparing Top Pressure Reducing Regulator Valves for Industrial Use

What to Look for in a Supplier?

If you want to find a company that sells pressure-regulating valves, you can't just look at the product specs. To find out about lead times, bulk prices, OEM customization choices, and expert help after the sale, you should call the company. You can easily find brands like Swagelok, Parker, and Emerson in the U.S. market, and they can help you a lot with application engineering. When they need to buy a lot of something, many people have to stick to a tight budget. Direct providers who are ISO and FM-approved can offer the same level of professional performance at a lower cost per unit.

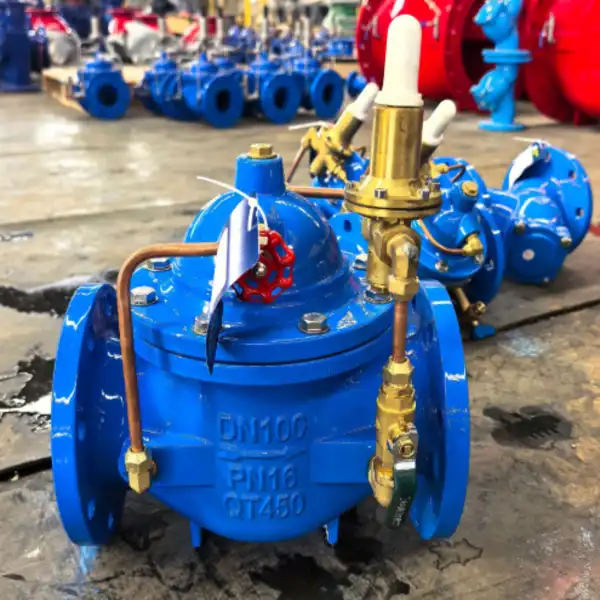

FLA Industrial & Trading Co., Ltd. — Product Overview

For almost 40 years, FLA Industrial & Trading Co., Ltd. has been making things and selling valves. The pressure inside their Pressure Reducing Regulator Valves can be changed. The valves' bodies are made of brass, cast iron, or stainless steel. A pressure valve and a gauge contact are inside the body of the valve. To keep the surface from rusting, a nickel coating or powder coating is used.

Here are the most important things you should know about the item before you buy it:

• Precision downstream control: The internal mechanism holds steady outlet pressure regardless of upstream fluctuation, protecting piping and equipment.
• Durable construction: All three material options — brass, cast iron, and stainless steel — resist wear and temperature extremes for extended service intervals.
• Multiple connection options: The compact body design supports installation in space-constrained pipe runs without special adapters.
• Low maintenance design: The self-cleaning internal design reduces service frequency and keeps operational costs predictable.
• Custom configurations available: Non-standard dimensions or application-specific features are supported with a 7–15 working day turnaround.

A Pressure Reducing Regulator Valve maintains a stable outlet pressure even when upstream pressure changes, protecting downstream pipes and equipment.

Certifications and Compliance

It can be connected in a number of ways, and because it's small, it can be put in pipe runs where there isn't much room for extra adapters.

Design that doesn't need much care: the inside cleans itself, so it doesn't need to be serviced as often. This keeps the cost of running it stable. It is possible to make custom setups. Within 7–15 business days, measures that aren't normal or features that are needed for a certain application can be made.

Best Practices for Installation, Operation, and Maintenance

Installation Guidelines

Place the valve so that it faces the flow direction shown on the body. Make sure there is always a screen in front of the seat to keep dirt from getting to it. Before putting the pipe in, check to make sure it fits the valve's named CV. When the flow rate is low, a valve that is too big can tip over. The valve and the pressure gauge port should be close to each other so that they are easy to reach.

Routine Maintenance Schedule

Every 12 to 24 months, check the valve in running water or safe gas. Things that are used with chemicals, steam, or high processes should be checked at least once a year. Check that the seat doesn't have any cuts and that the spring tension stays the same. Check to see if the diaphragm or piston seal is worn as well. Before they break, put in new seals, O-rings, and poppet seats. Do not wait for them to break.

Troubleshooting Common Issues

Stable changes in flow pressure are usually caused by a dirty seat or a diaphragm that is worn out. While there is no flow, the exit pressure goes up. This means that the seat or poppet needs to be changed right away. We call this creep. When the gas line is in use, the Joule-Thomson effect can be seen on the outside. There are times when you might want to use multi-stage pressure reduction to make sure the gas upstream is dry or to divide the cooling load between two valves.

Making the Final Decision: Tailoring Your Choice to Plant Needs

That way, you can pick the right valve for your plant. Be honest about the working size, the features of the media, and the amount of wear and tear that can be handled. The fire safety system in a tall building needs bodies made of cast iron or ductile iron that are approved by the FM and rated for the working pressure of the system. For a line that works with chemicals, it needs stainless steel that can measure things very accurately. It might be fine to use a small metal air compressor in a woodworking shop.

When catalog items don't work with your pipe layout or pressure class, it's important to use OEM customization. In 24 to 48 hours, FLA's tech team helps with 3D designs and tells you how to use them. This speeds up the process of making specifications, which helps procurement teams that need to finish projects quickly. There are more costs than just the unit price. These include the supplier's warranty support and the detailed documentation that is provided.

Conclusion

To choose a Pressure Reducing Regulator Valve, you must know how much flow and pressure you need, pick the right material for the media, confirm that the sensing element works with your system, and deal with a company that can deliver approved, tested goods on time. It will break down early and need service calls that you didn't plan for if you skip any of these steps. It will last for many years if you take the time to make sure the specs are right at the beginning.

FAQ

How often should I replace the valve's internal soft goods?

For systems that use gas or clean water, seals and O-rings should be changed every three to five years. At least once a year, you should check applications that use chemicals, steam, or high cycles. Change the seat and poppet right away if you see pressure creep when there is no flow. There is no need to wait.

Can these valves handle both liquids and gases?

Yes. Different types made of brass and stainless steel can handle many things, such as natural gas, clean water, compressed air, and more. Before you choose something, you should always make sure that it will work with the medium you want to use. This is very important if the gases or poisons are strong.

What are the warning signs that a valve needs replacement?

Keep an eye out for leaks at the body joints, unsteady outlet pressure that doesn't go away with steady flow, sets that don't stay at the same pressure after being changed, and strange sounds coming from the valve body. Getting a new valve should be your next step if recalibrating and changing the seals don't help. It's safer and costs less to do this.

What is the difference between adjustable and fixed-pressure models?

On the outside of adjustable models is a dial or wheel that lets people set the pressure further downstream within a certain range. This can be used anywhere the pressure needs to change. At the factory, fixed types are set to a certain exit pressure. When things don't change, they work well, and performance shouldn't be affected.

Get a Quote from a Trusted Pressure Reducing Regulator Valve Manufacturer

Regulator for Lowering Pressure FLA Industrial & Trading Co., Ltd. sells high-quality valves made of brass, cast iron, and stainless steel. These valves are useful for fire safety, HVAC, water supply, and running a business. Because FLA has ISO9001, CE, UL, and FM certifications and has standard stock that can be shipped quickly, buy teams in the U.S. can trust FLA as a source for Pressure Reducing Regulator Valves. Check out flaindustry.com or send an email to sales@flaindustrial.com to get a price or help with something technical.

References

1. Zappe, R. W. Valve Selection Handbook. Gulf Professional Publishing, 1999.

2. Smith, P., & Zappe, R. W. Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application. Elsevier, 2004.

3. Bahadori, A. Fluid Pipeline Transportation Systems. Gulf Professional Publishing, 2014.

4. American Society of Mechanical Engineers. ASME B16.34: Valves — Flanged, Threaded, and Welding End. ASME, 2017.

5. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

6. Skousen, P. L. Valve Handbook. 3rd ed. McGraw-Hill, 2011.
