Heavy-Duty T Bar-Clamps for Large Panel Assembly: Load and Span

When you're assembling large panels — whether in a furniture factory, a construction site, or a fabrication shop — the clamping tool you pick can make or break the entire job. A T-Clamp/heavy-duty-t-clamp">heavy-duty T bar clamp is built specifically for these high-demand scenarios. Unlike standard bar clamps or C-clamps, the T bar design spreads clamping force across a wider frame area, giving you a stable, even grip on oversized workpieces. In this guide, I'll walk through everything B2B buyers need to know: load ratings, span selection, tool comparisons, sourcing tips, and proper maintenance.

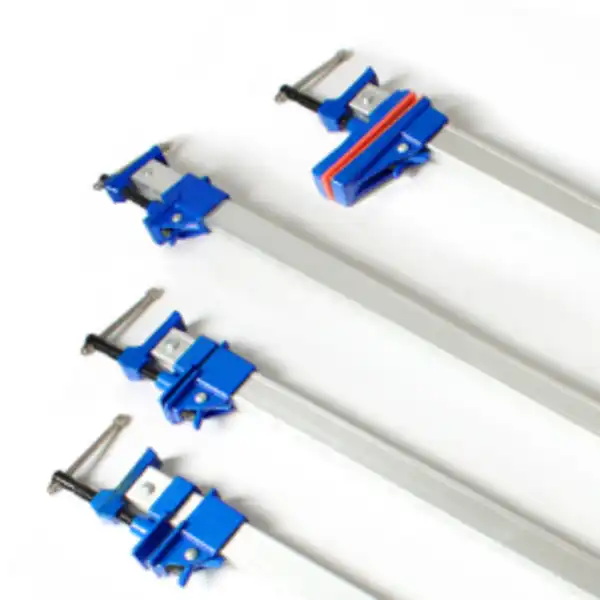

Specification

Specification Model	Maximum Clamping Distance (mm)	Throat Depth (mm)	Total Length (mm)
Heavy Duty T-Clamp 48"	1210	200	1210
Heavy Duty T-Clamp 60"	1520	300	1520
Heavy Duty T-Clamp 72"	1830	300	1830

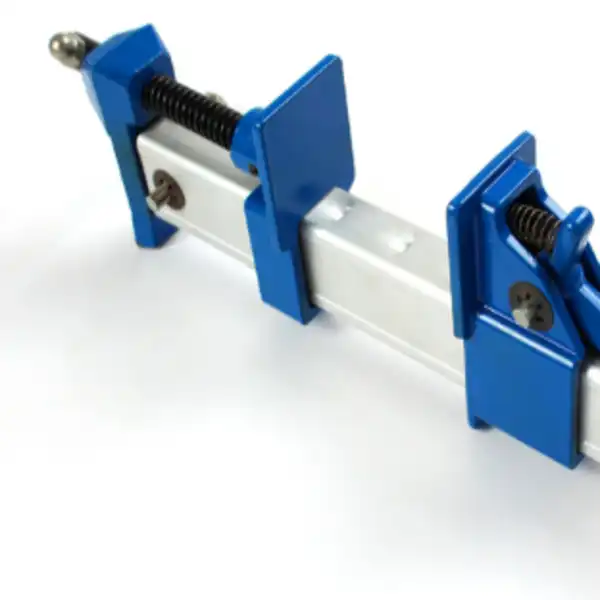

Understanding Heavy-Duty T Bar Clamps: Features and Functionality

What Makes the T Bar Design Different?

Your tool is very important when putting together big panels in a factory, repair shop, or building site. This is how a heavy-duty T bar lock is made to fit you. C-clamps and bar clamps don't hold as well as T-bars because they only grip one side of the frame. You are able to keep big chunks of work steady and even. People who need to buy things for their business will find this guide very helpful. Like how to pick the right span, look at different tools, discover great deals, and keep things in good shape.--- The T-shaped spike at the bottom of these clamps is useful, not just pretty. It's there for a reason. The crossbar lets more of the binding load touch the bar because the foot is wide. One stress point could damage the surface or cause the piece to slip during important steps like gluing, sealing, or putting the piece together. So, stress points don't build up in one spot.

Core Materials and Construction

Most business T-bar clamps are made from carbon steel or alloy steel. Cast iron is sometimes used to make parts of the jaws. These are strong for how small they are, and they still work well after being put on and taken off a lot of times. Steel and stainless steel are used to make FLA's T bar clamps. This steel doesn't bend over time, even in a rough shop.

Typical Use Cases in Panel Assembly

T-bar clamps are often used to bend metal into shape, build furniture, and put cabinets together. They can clamp things that regular clamps can't because they are the right size. Plant managers and project engineers know that the T-bar style will always work the same way when they need tools for making a lot of copies.

Load Capacity and Span Explained: Critical Selection Criteria

How Load Capacity Is Determined?

How much weight can a clamp hold before it breaks or changes shape? This much weight can go on it. It is important to know the thread size of the screw mechanism, the cross-sectional area of the bar, and the grade of the material. FLA's heavy-duty T bar clamp has a strong grip that can hold a lot of weight. Because it's cast, the frame is strong all the way around, making it great for jobs that need to be pressed or stuck together with a lot of force.

Span Length: Matching the Clamp to the Job

Before assembling anything with a Heavy-Duty T Bar-Clamp, make sure the span is the right size. The span is the amount of space between the throat and the mouth. If the clamp's maximum opening isn't wide enough for the panel, it won't hold it in place. Anyone buying clamps should measure the entire work area, including any jigs or fittings. A mistake here costs time and money.

Industrial Performance Across Conditions

That is why it is important for a material to be able to handle chemicals, water, or temperature changes well. FLA paints and powder-coats their clamps so they don't rust or break. Like this, they last longer, even in rough workplaces. When teams add up all the costs of having the thing, this kind of corrosion defense can save them a lot of money.

Comparing Heavy-Duty T Bar Clamps with Other Clamping Solutions

Choosing the right clamp type isn't always simple. Here is a direct look at how T bar clamps perform compared to common alternatives in a number of important areas.

Here are the main types of clamps and how they compare to the T bar:

• G-clamps are small and cheap, but their single point of contact makes wide panels feel unevenly pressured. They're good for small-scale metalwork but not so good for gluing large pieces of furniture or panels together, where even distribution is important.
• The single bar rail on an F-Clamp (also called a "bar clamp") can bend under very heavy loads. They work well for light to medium pressing. The wider position of the T bar makes it safer to press heavy panels.
• Pipe clamps: The fact that they can be adjusted for width is a big plus, and they work well for long glue-ups. But pipe movement under force can make the pressure not even. They also need different pipe stock, which makes transportation more difficult.
• Quick-Release Clamps: These are the fastest and easiest to use with one hand on assembly lines. Because they don't have the same raw clamping force as a threaded T bar, they can't be used for structural or high-load tasks.

These comparisons show that no single clamp type fits all scenarios. But the T bar structure always works better than the others for putting together big panels where load uniformity and frame stiffness are important.

Purchasing Guide: How to Choose and Source Heavy-Duty T Bar Clamps?

Key Technical Specifications to Check

Learn more about something before you buy a lot of it. Check the strongest pushing force (often given in kN or lbs), the bar's length, the throat's depth, the range of mouth openings, and the type of surface treatment. When people buy a lot of an item, they often ask the seller for proof that it is approved and has passed a load test.

Sourcing Options: Standard vs. Custom

A lot of hardware stores and tool shops buy Heavy-Duty T Bar-Clamps from well-known brands that come in standard sizes. On the other hand, companies that make wooden goods often need gaps or jaw shapes that aren't standard. You can pick from standard SKUs, mass production, or custom production when you work with FLA Industrial & Trading Co., Ltd. People who buy something can be sure that it will work with a certain number of other things.

Evaluating Suppliers and Pricing

FLA has been making things for 39 years. Companies in the US, Germany, and Australia that are on the Fortune Global 500 hire them. Their list has over 1,000 things on it. Find out how long the wait time is, how well they package items for bulk shipping, and what their guarantee terms are after the sale before you choose a T-bar clamp seller. To figure out if a price is fair, you should look at both how long something lasts and how much it costs per unit.

Maintenance, Safety, and Best Practices for Heavy-Duty T Bar Clamps

Routine Maintenance Steps

There may still be glue, metal, or wood chips on the bar and threads after each use. Get rid of them by wiping them down. If you don't use the screw mechanism very often, clean it with light machine oil every two weeks. If you work in a dirty or wet area, you should do it more often. Make sure there is no damage or wear on the jaw faces so they fit together well.

Safety Protocols in Industrial Settings

Before you put weight on the clamp, make sure you know how much it can hold. Only loosen the clamp as much as the manufacturer tells you to. This could hurt the clamp and the thing that is being worked on. Safety glasses, gloves, and other PPE should be required for people who work with big panels and clamps. They tell people how to use hand tools at work, and these rules cover jobs that need clamps as well.

Troubleshooting Common Issues

Here's what to do if the clamp screw gets hard to turn: first, make sure the threads are clean and not broken. If the clamp loads but doesn't stay put, the threads may be worn out. If you do this right away, nothing will fall, and the work floor will feel faster.

Conclusion

Heavy-Duty T Bar-Clamps that are strong and well-made do more than just hold parts together. A steady flow of work, worker safety, and good quality production are also supported. Over time, take care of your tools and make sure they are the right size and weight for the job. Also, make sure they come from a company you can trust. These kinds of goods have been made by FLA Industry & Trading Co., Ltd. for almost 40 years. It makes welding, woodworking, and workshop T-bar clamps that are strong and well-designed to meet the wants of buyers in those fields.

FAQ

How do I size a T bar clamp correctly for large panel work?

Find the panel's full thickness or width, taking into account any fixture parts. Choose a clamp with a jaw range that fits the size of the hole you need, not one that is too small or too large. If the size is too close to the largest hole, the binding force may not work as well.

Can these clamps be reused across multiple production runs?

Yes. High-quality T-bar clamps with threads and jaw surfaces that are not damaged can be used again and again. Before each use, check the screw mechanism and the places where the jaws touch. If you see thread wear or frame deformation in a clamp, you should get a new one.

What maintenance keeps clamping force consistent over time?

The three best habits are to lubricate the threads often, clean the clamps after each use, and store them somewhere dry. The most common reason screws wear out too quickly in production settings is that they aren't oiled enough.

Are custom span sizes available for specialized assemblies?

Yes, FLA Industrial & Trading Co., Ltd. can handle OEM and special orders from customers who need bar lengths, jaw setups, or surface treatments that aren't normal. Send your detailed plans or specs to the sales team.

What surface finish protects against rust in high-humidity shops?

An industrial paint finish or a professional powder coat finish will protect against oxidation. This treatment is built into FLA's clamps, so they can be used in workshops near the coast or in areas with a lot of moisture.

Request a Quote from FLA Industrial & Trading Co., Ltd.

FLA Industrial & Trading Co., Ltd. has manufactured reliable Heavy-Duty T Bar-Clamp Products" target="_blank" style="color:blue" >products for almost 40 years, so you can trust their quality. High-quality alloy steel, a rust-resistant finish, and precision milling ensure our clamps perform consistently. We offer fast shipping to customers in the US and handle both bulk orders and custom requests. First, go to flaindustry.com or sales@flaindustrial.com and type in your question.
