Grooved Flange Adapter Selection: Avoiding Pipe Connection Mismatches

When procurement teams ask me how to prevent costly pipe connection failures, my answer almost always starts with the fitting type they choose. A grooved flange adaptor is a split-housing mechanical fitting that connects grooved pipe ends to flanged equipment — valves, pumps, and meters — without welding. Selecting the wrong size, pressure class, or material causes leaks, unplanned shutdowns, and regulatory non-compliance. This guide gives B2B buyers in construction, HVAC, fire protection, and plumbing a practical framework to get that selection right the first time.

Specification

Type	Model (DN)	Pipe Outer Diameter	Material Options	Surface Treatment
Standard	DN65	76mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized
Standard	DN80	89mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized
Standard	DN100	114mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized
Standard	DN125	140mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized
Standard	DN150	165mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized
Standard	DN200	219mm	Ductile Iron / Carbon Steel	Epoxy Coating / Galvanized

Understanding Grooved Flange Adapters and Their Role in Pipe Connections

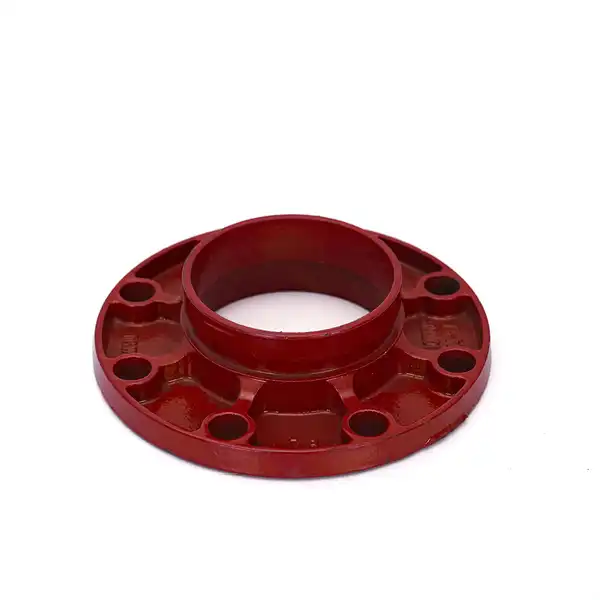

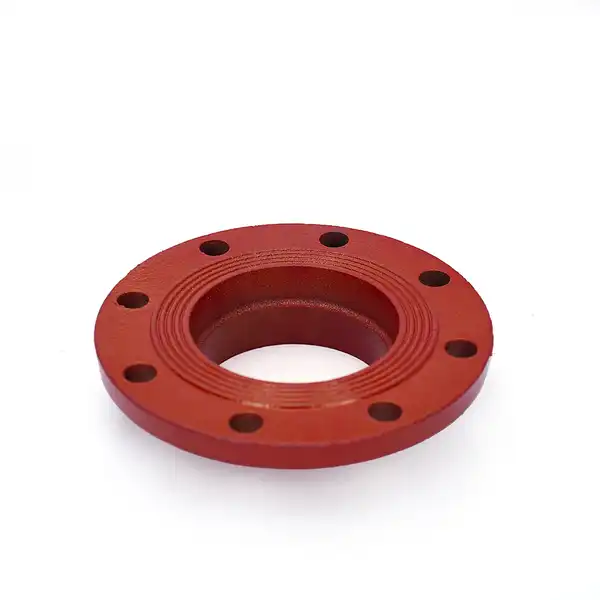

What Is a Grooved Flange Adapter?

One type of transition fitting is an adapter with a curved lip. It has a grooved end that fits into the roll-groove or cut-groove of a pipe and a flanged face that can be bolted directly to tools, valves, or pumps. With this two-way link design, engineers can put together parts that have both grooved and standard bolted contacts. This is very helpful for both old and new projects that need to connect grooved distribution lines to old flanged equipment.

Materials and Construction

Most adapters are made from ASTM A536 Grade 65-45-12 malleable iron. This kind of iron can hold its shape much better than regular cast iron. When it comes to oil and gas lines with high pressures, carbon steel types work well. There is an EPDM gasket inside the water and fire systems that reacts to pressure and can handle temperatures from -34 °C to +110 °C. It has a Nitrile seal for fuel service. To protect against corrosion in harsh environments, hot-dip galvanization to ASTM A153 and fusion-bonded red epoxy coating are used.

Industry Applications

There are a lot of different devices that use these parts. In fire pump rooms, they connect warning check valves with curved pipes. With these, you can connect water mains with large grooves to chillers and heat exchangers in HVAC mechanical rooms. For water treatment plants, this is the exact part they use to link magnetic flow meters with flanges to lines with holes in them. Before the bolt is tightened, the adapter can turn all the way around. This lets workers line up the bolt holes perfectly without having to move the pipe spools.

Core Causes of Pipe Connection Mismatches and How to Avoid Them

Dimensional Discrepancies

Most of the time, a mismatch is caused by a bolt circle diameter (BCD) that doesn't match the piece of equipment it is meant to fit. An ANSI Class 150 adapter and a PN16 valve flange do not have the same circle diameter or number of bolt holes, so they will not fit. Before you place an order, you should always look at the equipment's flange specification sheet. It's also important to compare the thin wall of the pipe to the width of the groove-key. Under surge pressure, the pipe can slip if the key-groove fit isn't tight.

Material and Pressure Rating Errors

In a high-chloride coastal area, ductile iron will rust faster and last less long if you use it without a protective coating. Installing a Grooved Flange Adaptor rated for 150 psi on a system with water hammer spikes above 300 psi creates the same risk. At some point, something will break. Many grooved flange adapters can handle up to 300 psi (20.7 bar), while heavy-duty ones can handle up to 365 psi (25 bar) and are UL and FM approved. To match the pressure rating, you should consider both the machine's regular working pressure and its worst-case transient.

A Real-World Lesson

Grooved flange adapters were bought from two different Southwest U.S. sources at different times during the job. ANSI 125 drilling was used on the first batch, and ANSI 150 drilling was used on the second batch. For small diameters, they look the same size, but the bolt hole designs were different for 6 inches and bigger sizes. This meant that they had to be bought all over again, which took two weeks and cost a lot of money. There would have been no problem at all if they had only used one source whose measures were consistent with ANSI B16.1 and B16.5.

Comparing Grooved Flange Adapters to Alternative Pipe Connection Solutions

Grooved Adapter vs. Weld Neck and Slip-On Flanges

People who are qualified to weld need heat permits, certified welders, and a check after the weld. When the width is big, these costs add up quickly. It saves time and keeps buildings safe from fire because a curved flange adapter doesn't need a heat source. While slip-on flanges may seem like a good deal at first, they aren't as flexible as grooved fittings when it comes to small angles. It's important to do this for systems that are affected by changes in temperature or building settlement.

Grooved Adapter vs. Threaded Fittings

This type of connection works well for low-pressure lines that have a small diameter. Taking something apart for repair is a lot of work when the pressure is more than 2 inches. Thread engagement stops working consistently at that point. It's as easy to take apart a grooved flange adapter as it is to remove the housing nuts. That's it; it doesn't take hours. The company saves money on direct running costs during planned repair windows because of this speed.

Material Choice: Ductile Iron vs. Carbon Steel

When selecting a Grooved Flange Adaptor for fire safety, HVAC, and water lines, cast iron is often a practical choice. With the right coating, it offers a good balance of price, ease of use, and corrosion resistance. For gas, oil, and steam lines that require greater tensile strength, carbon steel adapters work well. Buyers shouldn't choose between materials based on price alone. It is also important to consider the temperature, pressure class, and type of fluid.

Practical Guide to Selecting and Procuring Grooved Flange Adapters

Pre-Order Checklist

The following should be checked by buying teams before they place a large order:

• Pipe groove standard: Verify whether the pipe carries a roll-groove or cut-groove profile, as key-seat dimensions differ.
• Flange drilling pattern: Confirm ANSI 125/150 or PN10/PN16 from the equipment's nameplate or specification sheet.
• Pressure class: Cross-reference system design pressure, including surge allowances, against the adapter's rated working pressure.
• Gasket material: Specify EPDM for water, fire, and HVAC service; Nitrile for petroleum-based fluids.
• Coating requirement: Request fusion-bonded epoxy (minimum 80–100 microns) for indoor water systems or hot-dip galvanization for buried or exposed outdoor installations.

If you need a gasket for water, fire, or HVAC, choose EPDM. If you need one for oil-based fluids, choose Nitrile.

For outdoor or underground installs, ask for hot-dip galvanization. For water systems inside, ask for fusion-bonded epoxy (at least 80–100 microns).

Sourcing and Quality Verification

Every batch of grooved flange adapters that are made should be tested hydrostatically at 1.5 times the rated working pressure. For a 300 psi unit, this means that the test should be done at 450 psi. To keep the steel from breaking when the pressure goes up, metallographic research should show that the ductile iron nodularity is above 90%. With UL 213 or ISO 6182 gasket aging tests, you can see how flexible something will be over time. Warranty claims and site failures are less likely to happen when you buy from companies that have written down their quality control procedures and test records that can be checked.

Size Transition and Customization

Different types of size-transition adapters do more than just straight adapters. They make the pipe smaller while keeping the flow speed the same, which is a common need in designing building risers. After being precision cast and CNC cut, the parts are very close in size, so they seal well even after being put together and taken apart many times. Custom orders don't go over schedule when project needs don't fit into a catalog size because promised lead times and clear technical plans are in place.

Conclusion

You should choose a Grooved Flange Adaptor that fits the pipe groove and the corresponding standard flange. It should also have the right pressure rating for the system, including short-term surges, and the right material and coating for the fluid and environment. Purchasing teams can avoid delays and extra costs caused by incompatible fittings by using an organized pre-order checklist and buying only from manufacturers with clear quality inspection records. These fittings are suitable for plumbing, HVAC, fire protection, and water treatment projects across the United States.

FAQ

Can a grooved flange adapter mate with a raised-face flange?

Sure, but be careful. The adapter's sealing surface is flat. As per ANSI B16.5, the gasket must properly bridge the raised face when paired with a raised-face flange so that the flange ears don't leak or get squished unevenly.

What bolt torque sequence should I follow?

Make the bolts that join the two flanges tighter in a star (criss-cross) pattern so that the gasket tightness is even. The force levels for the housing hinge bolts must be met so that the metal-to-metal contact at the bolt pads can happen. Depending on the pipe size, this is usually between 60 and 100 ft-lbs.

Is this fitting compatible with wafer-style check valves?

No, most of the time. Wafer valves need a full flange face on both sides to close and fit inside the bolt circle. Putting a short spool piece between the adapter and the valve will fix this.

Does the adapter handle thermal expansion?

There is a set place to connect at the connector. If the temperature changes a lot, put expansion loops or flexible curved connections next to the adapter. This will let it move without putting too much stress on the joint. It is important to check that the cutting on the adapter matches the standard for the flange on the matching equipment.

How do I choose between ANSI 125/150 and PN10/PN16?

). Each system has a different number of bolt holes and circle diameters. If you want to order something, you should always look at the flange spec sheet first.

Partner With FLA Industrial for Your Next Pipe Fitting Order

We at FLA Industrial & Trading Co., Ltd. make fittings based on what we've learned from making things for almost 40 years. Grooved Flange Adaptors can be made from ductile iron and carbon steel. We can also do precision CNC machining, fusion-bonded epoxy coating, and galvanized finishes. All of these choices come with tested batch hydrostatics and clear records of their sizes. You can send an email to sales@flaindustrial.com or go to flaindustry.com to get a list of our Products" target="_blank" style="color:blue" >products, talk about your project, or get a quote for your next big order.
