Standard American C-Clamps for Welding Fixtures: What Buyers Should Check

When sourcing clamping tools for welding fixtures, choosing the right standard American C-clamp can directly affect weld accuracy, worker safety, and production output. Built from high-strength ductile iron frames paired with precision-machined steel screw rods, these clamps deliver the holding force that welding and metal fabrication demand. Unlike general-purpose clamps, the American C-clamp design follows specific dimensional standards—throat depth, jaw opening, and frame geometry—that align with ASME B107.410 requirements. This guide walks procurement teams, distributors, and contractors through the key checkpoints before placing a bulk order.

Specification

Specification	Rod Diameter (mm)	Rod Length (mm)	Total Length (mm)	Middle Width (mm)
4 Inch	22	115	195	50
5 Inch	22	145	240	60
6 Inch	22	170	270	65
8 Inch	22	227	340	85
10 Inch	22	275	395	85
12 Inch	22	332	450	85

Understanding Standard American C-Clamps and Their Role in Welding Fixtures

What Defines This Clamp Type?

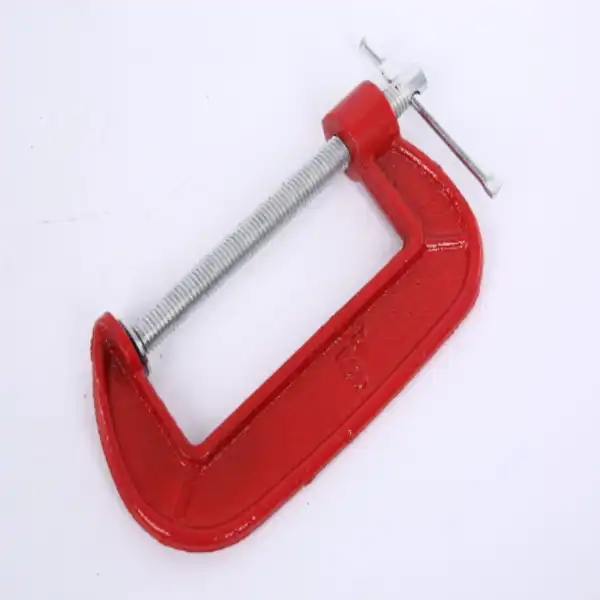

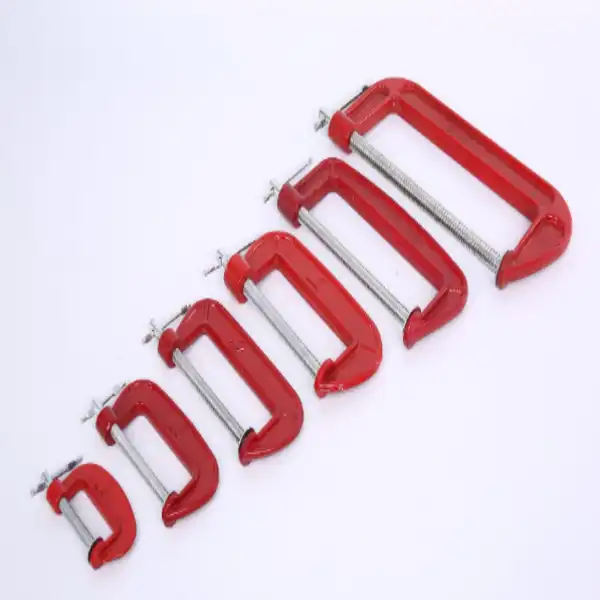

The clamp's name comes from the C-shaped frame that it is made of. As the frame is made with an I-beam cross-section, the gripping stress is spread out evenly. This prevents frame shifting, which happens when the frame bends under load and loses its grip. The throat depth and jaw opening are the two most important measurements that people look at. There are sizes from 4 inches to 12 inches, and each size works best for a different thickness of board.

Material Standards That Matter

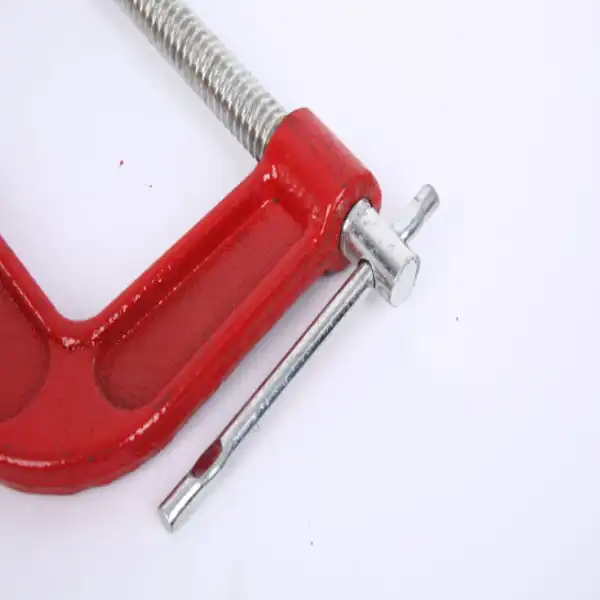

How well the frame works depends on what it's made of. There is no way that ductile iron frames can break when they are quickly loaded because they are strong enough to hold at least 65,000 PSI. To make sure it always transfers torque, the steel screw rod is cold-drawn and thread-rolled. All of the sizes are 22 mm across. Because these materials are mixed together, the clamp is strong even after being strengthened many times in arc welding, where heat stress is always present.

How Do These Clamps Fit Welding Fixture Work?

When pieces move in welding fixtures during full-pass or tack welding, the finished pieces are not the right size. A good-quality C-clamp holds steel plates, angle iron, or building parts in place while they are being welded. While shops that work with structural steel I-beams, pipe flanges, or chassis parts join by hand or partially automatically, these clamps are used to maintain standards.

Key Criteria to Evaluate When Choosing C-Clamps for Welding Fixtures

Dimensional Accuracy and Size Selection

It tells you how far the clamp can reach from the edge of the piece of work. For welding setups where the clamp needs to be able to clear weld beads or edge preparations, this size can't be changed. To give you an idea, the 12-inch model is 450 mm long and 85 mm wide in the middle, so it can reach and touch bigger structural parts. Make sure the clamp size fits the shape of the thing you want to buy before you buy it.

Surface Finish and Corrosion Resistance

A Standard American C-Clamp used for welding can be exposed to heat, spatter, and water. Normal paint doesn't protect against damage as well as a powder-coated finish. When measurements need to be exact and the shop environment can be controlled, an oxide (blackened) finish is better. For outdoor construction or industrial bays exposed to heavy rain, powder coating is the best choice. Checking the finish type before buying helps avoid costly repairs down the road.

Load Capacity and Safety Compliance

Each clamp size can hold a certain amount of weight. People who want to buy clamps should be shown proof that they have been torqued to 150% of their claimed capacity without permanent deformation. It's also important to make sure the threads are smooth when you join. As per ANSI B1.5, when using an Acme tool to check the threads, the spindle should be able to move freely and not slop or stop, as these are both early signs of wear. Their ISO9001 certification shows that they have a quality control method that can be used for all of their goods.

Comparing C-Clamp Types for Welding Fixture Applications

Choosing between clamp types is a practical decision, not just a technical one. The table below gives a quick reference, but the paragraphs that follow explain where each type fits.

Standard American C-Clamps vs. F-Clamps

F-Clamps allow faster jaw adjustment over long spans, making them popular in woodworking. In welding, however, their longer reach arm introduces flex under high tightening torque. The American C-clamp's rigid frame handles higher clamping force per unit weight, which is why fabrication shops default to it for fixture work where positional accuracy is non-negotiable.

Standard American C-Clamps vs. European C-Clamps and G-Clamps

European C-clamps and G-clamps share a similar shape but differ in throat geometry and load ratings. The standard American design follows GGG-C-406D Federal Specifications, which define the strength-to-throat-depth ratio. European equivalents often carry lower proof load ratings and use cut threads rather than rolled Acme threads, reducing torque efficiency by roughly 20%. For heavy-duty metalworking in U.S.-based operations, the American standard clamp is the safer specification choice.

Quick-Release Clamps and Pipe Clamps

Quick-release toggle clamps are fast but apply lower clamping force—adequate for light positioning, not for holding structural steel during a full weld pass. Pipe Clamps work well for edge-gluing in woodworking but lack the jaw rigidity required for welding fixture duty. When the task involves high-heat metalworking, the standard American C-clamp remains the appropriate tool.

Procurement Insights: How to Buy the Right Clamps for Your Operation?

To find the right Standard American C-Clamp supplier, you need to do more than just compare prices in catalogs. These are the main things that experienced purchasing managers look at when evaluating a seller before making a decision.

• Verify ISO9001 certification: This confirms the manufacturer maintains documented production controls, from raw material inspection through final packaging. Ask for the certificate scope and validity date.
• Request proof load test reports: Batch sampling data showing 150% load testing without frame deformation is the industry standard for heavy-duty clamps.
• Confirm lead times for standard and custom orders: Suppliers with on-hand inventory ship standard sizes immediately. Custom dimensions should realistically deliver within 7–15 days.
• Check finish options against your application: Confirm whether painted, blackened, or powder-coated finishes are available and whether the supplier can produce to your specified environment requirements.
• Ask about after-sales documentation: Full technical drawings, weight confirmations, and 3D files are standard deliverables from a serious industrial supplier.

Ask about the paperwork that comes after the sale. A real industrial supplier will always send full technical sketches, weight reports, and 3D files.

Practical Buying Checklist: Standard American C-Clamps for Welding Fixtures

To make sure the clamps work with your fixture, read this list over before you sign off on a purchase order.

• Frame material: Ductile iron with tensile strength ≥ 65,000 PSI or drop-forged steel.
• Screw rod: 22mm diameter, cold-drawn steel with rolled Acme threads, hardness HRC 35–45.
• Size range: Confirm availability from 4-inch through 12-inch to cover fixture variety.
• Surface finish: Powder-coated for outdoor/humid use; blackened for controlled indoor environments.
• Thread gauging: ANSI B1.5 go/no-go verification documented in QC reports.
• Swivel pad retention: Check crimping integrity—pads must not detach under shear force.
• Proof load documentation: Batch test records at 150% of rated capacity.
• Certification: ISO9001-certified production facility.

Make sure you know what's going on with each item before you send it out. If there are holes in the documentation, you can tell that quality control is not being done well.

Conclusion

The quality of the weld, the accuracy of the device, and the worker's safety can all be affected by the clamp that is used. The Standard American C-Clamp is made of stiff iron frames and steel screw rods that are precisely cut. Industrial welding can be done with it because it has the right load values and consistent sizes. Some of the most important things for buyers to look at are the material grade, thread standard, surface finish fit, and proof load testing by a third party. When purchasing teams buy from a company that is ISO9001-certified and has clear QC documentation, they can place large orders without worrying about the quality of the goods.

FAQ

What is the difference between a Standard American C-Clamp and a European C-Clamp?

The GGG-C-406D Federal Specifications and ASME B107.410 say that the ratio of strength to throat depth should be larger. This is what most American designs do. Some European C-clamps can't hold as much weight and have cut threads that don't transmit torque as well as rolled Acme threads on American-standard types.

How do I prevent welding spatter from seizing the threads?

Put a high-temperature anti-seize grease on the disks before you use them. Some industrial clamps have copper-plated spindles that keep liquid spatter from sticking to the thread surface. This is important because liquid spatter is one of the main reasons why threads get damaged in factories.

Is ductile iron safe for heavy-duty welding fixture use?

Ductile iron won't break easily when suddenly loaded if its tensile strength is at least 65,000 PSI. Because of this, it is a good frame material for welding. It lasts longer and doesn't break as easily as regular gray cast iron.

What sizes should a distributor stock for welding applications?

The 6-inch, 8-inch, and 10-inch sizes are big enough for most work on structure welding clamps. In manufacturing, building, and MRO, having the whole range in stock, from 4 inches to 12 inches, is most helpful.

How often should these clamps be inspected in active use?

At least once a month, if you use high-frequency welding, check the threads, frame alignment, and swivel pad retention. Get a new clamp right away if the threads are worn, the frame is warped, or the swivel pad isn't tight.

Partner With a Trusted Standard American C-Clamp Manufacturer

For almost 40 years, FLA Industrial & Trading Co., Ltd. has sold industrial clamping tools to hardware stores and manufacturing shops all over the United States. You can paint, blacken, or powder-coat our Standard American C-Clamps, which range in size from 4 to 12 inches. We ship from a 2,000-ton stock. Custom setups are sent out in 7–15 days. Email our team at sales@flaindustrial.com or visit flaindustry.com to get details, bulk prices, or full drawings.

References

1. American Society of Mechanical Engineers (ASME). ASME B107.410: Clamps, C-Type (Including C-Clamps, G-Clamps, and Screw Clamps). ASME, 2010.

2. American National Standards Institute (ANSI). ANSI B1.5: Acme Screw Threads. ANSI, 2009.

3. U.S. General Services Administration. Federal Specification GGG-C-406D: Clamps, C-Type. GSA, 1993.

4. American Welding Society (AWS). AWS D1.1/D1.1M: Structural Welding Code – Steel. AWS, 2020.

5. Occupational Safety and Health Administration (OSHA). OSHA 29 CFR 1926.502: Fall Protection Systems Criteria and Practices – Tool Safety Standards. U.S. Department of Labor, 2019.

6. International Organization for Standardization. ISO 9001:2015: Quality Management Systems – Requirements. ISO, 2015.
