How Are Cast Iron Elevator Guide Rail Clamps Used in Lift Installation?

Cast iron elevator guide rail clamps are structural fastening assemblies that secure T-profile guide rails to hoistway brackets inside an elevator shaft, and Cast Iron Elevator Guide Rail Clamps perform this critical function. During lift installation, these clamps hold the rails at precise vertical intervals, maintaining the Distance Between Guides (DBG) that governs safe car travel. Manufactured from grey cast iron (HT200) or ductile iron (QT450-10), they absorb high-frequency vibrations generated at the guide shoe-rail interface, reducing noise transmission into the building structure. Their high compressive strength, typically exceeding 600 MPa, ensures rigid rail retention under eccentric loading during emergency stops.

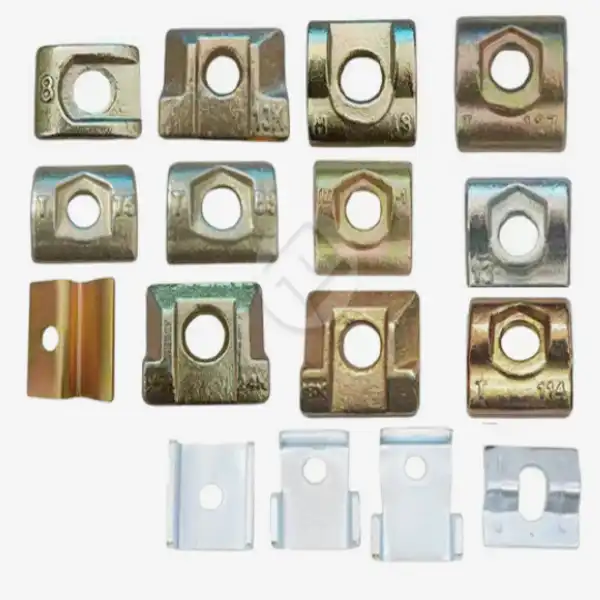

Specification

Product Specification	Nominal Thread (M)	Nominal Length (mm)
8K	8	12-40
13K	13	12-40
18K	18	16-50
24K	24	16-50
8K (12-40 Screw/Flat/Washer) Complete Set	8K (12-40 Screw)	(12-40 Screw)
13K (12-40 Screw/Flat/Washer) Complete Set	13K (12-40 Screw)	(12-40 Screw)
18K (16-50 Screw/Flat/Washer) Complete Set	18K (16-50 Screw)	(16-50 Screw)
24K (16-50 Screw/Flat/Washer) Complete Set	24K (16-50 Screw)	(16-50 Screw)

Understanding Cast Iron Elevator Guide Rail Clamps

What Makes Cast Iron the Preferred Material?

Gray cast iron has a flake graphite composition that can absorb vibrations up to 10 times better than structural steel. This feature isn't just for looks; it actually lowers noise that comes from construction in business and high-end apartment buildings. Ductile iron types (QT450-10) have bending properties like mild steel, which means they can be used for high-speed passenger lifts going faster than 2.5 m/s or installations in earthquake zones that meet EN 81-77 standards.

Cast Iron Elevator Guide Rail Clamps are stiffer than cast steel clips when compressed, and they don't bend when loaded laterally for a long time. Aluminum alternatives are lighter, but they don't have the fatigue resistance needed for freight and car elevators that are used continuously and have forklifts hit the threshold many times. For procurement engineers looking at the long-term total cost of ownership, the fact that cast iron doesn't change size when heated and cooled in high-rise shafts means that they don't have to realign them as often, which costs more in maintenance.

The Installation Process of Cast Iron Elevator Guide Rail Clamps

During its service life, a guide rail system will only work as expected if it was installed correctly. When mistakes are made at this stage, like misalignment, inconsistent torque, or Cast Iron Elevator Guide Rail Clamps geometry that doesn't work with the bike, they directly affect the ride quality and cause safety gear to stop working.

The following steps have been tested and shown to work in a stable application sequence:

• Shaft preparation and bracket alignment: Before placing any clamps, make sure that the hoistway brackets are straight within ±1 mm per meter. The accuracy of the bracket determines the verticality of the rail, and no clamp assembly can fix a base that isn't lined up right.
• Clamp selection and profile matching: Make sure the shape of the clamp jaws matches the ISO 7465 rail number, which could be T89, T75, 13K, 8K, 18K, or H18. Because of differences in flange width, a clamp made for a T89/B machined rail won't fit properly on a T75/3 cold-drawn rail, causing stress to build up.
• Torque application at fixed and sliding points: When applying torque to fixed and moving points, the yield strength for the bolt grade (usually M12 or M16) is used as a guide. Fixed clamp points are torqued to that level. To keep the pressure on sliding points under control, you need to use spring screws or double nuts to keep the rail column from buckling in temperature-variable shafts.
• Alignment verification: Once the screws are tightened, use a plumb line or a laser alignment tool to make sure the DBG and rails are straight according to EN 81-20 standards. Only then should you move on to the next bracket level.

These steps can be used for both new installations and projects that update rail stacks by replacing old clips. It is required by EN81 approval, and not doing so is not a choice. It is the minimum that protects both the installation team and the end user.

Maintenance and Lifespan of Cast Iron Elevator Guide Rail Clamps

For a clamp assembly to stay trouble-free, it needs to be checked on a regular basis. Over time, the environment, changing loads, and the amount of humidity inside the shaft all wear down surface coatings and fastener integrity.

Routine Inspection and Lubrication Practices

At least once a year, or every six months in places with a lot of humidity or cycles per year, like hospital lifts and industrial freight systems, Cast Iron Elevator Guide Rail Clamps should be checked. Check the torque values of the bolts, the state of the surface coating, and the contact areas for fretting wear. Use a light machine oil or an approved rail lubricant on the contact points. The graphite in cast iron naturally lubricates itself, but extra lubrication makes service intervals much longer.

Recognizing Early Failure Indicators

Breakdown of the surface layer is the first sign that can be seen. Hot-dip galvanized finishes that meet ASTM B117 salt spray standards protect better in damp shafts than regular black oxide coats, which only work in climate-controlled areas. Micro-cracking at the clamp jaw root, bolts that come loose after 10% of the stated force, and rail slippage at sliding points are all warning signs that need to be fixed right away instead of putting off maintenance plans.

Cast Iron Elevator Guide Rail Clamps made of ductile iron can handle quick impacts better than clamps made of gray iron. Before putting the lift back into service after a safety gear engagement event or an earthquake, check all the clamp units on the damaged rail run.

Selecting the Right Cast Iron Guide Rail Clamps for Your Elevator System

Key Technical Selection Criteria

To find the right clamp for the job, you have to look at four things: the rail profile designation (ISO 7465), the load class (passenger vs. freight), the shaft environment (humidity, temperature range), and the regulatory jurisdiction. For projects in seismic zones that need to follow JIS A 3302 or EN 81-77, make sure the clamps are designed to move vertically enough to release seismic energy without bending the rails.

The purpose directly affects the choice of material grade. Gray iron (HT200 / ASTM A48 Class 30) works well in normal passenger and commercial elevators where limiting vibrations and compressive load are the main issues. Spheroidal graphite iron (QT450-10) is the right grade for situations where tensile loads or impact protection is needed, like in high-speed traction systems or when safety gears need to be engaged at high speeds.

You should only buy from suppliers who have ISO 9001 quality management certification and EN81 compliance documentation. Certification isn't just a marketing ploy; it's proof that the product meets the standards set by elevator safety authorities for limits in size, material make-up, and surface treatment.

Procurement Guide for Cast Iron Elevator Guide Rail Clamps

When you buy guide rail fixing parts like Cast Iron Elevator Guide Rail Clamps in bulk, you have to do more than just compare prices per unit. Whether a supplier relationship is valuable for more than one project depends on how reliable the supply chain is, how long it takes to make non-standard profiles, and how well the supplier helps with technical issues after the sale.

Here are the main things that buying managers with a lot of knowledge think about when they buy something:

• Specification breadth: A supplier that offers T89, T75, 13K, 8K, 18K, and H18 profiles, as well as custom jaw geometries for non-standard rail sections, cuts down on the number of vendor relationships that a procurement team has to manage for a wide range of projects.
• Surface finish options: There are different ways to finish the surface. Hot-dip galvanized and painting finishes work well in different shaft settings. If a supplier can provide both finishes and record the coating thickness according to ASTM standards, it gives procurement teams more options instead of causing them to choose between two finishes.
• Quality traceability: Optical Emission Spectroscopy (OES) for material verification, CMM for dimension inspection, and Magnetic Particle Inspection (MPI) for subsurface porosity are all quality controls that must be used for safety-critical parts. With every shipment, you should ask for material test results and inspection papers.
• Lead time and inventory depth: For big projects, you need a steady supply. When a factory has a lot of finished goods in stock and can make custom parts in 7–15 days, there is no risk to the plan for multi-tower or phased building projects.

The cost of a failure in the field is much higher than the price difference between a certified supplier and an alternative that isn't certified. These procurement standards protect against that cost. Building long-term partnerships with makers that offer guarantee coverage and quick expert support creates value that lasts in the business world for Cast Iron Elevator Guide Rail Clamps.

Conclusion

Cast Iron Elevator Guide Rail Clamps are complex safety parts, not common hardware. Their material properties, accuracy in measurements, and surface protection directly affect how smooth the ride is, how reliable the safety gear is, and how much it costs to maintain over time in every lift system they are used in. Contractors, building managers, and procurement teams who take elevator safety seriously choose, install, and keep these parts according to documented standards like EN81, ISO 7465, and ASTM B117. When you buy from a certified manufacturer with strong quality controls and a large inventory, you can be sure that the specifications will be met on every project.

FAQ

What rail profiles are compatible with cast iron guide rail clamps?

Compatibility depends on how the clamp jaws are shaped. ISO 7465 lists T89, T75, 13K, 8K, 18K, and H18 as standard types. If you make a clamp for a certain shape, it won't fit right on a different rail flange thickness. This causes stress points that could cause it to break early. Before placing an order, you should always check the exact train name for your Cast Iron Elevator Guide Rail Clamps.

Why does cast iron outperform stamped steel for vibration damping?

Gray cast iron has flake graphite in it that turns motion energy into heat. This makes it up to 10 times better at cooling than structural steel. This lowers the amount of noise that gets into the building from the structure, which is a real benefit in high-end residential towers and business projects.

What surface finish is appropriate for humid shaft environments?

Hot-dip galvanizing is the best way to protect shafts from corrosion when they are exposed to moisture or are outside. The coating thickness has been checked against ASTM B117. Standard black oxide can only be used in dry, climate-controlled spaces.

Can ductile iron clamps handle emergency safety gear engagement?

Ductile iron (QT450-10) has the same elongation and tensile properties as mild steel, but it is better at casting. This makes it the right grade for high-speed systems and safety gear engagement situations where gray iron's tendency to break when under tension is a risk.

Partner with FLA Industrial & Trading Co., Ltd. for Certified Guide Rail Fixation Solutions

When you order a Products" target="_blank" style="color:blue" >products">Cast Iron Elevator Guide Rail Clamps from FLA Industrial & Trading Co., Ltd., you're getting almost 40 years of experience making things. We are a reliable supplier of Cast Iron Elevator Guide Rail Clamps to contractors, distributors, and engineering firms in the U.S. We offer ISO 9001 and EN81-certified parts in T89, T75, 13K, 8K, 18K, and H18 profiles, with hot-dip galvanized or painted finishes, and we have 2,000 tons of stock on hand. Custom lead times are 7–15 days. You can email our team at sales@flaindustrial.com or go to flaindustry.com to get pricing information, specifications, or a technical consultation within 24 to 48 hours.

References

1. European Committee for Standardization. EN 81-20: Safety Rules for the Construction and Installation of Lifts. CEN, 2014.

2. International Organization for Standardization. ISO 7465: Passenger Lifts and Service Lifts — Guide Rails for Lift Cars and Counterweights — T-Type. ISO, 2007.

3. American Society for Testing and Materials. ASTM A48: Standard Specification for Gray Iron Castings. ASTM International, 2016.

4. American Society for Testing and Materials. ASTM B117: Standard Practice for Operating Salt Spray Apparatus. ASTM International, 2019.

5. International Organization for Standardization. ISO 8062-3: Geometrical Product Specifications — Dimensional and Geometrical Tolerances for Moulded Parts. ISO, 2007.

6. Japanese Industrial Standards Committee. JIS A 3302: Earthquake-Resistant Design Standard for Elevator Installation. Japanese Standards Association, 2014.
