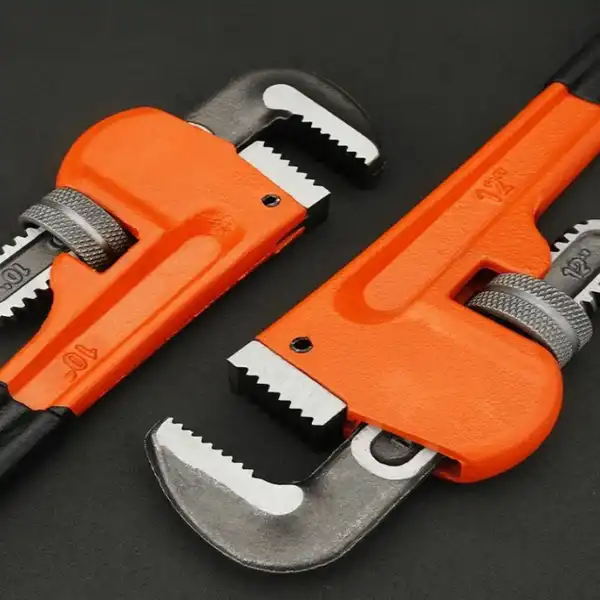

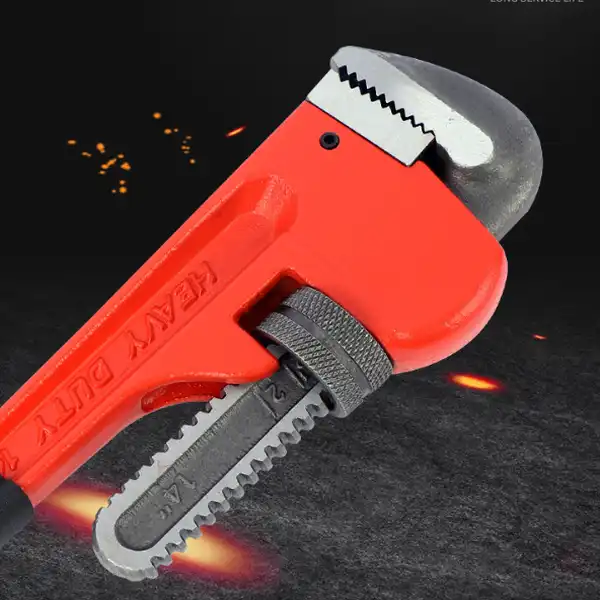

Heavy Pipe Wrench for Oil and Gas Pipeline Installation Projects

When pipeline integrity is non-negotiable, the tools you choose directly determine project outcomes. A heavy pipe wrench is a high-leverage, industrial-grade hand tool engineered to grip and rotate large-diameter threaded pipe and fittings under extreme torque conditions. Built from forged alloy steel jaws and a ductile iron handle, it features a self-tightening floating jaw mechanism — the harder the handle force applied, the tighter the grip. In oil and gas pipeline installation, where joint failure carries catastrophic risk, selecting a wrench that meets ASME B107.100 and ISO9001 standards is not optional — it is foundational.

Specification

Model	Total Length	Total Width	Maximum Opening	Product Weight
European Heavy Duty 10"	24.5cm	6.5cm	5.5cm	0.68kg
European Heavy Duty 12"	27.5cm	7.5cm	6.5cm	0.97kg
European Heavy Duty 14"	31.5cm	8.0cm	8.7cm	1.28kg
European Heavy Duty 18"	40cm	9.0cm	9.5cm	1.89kg
European Heavy Duty 24"	51cm	10cm	11.0cm	3.00kg

Understanding Heavy Pipe Wrenches in Pipeline Installation

What Sets This Tool Apart from Standard Wrenches?

A standard adjustable wrench is used to put pressure on flat objects. There is a completely different way that a Heavy Pipe Wrench works mechanically. Its full-floating hook jaw forms a gripping action on rounded, threaded, or even corroded pipe surfaces, exactly where other tools fail and slip. Pipe grip pliers and monkey wrenches don't have the jaw depth or force to work with large-diameter steel pipes like those in oil fields or city water mains. Almost every professional-grade pipe wrench on the market today is based on the Stillson pattern design. This design has been the standard in industrial settings for more than one hundred years because it works.

When used in oil and gas, these tools are used to connect drill pipes on rig floors, work with valves in plants, and put together high-pressure flow lines. They are used in places where tool slippage or structural failure could be very dangerous for the crew and cause projects to be late.

Key Design Features That Matter on the Job Site

The I-beam handle construction gives you the best strength-to-weight ratio, which keeps you from getting tired after long shifts. Serrated teeth that were precisely machined into the mouths make strong contact with pipe surfaces even when there are heavy side loads. Self-cleaning threads in the hook jaw keep debris from building up, which is very important in drilling mud environments. Surface coatings that don't rust make things last longer in places like chemical processing and underwater drilling where the environment is always changing.

Selecting the Right Pipe Wrench for Oil and Gas Projects

Matching Wrench Size to Pipe Diameter and Torque Demand

The size of a Heavy Pipe Wrench is based on the length of the handle, which is directly related to the largest pipe diameter it can hold. A 24-inch wrench can usually handle pipe with a diameter of up to 3 inches, while a 36-inch wrench can handle pipe with a diameter of up to 5 inches. When putting together a high-torque pipeline, an undersized wrench causes the jaw to slip and the teeth to wear out faster. It is important to make sure that the tool fits the pipe plan and material. Tools with thicker walls need more force.

Procurement managers evaluating Heavy Pipe Wrenches should prioritize these core criteria before committing to a bulk order:

• Material metallurgy: Forged Chromium-Molybdenum (Cr-Mo) or Chromium-Vanadium (Cr-V) alloy steel jaws with teeth that have been induction-hardened to HRC 55–60 do not soften when subjected to repeated high-torque cycles. Handles made of ductile iron that meet ASTM A536 standards can take a hit without breaking into brittle pieces.
• Manufacturing compliance: Tools made with ISO9001 quality control systems and CE approval show consistent quality across production batches, which is important for buying in bulk.
• Ergonomic handle design: Straight handles that don't slip and have rough grips keep your hands from getting tired and provide better torque transfer during operations that are done overhead or in tight spaces.
• Jaw replaceability: Jaw sets that can be replaced make the tool body last longer, which lowers the total cost of ownership compared to a tool that is only used once.
• Corrosion protection: Modern coatings on the surface keep rust away in wet, salty, or chemically active places.

These requirements describe a tool that works reliably over thousands of operating cycles, which is the standard procurement managers must hold suppliers to. Compromising on any single factor introduces risk across the entire tool inventory.

Proper Usage and Maintenance on the Job Site

Safe Operation Practices That Protect Your Crew

Place the wrench jaw so that the force coming from the handle lines up with the self-tightening wedge in the jaw. Pull the handle toward you instead of pushing it. This keeps you in control of the direction and lowers the chance of slipping suddenly. When working with heavy-gauge or pressurized pipelines and large Heavy Pipe Wrenches, you should wear gloves that can withstand impact and shoes with steel toes.

Cheater bars, which are pipe extensions slipped over the wrench handle to get more leverage, are a constant danger on oil field sites, especially with a Heavy Pipe Wrench. Manufacturers and ASME guidelines strongly warn against this because it goes over the rated power limit of the tool, which could cause the handle to deform or the jaw pin to break. If a joint needs more torque than the current wrench can provide, you should get a bigger wrench instead of extending the handle.

Maintenance Intervals That Extend Tool Lifespan

Every shift, clean the jaw teeth to get rid of pipe scale, thread compound, and drilling waste. If you use it a lot, you should put penetrating oil on the adjustment nut and hook jaw pivot every two weeks. Every month, check the teeth on the jaws and replace them when the serrations start to round off or flatten out. Worn teeth cause the jaws to slip, which hurts both the tool and the pipe surface. Keep tools stored horizontally in a dry place so that water doesn't build up in the jaw joint.

Procurement Strategies for B2B Oil and Gas Projects

Evaluating Suppliers Beyond the Catalog Price

More than just unit cost needs to be taken into account when looking for industrial Heavy Pipe Wrenches for ongoing pipeline projects. If a decision to buy tools holds up under operational pressure, it depends on how reliable the supplier is, how easy it is to get replacement parts, how consistent the lead time is, and how well the supplier provides technical support after the sale. When you sign a bulk purchasing deal with an ISO9001-certified manufacturer, you usually get better pricing, set production times, and faster shipping, all of which are very important when you have to meet a strict deadline for a project.

FLA Industrial & Trading Co., Ltd. has supported international B2B clients across the U.S., Germany, and Australia for nearly 40 years, supplying forged alloy steel pipe tools that carry ISO9001 and CE certification. Their manufacturing process, which includes precision forging, CNC machining, and advanced heat treatment, ensures that even when they get a lot of orders, the dimensions are always correct and the torque capacity is always high. For specific pipeline uses, you can get jaws with different shapes and longer handles. The 3D design is checked, and the whole production process can be tracked from the raw materials to the final inspection.

Innovations and Future Trends in Heavy Pipe Wrench Technology

The standard Stillson design is being replaced by a new type of Heavy Pipe Wrench. Manufacturers are putting in handles made of lightweight aluminum alloy, which is about 40% lighter than handles made of ductile iron. This is done without lowering the rated torque capacity. This weight loss makes a big difference in how tired operators are when they are working on high pipelines or on the rig floor for long periods of time.

Digital torque feedback instruments built into handle assemblies are being tested in the field. These instruments will let technicians see the torque being applied in real time and record data for maintenance records. This change is in line with the larger industrial IoT trend in managing tools in the oil field, where predictive maintenance data cuts down on unexpected downtime. Procurement engineers who put crew safety first are also becoming more interested in ergonomic improvements like curved grip shapes and vibration-dampening handle materials.

Conclusion

Metallurgy, mechanical engineering, and procurement all play a role in choosing the right Heavy Pipe Wrench for installing oil and gas pipelines. Forged alloy steel jaws and ductile iron handles on tools that are made under certified quality systems and kept in good shape on-site will give consistent performance over long project cycles. Building partnerships with suppliers that offer proven quality, the ability to make changes, and dependable support after the sale is helpful for wholesale distributors, building builders, and MRO buying teams.

FAQ

What size pipe wrench is standard for oil and gas pipeline work?

Size is based on the length of the handle. A 36-inch Heavy Pipe Wrench can be used on pipes up to 5 inches in diameter, which is large enough for most midstream pipeline jobs. Pipe tools with a 48-inch or chain-style wrench may be needed for flow lines with a larger diameter.

How often should jaw teeth be inspected on a heavy-duty pipe wrench?

Check the jaw serrations once a month if they get a lot of use. If you can see that the teeth are rounded or if the tool slips on clean, undamaged pipe surfaces, you should replace the jaws right away.

Can a heavy pipe wrench substitute for a monkey wrench?

Not at all. A monkey wrench is used to put force on flat hex surfaces. A pipe wrench holds round, threaded pipe. These are two very different types of mechanical work. Hex bolts and pipe wrench jaw teeth will both get broken if you use them on each other.

What causes excessive jaw wobble during operation?

The self-tightening wedge action is caused by the moving jaw movement that is done on purpose. A worn pivot pin or a stretched housing can cause too much lateral play. Both of these problems need to be fixed or replaced right away.

Is an aluminum pipe wrench suitable for oil field use?

Aluminum models are about 40% lighter than steel models of the same power grade. They work well for overhead or mobile work, but they may wear out faster in rough drilling settings where ductile iron cores last longer.

Partner with FLA Industrial for Your Next Pipeline Tool Order

FLA Industrial & Trading Co., Ltd. sells Heavy Pipe Wrenches that are made to meet the needs of oil and gas, plumbing, and industrial pipeline projects. We have been making these tools for almost 40 years and have ISO9001 and CE certifications. We also have trusted partnerships with Fortune Global 500 companies and can offer bulk pricing, custom configurations, and reliable lead times. To get pricing and specifications, you can email our team at sales@flaindustrial.com or go to flaindustry.com.
