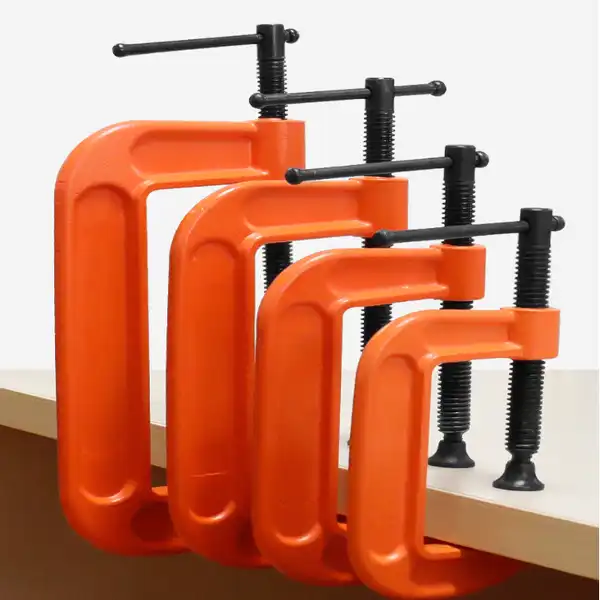

Customized C-Clamp for Specialized Manufacturing and Fixture Design

When standard tools fall short, a customized C-clamp becomes the engineering answer. Designed to address specific industrial geometries, load requirements, and environmental conditions, a customized C-clamp goes far beyond what off-the-shelf options can deliver. At FLA Industrial & Trading Co., Ltd., we engineer bespoke clamping solutions from cast iron and steel, tailored for OEM/ODM woodworking and industrial applications. With ISO9001 certification and nearly 40 years of manufacturing experience, our custom clamps are built to hold tight where precision matters most.

 Specification

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Customized C-Clamps in Specialized Manufacturing

Not every piece of work is flat, straight, or the same size. That's exactly why there are Customized C-Clamps. A custom-built clamping device, on the other hand, is made using iterative CAD modeling and Finite Element Analysis (FEA) to accommodate complex geometries, the need for deep structural bonding, and the protection of delicate substrates.

What Sets Custom Clamps Apart from Standard Options?

Customized C-Clamps that come in standard sizes are made for common uses. Custom versions solve real engineering problems like not having enough throat depth for deep assemblies, not being able to grip surfaces that aren't straight, and the chance of deforming delicate aluminum or composite workpieces. The C-frame architecture, spindle thread pitch, and swivel pad material can be changed so that manufacturers can make a tool that works exactly where a regular one would fail.

Drop-forged steel (AISI 1045), heat-treated ductile iron (ASTM A536 Grade 65-45-12), and stainless steel for corrosive environments are the most popular materials used to make precise clamps. Tensile strength, weight distribution, and rust resistance are all affected in different ways by each material. These are all things that have a direct effect on long-term dependability in tough production settings.

How to Choose the Right Customized C-Clamp for Your Manufacturing Needs?

To choose the right keeping option like a Customized C-Clamp, you must first clearly describe your application. Before you talk to any suppliers, you need to know the throat depth, jaw opening range, holding force grade, and whether the workpiece material will work with the machine.

Key Specification Factors for B2B Buyers

Before asking for a custom quote, procurement teams should write down the following:

• Throat depth and jaw capacity: Figure out the biggest reach and opening your job needs, taking into account any layers of fixtures or jig parts.
• Required clamping force: Working with heavy metal is very different from putting together wooden projects. You can change the pitch of the spindle thread. A smaller pitch gives you more mechanical edge, while a coarser multi-start thread lets you move things quickly on assembly lines.
• Surface protection needs: Swivel pads come with polyurethane caps that won't damage the surface, large-diameter floating steel pads, or brass pads for smooth surfaces and soft woods.
• Finish and corrosion resistance: Based on the operating environment and Salt Spray resistance requirements set by ASTM B117, you can choose between painted, powder-coated, or electroplated finishes.

These choices about specifications have a direct effect on both how well the tool works and how much it costs to buy. Giving your source clear technical drawings or 3D models cuts down on the number of changes that need to be made and speeds up delivery.

When buyers compare certified OEM Customized C-Clamp suppliers to general distributors, they always get shorter engineering feedback loops, more accurate measurements, and more quality control documentation that can be tracked. All of these things are important for global supply chain compliance.

The Custom C-Clamp Design and Manufacturing Process Explained

When procurement teams know how a Customized C-Clamp goes from being an idea to being made, they can more accurately judge how competent a supplier is. A structured engineering path guides the work at FLA Industrial & Trading Co., Ltd.

From CAD Modeling to Final Assembly

The first step is to look over the client's requirements and turn them into 3D CAD models. Then, a FEA simulation checks that the structure is still strong under the highest loads, especially at the C-frame bend radius, which is the most stressed area in any clamp geometry. After simulations show that the design works, tools are made for casting or forging it, and then the spindle, swivel pad seat, and frame sides are carefully machined.

There are quality checks all over. Optical Emission Spectrometry (OES) checks the makeup of the metal before it is machined. Validation with a Coordinate Measuring Machine (CMM) makes sure that the throat depth and opening capacity are accurate and match the CAD drawings. Magnetic Particle Inspection (MPI) checks the frame bend for tiny cracks. To make sure the thread stays strong under the most pressure, the spindle's stiffness is checked at Rockwell C (HRC 38–45). Before being shipped, each batch is put through a proof load test at 125 to 150% of the Working Load Limit (WLL).

This strict process is what makes FLA's custom-engineered clamps reliable and useful for a wide range of industries, from steel assembly to woodworking.

Best Practices for Using and Maintaining Customized C-Clamps

A precision-engineered tool is only as useful as the people who use and take care of it. How long your investment gives you reliable results depends on how well you clamp it, how often you maintain it, and how you store it.

Operational and Maintenance Guidelines

Gradually apply the clamping force instead of all at once. When force is applied off-center, it speeds up the wear and tear on the C-frame. To avoid this, move the clamp so that the spindle axis lines up with the gripping force vector. Always match the throat depth to the thickness of the workpiece; clamps that are too big put extra stress on the levers.

It's simple and necessary to do routine maintenance. Here are the main types of upkeep that will make a product last longer:

• Inspect threads, swivel pads, and frame surfaces before each use for damage, wear, or rust.
• Clean after every use, removing metal filings, wood dust, or adhesive residue that makes the thread wear out faster.
• Lubricate spindle threads with appropriate machine oil or grease at regular intervals to maintain smooth actuation.
• Store clamps in a dry environment, hung or racked to prevent frame stress from stacking weight.

These habits will help you keep your investment in a Customized C-Clamp safe and cut down on unplanned downtime on the shop floor. When buying from certified suppliers like FLA, B2B clients who manage large tool inventories can lower their operational risk even more with warranty documentation and technical support after the sale.

Procurement Strategy: How to Buy Customized C-Clamps for Your Business?

It takes more than comparing catalog prices to find precision clamps from a reputable manufacturer. Business-to-business buyers should judge providers based on their tech skills, certifications, openness about lead times, and OEM flexibility.

Evaluating Suppliers and Managing Lead Times

When you buy from an ISO9001-certified Customized C-Clamp manufacturer like FLA Industrial & Trading Co., Ltd. instead of a distributor, you get structural benefits like direct engineering communication, quality records that can be tracked, and faster changes to specifications. For cast clamps that need new dies, the MOQ is usually between 500 and 1,000 units to cover the cost of the tools. For custom designs that are machined or manufactured, numbers as small as 10 to 50 units are possible, though the cost per unit is higher.

Technical and pricing questions are answered by FLA's team within 24 to 48 hours, and custom orders are made within 7 to 15 days. With 2,000 tons of standard specifications in stock, it's also easy to handle hybrid orders that include both stock and custom parts. You can look at product specs and start a buying request at flaindustry.com.

Conclusion

When standard tools hit their structural and physical limits, Customized C-Clamp solutions step in to fill the gap. Whether you are in charge of a production line for woodworking, an assembly line for metalworking, or a program for buying materials for construction, a Customized C-Clamp that is properly specified will improve accuracy, safety, and uptime. Because FLA Industrial & Trading Co., Ltd. is ISO9001 certified, has been making things for almost 40 years, and has worked with Fortune Global 500 companies in the past, they can create the exact clamping answer your business needs.

FAQ

What advantages do custom clamps offer over standard C-clamps?

Standard tools can't handle some geometric, load, and surface compatibility problems that Customized C-Clamps can. For example, they can't handle deep-reach throat configurations, non-parallel jaw alignment, or protecting the surface of fragile substrates.

What is the typical lead time for a custom order?

It takes FLA Industrial & Trading Co., Ltd. 7–15 days to deliver unique solutions. Within 24 to 48 hours of receiving an inquiry, technical and pricing feedback is sent.

What is the MOQ for custom C-clamps requiring new tooling?

MOQs usually start at 500 to 1,000 units for forged designs that need new dies. Customized C-Clamps that are machined or built can be made in smaller batches of 10 to 50 units.

Can finish options be tailored to environmental conditions?

Yes. You can choose from painted, powder-coated, or electroplated styles, depending on how resistant you need them to rust and how they will be used.

Is ISO9001 certification standard across all custom orders?

No matter how big or complicated the order is, FLA Industrial & Trading Co., Ltd. always makes sure that their goods meet the standards set by the ISO9001 Quality Management System.
