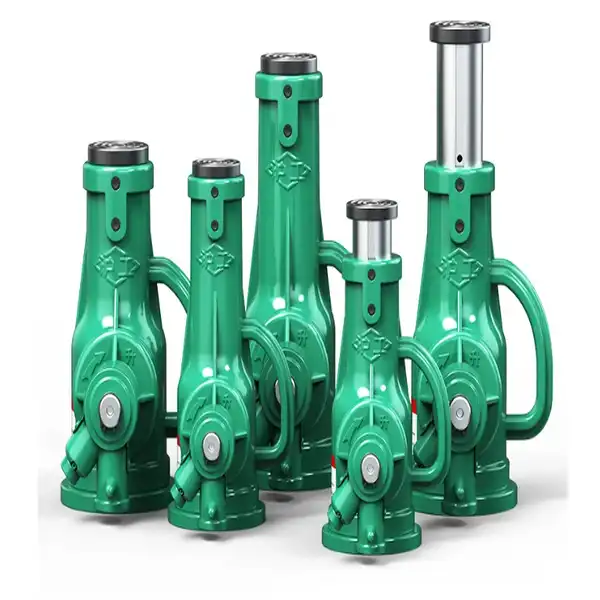

Industrial Screw Jack for Conveyor Alignment and Equipment Positioning

When conveyor systems drift out of alignment or heavy equipment needs precise repositioning, an Industrial Screw Jack becomes the most dependable mechanical solution on the floor. These electromechanical actuators convert rotational motion into controlled linear force, enabling sub-millimeter positioning accuracy across demanding production environments. Unlike hydraulic alternatives, a screw jack delivers mechanically rigid, self-contained load support without fluid leakage risk. Whether you manage a distribution warehouse, a fabrication plant, or a large-scale construction project, this guide breaks down everything you need to make a confident procurement decision.

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks for Conveyor Alignment and Equipment Positioning

At its core, an Industrial Screw Jack works by pushing a lead screw (usually trapezoidal or Acme-threaded) through a worm gear assembly to make it move in a straight line. This device takes rotational input and turns it into exact vertical or horizontal movement while keeping the load very stable.

Mechanical Principles Behind Precision Adjustment

There is natural thread friction in trapezoidal screw models that makes them self-locking. This means that the load stays in place even if the power is turned off and on again. This is an important safety feature for holding conveyor frames or leveling heavy machinery while it is being serviced. Standard configurations have dynamic load capacities ranging from 2.5 kN to 3,500 kN. These ranges cover a wide range of tasks, from leveling light-duty equipment to adjusting the gap between steel mill rollers.

Common Applications in Conveyor and Equipment Systems

Industrial Screw Jacks are used in a lot of different industrial settings in the real world. For constant belt tension and less premature wear, incremental stroke changes are used for conveyor belt tensioning. To protect machinery alignment and reduce vibration fatigue, millimeter-accurate positioning is needed to level equipment during installation. During synchronized lifting operations, connecting shafts and miter gearboxes connect several units together so that a single motor drives all lifting points at the same time. This makes sure that the load is spread evenly across equipment bases that aren't level.

How to Choose the Right Screw Jack for Your Conveyor and Equipment Needs?

If you choose a pulling actuator like an Industrial Screw Jack without using an organized evaluation framework, you may end up with poor performance and extra downtime. The following factors are a good way for procurement experts to screen people.

Important factors to think about before choosing a unit:

• Load capacity and safety factor: Always choose a tool that can handle more than its maximum load. It is standard practice to have a static overload safety factor of at least 1.5 times the rated capacity. This is checked during acceptance testing.
• Stroke length and travel speed: Changing the orientation of a conveyor belt usually needs short, accurate strokes. Ball screw versions have linear speeds of up to 300 mm/s and can handle higher duty cycles. Trapezoidal screw versions, on the other hand, can handle irregular use at a duty cycle of about 20–30%.
• Actuation type: Manual Industrial Screw Jacks are good for small changes that need to be made often in easy-to-reach places. Electric models offer repeatable, automated positioning in control systems that are built into the conveyor. Hydraulic versions can handle very heavy point loads, but they make fluid maintenance more difficult.
• Environmental compatibility: Coatings that don't rust and extra dust covers can help outdoor conveyor systems or HVAC installs. Special high-temp seals and bellows boots are needed to protect thread integrity in places with high temperatures, like steel mills.

These factors help you narrow down your choices to units that really meet your practical needs. A more accurate way to figure out the total cost of ownership is to compare the initial unit cost to the expected maintenance intervals and replacement frequency.

Benefits and Maintenance Best Practices of Screw Jacks in Equipment Positioning

Precision lifting motors like the Industrial Screw Jack have benefits for operations that go far beyond just moving loads. They are the best choice in B2B manufacturing and logistics because of the following main benefits:

• Positioning accuracy: Worm gear-driven lead screws allow repeatable placement within ISO 2768 tolerances, which cuts down on the amount of work that needs to be redone because of conveyor frames that aren't lined up right or machinery bases that aren't set properly.
• Zero-leakage load holding: Unlike hydraulic cylinders, trapezoidal screw units can stay in place without power for an infinite amount of time. This means there is no risk of drift during long repair windows.
• Synchronized multi-point lifting: One motor can power four, six, or more units at the same time, spreading the weight evenly across complicated equipment structures.
• Small installation footprint: The housing design takes up little room and fits into tight conveyor support structures that hydraulic tools can't reach.

These benefits directly cut down on unplanned downtime and make sure that the process is the same on all production lines. Long-term success, on the other hand, depends on regular upkeep.

Scheduled Lubrication and Inspection Routines

Lubrication is very important for keeping worm gears working well and lead screws from wearing out too quickly. When to replace the grease should be based on the manufacturer's instructions, which are usually tied to working hours instead of date time. Check axial backlash with a dial indicator at every inspection; too much play between the screw and nut threads means it's time to replace the nut. When bronze worm wheels (like ZCuSn10Pb1) are built against hardened alloy steel rods (like 42CrMo), the wear curves are known, which makes it easy to plan inspections.

Preventing Common Failure Modes

Over-travel is still the main reason why machines break. When you use proximity sensors or electric limit switches along with mechanical stop nuts on the screw as a physical fail-safe, you can stop contact damage before it happens. When you use OEM replacement parts, the dimensions that were checked during the original production process are kept. This protects your investment and your warranty.

Comparing Screw Jacks with Alternative Solutions for Conveyor Alignment

Before making a decision for an Industrial Screw Jack, procurement teams often look at a number of tools. Over-engineering and cash waste can be avoided by knowing where each option works best.

Hydraulic jacks can hold heavy loads in small cylinders, but they need a hydraulic power unit, fluid upkeep, and over time, the seals can wear out. They also don't have mechanical self-locking, which means that the ability to hold a load rests on the stability of the valve. While scissor jacks are portable, they don't have the load capacity or positioning accuracy that production conveyor systems need. Gearbox-driven screw actuators work in a way that is similar to worm gear units, but they are better suited to higher duty-cycle applications that need to run all the time.

Ball screw Industrial Screw Jacks are more efficient and can move faster than trapezoidal types, but they don't lock themselves. To stay in place, they need a brake motor, which makes the system more complicated and costs more. Trapezoidal Industrial Screw Jacks offer the best mix of accuracy, safety, and lifecycle cost for applications like equipment leveling and conveyor alignment where adjustments need to be made on the fly and loads need to be held securely.

Procurement Insights: Buying Screw Jacks for Conveyor and Equipment Positioning

Finding the right provider is just as important as finding the right goods. Check that an Industrial Screw Jack maker follows ISO9001, CE marking, and related measurement standards like DIN, AGMA, or EN when you are looking at them. These licenses show that quality management systems are in charge of every step of the production process, from checking the hardness of the raw materials to testing the end load.

When you buy in bulk, the cost per unit goes down by a lot. Procurement managers can get better prices by negotiating blanket purchase agreements with lead time commitments and combining SKU orders from different project sites. Customization options are also very important. For example, non-standard stroke lengths, special thread pitches, or changed mounting flanges are common needs in conveyor retrofit projects. Make sure that your provider can send you 3D design files and reports on the progress of the production without any long delays.

Your total asset lifespan cost is directly affected by the terms of after-sales support, such as guarantee coverage and the availability of spare parts. If a supplier has a lot of finished goods in stock, emergency lead times are shorter when replacements need to be made quickly.

Conclusion

Industrial Screw Jacks are still one of the most reliable and inexpensive ways to line up conveyor belts and move equipment. Because they can mechanically lock themselves, synchronize multiple points, and be used in both manual and electric ways, they are a good choice for procurement engineers in building, manufacturing, and transportation. To choose the right unit, you need to look at the load capacity, stroke requirements, duty cycle, and environmental conditions all at the same time. With the right care and a reliable provider behind the product, these motors work well for years even when they are put through tough conditions.

FAQ

Are all screw jacks self-locking?

No, trapezoidal screw models usually lock themselves because of thread friction, which means they can hold loads without constant power. Ball screw Industrial Screw Jacks work very well, but they don't lock themselves; they need a brake motor to stay in place.

What duty cycle should I plan for?

Standard worm gear trapezoidal Industrial Screw Jacks are rated for a duty cycle of 20 to 30 percent, which means they can only be used sometimes and then have time to cool down. For applications that need to run all the time, ball screw or bevel gear versions that can handle more heat are needed.

Can one motor drive multiple jacks simultaneously?

Yes. With connecting shafts, joints, and miter gears, one motor can power multiple units that work together perfectly. This arrangement is commonly used for leveling conveyor systems and setting up big pieces of equipment.

How do I prevent over-travel damage?

As a physical fail-safe, put mechanical stop nuts on the screw. You can use electric limit switches or proximity sensors with them to turn off the motor power before the screw reaches its mechanical limits.

What materials are used in quality screw jack construction?

Gray cast iron (GG25) or ductile iron (GGG40) is often used for housings. Harsh alloy steels, like 42CrMo, are used in lead screws, and bronze alloys are used in worm wheels to make them resistant to wear. Surface finishes include coatings that resist corrosion and dust covers that can be added if desired.

Partner with FLA Industrial & Trading Co., Ltd. for Your Lifting Needs

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has a wide range of approvedProducts" target="_blank" style="color:blue" >products"> Industrial Screw Jack options for aligning conveyors and placing industrial equipment. FLA is a reliable provider of Industrial Screw Jacks to the U.S. market. Their goods are ISO9001 and CE-certified, and they can be customized within 7–15 days. You can email us at sales@flaindustrial.com or go to flaindustry.com to get price quotes and 3D design files within 48 hours.

References

1. Machinery's Handbook — Industrial Press, 2020

2. ASME B18.29.1 Screw Thread Standards — American Society of Mechanical Engineers, 2019

3. DIN 141 Standards for Trapezoidal Screw Threads — Deutsches Institut für Normung, 2018

4. AGMA 6034-B92 Practice for Enclosed Cylindrical Wormgear Speed Reducers — American Gear Manufacturers Association, 2017

5. Conveyor Equipment Manufacturers Association (CEMA) Belt Conveyors for Bulk Materials — CEMA, 2021

6. ISO 2768-1 General Tolerances for Linear and Angular Dimensions — International Organization for Standardization, 2022
