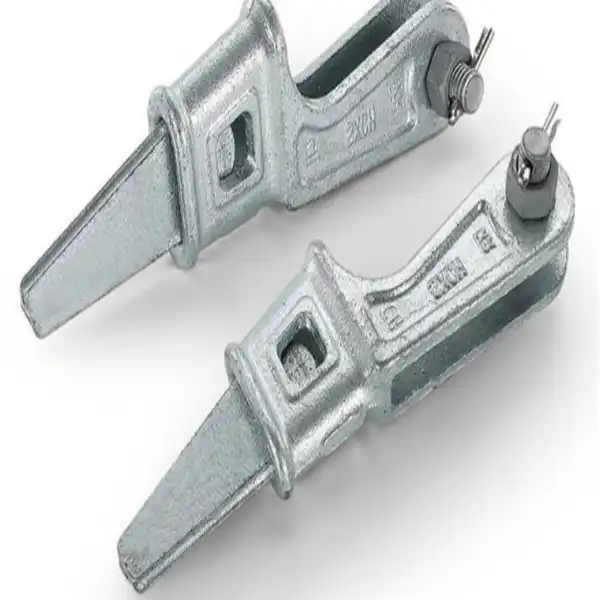

Wedge-Type Clamp for Secure Overhead Cable Installation

A wedge-type clamp is a precision-engineered tensioning device designed to anchor and secure conductors in overhead power transmission lines. Unlike conventional bolted clamps, it operates on a self-locking mechanical principle — the cable's own tensile load drives the wedge deeper into the shell, converting pulling force into radial grip. This eliminates cable stripping, preserves insulation integrity, and enables tool-free installation. Whether you manage bulk procurement, oversee electrical infrastructure, or run construction operations, understanding this device helps you select the right hardware for reliable, code-compliant overhead cable installations.

Specifications

Product Name	Applicable Range	Material Options	Finish
National Standard Hot-dip Galvanized NX-1 (Upper Handle)	6.6-7.8mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-2 (Upper Handle)	9-11mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-3 (Upper Handle)	13-14mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-4 (Upper Handle)	15-16mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum

Understanding Wedge-Type Clamps in Overhead Cable Installation

How the Wedge Mechanism Works

The shape of a Wedge-Type Clamp is what gives it its main mechanical advantage. As the strain on the cable rises, the wedge parts press inward against the jacket of the cable in a linear way. This makes the grip stronger, rather than weakening it. This self-reinforcing action stops slippage without hurting the insulation, which is very important when working with XLPE-coated aluminum wires in aerial bundled cable (ABC) systems or ADSS fiber optic deployments. The design spreads radial pressure evenly across a large contact area. This keeps weak conductors from being stressed in one place, which could break them or cause micro-bending loss in fiber optic lines.

Core Components and Their Roles

The outer shell, the Wedge-Type Clamp inserts, and the bail (suspension loop) are the three main parts of a standard overhead cable clamp assembly. The shell, which is usually made of die-cast aluminum alloy or hot-dip galvanized steel, is what holds the structure together. The wedge pieces grip the cable jacket, and the clip links the whole thing to a pole bracket or messenger wire. For decades of continuous service, each part must keep its shape even when it is subjected to wind loads, thermal expansion, and UV rays.

Purchasing managers working on LV/MV distribution projects will know that picking the right clamp during the specification stage is important to avoid costly problems in the field later on.

Key Benefits and Material Considerations for Wedge-Type Clamps

Material Selection: Aluminum Alloy vs. Galvanized Steel

The type of material a Wedge-Type Clamp is made of directly affects how well it works over its lifetime. Different types of aluminum alloys, which are usually die-cast to exact specifications, have a good strength-to-weight ratio and don't rust naturally. This makes them a good choice for high installations where lowering the structure load is important. On the other hand, hot-dip galvanized steel is much stronger and works well for heavy-conductor spans or places with a lot of mechanical stress.

The Wedge-Type Clamps we sell at FLA Industrial & Trading Co., Ltd. come in two finishes: natural aluminum and hot-dip galvanized steel. Each unit goes through die casting, forging, and precision machining steps. This makes sure that the dimensions are the same across big orders, which is very important for hardware sellers who have to manage large SKU lists.

Here are the material-driven advantages that make these clamps a durable procurement choice:

• Corrosion resistance: Both galvanized steel and aluminum alloy can handle salt spray, water, and industrial air exposure, so they can be used in coastal or high-humidity areas where metal breaks down more quickly.
• Proportional grip without cable deformation: The wedge shape uses clamping force in response to stress, so the cable jacket stays intact—no holes, no ways for water to get in, and no loss of insulation.
• Creep resistance under sustained load: Engineered alloys keep their shape over decades of constant tension, so they don't relax over time as cheaper materials do, which can lead to slippage.

When procurement engineers and MRO teams look at overhead line gear, the most common concerns they have are about longevity and long-term value. These material traits directly address those concerns.

Installation Process and Safety Guidelines for Overhead Cable Clamps

Step-by-Step Installation Protocol

Correct placement is a must when working at height on equipment that is live or will soon be live. First, a pre-installation check is done to make sure that the Wedge-Type Clamp's rated cable outer diameter (OD) range matches the cable OD range from the manufacturer's datasheet. Mismatching by even a few millimeters makes it much harder to hold on to things.

Once the size is known, put the shell over the cable at the anchor point that was chosen. Slide the wedge inserts into place by hand; most current designs don't require any tools, so linemen can do this step even when they are high up and in a tough position. The Wedge-Type Clamp locks itself once the spread force is applied. Before the installation crew moves on to the next step, the shell alignment and bail orientation must be visually checked one last time.

It is required that people follow PPE guidelines, which include wearing insulating gloves rated for the working power. FLA's Wedge-Type Clamps are certified by both ISO 9001 and IEC. This gives procurement managers proof that the clamps meet the standards needed for project safety audits and government rules.

Comparing Wedge-Type Clamps with Other Clamp Types for Procurement Decisions

Performance Benchmarks Against Toggle, Screw, and Bar Clamps

When purchasing overhead wire gear, buyers often contrast Wedge-Type Clamps with toggle clamps, screw clamps, and bar-shaped compression clamps. The differences are useful in real life.

There is a lever-and-pivot mechanism in toggle clamps that provides a constant, pre-set power. They work fine for temporarily holding things in a workshop, but they can't handle the dynamic load-following that is needed for installing cables in the air. For example, a conductor that is swaying in the wind needs a Wedge-Type Clamp that tightens as it moves, not one that stays still. Screw clamps allow for precise adjustments, but they also put pressure on one point, which can damage jackets made of softer insulation materials. Bar clamps spread force more evenly than screw clamps, but they need special tools to be installed, which makes work at height more time-consuming.

Wedge-Type Clamps solve all three problems with a single design: they grip the load proportionally, apply pressure evenly, and can be set up without any tools. For procurement directors in charge of big electrical infrastructure projects, this means lower total cost of ownership, lower labor costs for installation, and fewer calls back to the field. These are numbers that are much more important than the price of a single clamp.

Procurement Guide: Buying and Sourcing Wedge-Type Clamps for Overhead Cable Projects

Supplier Qualification and Bulk Order Considerations

To find solid Wedge-Type Clamps on a large scale, you need to look at more than just the catalog specs of each provider. Certifications, especially ISO 9001 quality management system compliance and IEC conformity, show that a company's production methods meet standards that are known all over the world. These certifications shouldn't just be claimed; they should be able to be checked.

FLA Industrial & Trading Co., Ltd. has been making these kinds of Products" target="_blank" style="color:blue" >products for almost 40 years. We keep more than 2,000 tons of stock on hand, so regular product orders can be sent out quickly without the risk of longer wait times. Custom non-standard configurations, such as Wedge-Type Clamp sizes that aren't available off the shelf, different combinations of materials, or geometries that are specific to an application, are designed and sent out within 7–15 working days. Within 24 to 48 hours, inquiries get answers about price and technology issues.

For purchasing managers and category directors, buying in bulk from FLA offers guaranteed quality at a reasonable price, with 3D design help and clear updates on the production process throughout the order cycle. You can find the full product list and detailed specs at flaindustry.com.

Conclusion

Installing cables above ground requires hardware that can work reliably under long-term tension, environmental stress, and repeated use. All three needs can be met by a properly specified Wedge-Type Clamp, which has self-locking mechanisms, is made of durable materials, and can be used without any tools. Choosing a certified provider with a lot of experience in manufacturing and quick technical help lowers the risk of the purchase and improves the results of the project. FLA Industrial & Trading Co., Ltd. gives electricity contractors, utility companies, and hardware wholesalers in the U.S. market the high-quality products and reliable supplies that tough infrastructure projects need.

FAQ

Can a wedge-type clamp be reused after removal?

In most cases, no. When they are first put in place, the wedge inserts bend to fit the cable's surface profile perfectly. Reusing them after taking them off usually weakens the grip and might be against safety rules. When re-terminating a wire link, you should always use new Wedge-Type Clamp parts.

Does this type of clamp damage cable insulation?

When a Wedge-Type Clamp is built correctly, it grips the jacket through friction and evenly spreads radial pressure, not through sharp teeth or point contact. High-quality units keep the insulation's structure and stop water from getting in.

What causes slippage in overhead cable clamps?

Most of the time, slippage happens because the Wedge-Type Clamp's estimated cable OD range doesn't match the cable width. When you use a clamp outside of its recommended range, the wedge's contact area decreases, which lowers the grip force when the clamp is under stress.

How do I select the correct size?

Check that the Wedge-Type Clamp's estimated OD range matches the outer diameter of your wire, and that the Maximum Working Load (MWL) meets the tension needs of your span. Before specifying, you should always look at the manufacturer's technical datasheet.

Request a Quote from FLA Industrial & Trading Co., Ltd.

FLA Industrial & Trading Co., Ltd. — a trusted Wedge-Type Clamp manufacturer with nearly 40 years of proven expertise — offers ISO 9001 and IEC-certified overhead line hardware in aluminum alloy and hot-dip galvanized steel. With 2,000 tons of stock, rapid custom lead times, and 24–48-hour inquiry response, we support procurement teams at every scale. Contact Us at sales@flaindustrial.com or visit flaindustry.com to request specifications and pricing today.
