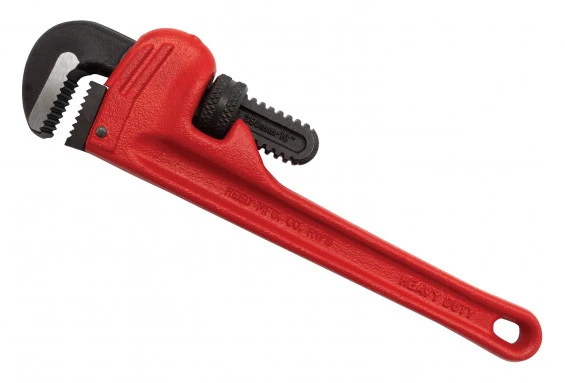

Heavy Pipe Wrench
Application: Used for tightening and loosening large-diameter pipes, suitable for high-torque operations
Appearance: Standard straight-handle design, adjustable jaws, relatively large size
Place of Origin: China
Manufacturing Process: Forging, machining, heat treatment
Certification: ISO9001, CE
Heavy Pipe Wrench for Large-Diameter Pipe Work: Forged Alloy Steel Jaws and Cast Iron Handle for High-Torque Jobs
FLA Industrial & Trading Co., Ltd. supplies tools for pipe work where grip and turning power count. One of them is this Heavy Pipe Wrench. It tightens and loosens large-diameter pipes. The handle is a straight I-beam type. Up front sits an adjustable full-floating hook jaw. Jaws can be replaced when they wear out. Drop-forged Cr-Mo or Cr-V alloy steel goes into those jaws. Handle material is ductile iron or cast iron, and an aluminum alloy version is also available. Teeth get a heat treatment to HRC 55-60. The wrench is made in China. Custom sizes or special structures can be discussed with our team.
What Is a Heavy Duty Straight Pipe Wrench?
This heavy duty straight pipe wrench is a hand tool. It grips threaded pipe and pipe fittings, then turns them. Pull the handle and the forged full-floating hook jaw closes tighter. That pushes the teeth deeper into the workpiece. On pipe that is rounded, rusted, or oily, an adjustable wrench often slips. Here the grip still holds.

Specifications
| Model | Total Length | Total Width | Maximum Opening | Product Weight |
|---|---|---|---|---|
| European Heavy Duty 10" | 24.5cm | 6.5cm | 5.5cm | 0.68kg |
| European Heavy Duty 12" | 27.5cm | 7.5cm | 6.5cm | 0.97kg |
| European Heavy Duty 14" | 31.5cm | 8.0cm | 8.7cm | 1.28kg |
| European Heavy Duty 18" | 40cm | 9.0cm | 9.5cm | 1.89kg |
| European Heavy Duty 24" | 51cm | 10cm | 11.0cm | 3.00kg |
Exact dimensions are not given in the current product data. Unit weight and jaw opening are missing too. So is the torque rating. Get in touch with us before you order, and we will confirm these details for you.
Materials and Heat Treatment
The standard handle is made of ductile (nodular) iron or cast iron. A lighter tool is what some users ask for. An aluminum alloy handle covers that need, and it cuts the weight by about 40%.
These jaws start as chromium-molybdenum (Cr-Mo) or chromium-vanadium (Cr-V) alloy steel and get drop-forged. Differential induction hardening brings the teeth to HRC 55-60.

Key Features
These are the main design points of this this product:
- Straight I-beam handle: High torque work goes easier with the straight pull line.
- Full-floating hook jaw: This jaw matches the pipe size. Pull on it and the grip gets tighter.
- Serrated, heat-treated teeth: They are hardened to HRC 55-60. Rounded or corroded surfaces still get a solid bite.
- Replaceable jaws: A worn jaw comes off, and a new one goes on. Buying a whole new wrench is not needed.

Where You Use It
A standard tool slips on large-diameter pipe. The Heavy Pipe Wrench is the tool for that job. Typical jobs include:
- Maintenance on large-diameter cast iron or galvanized supply lines
- Plumbing and steamfitting work
- Freeing threaded joints that have seized up or gone rusty
Manufacturing and Quality Control
Each wrench starts as a forging. Machining comes next, and heat treating is the last step. ISO9001 and CE certification is listed on the spec sheet. Before production begins on a custom order, we check the material with you. Dimensional accuracy and performance needs are approved in the same way.

Heavy Pipe Wrench Customization and Technical Support
FLA also builds non-standard sizes and special structures. Machinery makers use them. So do building material plants. Other industries as well. You get support at every stage of the order:
- Early stage: We build the mold for your custom parts. 3D design and checking come with it. That way you can look over the product form before you approve it.
- Mid stage: Layout optimization and confirmation of material, performance, and dimensional accuracy.
- Late stage: Production progress updates matched to the delivery schedule.
Delivery and Supply
A stock of 2,000 tons covers standard sizes. Special-shaped parts and other custom orders can ship in 7-15 days at the quickest. Pricing questions get an answer in 24-48 hours. Unit weight and 3D design feedback take the same time.
Safe Use and Jaw Care
Choose a wrench size that matches the pipe. A longer handle gives you more leverage. Go up a size when you need extra force. Never put an extension on the handle.
Check your Heavy Pipe Wrench at the start of every shift. Replace the jaw if the teeth look flat or rounded. A bent hook jaw means a new jaw too. If hairline cracks show near the shank, replace the jaw as well. Do not use the tool again until the jaw is replaced.
Frequently Asked Questions
Q: What makes a cast iron handle different from an aluminum one?
A: Weight is the main gap. An aluminum alloy handle comes in around 40% lighter. The current product data does not cover other differences. If you need a comparison for your own application, get in touch with us.
Q: When should the jaws be replaced?
A: Once the teeth flatten or round off and the tool starts to slip, it is time for new ones. Should the hook jaw bend, or hairline cracks appear near the shank, swap them out at once.
Q: Would putting a cheater bar on the handle be okay?
A: No. The tool was not built for that much load, and a cheater bar piles on more. Reach for a bigger wrench. Go with 36 inch rather than 24 inch.
Q: How is the wrench size determined?
A: Handle length is what the size number tells you. Handles come in 18 inch, 24 inch, and 36 inch. Capacity works like this. A 24 inch wrench handles pipe up to 3 inch in diameter.
Q: Can you build custom versions, or ones in a special shape?
A: Yes. Mold development and 3D design are part of what we do. For non-standard sizes and structures, we confirm material choice, performance, and dimensional accuracy. Custom delivery can take as little as 7-15 days.
Contact Us
Send your pipe size and quantity to sales@flaindustrial.com. Add any custom requirements too. Ask for a Heavy Pipe Wrench quote or unit weight.
