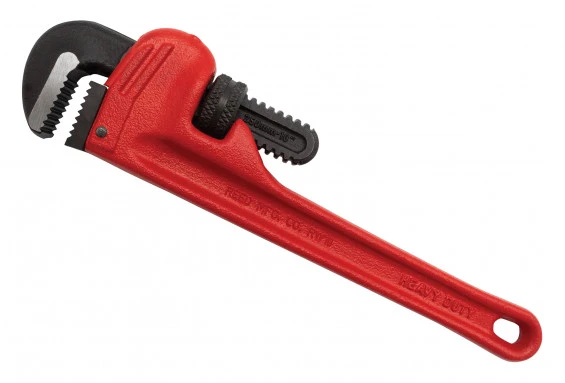

Heavy Duty Straight Pipe Wrench
Heavy Duty Straight Pipe Wrench

Heavy Duty Straight Pipe Wrench

Material: Alloy Steel / Cast Iron
Application: Used for tightening and loosening large-diameter pipes, suitable for high-torque operations
Appearance: Standard straight-handle design, adjustable jaws, relatively large size
Place of Origin: China
Manufacturing Process: Forging, machining, heat treatment
Certification: ISO9001, CE

Heavy Duty Straight Pipe Wrench for Oil & Gas, Steam and Plumbing

FLA Industrial & Trading Co., Ltd. supplies hand tools for turning threaded pipes and fittings. One model is the Heavy Duty Straight Pipe Wrench. It handles high torque on large-diameter pipe. The housing and handle are ductile iron. Forged alloy steel makes up the hook and heel jaws, and the hardness is HRC 55-60. Every wrench is forged in China. Machining and heat treatment also take place there. The straight handle and adjustable jaws fit oil and gas work, steam jobs and plumbing. Need pricing, unit weight or 3D design feedback? Our team can reply within 24-48 hours.

What This Wrench Does

This product grips and turns threaded pipes and fittings when torque is high. Here, "heavy duty" means the ductile iron housing and the I-beam handle. Those parts set this model apart from lighter aluminum tools. They also set it apart from lower-grade cast iron tools.

The full-floating forged hook jaw makes the grip self-tightening. Press the handle and the jaws bite deeper into the pipe. That helps on rounded or rusted pipe. It helps too when oil makes the surface slick.

Specifications

The table below lists the specifications supplied for this this product.

Model Total Length Total Width Maximum Opening Product Weight
European Heavy Duty 10" 24.5cm 6.5cm 5.5cm 0.68kg
European Heavy Duty 12" 27.5cm 7.5cm 6.5cm 0.97kg
European Heavy Duty 14" 31.5cm 8.0cm 8.7cm 1.28kg
European Heavy Duty 18" 40cm 9.0cm 9.5cm 1.89kg
European Heavy Duty 24" 51cm 10cm 11.0cm 3.00kg

Available sizes, jaw capacity, weight and torque rating are not specified here. Please request them with your inquiry.

Materials and Manufacturing

Ductile iron goes into the handle and the housing. This metal is less brittle than grey iron, and it takes a sudden load better. Jaws come from forged alloy steel. Induction hardening comes next.

Machining mills the teeth to an exact angle, so the bite happens right away. Heat treatment sets jaw hardness at HRC 55-60. On the handle, a powder coat adds a protective finish for storage and for job site use.

Design Features

On the straight version, the jaw opening sits parallel to the handle. An I-beam profile keeps that handle strong. No extra bulk gets added along the way.

One hand is all you need to set the wrench, thanks to the knurled nut. The graduated hook jaw also gives you a visual size reference. Tension on the floating hook jaw comes from a spring, so it bites and lets go smoothly. Hook and heel jaws are fixed with pins and can be replaced. That makes the housing last longer.

product-1-1

Applications

Oil and gas: Thick-walled pipe couplings in drilling and refinery work call for this wrench. Mud, grease and corrosive agents are normal there.

Steam and HVAC retrofits: Steamfitters handle black iron pipe from 2-inch to 6-inch. On seasoned steel pipe, the toothed jaws bite in where standard pliers may slip.

Heavy renovation: Seized galvanized water mains and sewer cleanouts are a common job for contractors. Rust locks the old threads in place. A Heavy Duty Straight Pipe Wrench gets them out.

product-1-1

Before You Order a Heavy Duty Straight Pipe Wrench

Purchasing managers and quality teams usually check four points:

  • Jaw hardness: Check the rating on the hook and heel jaws. It should be HRC 55-60.
  • Moving parts: The hook jaw needs to spring back on its own. Turning the adjustment nut should feel free, with no seizing and no wobble in the jaw.
  • Finish: Look the powder coating over once it arrives. Watch for chips, and for spots where the coverage is uneven.
  • Documents and data: Request the ISO9001 and CE papers that go with this exact model. The size, weight and torque figures should come with them.

product-1-1

Customization and Technical Support

FLA Industrial builds special-shaped parts to order. Non-standard sizes and odd structures are both part of that work, for machinery, building materials and other trades. Send over your drawings or the sizes you need and we can start.

Support runs through the whole order:

  • Early stage: Mold development for custom products, plus 3D design and verification so you can review the product form first.
  • Mid stage: Layout adjustment and confirmation of material, performance and dimensional accuracy.
  • Late stage: Production progress updates matched to delivery progress, so you can follow order status.

Supply and Certifications

Standard orders ship from a stock of 2,000 tons kept by FLA Industrial. Its production runs under ISO9001 quality management, and the Products" target="_blank" style="color:blue" >products are stated to carry CE certification. Ask for the documents that match this Heavy Duty Straight Pipe Wrench model.

Heavy Duty Straight Pipe Wrench

FAQ

Q: What sets a ductile iron wrench apart from an aluminum one?

A: The ductile iron version weighs more and lasts longer. That extra weight helps when you apply torque on downward-turning work. Aluminum is lighter, so overhead work brings less fatigue.

Q: When should the jaws be replaced?

A: Replace them when the teeth flatten or chip and the wrench slips under load. The hook and heel jaws are pin-fixed and replaceable, so the housing can stay in service.

Q: Why does my wrench slip?

A: Common causes are dull teeth, debris in the teeth (clean them with a wire brush) or a pipe that is not seated deep enough. Let the pipe touch the back of the hook jaw before you apply force.

Q: Can I use a cheater bar?

A: No. The handle was built for a set load, and a cheater bar pushes past it. Need more turning force? Reach for a bigger wrench.

Q: Is it possible to order This product made to my own specs?

A: Yes. Custom orders can ship in as little as 7-15 days, and our team can share 3D design feedback within 24-48 hours.

Contact Us

Send your pipe size, torque requirement and quantity to sales@flaindustrial.com. We will reply with Heavy Duty Straight Pipe Wrench pricing, unit weight and 3D design feedback within 24-48 hours.
