A Bolted Dead End Clamp, which squeezes an overhead conductor between a hollow body and a caretaker before tightening the bolts until the line pulls them off, holds the conductor in place. The clamps stretch the wire and send it to a tower, pole, or insulation string. This keeps the space and sag of the span. For grip, the part needs to be the right size, fit completely in the groove, and the torque needs to be kept in check. For almost 40 years, FLA Industrial & Trading Co., Ltd. has sold tools. What does the clamp do? How do I choose? How do I get one?

Specification

Product Name	Applicable Range	Material Options	Finish	Manufacturing Process

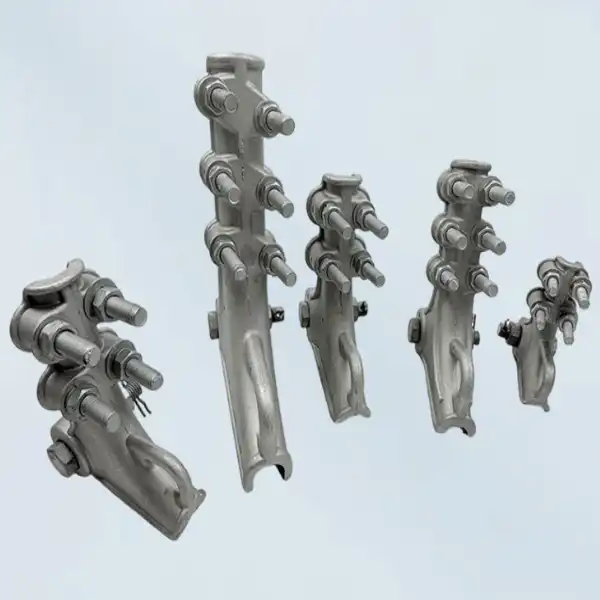

NLL-1 Strain Clamp	35-50 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-2 Strain Clamp	70-95 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-3 Strain Clamp	120-150 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-4 Strain Clamp	185-240 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining

How a Bolted Dead End Clamp Holds Conductors Under Tension?

What a Bolted Dead End Clamp Does at Line Terminals?

An overhead conductor is held in place by a Bolted Dead End Clamp at terminals, angle points, and crossing spans. These are places where the line ends or changes direction. The construction that holds the wire in place is tested to make sure it can handle the full pull and doesn't slip. This keeps the span's shape steady. This job is not like other ones. A clamp in the ceiling holds the weight of the wire up. Two branches are joined by a tap-off clamp, and electricity flows through a connector. Power grids for workplaces, green energy projects, transport lines, and wired communication systems that talk to each other all use dead-end clamps. Stability mechanically and being able to carry electricity are two different things, so check the needs for carrying current separately.

The Load Path From Conductor to Structure

The load moves in a clear order: the conductor comes first, then the clamp body, then the pressure plate or custodian, then the bolts, and finally the power string or pole hardware. As the bolts get tighter, the wire is pushed into the groove. That pressure makes the contact rub against itself all the way along it. The conductor can't move in just one direction because of friction. The force is spread out over a larger area by the smooth lines. The strands won't get stuck this way. Things are less stressful when the contact lengths are longer. Press plates or wedges will both work the same way if they are used in the same way. Each link in this chain needs to be strong for the whole thing to work. The whole thing won't work if there is a weak link in the bolt, the body, or the hook.

Why Torque, Sag, and Weather Matter?

The grip is set by torque. If the wire isn't tight enough, it can move when the load is put on it. Too tight a fit can hurt the insulation or bend the aluminium strands. Follow the power number that came with the wrench and only use a wrench that has been tested. Outside forces make the load heavier. The US National Electrical Safety Code lists places with light, medium, and heavy loads when there is ice and wind. The hardware can't handle that much weight. The line changes too because of the heat or cold. Metal expands about twice as much as steel does when it gets hot. The cable can sag during the day because of this change in tension. You should write down the safety factors, the rated working load, and the ultimate tensile load for these swings.

Bolted Dead End Clamp Materials, Construction, and Performance

Body and Hardware Materials

How strong something is and how long it lasts depend on the material you pick. The Bolted Dead End Clamp comes in iron that can be formed, an aluminium alloy with a steel core, or an aluminium alloy with a steel core. To make it, it is cast, forged, and cut. Forging smooths out the grain structure of parts that hold weight. The body and groove are made by casting, and the size of the grooves and bolt seats is set by grinding. It is easier for workers to use clamps on poles and buildings when they are small. For each load, a different type of malleable iron is best because it is harder or lighter in a different way. The hardware for these fittings is always made of steel that has been acid-washed. But stainless steel is sometimes needed in harsh places. To keep the electricity running smoothly, it's important that the body material matches the wire.

Finishes and Corrosion Protection

Watch out for rust on the finish of a Bolted Dead End Clamp, as it shortens the life of clamps. We sell parts made of both raw aluminium and hot-dip galvanised metal. Zinc is added to iron and steel during hot-dip galvanising. We can learn how to protect metal from ASTM A153. Outside, natural aluminium forms a thin metal film that keeps damage from getting worse in many places. When you don't want galvanic corrosion to happen, don't let a copper line touch an aluminium body. The metal will rust fast. People who live near factories, the coast, or the air along the coast all wear out faster, so they should tell us about the environment when they place their order. If the finish does its job, the grip will look good for years to come.

Specification Overview

The table below lists our product data so buyers can compare it with their project needs.

Item	Detail
Material	Aluminum alloy with steel core / ductile iron
Finish	Hot-dip galvanized, natural aluminum
Process	Casting, forging, machining
Application	Terminals, angle points, crossing spans
Origin	China
Certification	ISO 9001, IEC

A specs table lets teams that buy things see how different kinds of things stack up against each other. Standard, working load, maximum tension load, suggested torque, and wire range are some of the things that should be on a full data sheet. Make sure that the models you look at are the right size for you before you buy them. When asked, we talk about hard things.

Bolted Dead End Clamp Installation and Selection

Preparing the Site and the Conductor

Something needs to be set up well before anyone climbs. Learn what kind of wire it is and how big it is on the outside. Next, check the clamp for cracks, burrs, and broken threads. Make sure that the gear, crossarm, or insulator on the pole can handle the stress that is going to be put on it. When crews work at heights or with electricity, they have to follow rules. This includes places where live or off-grid lines can go. If the maker tells you to, clean the surface of the conductor. Rust can be taken off of metal with a wire brush. If the wire is bundled for the air or being held by a messenger, check to see if the clamp holds the messenger or the whole bundle. After each check, you don't need to do anything else; they only take a minute each.

Tightening, Alignment, and Final Checks

Choosing the Correct Size and Rating

It's not enough to just fit a possible cross-section for a Bolted Dead End Clamp. Measure the outside width of the wire, the insulation thickness, the line angle, and the load that needs to be put on it. Then, compare the clamp's range to those items. At the site, look at the smog, sea spray, UV rays, wind, and ice. Next, check the working load, proof load, slip load, and maximum tensile strength. Ask for proof of each number. A lot of dead-end clamps don't have a steady current value. Make it clear if the clamp needs to carry electricity. For models, licenses, and quality records, ask for them before you agree to pay the amount. We help people decide what to do by giving them advice and making 3D models. They can make a clean list of SKUs with the same data.

Bolted Dead End Clamp vs. Other Dead-End Solutions

Bolted, Wedge, and Automatic Designs Compared

Each plan works best when things are different. When you use bolts, you need to be able to control the torque and make sure the hardware is clear so you can check the bolts. In order to fix sag, crews can loosen the conductor without cutting it. They do not need hydraulic clamping tools to finish the job. You can hold things with wedge and automatic dead-end clamps. As the strain goes up, the wedge action gets tighter. This might make work go faster out in the field. Making sure that the wire and the block fit together right is important. Look at more than one thing. Compare your own crews' tools, work in the field, maintenance, and how well the machines work.

Special Cases for ABC Cable

When you work with some of the very strong aerial coiled wire, you need to be extra careful. The fitting might be able to hold the whole bundle, the message, or a certain power part, depending on how it's made. If the clamp is not in the right place, the insulation could be broken, or the wire could come loose. Before you place your order, read the wiring manufacturer's instructions and check out the clamp's tested conductor range. That kind of wire doesn't show up very often. Please send us a picture or a list of specs. We can look at the shape of the groove and how it holds the wire. Because the wires don't have to fit, installation mistakes don't happen. When these checks are done before the order is sent, it saves time for both buyers and sellers of utilities.

When a Bolted Design Fits Best?

Bolted clamps work best for jobs that need to be checked and changed in a way that can be recorded. If the torque is kept in check, crews can check the grip and use it again and again. It's easy to check your account when you can see parts of it. We can make different sizes because the parts we work with aren't always standard or round. Also, hydraulic tools can be hard to get to sometimes, like when you're in the middle of nowhere. Utility companies, builders, and wholesalers can't just look at price or how easy it is to set up. Tech needs, like load, wire type, and area, should also be taken into account. It might cost more to fix a clamp that was chosen because it was easy. Our techs can make sure that the angle and stress of your line are correct.

Procurement, Verification, and Maintenance for Bolted Dead End Clamps

What to Include in an RFQ?

Bolted clamps work best for jobs that need to be checked out and changed in a way that can be recorded. If the torque is kept in check, crews can check the grip and use it again and again. It's easy to check your account when you can see parts of it. We can make different sizes because the parts we work with aren't always standard or round. Also, hydraulic tools can be hard to get to sometimes, like when you're in the middle of nowhere. Utility companies, builders, and wholesalers can't just look at price or how easy it is to set up. Tech needs, like load, wire type, and area, should also be taken into account. It might cost more to fix a clamp that was chosen because it was easy. Our techs can make sure that the angle and stress of your line are correct.

Choosing a Manufacturer You Can Verify

Check to see how well the company can make things, how much experience it has with OEM and utility, how well it can keep track of things, how well it can export, and how well it can answer technical questions. The FLA Industrial & Trading Co., Ltd. has been in business for almost 40 years and sells more than 1,000 different kinds of iron pipe fittings, craft clamps, and hardware tools. This is how we handle quality, and ISO 9001 has approved it. Our Products" target="_blank" style="color:blue" >products also meet IEC standards. People in the Fortune Global 500 trust us to ship to the US, Germany, and Australia. Standard items cost 2,000 tonnes and take 7–15 days to make. Questions can be answered in 24–48 hours. You can save money by getting deals straight from the business that makes the goods. Before being sent out, each clamp is checked.

Verification, Inspection, and Troubleshooting

Some of the things that should be checked at the plant are the bolt torque, the proof-load, the tensile-load, the slip-load, and the sizes. But tests for electrical link or temperature rise can only be done on clamps that can handle electricity. Check for rust, cracks, warping, wire slippage, insulation damage, sag changes, and things that aren't lined up correctly after the installation is done. Several things can go wrong: the wrong size, a bad fit, too much power, shaking, rust, or loads that aren't even. It's most likely that the size, position, or force is wrong when something slips. It's possible that the part is too tight or too heavy if it has cracks. Rust could be caused by the film or the weather. That way, you'll be able to see problems before they happen again.

Conclusion

An overhead wire is held in place by a Bolted Dead End Clamp, which changes the torque on the nuts into friction. This friction then sends the line tension to the insulator string, pole, or tower. If you want good performance, make sure the body and finish are right, and that the wire fits well. They need to fully seat the wire, line up the clamp with the pull, and use a measured wrench to tighten. Instead of wedge designs, fixed clamps are better because they can be adjusted and can be seen to check. But be more careful with the part that holds an upper twisted wire. An RFQ, test records, and frequent checks make it less likely that a line will slip, need fixes, or be shut down over the course of its life.

FAQ

What is the main function of a Bolted Dead End Clamp?

At the ends, sides, and crossing spans, the conductor is held in place. The frame that holds the wire up and stops it from moving also feels the stress in the wire.

How do I choose the correct size?

Find the range that the clamp says the wire's outside width should be. Next, look at the working load, slip load, torque, and test data for the model.

Does a dead-end clamp carry current?

A lot of them don't have an always-on number. It's important to try the clamp and say that current has to run through it.

Can I use an aluminum clamp on copper conductors?

In fact, metal and copper rust when they touch each other, and aluminium rusts very fast. Parts that are made for copper lines should be used.

Which documents should I request before ordering?

You should ask for test results, quality records, models, load data, and directions on how to use torque. Check each one against the project and wire size needs.

Request a Bolted Dead End Clamp Quotation

Send your conductor type, outside diameter, required load, application angle, environment, standards, quantity, and destination to sales@flaindustrial.com. FLA Industrial & Trading Co., Ltd. is a direct Bolted Dead End Clamp manufacturer, offering ISO 9001 quality management, custom options, 2,000 tons of inventory, and 24–48-hour responses. Our team prepares a project-specific quotation and shares technical data. Visit flaindustry.com for details.
