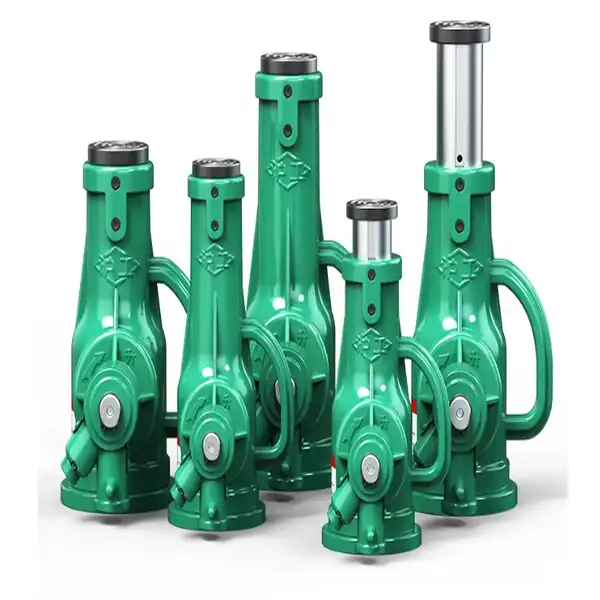

Industrial Screw Jack Selection for Precise Height Adjustment in Heavy Machinery Installation

It is possible to change the height of big machines by setting up the Industrial Screw Jack's load rate, screw type, gear ratio, task cycle, and environment in the right way. Make sure you are safe and have the whole load you need to move at the start. Then pick a ball screw or a machine screw based on your needs. If you need to keep power, pick a machine screw. Make sure the side loads, brakes, and grease are all good before you place your order. This guide can help plant teams, purchasing managers, and project engineers write a full request and get the right answer. It tells you how to find the right supplier, set it up, and get the right size.

Specification

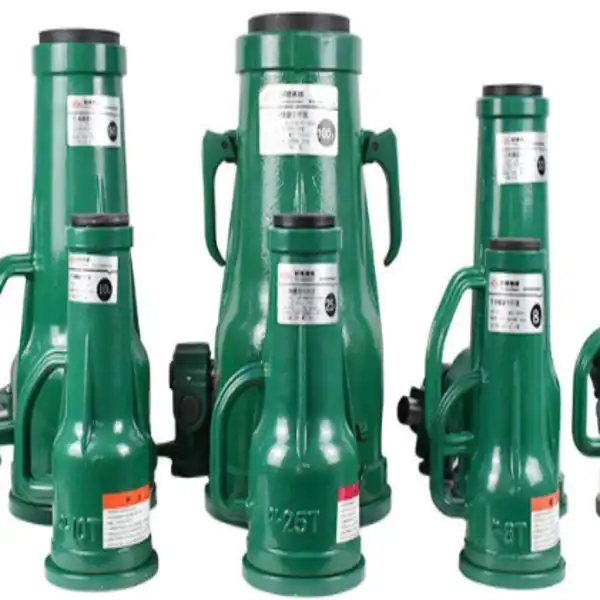

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

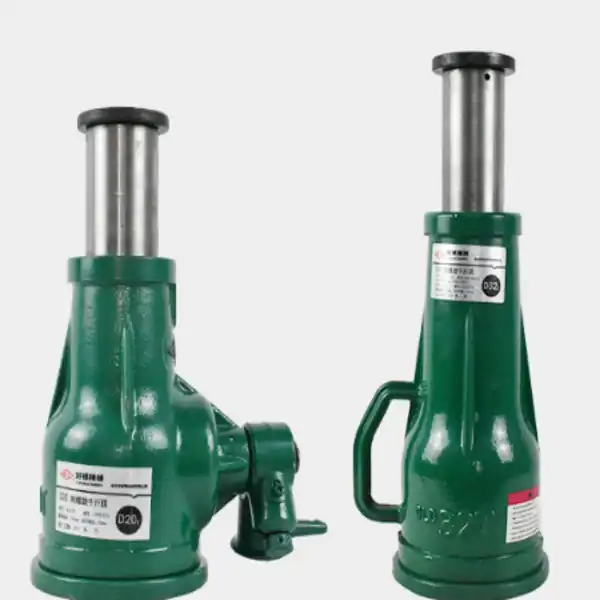

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding the Industrial Screw Jack and Choosing the Right Type

You need to know how something works and where it fits to choose the right one.

What Is an Industrial Screw Jack and How Does It Work?

This is a machine tool called an industrial screw jack. It can hold, push, pull, lift, or lower machines and buildings. A worm or bevel gear set and a rising screw are moved by the input spin. After that, a screw or nut that moves moves in a straight line. The six main parts are the screw, the seals, the cap to protect the screw, the fastening interface, the gears, and the bearings. Something else can have a motor, stop, encoder, and limit button added to it. It doesn't have any fluid that can leak out or move around, like a hydraulic tank. In order for something to self-lock, the load direction, the screw pitch, the friction, the gear ratio, and how well the parts are oiled must all be just right. Before you hang or stand something straight up, check to see if it needs a separate stop or a motorised support.

How to Select the Correct Industrial Screw Jack Type?

Before you do anything else, you should think about the speed, load, accuracy, duty cycle, and control method. With a worm gear type, it's simple to change how much you pull. Plans that use bevel gears work better and can be put to use in many ways with many axes. A long, thin screw that can hold a lot of weight is used in machine screw jacks. Put the ball screw jacks where they need to be to get work done faster and better. They can back up, though, and need to stop. A lot of business directories have gear ratios between 5:1 and 32:1. Use a moving screw to connect the load to the end of a moving screw when it's not being moved. Pick a screw that can be turned even if there isn't much room to move it up and down. Pick stainless steel or a covering that won't rust for places that get wet, are outside, or are cleaned a lot.

How to Match an Industrial Screw Jack to the Application?

You can find out more about the job than just the load number. It's important for conveyor lines to be able to keep dust out, connect to each other, and handle side loads. Sharing loads must be tested, frames must be rigid, and lifting platforms must have features that stop them from turning, brakes, limit switches, and a quick way to lower themselves in case of an emergency. It's important that packing tools are small, can link to a PLC, and can be used more than once. Setting the rollers in a steel mill adds rough scale and heat. Heavy-duty seals and bellows boots are used to keep the screw threads safe. It needs to be very stiff against wind and not rust for solar tracking to work. Theatre stage lifts should have safety nuts on the ends so they don't fall off. Also, they need to be quiet. Our screw jacks aren't just for building. They're also used to set up machines, fix bridges, and lift things together.

Sizing an Industrial Screw Jack for Load, Torque, and Speed

I use the numbers to make the final choice, so I make sure I do them in the right order.

How to Calculate Load Capacity and Safety Factor?

The full moving load for an Industrial Screw Jack is the first thing that is measured. Write down the name of the machine, the thing that is being made, the tools, the fittings, the guides, the speed, the wear and tear, the shock forces, and the friction. You might be wrong if you think the load is spread out over several jacks. One corner may be too heavy if the frame is stiff or not in the middle. Next, choose a safety factor that works for the area, the job cycle, the load's direction, and what will happen if it doesn't work. The seller's number should be checked to see if it refers to holding capacity, moving capacity, standing capacity, or compression capacity. The range that this company has given is from 2.5 kN to 3500 kN, so the base is just as important as the number. In Shigley's Mechanical Engineering Design, the angle of the lead and friction affect how well a power screw works and how it locks.

How to Estimate Torque and Lifting Speed?

To find screw torque, most of the time T = F × L ÷ (2π × ·) is used. F stands for axial load, L for screw lead, and η for efficiency. The screw has a load of 10,000 N, a lead of 5 mm, and an efficiency of 0.30, to give you an idea. You should ask your provider about the number because the input need goes up when there are losses in the gears. The rate of lift is equal to the speed of the screw times the length of the lead. The input can turn at 1,000 rpm, and the screw can turn at 50 rpm. A 5 mm lead can move up and down about 250 mm per minute. Most machine screw jacks don't work all the time because they get too hot when the worm gears touch. If the work doesn't stop, you can use a belt or a ball screw.

Common Industrial Screw Jack Selection Mistakes and How to Avoid Them

A few mistakes cause most failures to happen over and over again. When people choose a model, the only thing they look at is the highest load it can hold. They don't think about heavy loads, shocks, side loads, or aligning the parts. You need more oil and heat when you go fast. If they are out of place or under too much stress, nuts, gears, screws, and seals can break. Don't think that all screw jacks lock on their own. What works one way might not work the same way the next because of dirt, wear, shaking, or the direction of the load. Ball screw units don't lock one another. You should make the side force guides, back-driving stops, and extra supports for people who carry things at work. Make sure you always have nuts, seals, gears, bearings, controls, and other parts on hand, and plan ahead for when you can fix things.

Installation, Lubrication, and Maintenance of a Screw Jack

Make sure the investment is set up correctly and is checked on often after you get it.

Industrial Screw Jack Installation Guide

Wear doesn't start too soon if it's put together right. Check the mounting dimensions, bolt patterns, shaft orientation, stroke, at-rest height, extension, and load alignment before putting it together. With side forces in mind, you shouldn't use a screw jack as a building guide. Straight-line bearings or outside guides are better. In the space given by the maker, make sure that the motors, joints, and shafts are lined up correctly. Before you start up, make sure the emergency stops, limit switches, encoders, and overload safety are all set up. Then test it three times: with no load, some load, and full load. Write down the temperature, noise, shaking, speed, and how the machine stops at each step. The next people who work on your gear will be able to use those first readings to figure out drift. When you first turn on the device, all of the jacks should be at the same height.

Lubrication and Maintenance Requirements

In places with a lot of dust, water, or rust, it's important to clean and lubricate things to make them last longer. You will be told by the supplier what kind of grease to use, how much to use, and how often to do it. Do not mix things that don't go with each other. Check for signs of wear, leaks, rust, cracking, and imbalance in things like screws, moving nuts, gears, bearings, seals, bellows, covers, and Fastening Tools. It could mean that there is too much load, bad lube, or broken parts if the backlash goes up, the noise changes, or the temperature goes up. Every shift should have an inspection, and the reaction and seals should be looked over every so often. Once a year, there should be a full inspection that takes into account how things really are. Our screw jacks come with a dust cover and a place to put grease on them. This helps clean and grease them better.

Quality Checks to Request Before Shipment

There should be good records of how an Industrial Screw Jack was put together and checked. We turn, grind, mill, heat treat, put together, and test as part of our process. We check the materials, make sure the sizes are correct, and try the loads to make sure the finish is good. When you compare sellers, find out what kinds of checks they do. To see if there is enough thread clearance, an axial backlash test is used. A number screen is used with the test. It keeps track of noise, shaking, and the gearbox's temperature rise during both no-load and full-load runs. To make sure the building is still safe, a standing stress test is done at 1.5 times the load rate. It helps the wear last longer to make sure the worm shaft and bronze wheel are hard enough. These records tell you if a unit will stay where you are. Design: the angle of the lead and friction affect how well a power screw works and how it locks.

Procurement Decisions for Industrial Screw Jack Buyers

Hardware distributors, contractors, and plant teams all weigh the same questions at purchase.

Industrial Screw Jack vs. Hydraulic Jacks and Electric Linear Actuators

When you compare these apps, don't just look at the price. Look at the app as a whole. Screw jacks let you move things mechanically, line them up in more than one spot with connecting shafts, and hold loads without using hydraulic fluid. In other words, there is no lost or changed pressure. It is possible for hydraulic systems to lift things quickly or strongly. An electric linear motor can move small loads that can be moved on their own, but it's not as good for industrial lifts with a lot of points. The speed and care with which it moves can change. You can keep up with machine screw systems better, but ball screws with good gearboxes can also be used for fast cycling. One motor can power two, four, six, or more jacks by using shafts, joints, and mitre gears. This will bring things that aren't level down.

How to Evaluate an Industrial Screw Jack Manufacturer or Supplier?

You can trust a supplier if they know a lot about things like screw jacks, synchronised lifting, gear gearboxes, and app engineering. Ask for test records, load charts, information sheets, measurement drawings, and data sheets. FLA Industrial & Trading Co., Ltd. has been in business for almost 40 years and has made more than 1,000 types of metal tools, craft clamps, electrical line tools, and bendable iron pipe fittings. Rich people who know us believe in us, and people from the US, Germany, and Australia work with us. We follow ISO9001, CE, and the right DIN, AGMA, and EN rules in everything we do. Also, make sure you have the right export packaging, customs paperwork, guides, extra parts, installation directions, and customer service after the sale. A good quote tells you about the system's features, the lead time, the warranty, the inspection process, and the important dates for delivery.

Industrial Screw Jack Selection Checklist for Global B2B Buyers

Get three sets of information ready before you send a request.

• Moment and load are made up of things like total load, load per jack, compression or tension, stroke, retraction, and fixed height. Height, number of pulling spots, job cycle, and speed are some of the other things that matter. This information can help the service provider choose the right jack, screw, and gear ratio. Before giving you a model that will work for your load, they can also find out how much the seller knows about temperature limits.
• What kind of power the machine has, whether it is run by hand or by a motor, how the parts are lined up, how they are mounted, backlash, and goals for repeatability. Clear controls make it easy to keep track of motors and make sure safety devices are not missed. If you share these early, you can help decide how fast and what kind of brakes are used to stop a machine.
• Weather, dirt, water, washing, use outside, cleaning plan, expected service life, extra parts, and the need to lower in an emergency can all change the service and the environment. You can pick the right seals, covers, coats, and materials because of these things. They also change how much it costs to own everything. When everything is clear, the unit stays the right size for real life.

These answers will save providers time because they won't have to ask the same questions over and over again.

How to Specify and Order a Custom Industrial Screw Jack?

To do everyday things, use a normal model. If the size, form, timing, materials, settings, temperature, or duty cycle aren't what you want, custom engineering is the way to go. Some of the parts we can make have odd shapes and non-standard solutions. We can also change the load capacity to fit your needs. A full request includes the total system load, the stroke, the return height, the speed, the direction of mounting, the amount, the surroundings, the materials, the coatings, the seals, and the control options. Make sure they know what paperwork they need and what country the goods are going to. Also let them know when you need them delivered. Check the product and package it after sending in the application data and reading the technical proposal. Make sure the calculations and interfaces are correct, and then approve the drawings and the bill of materials. If necessary, test a prototype. Standard goods worth about 2,000 tonnes are ready to be sent out. It takes 7 to 15 days to send out one-of-a-kind things.

Conclusion

How to Choose an Industrial Screw Jack: You need to know how the gear set and lifting screw work together to control the jack's height before you can change it exactly. Once that's done, make sure the jack can handle the load, speed, and duty cycle. Ball screws need to be stopped, but machine screws can hold heavy loads and lock themselves. You need to know how much weight is being moved, think about safety, and check the power, speed, and temperature limits to get the right size. It will last longer if it is put together correctly with exterior guides, oiled correctly, and checked often. Sometimes people shorten it by not paying attention to side loads or thinking it locks itself. Check it out next to electric motors and hydraulic jacks, and read the supplier's paperwork, test records, and full specs. Prices aren't the only thing you should consider when you buy something.

FAQ

Is every industrial screw jack self-locking?

Not at all. Most of the time, trapezoidal machine screw jacks get stuck because the threads touch each other. A ball screw jack doesn't need a stop motor to stay in place.

What limits the duty cycle?

The top size is set by the heat from the worm gear's contact. When they're not being used much, most machine screw jacks have a duty rate of 20% to 30%. If the work doesn't stop, you can use a belt or a ball screw.

Can one motor drive several jacks?

Yes. One motor can power two, four, six, or more jacks at the same time with the help of connecting shafts, joints, and mitre gears.

Should I choose a translating or rotating screw?

Use a moving screw to connect the load to the end of a moving screw when it's not being moved. There should be enough room for the screw to move up and down. Choose a screw that can turn instead.

Request an Industrial Screw Jack Quotation from FLA Industrial & Trading Co., Ltd.

Looking for an Industrial Screw Jack manufacturer that answers quickly? FLA Industrial & Trading Co., Ltd. keeps 2,000 tons of inventory for standard Products" target="_blank" style="color:blue" >products, ships custom solutions in roughly 7-15 days, and returns pricing, specifications, and 3D designs within 24-48 hours. Send your load, stroke, and mounting details to sales@flaindustrial.com. Visit flaindustry.com to review our ISO9001- and CE-compliant range and request a recommendation.

References

1. Machinery's Handbook, 31st Edition, Industrial Press, 2020

2. Shigley's Mechanical Engineering Design, 11th Edition, McGraw-Hill, 2020

3. ASME B1.5, Acme Screw Threads, 1997

4. ISO 2901, ISO General Purpose Metric Trapezoidal Screw Threads: Basic and Design Profiles, 2016

5. ANSI/AGMA 6034-B92, Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors, 1992

6. ISO 9001, Quality Management Systems: Requirements, 2015
