How Grooved Elbows Improve Pipe Routing in Space-Constrained Mechanical Rooms

This is because an Elbow Groove lets installers turn a line 90° or 45° with a mechanical coupling instead of a weld. This makes pipe routing easier in small mechanical rooms. That clears out areas that are too crowded for hot work, fabrication, and extra pipe length. Crews can quickly join each curved end together, and later they can take the joint apart for repair. I wrote this guide for distributors, contractors, and people who want to buy plumbing and HVAC systems and need clear information on how to choose, install, and find Products" target="_blank" style="color:blue" >products. I'll talk about the problems with routes, the different ways to fit things, and the checks that make a small layout safe and easy to keep up below.

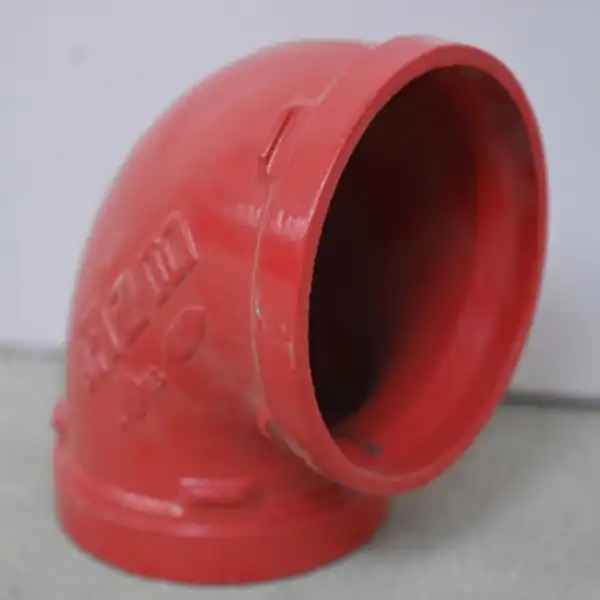

Specification

Nominal Diameter (mm)	Steel Pipe Outer Diameter (mm)	Nominal Pressure (MPa)	Unit
50	60	2.5	Piece
65	76	2.5	Piece
80	89	2.5	Piece
100	114	2.5	Piece
125	140	2.5	Piece
150	165	2.5	Piece
200	219	2.5	Piece

Why Pipe Routing Becomes Difficult in Compact Mechanical Rooms

Too Many Systems in Too Little Space

There are pumps, valves, chillers, HVAC lines, sprinkler mains, cable trays, and utility feeds all in one small mechanical room. Each system needs its own space on the walls and ceiling, and they all need to be able to reach each other. When trades plan alone, pipes run into walls, ducts, and boxes. When installers add offsets, pipe runs get longer, friction loss goes up, and valves and strainers can't be reached. Before anyone orders fittings, I always suggest that the drawings be looked over together. A mechanic might not be able to reach a valve years from now if there are a few inches of space at the pump flange.

Why Welded Joints Slow Down Restricted Rooms

Welding needs a place to work, trained workers, a way to check the work, and time to cool down. It also sets off settings for hot work. NFPA 51B has rules about how to keep hot work (welding, cutting, and other hot work) from starting fires. Projects usually follow these rules by getting permits, having fire watches, and making sure the area is clear. In a room that is already full or limited, those steps can stop other deals and push back the schedule. Also, welded pipes last forever. Crews might have to cut pipe and weld it back together if they need to replace a pump or add a new branch to a line. This doesn't happen as often with a motorised joint.

Layout Mistakes That Waste Space

Several mistakes in the design waste space. An elbow angle that doesn't match the obstacle requires more moves to get around it. Fittings that are too big take up space that a smaller body could save. Add hangers where it's already tight because of bad support planning. Another common mistake is not checking the coupling clearance, since the housing needs to have space for bolts and a wrench. I think you should mark the model's coupling envelopes and then check each joint to see if you can get to it with a tool. This step saves money during planning and keeps work from having to be redone on site.

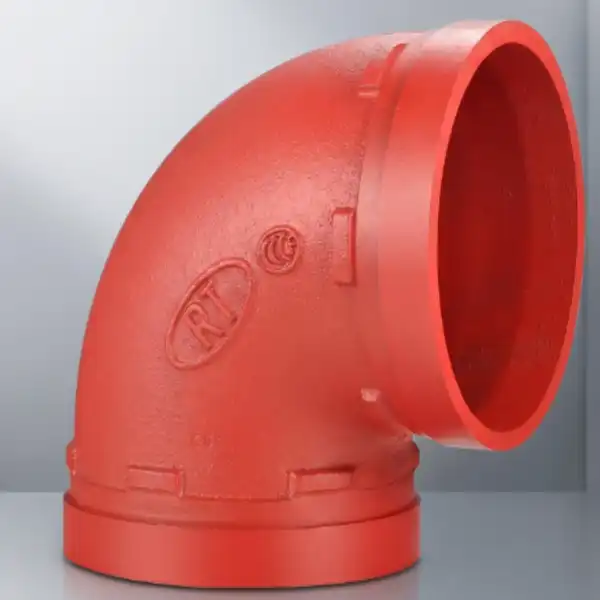

How an Elbow Groove Improves Routing Efficiency

90° and 45° Configurations in Tight Spaces

A 90° elbow cuts a direct path at walls, risers, and equipment connections, reducing the need for extended pipe runs. When you use a 45° elbow, the turns around beams, ducts, and valves are less sharp. This can also be achieved by using two 45° fittings instead of one 90° turn. Flow resistance is another important consideration. A standard 45° elbow has a resistance value approximately half that of a standard 90° elbow, according to Crane Technical Paper 410. In long pipe runs, reducing sharp turns can help minimize pressure losses. For projects requiring different connection configurations, designers can choose Elbow Groove fittings in both 45° and 90° options from FLA Industrial & Trading Co., Ltd.

Grooved Versus Threaded, Flanged, and Welded Elbows

Every type of relationship has its own place. Large and medium-sized mechanical pipes work well with grooved joints because they can be put together with standard hand tools and don't require any hot work. Still, flanges make sense at the ends of pumps, valves, and pieces of equipment. Smaller lines with less pressure can fit through threaded joints. For high-temperature, high-pressure, or code-controlled service, joints may need to be welded. In a crowded room, grooved couplings take up less room than flange pairs, and they can be taken apart for service. Not only do I compare prices, but I also look at labour, room, access, and how things might change in the future.

Rigid and Flexible Connections

It is possible for grooved couplings to be rigid or flexible. Rigid styles keep things in line and work well for steps and runs where support is important. Some styles are flexible and can move in certain directions. This helps them handle changes in temperature, vibration, and seismic activity. That adaptability needs help. A movable joint can move more than it's supposed to if it doesn't have the right supports, guides, and hangers. Around pumps and chillers, flexible joints are often needed, while rigid joints are used for the straight parts. By picking the right style for each elbow, you can keep the layout stable and small.

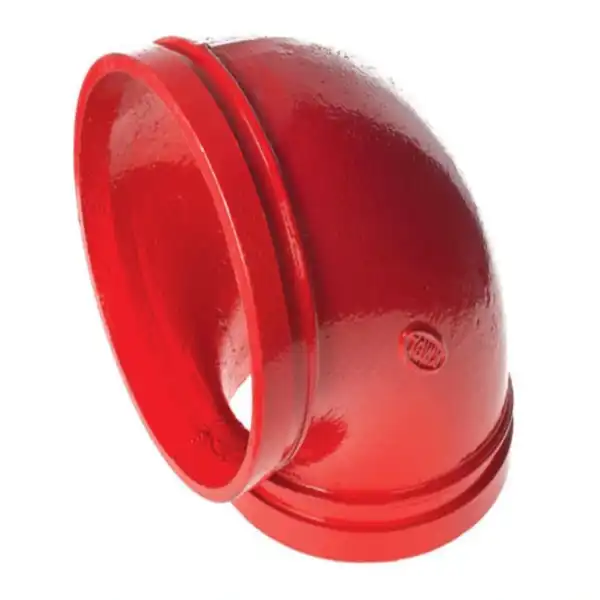

Elbow Groove Specifications, Materials, and Pressure Ratings

FLA Elbow Groove Sizes and Dimensions

FLA has Elbow Grooves from DN50 to DN200. It should be about 362 psi, or 2.5 MPa, for all sizes. They come in the following sizes:

Nominal Diameter (mm)	Steel Pipe Outer Diameter (mm)	Nominal Pressure (MPa)
50	60	2.5
65	76	2.5
80	89	2.5
100	114	2.5
125	140	2.5
150	165	2.5
200	219	2.5

DN50 is close to a 2-inch pipe, and DN200 is close to an 8-inch pipe. Always confirm the actual outside diameter and groove dimensions against drawings. Product parameters may change with technical upgrades, so check the actual product before final layout approval.

Ductile Iron, Carbon Steel, and Coating Options

This fitting is made by FLA from ductile iron or carbon steel. It is cast, machined, and coated. As per ASTM A536 Grade 65-45-12, ductile iron castings must have a minimum tensile strength of 65,000 psi. This is why buyers often ask for material test reports. Each fitting has either a red epoxy coating that stops corrosion or a galvanised layer when it leaves the factory. A lot of fire safety jobs use epoxy because it gives a smooth finish. When it comes to damp or corrosive rooms, galvanising works best. Before choosing a material for chemical or hygiene services, make sure it is compatible with the fluids that will be used.

Pressure Ratings, Standards, and Approvals

A joint is not qualified just because it has a pressure rating. When selecting an Elbow Groove fitting, the elbow, pipe, coupling, gasket, temperature, and installation method must all meet the system's requirements. Check the full assembly's working pressure, test pressure, and temperature limits. Gasket selection is also important, as EPDM and nitrile gaskets can only withstand certain temperature ranges, while steam applications typically require specialized gaskets and couplings. FLA products carry ISO 9001, UL, FM, and CE certifications, depending on the product and application. Always verify that the relevant certifications and listings meet your local regulations, pipe size, and intended use. NFPA 13 also requires sprinkler piping systems to undergo hydrostatic pressure testing.

Installation, Troubleshooting, and Quality Control

Step-by-Step Installation

First, make sure you know the pipe size, outside diameter, groove profile, coupling type, gasket grade, pressure rating, and gasket grade. Look for burrs, dents, and dirt on the pipe end and groove. Use the right oil to coat the seal, then place it on the pipe end. Place the coupling housings over the gasket so they fit into the grooves. Then line up the elbow and bring the pipe ends together. Follow the manufacturer's directions to tighten the nuts properly. If you try to force the pipe into place through the coupling, you will add stress that you can't see. Check the hangers, bases, and supports, and then write down the results of the hydraulic test for handover.

Fixing Leaks and Connection Problems

If a joint leaks, keep the line separate and lower the pressure on it first. After that, check the assembly. Some common reasons are seals that are broken or don't fit right, contamination, grooves that are the wrong size, imbalance, and bolts that are tightened unevenly. Check the groove, replace any broken parts, put it back together correctly, and test it again. Many failures are caused by groove depth and width, since a bad groove can cause a coupling to blow out. Look over the supports, heat movement, and earthquake loads as well. Check for rust, shaking, leaks, covering damage, and old gaskets on a regular basis, especially on lines that protect against fire.

Quality Control Checks Buyers Should Request

FLA checks each Elbow Groove several times during the production process. Here are the checks I tell buyers to make:

• Checks of dimensions: Inspectors compare the groove depth, groove width, and pipe thickness to the specs. I want every provider to make sure that the holes are correct so that the coupler stays in place and doesn't blow out under pressure.
• Material and pressure testing: When technicians get new raw materials, they check their chemical makeup and mechanical properties. Test batches are also put through hydraulic pressure tests that are higher than their rated capacity. This makes sure that the casting is structurally sound.
• Covering and eye inspection: The staff measures the thickness of the epoxy and galvanised layers and then looks at each fitting to see if there are any surface flaws and that the covering is even. Traceability records connect each batch to its raw materials and the conditions under which it was made.

The chances of leaks, coating failure, and having to do more work after installation are lower with these checks.

Sourcing, Decision Making, and Application Examples

How to Choose a Supplier

To begin, make a list of all the details you need to know, such as the fluid, sizes, angles, material, pressure, temperature, approvals, quantity, destination, and delivery date. After that, you should ask each provider for test reports, approval papers, material certificates, datasheets, and measurement models. Compare the consistency of the dimensions, the quality of the coating, the export packaging, the lead time, and the technical support. The U.S., Germany, and Australia all do business with FLA Industrial & Trading Co., Ltd., which has been around for almost 40 years and has over 1,000 product specifications. Standard things can be shipped quickly because it has 2,000 tonnes of stock. Look at the whole project's value, not just the price per unit.

A Practical Selection Checklist

For tight right-angle turns, use elbows at 90°, and for slow shifts around objects, use elbows at 45°. Pick stiff joints when it's important to keep things in place and line them, and pick flexible joints when there needs to be room for shaking or temperature change. Choose the right finish for the job, whether it's epoxy or galvanised. Before you buy a lot of something, make sure you know the coordinated layout, pressure loss, support loads, maintenance clearance, approvals, and access for installation. Also, distributors should check the packaging and make sure it fits all sizes. This short review cuts down on extra work and helps the service last longer.

Where Grooved Elbows Fit in Practice

The Elbow Groove from FLA is good for fire alarm systems, business water lines, drains, HVAC systems, and industrial waste lines. A 90° elbow can be used in a small lift shaft to route lines around structures and leave room for hangers. If the gasket is made for treated water or glycol, 45° elbows can be used to smooth out offsets around pumps and valves in chilled water pipes. When replacing old pipes, demountable joints can cut down on shutdown times if the outside sizes and groove shapes of the new pipes match. These are common ways to use them; they don't guarantee results. Every project needs its own review by an engineer.

Conclusion

Geared elbows make it easy for workers to switch directions in busy machine rooms. With a 45° turn, beams and equipment can be moved, and a 90° turn fits walls and risers. Mechanical couplings get rid of the hot work, fabrication space, and permanent joints that slow down welded layouts. When the supports are right, rigid and flexible couplings let designers control how things line up, how they vibrate, and how they move thermally. FLA's Elbow Groove works with ductile iron or carbon steel and has finishes of epoxy or galvanised. It can handle DN50 to DN200 at 2.5 MPa. It only rates one part of the assembly, so the system must match the pipe, coupling, gasket, approvals, installation, and inspection. A small room can still be used with careful planning, written quality checks, and early layout collaboration.

FAQ

What does an elbow groove mean?

When you connect two pipes together, the elbow groove changes the flow direction by 90° or 45°. Each end has a slot cut into it that fits a connection and seal. This lets workers join pipes together without having to weld or thread them.

Fire protection systems: Can curved bends work with them?

If the goods, size, and use are approved, then the answer is yes. FLA has been certified by UL and FM. Always check the ad to make sure it fits your job and the rules in your area.

What makes elbow joints with grooves leak?

Most leaks happen because of contaminated gaskets, misaligned parts, damaged gaskets, or uneven bolt tightening. Isolate the line, check it, replace any broken parts, and then test it again.

How can grooved systems lower the cost of installation?

When compared to welding, grooved joints cut down on hot work, fabrication, and work time. Prices for products may vary, but faster delivery and easier changes in the future often lower the total cost of a job.

Request an Elbow Groove Quotation from FLA Industrial & Trading Co., Ltd.

To sales@flaindustrial.com, send your pipe's outside diameter, elbow angle, material, pressure, quantity, and where it needs to go. The FLA Industrial & Trading Co., Ltd. has been making Elbow Grooves for almost 40 years and has 2,000 tonnes of stock. They can deliver custom orders in 7–15 days and respond to messages in 24–48 hours. There is no minimum order size. Please go to flaindustry.com to see all of our products.

References

1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022

2. NFPA 51B: Standard for Fire Prevention During Welding, Cutting, and Other Hot Work, 2019

3. ANSI/AWWA C606: Grooved and Shouldered Joints, 2015

4. ASTM A536: Standard Specification for Ductile Iron Castings, 2019

5. ASME B31.9: Building Services Piping, 2020

6. Crane Co., Technical Paper No. 410: Flow of Fluids Through Valves, Fittings, and Pipe, 2013
