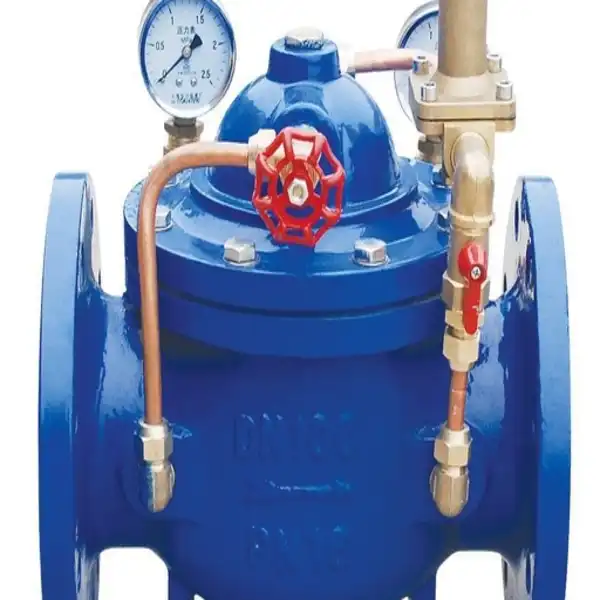

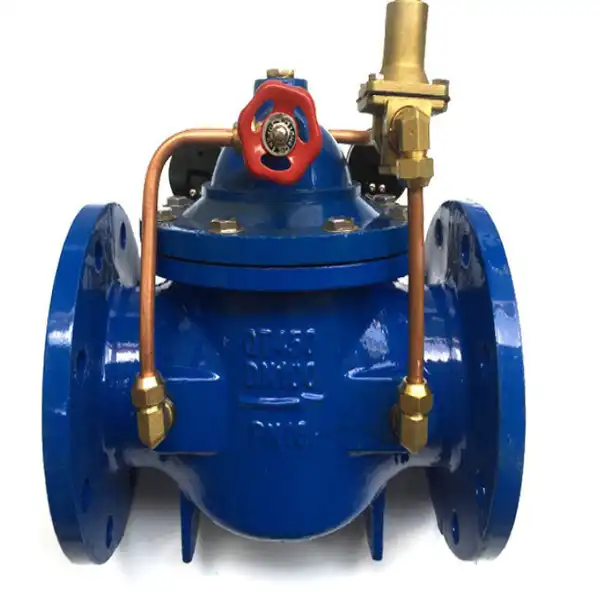

Pressure Reducing Regulator Valve Selection for Stable Pressure in Industrial Water Lines

Before you choose a Pressure Reducing Regulator Valve for an industrial water line, you should think about what it will be used for. Find out the range of the input pressure, the goal output pressure, the lowest and highest rates, the type of link, and the quality of the water. Check out more than just the pipe size. Check out the valve type, body material, and certifications as well. When the pressure upstream changes, the pressure downstream stays the same with a good valve. This protects the pipes, pumps, gauges, and fittings. I explain how these valves work, how to choose the right size, how they differ from relief valves, and how to install them.

Specification

Model (DN)	Type
DN50	National Standard Body
DN65	National Standard Body
DN80	National Standard Body
DN100	National Standard Body
DN125	National Standard Body
DN150	National Standard Body
DN200	National Standard Body
DN250	National Standard Body
DN300	National Standard Body
DN50	National Standard Heavy Body
DN65	National Standard Heavy Body
DN80	National Standard Heavy Body
DN100	National Standard Heavy Body
DN125	National Standard Heavy Body
DN150	National Standard Heavy Body
DN200	National Standard Heavy Body
DN250	National Standard Heavy Body
DN300	National Standard Heavy Body
DN50	Stainless Steel Accessories
DN65	Stainless Steel Accessories
DN80	Stainless Steel Accessories
DN100	Stainless Steel Accessories
DN125	Stainless Steel Accessories
DN150	Stainless Steel Accessories
DN200	Stainless Steel Accessories
DN250	Stainless Steel Accessories
DN300	Stainless Steel Accessories

Why Pressure Control Matters in Industrial Water Lines

Overpressure Risks for Pipes and Equipment

High pressure goes downstream through a pressure-reducing valve, and pressure stays the same downstream. High-level storage tanks, pumps, and changes in the city's water supply can all put too much pressure on a branch without one. This pressure can be too much for the branch's fittings, instruments, or fixtures to handle. Leaky joints, worn-out seals, noisy lines, and parts that break down early are all signs of damage. Height makes things more stressful. Every foot that the water level drops, about 0.433 psi is lost, which means that a 100-foot drop adds about 43 psi to the bottom. This is the main reason why plants and buildings with more than one floor need their own pressure zones.

Surges, Water Hammer, and Variable Demand

Most of the time, demand changes. In a split second, the flow changes as tests of the fire system begin and end, and pumps start and stop. These changes put stress on pipe supports and threaded joints by causing pressure spikes and water hammer. Some valves can make noise, shake, and even break when the pressure inside drops a lot. This is called a vapour bubble. A monitor doesn't always watch over every rise. However, it does keep the downstream side from following upstream swings. This keeps equipment at job sites, furniture factories, and utility companies within its rated range.

Where Code Requirements Point to Regulation

Codes often spell out the rules. The International Plumbing Code says that a pressure-reducing valve must be used when the static water pressure in a building passes over 80 psi. NFPA 14 says that when there is more than 175 psi of pressure left at 2-½-inch hose connections for fire safety reasons, pressure-regulating devices must be used. Different countries use different ones, so be sure you know which one your job needs. This is important for workers to know during the bidding process because it takes days on site to add rules after an inspection. People who sell compliant valves can help their customers more quickly with these questions.

How a Pressure Reducing Regulator Valve Works

The Force-Balance Principle

The valve keeps three forces in balance: the pressure coming in, the force of the spring, and the pressure on a piston or diaphragm further downstream. A Pressure Reducing Regulator Valve works by turning the adjustment screw to tighten the spring and set the outlet pressure. When the downstream pressure rises above that setting, the piston or diaphragm moves the plug toward the seat, reducing the opening. When the pressure drops, the spring opens the plug to allow more flow through. Even without power or control signals, the valve maintains the outlet pressure close to the set point through these small adjustments.

Direct-Acting vs. Pilot-Operated Designs

A direct-acting valve only has the spring and the cushion. They're small and simple to use, and they work well for low to medium flow. A pilot valve controls the main valve in valves that have a small valve with sensing tubes. That helps you keep things under control when the line size and flow rate are bigger. In exchange, it costs more and needs cleaner water. Setting up is simple in many building and fire protection fields thanks to a small direct-acting body. For large plant mains that have big changes in flow, pilot control should be considered.

Key Components and What They Do

You need to know how things work in order to read a data sheet. The flow path and links are inside the body. The seat and the plug, or disc, make up the stop point. The trim goes around the inside parts that touch the water. The adjustment screw sets the spring load, and the movement is caused by the detecting chamber measuring force at the exit. With a gauge interface, you can check the setting and read the outlet pressure during commissioning. A pressure-regulating device and a gauge interface are built into the body of our FLA valve. This way, your team can set the pressure and check it at the same time.

Pressure Reducing Regulator Valve Types and Materials

Single-Stage and Two-Stage Arrangements

Single-stage designs can handle small drops in pressure and can be used for most branch lines. Two stages spread the drop between two valves that are linked together in series when the drop is big. That makes it less likely that one big drop will lead to cavitation, shaking, and unstable control. Ask the manufacturer before you place your order if one stage is enough if the data from your project shows that the pressure going in and out is very different. You can talk to our technical team about your pressure readings, and they can help you set them up correctly.

Brass, Cast Iron, and Stainless Steel Bodies

Material is chosen based on the quality of the water, the size of the line, and the plans for upkeep. Brass is a good material for most water service in smaller lines. It doesn't rust and can be used with either clean or treated water. Cast iron is good for big pipes that need a heavy body. You can get FLA's Pressure Reducing Regulator Valve in brass, cast iron, or stainless steel. You can also paint or nickel-plate the outside. The four steps we use to make things are casting, milling, putting them together, and finishing the outside. People can pick the body material that works best with their water and their budget for care.

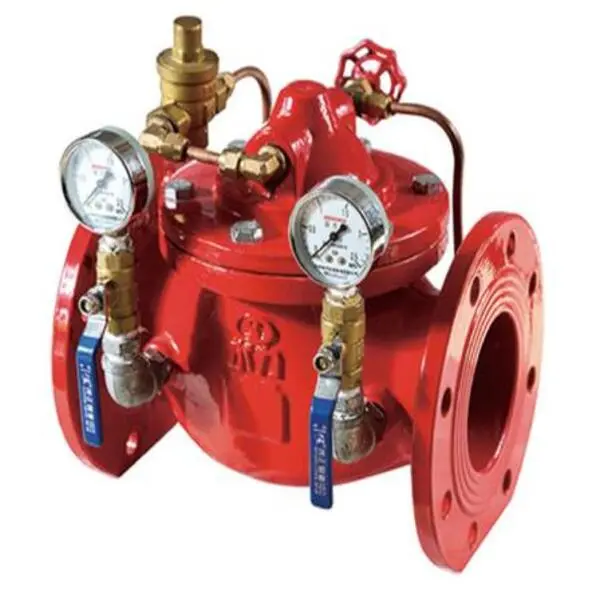

Fire Protection Versions for High-Rise Buildings

Putting out fires is what this FLA valve is mostly used for. In a tall building, the lower floors may need a lot more water flow than the upper floors do. The valve lowers and stabilises the pressure further downstream to protect the pipes and equipment. Building water sources, water supply systems, and HVAC water lines all have the same types of switches. There are versions that are only made for OEM, boiler water, and irrigation. Because of the way they are named, fire systems must follow strict rules. Before you place your order, make sure that the type you want is UL and FM-approved.

How to Choose a Pressure Reducing Regulator Valve

Define Operating Conditions First

Write down the type of water, temperature, average and highest input pressure, needed output pressure, flow range, and duty cycle before you put out the bids. When a valve gets there, most of the time it doesn't work because of a blank figure. Maximum inlet pressure is the most important thing. This is because a valve may be able to handle normal pressure, but it may still be put under a lot of stress when the pump stops or when the pressure goes up. If the source pressure changes during the day and night, write down both readings. The seller can choose the right body, seat, and spring range the first time with the help of an easy-to-read data sheet.

Size by Flow, Not Pipe Diameter

The diameter of the pipe, not the size of the valve, tells you how to connect. Based on minimum flow, normal flow, and peak flow, choose the right size. A valve that is too big works almost like it's closed when there isn't much flow. This can cause chattering and seat wear. A small one lets exit pressure drop when demand is high. This is called droop. Check the flow rate, pressure drop, and speed info from the manufacturer to make sure there is room for growth in the future. Don't forget to check out the reduction ratio. You might need two stages if it's big. We'll help you find a model if you tell us about your flow.

Check Certifications, Support, and Lifecycle Cost

The price isn't the only thing that matters. Find out about the type of link, the body and seals' materials, extra parts, papers, wait time, and guarantee. The way we handle quality is based on ISO9001, and our valves have been approved by CE, UL (for some types), and FM to be used in fire safety systems. There are pressure tests, material checks, and performance checks on every valve. Check marks are sent with every order. There are 2,000 tonnes of standard items in stock and ready to ship. It takes 7 to 15 working days to make custom valves. That way, MRO teams and distributors can plan how much stock to keep on hand.

Pressure Reducing Regulator Valve Compared with Other Pressure-Control Devices

Regulator vs. Relief Valve

There are two different ways that the valves work. When it's working right, a pressure reducing valve keeps the pressure further downstream at a certain amount. An overpressure valve opens and lets the water out when the pressure goes too high. Many things need both. As long as a safety relief device is still in use, a regulator should never be used instead of it. Also, a relief valve can't keep a line steady every day. When a relief valve opens, it needs to be checked and put back where it was. For each job, a different kind of tool is needed. When I look over a drawing, this is what I look for.

Regulator vs. Back-Pressure and Control Valves

A "pressure regulator" is a broad term for a number of different tools. Below, a lowering valve opens when the pressure drops and controls the pressure further down the line. So they don't switch places; a back-pressure valve opens when the pressure upstream goes up to keep them safe. It takes power and a controller to run an actuated control valve, but it can be controlled from afar and with complicated process plans. A self-operated regulator is easy to set up in utility rooms and fire risers because it doesn't need power from outside. When a control system needs to change the setpoint from a distance, choose the control valve.

Why Manual Throttling Falls Short

Some crews only partially close a gate or globe valve to control pressure, but this temporary fix is only effective as long as demand remains stable. When flow increases, downstream pressure drops; when flow stops, pressure can rise back to the supply level. Vibrations can also cause the stem to move, while manual adjustments may go unrecorded. A Pressure Reducing Regulator Valve provides more consistent automatic pressure control, with gauge readings that allow technicians to monitor performance and verify settings. This helps reduce pressure fluctuations and minimize repeat service calls for plumbing and HVAC teams.

Installation Guide for a Pressure Reducing Regulator Valve

Pre-Installation Checks

Make sure that the valve's size, pressure class, attachment standard, flow direction, material compatibility, setting range, and approval standards match what is written on the plans. It is important to check the straight-pipe standards, the drains, the face-to-face measurements, and the repair space. If it's sprayed or nickel-plated, look for damage from shipping. Also, make sure it's easy to get to the gauge contact. It doesn't take long to find a mistake on the bench. Once the lines are in place, it takes hours to catch it. When someone buys a lot of valves, they can send a short installation guide with each shipment.

Correct Layout and Accessories

Read and follow the instructions that came with the product to get started. Put pressure gauges on both sides and separation valves between the two ends. Put a strainer upstream to keep dirt and other things from getting into the seat and trim. Make sure that service can't be stopped on the new road and that it can't be used by accident. Make sure you know what the local government and the NFPA standard say before you lay out the fire exit lines. A technician should be able to use a tool to get to the screw, so leave enough space around it. If you can get to the service provider easily, each visit will take less time.

Commissioning and Ongoing Checks

First, flush the line to clear it. The adjustment screw is used to set the outlet pressure. The isolation valves are then slowly opened. Pay attention to the gauges. It should not make noise, shake, or leak. You should also test how well it works at low, normal, and high flow rates. Write down the date, the last setting, and the inlet pressure so you can use them again tomorrow. Clean the filter every once in a while. When there is no flow, the exit pressure may go up. This means that the seat is worn and needs to be fixed. If you have any questions about installation, our team will get back to you in 24 to 48 hours.

Conclusion

Accurate working data, not pipe size, are the first thing you need to do when picking a Pressure Reducing Regulator Valve. That depends on the range of flow, the type of water, the reduction ratio, and the pressure at the entrance and exit. A single-stage or two-stage setup works best. A design that acts directly or is run by a pilot is also best, depending on the flow. Brass, cast iron, and stainless steel all work best with different types of water and line sizes. A regulator keeps the pressure downstream steady, and a release valve stops the pressure from going too high. Throttling by hand can't replace either of them. Codes like the International Plumbing Code and NFPA 14 say how much pressure can be used. These limits are often reason enough for regulation. As long as the right isolation valves, gauges, strainers, and careful commissioning are used, the pressure will stay stable, and pipes, equipment, and fixtures will be safe.

FAQ

A pressure reduction valve is in a water line. What does it do?

It brings down the higher pressure upstream to a set value downstream. This value stays the same even if the flow and supply change. Most types that work on their own don't need power from outside sources.

Could a regulator be used instead of a release valve?

Not at all. A regulator keeps the pressure in check when the system is not in use, and a release valve opens when the pressure rises too high. For systems that need rescue security, both of these gadgets are needed.

What kinds of finishes and products does FLA work with?

Brass, cast iron, stainless steel, and metals that have been painted or nickel-plated are some of the materials we use. UL only applies to certain types, and FM only works for fire safety, so please make sure you have the right one.

How long does it take to deliver my order?

This process takes between 7 and 15 work days. Items that are the norm are sent out from stock.

Contact FLA for Your Pressure Reducing Regulator Valve Project

Looking for a Pressure Reducing Regulator Valve supplier that understands fire protection, building water systems, and bulk resale needs? FLA Industrial & Trading Co., Ltd. brings nearly 40 years of manufacturing experience, over 1,000 product specifications, and ISO9001 quality control. Send your pressure, flow, and connection details to sales@flaindustrial.com, and our team will recommend a suitable model. Visit flaindustry.com for more product details.
