How Do Stainless Steel Rope Clips Perform in Outdoor Cable Systems?

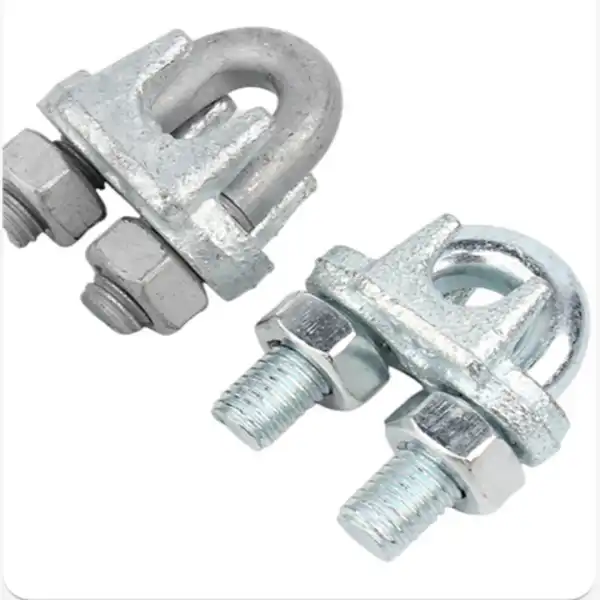

Stainless steel rope clips deliver exceptional performance in outdoor cable systems by combining mechanical holding strength with long-term corrosion resistance. Each clip consists of a U-bolt, forged saddle, and hexagonal nuts that clamp the dead end of a wire rope against the live end, maintaining 80–90% of the rope's rated breaking strength. Manufactured from AISI 304 or 316 stainless steel, these wire rope fasteners resist oxidation, UV degradation, and moisture intrusion that routinely degrade inferior hardware. Whether deployed on coastal bridges, construction hoists, or marine dock lines, a properly installed stainless steel rope clip sustains structural integrity across temperature extremes and demanding environmental exposure.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips and Their Key Performance Factors

Construction and Grade Selection

Even though it looks very simple, a Stainless Steel Rope Clip does a very precise job. The U-bolt bears against the dead end, not the other way around. The saddle holds the live load-bearing strand in place. FLA's Stainless Steel Rope Clips are precisely cast, forged, machined, and polished to meet specifications from M2 to M32. This means that engineers don't have to make changes to the geometry of the Stainless Steel Rope Clips to fit any wire rope diameter.

Picking a grade is an important choice. AISI 304 (A2) has 18% chromium and 8% nickel, which together make a passive oxide layer that repairs itself and does well in inland outdoor environments. AISI 316 (A4) has 2–3% molybdenum added, which makes it much more resistant to chloride-induced pitting, which is the main type of rust that happens in marine and coastal environments. It is not a luxury to specify 316 marine-grade Stainless Steel Rope Clips in applications that are close to saltwater; it is a basic engineering requirement backed up by ASTM and ISO corrosion-testing standards.

Performance Criteria That Matter on the Job Site

Real-world Stainless Steel Rope Clip dependability is based on three measured factors: the load rate compared to the breaking strength of the rope, the clip's size compatibility with the width of the rope, and its ability to withstand cyclic or dynamic loading. According to DIN 741—a standard that is often used to refer to Stainless Steel Rope Clips—a properly torqued assembly keeps holding efficiency above 80%. Over time, vibration, temperature cycle, and UV exposure can loosen nut torque. That's why re-torquing after the first load application is still the best thing to do.

Comparing Stainless Steel Rope Clips with Alternative Solutions

Stainless Steel vs. Galvanized Hardware

While galvanized steel Stainless Steel Rope Clips are cheaper at first, the zinc covering wears off quickly at the cut edges, thread roots, and contact places where they are used the most. Once the covering is broken, iron rusting happens very quickly in wet places. An independent salt-spray test using ASTM B117 (5% neutral salt solution, 72 hours contact) regularly shows that galvanized samples develop red rust much more quickly than passivated 304 or electropolished 316 samples. Even though it costs more per unit, stainless hardware usually has a lower total cost of ownership over a five-year outdoor service cycle.

Clips, Clamps, and Thimbles: Functional Differences

At the places where the rope eyes connect to the shackle, wire rope thimbles keep the eyes from bending too much, but they don't make the closure themselves. To make permanent, high-efficiency terminations with swaged or pressed ferrules, you need special tools that aren't usually available on job sites. Stainless Steel Rope Clips are still the best field-adjustable option because they can be used again, inspected, and changed without using any tools. When you need to be able to make changes while putting something together, like when you're tensioning architectural cable railings, aligning guy wires on communication towers, or setting up temporary support cables on construction scaffolding, Stainless Steel Rope Clips are more useful than swaged fittings.

Installing and Maintaining Stainless Steel Rope Clips in Outdoor Cable Systems

Step-by-Step Installation Best Practices

For safety reasons, the work must be done right. If you put the saddle on the dead end of the string instead of the live end, the unit can only hold half as much weight. This is known as "never saddle a dead horse." As per published guidelines, the bare minimum of Stainless Steel Rope Clips for a certain rope diameter is three clips for ropes up to 3/4 inch in diameter. A calibrated torque wrench must be used to apply the torque values given by the manufacturer. The torque values should be checked again after the first full load cycle.

Here are the most important steps for installation that site managers and support teams should know before they start working:

• Thread and position: Place the saddle on the live end of the wire rope and slide the U-bolt over the dead end. Tighten both nuts by hand to keep them from cocking.
• Apply specified torque: Apply the right amount of torque using a measured torque wrench. Not tightening enough can cause the Stainless Steel Rope Clip to slip, and tightening it too much could damage the threads on steel fasteners that tend to galle. Before tightening, coat the threads with molybdenum disulfide or an anti-seize substance based on nickel.
• Load and re-torque: Check and re-torque all nuts to the correct number after putting the first working load. It is standard for the rope to settle under initial strain, which lowers the clamping preload.

These steps stop the two most common ways that Stainless Steel Rope Clips fail: rope slipping through the saddle and U-bolt thread breakage. These are the two main reasons why Stainless Steel Rope Clips fail in the field.

Routine Maintenance and Replacement Criteria

A good starting point is to do visual checks every three months in harsh outdoor environments. Check the contact surfaces of the saddle groove for deformation, the threads of the U-bolt for galling or elongation, and make sure the nut torque has not loosened. Surface discoloration or staining on 304 Stainless Steel Rope Clips in high-humidity areas is probably just tea staining on the surface and not structural corrosion. However, a wipe with a diluted phosphoric acid solution and a rinse show that the passive layer is still intact. Any Stainless Steel Rope Clip that has visible cracks, thread stripping, or saddle deformation needs to be replaced right away.

How to Choose the Best Stainless Steel Rope Clips for Your Outdoor Projects?

Matching Clip Specifications to Project Requirements

Everything is based on the load level. Find the rope assembly's maximum tension force, add the right safety factor (4:1 is standard for static hauling; 5:1 is recommended for dynamic or overhead lifting), and then choose a Stainless Steel Rope Clip size that has a breaking strength higher than that value. Make sure that the Stainless Steel Rope Clip saddle groove radius and the real rope diameter are the right sizes. If they are not, there will be less contact area and binding power.

The grade depends on the environment. Grade 304 works well for inland construction and architecture, but grade 316 is needed for long-term reliability in marine ports, offshore platforms, wastewater treatment facilities, and coastal bridge structures.

Supplier Evaluation for Bulk Industrial Procurement

When buying in bulk, choices are based on quality that can be proven rather than just catalog specs. Stainless Steel Rope Clip providers you can trust will give you material test certificates with mill heat numbers, salt-spray test results, and records of dimensional inspections. ISO 9001 certification means that there is a written quality management system in place that controls every step of the production process, from receiving the raw materials to packaging them up at the end. The CE mark shows that a product meets European safety standards, which is a useful standard even for U.S. procurement teams looking at international supply chains.

FLA Industrial & Trading Co., Ltd. is certified by both ISO 9001 and CE. They keep 2,000 tons of stock on hand so they can fill orders right away, and they send custom or non-standard specs within 7–15 days. FLA has been making things for almost 40 years and has worked with Fortune Global 500 companies as a client. Their production infrastructure can handle orders of 100 to 100,000 pieces without affecting lead times.

Case Studies Highlighting the Performance of Stainless Steel Rope Clips in Outdoor Cable Systems

Real buying choices are better based on performance data from the field than on theoretical claims alone.

A naval port authority on the Gulf Coast of the United States asked for 316 Stainless Steel Rope Clips to be used on mooring line guide systems that would be exposed to salt spray all the time. After three years of use, regular checks showed that the saddle holes had not pitted or changed size, which proved that the grade choice was correct and that the passivation process had worked perfectly the whole time.

A business building company in a mid-Atlantic coastal state chose 316 Stainless Steel Rope Clips for the main cable stay terminations on a suspension pedestrian bridge project. After the installation, load testing showed that the holding power was above 85% of the rope's breaking strength, which was higher than the project engineer's minimum of 80%.

Wind farm repair teams that work offshore have come to rely on 316 marine-grade Stainless Steel Rope Clips to connect access cables and safety lines. After moving from galvanized hardware, annual replacement cycles were pushed back to 30 months. This cut down on the number of times materials had to be bought and the cost of labor for planned shutdowns for replacements.

Conclusion

When properly defined, installed, and kept on a regular basis, Stainless Steel Rope Clips function consistently in outdoor wire systems. Grade 316 is good for marine and coastal environments because it is resistant to chlorides, while Grade 304 is good for uses in the middle of the country and in architecture. These fasteners are a good long-term investment because they consistently hold above 80% of the breaking strength of the rope and are resistant to UV light, temperature changes, and water. When used outside, where replacement labor and downtime are real costs, stainless steel is cheaper overall than galvanized steel over multi-year service cycles.

FAQ

How do I size a rope clip to my wire rope diameter?

Match the saddle groove radius to the nominal diameter of your rope very closely. Manufacturers put out size charts that show how the width of the rope (in millimeters or inches) matches up with the name of the Stainless Steel Rope Clip. When you use a Stainless Steel Rope Clip that is too big, the contact area shrinks, and the binding power falls below the recommended 80–90% level.

What is the corrosion resistance difference between 304 and 316 stainless steel clips?

316 doesn't get pitted by salt because it has molybdenum in it, but 304 does. In seaside or saltwater settings, 304 Stainless Steel Rope Clips may get surface pitting within 12 to 18 months, but 316 Stainless Steel Rope Clips will keep their structural integrity for a lot longer.

Are stainless steel wire rope fasteners reliable in high-load marine environments?

Yes, as long as Grade 316 is mentioned and the installation torque is the right amount according to the maker. ASTM B117 salt-spray tests prove that the material is resistant to corrosion, and tensile pull tests prove that it can hold its shape. An annual check and re-torquing keep the performance high over a longer period of time in marine work.

Can stainless steel clips be used for overhead lifting?

For lifting tasks, only Stainless Steel Rope Clips that have a Working Load Limit (WLL) stamped on them and are approved for use at heights are suitable. Before using in any situation with an overhead load, always check the approval marks.

Partner With FLA Industrial & Trading Co., Ltd. for Dependable Wire Rope Fastening Solutions

FLA Industrial & Trading Co., Ltd. sells certified Products" target="_blank" style="color:blue" >products">Stainless Steel Rope Clips in Grade 304 and marine-grade 316. These clips are backed by ISO 9001 and CE certification and are in stock and ready to ship right away. Our team responds within 24–48 hours, no matter if your project needs standard bulk quantities or specifications that are specifically engineered for it. You can email our technical team at sales@flaindustrial.com or go to flaindustry.com to get bulk pricing, a catalog of our products, or a one-on-one consultation with one of our experienced engineers.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 4th Edition, 2005

2. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019

3. DIN 741: Wire Rope Clips — Deutsches Institut für Normung, 2015

4. Stainless Steel: The Role of Molybdenum in Stainless Steel — International Molybdenum Association, 2021

5. Rigging Hardware Selection and Inspection Guidelines — Occupational Safety and Health Administration (OSHA), Technical Manual, 2020

6. Corrosion of Stainless Steels in Marine Environments — Corrosion Science Journal, Elsevier, 2018
