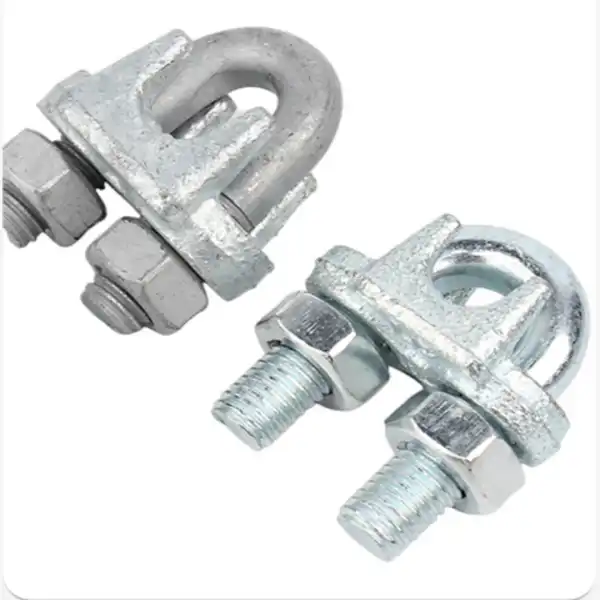

How Should Buyers Select Stainless Steel Rope Clips for Cable Assemblies?

Selecting the right stainless steel rope clips for cable assemblies starts with matching the clip grade, size, and design to your specific load requirements and environmental conditions. Wire rope clamps made from AISI 304 or 316 stainless steel deliver corrosion resistance and structural integrity that galvanized alternatives simply cannot sustain in demanding settings. Buyers should evaluate cable diameter compatibility, holding efficiency ratings (typically 80–90% of the rope's breaking load), applicable standards such as ASTM or ISO, and supplier certifications before committing to a purchase. Getting these details right protects both your project timeline and your team's safety.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips: Types, Materials, and Sizes

There are different styles of wire rope clips, and knowing the differences between them will help you make a quick decision about where to buy them.

Grades: 304 vs. 316 Stainless Steel

The standard grade is AISI 304, which is good for indoor facilities, construction sites, and architectural cable railing systems because it doesn't rust. Marine-grade AISI 316 has 2–3% molybdenum, which makes it much more resistant to chlorides, salt spray, and industrial solvents. In coastal and offshore settings, salt spray testing (ASTM B117) for 72 hours or more confirms that 316-grade clips last longer than 304-grade clips. If your product will be exposed to sea or chemicals, 316 is the only choice that will work.

Size Selection and Load Capacity

The size of the clip must match the width of the wire exactly. The specs that are usually available cover most of the wire rope diameters used in business and industrial settings, ranging from M2 to M32. For ropes up to 5/16" (8 mm) in diameter, you need at least two clips per end. For bigger sizes, you need three to four clips per end to get the recommended holding efficiency. For torque values and spacing gaps, always look at the manufacturer's data sheet. These numbers can't be used with different sizes.

Material Comparison at a Glance

In most high-load or corrosive settings, Stainless Steel Rope Clips work better than galvanized, brass, and nylon options. Galvanized clips are cheap for short-term or dry uses, but they break down more quickly when exposed to salt. When used for low-load decorative purposes, nylon clips are flexible, but they are not good for use in load-bearing assemblies. Brass clips can stand up to some chemicals, but they aren't strong enough to hold heavy lifting standards.

Key Selection Criteria for Stainless Steel Rope Clips

In addition to the grade of the material, a good procurement choice is based on a number of scientific and legal factors.

During the incoming inspection process, buyers should use Go/No-Go thread gauges to make sure that the clip dimensions match the cable diameter tolerances. The environment has an equal impact on grade choice. High UV, moisture cycles, and temperature extremes (wire rope clamps can handle up to 800°F/425°C) are all factors to consider. There should be a safety factor in load limits that is greater than the estimated breaking load, not the same as it.

When using controlled applications, you have to make sure they meet accepted standards. Products" target="_blank" style="color:blue" >products that are ISO9001 and CE certified have quality management and safety checks that can be proven. In the US, ASTM guidelines and Federal Specification FF-C-450 govern how well wire rope clips work for pulling and rigging. By checking these approvals before buying in bulk, you can avoid costly compliance problems in the middle of a project.

For distributors who buy in bulk, it is important to find a balance between quality and unit economics. Buying in bulk from ISO-certified manufacturers sets a quality standard that can be measured and keeps the cost per unit low. It is common practice for responsible B2B sourcing to ask suppliers for material test reports, salt spray results, and records of dimensional inspections before placing large orders.

Stainless Steel Rope Clips vs. Alternatives: Making the Right Choice

There are three main factors that affect the choice of clip type: the surroundings, the type of work, and the ability to use the clip more than once.

When money is tight and the weather is dry or slightly wet, galvanized steel clips are a good choice for temporary fixing. However, their zinc covering breaks down through galvanic corrosion when they are underwater or exposed to salt air, which makes them much less useful than stainless steel options.

The DIN 741 clips have a cast seat and can be used for light-duty tasks like fences or guardrails, while Stainless Steel Rope Clips with US-type drop-forged construction offer superior performance. The forged saddle on US-type drop-forged wire rope clamps gives them better tensile strength and fatigue resistance. This makes them the best choice for lifting parts, overhead cranes, and structure rigging where loads are changing quickly.

When 316 marine-grade clips come with a warranty, the extra cost is worth it. The molybdenum content makes the hardware resistant to pitting in ways that 304-grade hardware can't do in chloride-rich environments. 316-grade wire rope gear is not an upgrade for construction workers who work near the coast, HVAC installers who manage outdoor utility runs, or naval teams. It is a structural necessity.

How to Properly Install and Maintain Stainless Steel Rope Clips?

If you install a clip assembly correctly, it will hold things as well as it's supposed to.

One of the most important mounting rules is "Never Saddle a Dead Horse." To make sure everything works, the U-bolt should go over the dead end of the rope, and the seat should be on the living end. If you flip this direction around, the structural fibers get crushed, which makes the unit much weaker than its stated capacity.

Here are the main steps that every buyer should tell their service teams to follow:

• Seat the saddle correctly on the live rope end before tightening. Visually check the orientation before applying torque.
• Apply torque to manufacturer specifications using a measured wrench to apply pressure according to the manufacturer's instructions. Not tight enough prevents slippage, while too tight a torque can cause U-bolt fatigue.
• Re-torque after initial load application. The strain on the wire rope makes the first clip release. A re-torque check is done after the first load cycle to get the rated clamping force back.
• Inspect at regular intervals. Every 90 days in normal conditions and once a month in chemical or marine conditions, check for thread damage, saddle warping, or rust buildup.

As long as you follow the right torque and spacing rules, the assembly will keep 80–90% of its holding power throughout its service life. Most clips can be used again as long as they are not bent, but the piece of rope that was clamped before must be cut down before it can be re-engaged.

Where and How to Procure Wire Rope Clips for B2B Buyers?

Buyers in business need to know where and how to get wire rope clips. Buyers should give more weight to suppliers whose credentials can be checked, whose materials can be tracked, and whose technical support is quick to respond. Positive Material Identification (PMI) using XRF spectrometry is a reliable way to check if a batch really does meet 304 or 316 makeup standards. This is especially important when buying in bulk from makers in other countries.

Lead times for bulk orders, minimum order quantities, and the number of items that are in stock all have an effect on project schedules. The risk of procurement delays is lower when suppliers keep a large stock of standard sizes ready to go. For non-standard cable diameters or unique assembly configurations, confirmed custom production timelines of 7–15 days are possible with precision casting and forging processes used by experienced manufacturers.

Access to dimensional drawings, 3D confirmation files, and real-time order progress reports are all examples of after-sales support that can help you choose a provider for long-term buying.

Conclusion

When choosing the right wire rope fastening gear like Stainless Steel Rope Clips, you need to pay attention to the type of material used, the sizes that can be used together, the load ratings, and the certification standards. AISI 316 is good for marine and corrosive environments, while 304 is good for everyday commercial uses. Following the right steps for fitting and checking the system regularly will keep it in good shape over time. For procurement managers and distributors, getting goods from certified manufacturers with well-documented quality systems and quick logistics support gives projects the dependability they need without adding extra operational risk.

FAQ

How do I match clip size to cable diameter?

The size of the clip must match the stated width of the wire rope. Using a clip that is recommended for a smaller width will crush the rope, while using a clip that is too big won't clamp down strongly enough. Always look at the manufacturer's standard table. It shows how the clip size (M-series or imperial) relates to the width of the rope and the torque values that are needed.

Is 304 stainless steel suitable for marine cable assemblies?

When the weather is mild, AISI 304 works well, but it doesn't have enough molybdenum to resist pitting caused by chlorides. 316 marine-grade gear is the standard in saltwater places like ports, offshore platforms, and settings with water.

How often should I check wire rope clamps in active service?

Most normal manufacturing settings work well with a 90-day inspection schedule. Installations in marine, chemical, and high-vibration areas should be checked every month. The condition of the threads, the shape of the saddle, the torque retention, and any corrosion that can be seen on all contact surfaces should all be checked.

Can I reuse stainless steel rope clips?

You can use it again as long as the U-bolt and seat don't bend or break and the threads are still in good shape. The section of rope that was clamped before is now permanently compressed and needs to be trimmed before it can be clamped again.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Stainless Steel Rope Clips

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has over 1,000 product specs. They are certified by ISO9001 and CE. FLA is a reliable source for Stainless Steel Rope Clips for customers in the U.S., Germany, and Australia. They offer sizes from M2 to M32, can make unique clips in 7–15 days, and have 2,000 tons of ready-to-ship products in stock. To get a quote right away, email sales@flaindustrial.com or go to flaindustry.com.

References

1. Wire Rope Users Manual — Wire Rope Technical Board, 2019

2. ASTM A276/A276M: Standard Specification for Stainless Steel Bars and Shapes — ASTM International, 2021

3. Rigging Hardware: Design and Application — Crosby Group Engineering Publications, 2020

4. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019

5. ISO 9001:2015 Quality Management Systems — Requirements — International Organization for Standardization, 2015

6. Federal Specification FF-C-450: Clamps, Wire Rope — U.S. General Services Administration, 2018
