How to Choose Flange By Groove Adapter for Reliable Industrial Piping Projects

Choosing the right flange by groove adapter is one of those decisions that directly affects how well your piping system holds up under pressure—literally. This specialized fitting bridges grooved piping systems with flanged equipment, while also handling pipe size transitions from larger to smaller diameters. Made from ductile iron or carbon steel with protective epoxy or galvanized coatings, it carries certifications including ISO9001, UL, FM, and CE. Whether you work in fire protection, HVAC, water treatment, or industrial processing, selecting the correct adapter from the start saves significant time, labor, and cost down the line.

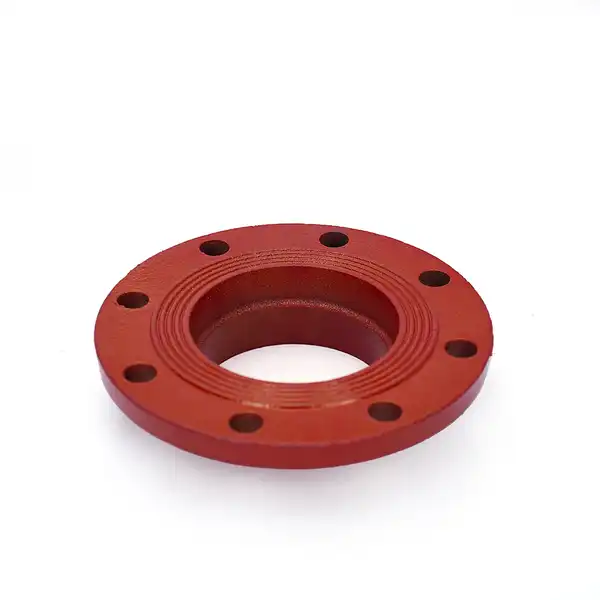

Specification

Type	Model (DN)	Pipe Outer Diameter
Flange By Groove Adapter	DN65	76mm
Flange By Groove Adapter	DN80	89mm
Flange By Groove Adapter	DN100	114mm
Flange By Groove Adapter	DN125	140mm
Flange By Groove Adapter	DN150	165mm
Flange By Groove Adapter	DN200	219mm

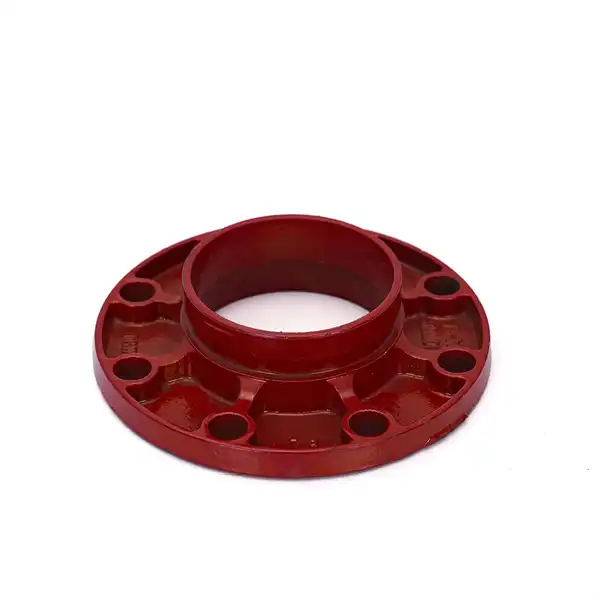

Understanding Flange By Groove Adapter: Functionality and Specifications

What It Does and How It Works

A flange-to-groove adapter lets flanged devices, like pumps, valves, and flow meters, connect directly to networks of grooved pipes. A precise slot on one end fits standard mechanical connections, and the other end has a flat or raised flange face with a bolt circle drilled to ANSI B16.1 (Class 125) or ANSI B16.5 (Class 150) standards. The groove sizes are based on AWWA C606 rules, which cover both cut and roll groove profiles. This two-interface design gets rid of the need for field welding in places where time is of the essence or where safety is paramount.

Materials and Surface Protection

Carbon steel and ductile iron that meet ASTM A536 Grade 65-45-12 are the two main materials. Ductile iron has a minimum tensile strength of 65,000 psi and is better at resisting impact than gray cast iron. Red anti-corrosion epoxy coating (minimum 80–100 microns) and hot-dip galvanization according to ASTM A153 are two surface finishes that guard against rust and chemical breakdown for a long time in settings with potable water, slurry, and corrosive service.

Available Sizes and Standards

Standard models come in sizes from DN65 (76mm OD) to DN200 (219mm OD), which are the most popular pipe sizes used in business and industrial buildings. The adapter's concentric or eccentric reducer section can handle changes in diameter without the need for extra fittings. Working pressure values usually fall between 300 psi and 750 psi, but this can change based on size and shape. These ratings are backed up by UL and FM approval standards, which are widely used in the North American HVAC and fire protection markets.

Key Factors to Consider When Choosing a Flange By Groove Adapter

Pressure, Temperature, and System Ratings

Always make sure that the pressure rating of the adapter is higher than the maximum working pressure of your system by a fair amount. Most groove-to-flange connections made of ductile iron can handle water, compressed air, and fire control systems up to about 230°F (110°C). Most grooved seals and ductile iron are not approved for use with steam, which needs special elastomers and steel-grade parts. Before you buy something, make sure that the working pressure of the adapter matches the system design papers.

Dimensional Matching and Gasket Compatibility

Groove shape is very important. Make sure that the adapter's groove width (A-dimension) and groove depth (C-dimension) match the specs given by the maker of your mechanical coupling, such as Victaulic, Anvil, or a similar brand. Check the bolt circle diameter and hole pattern on the flange side. The ANSI and ISO/DIN measure designs can't be switched around. When you order, you should always say what drill pattern you need. At the flange face, you also need a standard flange gasket made of rubber or a composite material. The Flange By Groove Adapter does not come with this seal.

Material Selection for Your Environment

Ductile iron with an epoxy coating works well in common water or HVAC uses. In places where chemicals are strong, like wastewater treatment or industrial processing, you might need a galvanized finish or a better alloy. Adapters made of carbon steel work well in high-pressure manufacturing settings where extra mechanical strength is needed. The fitting's service life and long-term maintenance costs are directly related to how well the material matches the working surroundings.

Comparing Flange By Groove Adapter with Alternative Flange Types

Groove-to-Flange vs. Weld Neck and Slip-On Flanges

While weld neck flanges provide great structural integrity under high-pressure cycling, they need to be welded by skilled professionals, which adds to the cost of labor and the time it takes to install. Slip-on flanges are easy to put on, but they can't handle as much pressure. The groove-to-flange adapter works better in repair situations where welding isn't allowed or isn't possible. It also lets you turn it 360 degrees during the fit-up process before you tighten the coupler. This makes aligning the bolt holes much faster than with set welded flanges.

Groove-to-Flange vs. Threaded and Lap Joint Flanges

For small-bore, low-pressure lines, threaded flanges work well. However, they tend to leak when they are vibrated, which is a big problem in machinery rooms near pumps or compressors. Lap joint flanges need a stub end and work well in systems that need to be taken apart often, but they cost more and have more parts. The groove-to-flange adapter works well with some vibrations because the grooved coupling protects the rigid flange from the pipe further downstream.

Quick Comparison at a Glance

Each type of hinge is used for a certain purpose. To help you make your choice, here is a short side-by-side summary of Flange By Groove Adapter:

Flange Type	Installation	Pressure Suitability	Vibration Tolerance	Best For
Groove-to-Flange Adapter	Fast, no welding	Moderate–High	Good	Retrofits, pump rooms
Weld Neck	Complex	Very High	Low	High-pressure lines
Slip-On	Easy	Moderate	Low	Low-pressure systems
Threaded	Easy	Low	Poor	Small-bore lines
Lap Joint	Moderate	Moderate	Moderate	Frequent disassembly

The groove-to-flange adapter always gives the best mix of installation speed and system freedom for most business and light industry jobs, as shown in this table.

How to Procure Flange By Groove Adapters for Your Projects?

Evaluating Suppliers and Certifications

When looking for groove-to-flange adapters, it's best to buy from companies whose goods have both UL listing and FM approval. In the U.S. market for fire protection systems, these are must-haves. ISO9001 certification shows that quality management is documented, and CE marking shows that a product is safe for export markets. For each production lot, ask for material test reports (MTRs) and records of hydrostatic tests. These papers prove that the groove sizes are in line with AWWA C606 and that the working pressure numbers are real, not just written down.

Stock Solutions vs. Custom Manufacturing

Standard sizes DN65–DN200 meet most project needs and are in stock, so you can get them quickly without having to wait for production to start. Custom casting and cutting is the right way to go for non-standard width changes or unique bolt circle configurations. If you approve the drawing, a good maker can send you custom adapters in 7–15 days. To avoid delays in procurement, make sure you know the minimum order quantities, packaging requirements, and shipping terms before you place your order in bulk.

Procurement Best Practices

When you work directly with a skilled maker instead of going through a bunch of middlemen, you save money and time on technical communication. Here are the main steps that procurement experts with a lot of knowledge take for Flange By Groove Adapter:

Verify certifications (UL, FM, ISO9001) against official registries before issuing purchase orders.
Request dimensional drawings and confirm groove and flange standards match your coupling manufacturer's specs.
Order a sample batch for on-site fit-testing before committing to full production quantities.
Negotiate packaging standards suitable for your storage and distribution environment, especially for international shipments.

If you follow this process, your project will be safe from design errors and low-quality materials getting to the job site.

Best Practices and Tips for Long-Term Success with Flange By Groove Adapters

Installation Protocol

Before putting the coupler in place, clean both the grooved end of the pipe and the groove on the adapter. Follow the manufacturer's instructions for lubricating the gasket. Use a crisscross pattern to tighten flange bolts more than once; never fully torque one bolt before moving on to the next. When you over-torque ductile iron fittings, the flange ear can crack. To find the right torque setting, always look at the bolt grade specs (for example, SAE J429 Grade 5). The adapter size does not tell you what the right torque setting is.

Inspection and Maintenance Schedule

After the first installation, check all grooved joints and flange faces again after 30 days to see if the gaskets have seated and if any bolts have loosened. After that, you should plan visual inspections every six months for normal use or every three months for environments that are corrosive or have a lot of vibration. Damage to the coating on the surface, gasket expansion, or rust on the bolts are all early signs that something might go wrong. If you notice these signs early, you can avoid unexpected downtime, which can cost a lot more than the fitting itself in industrial pipe systems.

Troubleshooting Common Issues

There are two problems that happen a lot in the field. First, leaks at the grooved joint are usually caused by a gasket that isn't properly installed or a groove measurement that isn't within the limits set by AWWA C606. Always use go/no-go gauges to check the groove dimensions before putting the joint together. Second, misalignment at the flange face is usually caused by bolt holes that don't match the pattern on the matching flange. This problem can be completely avoided by correctly specifying ANSI vs. PN drill patterns when placing the order.

Conclusion

To choose the right groove-to-flange adapter, you need to make sure it meets four things: your pressure and temperature needs; checking the groove and flange dimensions; picking the right material for your surroundings; and buying from a certified seller with proof of quality control for Flange By Groove Adapter. A well-designed adapter can be put in place faster than welded options, can handle vibrations better than threaded connections, and can be used for future maintenance without having to cut the pipe. It is always cheaper to check the specifications before buying something than to replace a fitting that doesn't work in the middle of a project.

FAQ

Does the adapter require a gasket on the flange side?

Yes. To get a good seal, you need a standard flange gasket, which can be made of rubber or a composite material, between the adapter face and the flange of the equipment it fits. This seal is not part of the adapter itself, so when you order, be sure to mention the right material and pressure class.

Can this adapter work with PN10 or PN16 flanges?

As long as the unit is drilled to ISO/DIN standards, the answer is yes. Since ANSI and PN bolt patterns can't be switched, you need to be clear about which drill design you need when you place your order.

Is this adapter suitable for steam service?

In most cases, no. Most groove-to-flange adapters and normal grooved gaskets made of ductile iron can handle water, air, and fire control systems up to about 230°F (110°C). For steam service, certain elastomers and steel ratings are needed, which are not standard in this line of Products" target="_blank" style="color:blue" >products.

How long does a groove-to-flange adapter typically last?

Lifespan relies on the material, the quality of the coating, and the climate in which it is used. With regular water or HVAC service and an epoxy-coated ductile iron body, this product can last 20 years or more with regular inspections and the right way of installing it.

Does the adapter allow pipe rotation during installation?

Yes. When the grooved coupling is put on the spigot end, but before it is fully tightened, the adapter can turn all the way around. Compared to set welded flanges, this makes it much easier to line up the bolt holes in the flange.
