Bolted Dead End Clamp Procurement Guide for Reliable Power Line Construction

This procurement guide covers everything B2B buyers need to know about the bolted dead end clamp — a mechanical anchor fitting designed to withstand and transfer the tensile force of overhead conductors at terminals, angle points, and crossing spans. Whether you are a hardware distributor managing SKU portfolios, a utility engineer specifying fittings for a 33kV distribution network, or a contractor sourcing hardware for a river-crossing span, selecting the right strain clamp directly affects grid reliability and project safety. This guide walks through technical specs, procurement criteria, installation practices, supplier evaluation, and selection logic to help you source with confidence.

Specification

Product Name	Applicable Range	Material Options	Finish	Manufacturing Process
NLL-1 Strain Clamp	35-50 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-2 Strain Clamp	70-95 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-3 Strain Clamp	120-150 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining
NLL-4 Strain Clamp	185-240 mm²	Aluminum Alloy with Steel Core / Ductile Iron	Hot-Dip Galvanized / Natural Aluminum	Casting, Forging, Machining

Understanding Bolted Dead End Clamps: Features, Working Principles, and Applications

How Does the Clamping Mechanism Work?

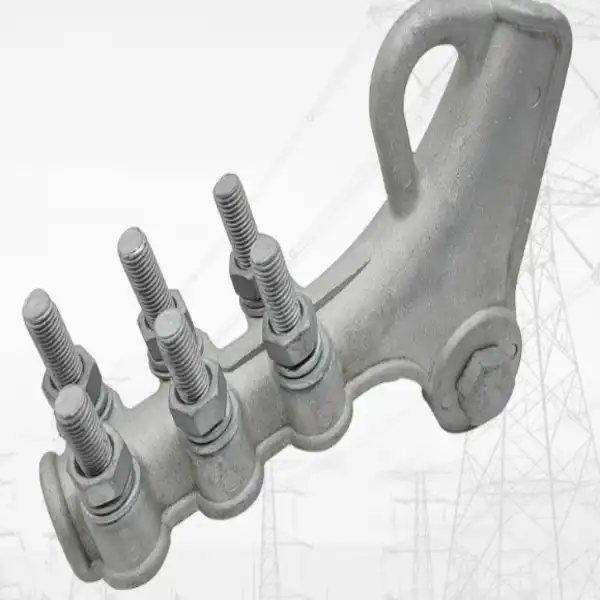

A bolted dead end clamp — also called a bolted strain clamp or quadrant strain clamp — secures overhead conductors through high-torque clamping force applied via U-bolts or staggered bolt configurations. The conductor sits between a grooved body and a keeper piece. Unlike compression dead ends, which permanently deform the conductor, this bolted design distributes mechanical load across the contact surface without requiring hydraulic crimping tools. This makes field installation practical, especially in remote terrain.

Material Composition and Specifications

FLA's bolted dead end clamps are manufactured from aluminum alloy with a steel core or ductile iron, finished with hot-dip galvanization or left in natural aluminum. The body typically uses high-strength aluminum alloy (comparable to A356-T6) to prevent galvanic corrosion when contacting aluminum conductors such as ACSR, AAC, or AAAC. Hardware — bolts, nuts, and washers — is hot-dip galvanized steel meeting ASTM A153, providing a zinc coating above 86 microns for corrosion resistance. The manufacturing process includes casting, forging, and precision machining, certified under ISO9001 and IEC standards.

Applications Across Power Infrastructure

These clamps perform across a wide range of scenarios. In 11kV to 33kV primary distribution networks, they terminate lines at angle poles and dead-end poles. In long-span river or canyon crossings, their mass helps dampen aeolian vibration at the stress point. At substation gantries, their reversible bolted connection lets engineers re-tension or reposition conductors without cutting the line. Telecommunications and fiber optic networks also rely on this hardware to secure cable endpoints at pole terminals.

Key Considerations When Procuring Bolted Dead End Clamps

Matching Specifications to Project Requirements

Before placing any bulk order, procurement teams must align clamp ratings to conductor type, diameter range, and maximum tensile load. A properly rated bolted strain clamp must hold a minimum of 95% of the conductor's Rated Breaking Strength (RBS) without slippage — this is the standard slip strength threshold referenced in IEC 61284 and ANSI C119.4. Selecting an undersized clamp is one of the most preventable causes of line failure in distribution systems.

Evaluating Supplier Certifications and Quality Controls

Here are the critical quality inspection criteria that experienced procurement engineers apply when qualifying a supplier:

• Slip Strength Test: A sample is loaded on a tensile machine to confirm it holds 95% RBS before conductor movement occurs.
• Chemical Spectroscopy: Aluminum alloy composition (Si, Mg, Fe content) is verified to confirm the casting is neither brittle nor porous.
• Galvanization Thickness: Magnetic thickness testing confirms zinc coating meets ASTM A153 to prevent rust and bolt seizure.
• Torque Strength Verification: Bolts are tested at 1.5× the recommended torque to ensure threads and cast bodies remain intact under installation stress.
• Dimensional and Visual Inspection: Conductor grooves are checked for burrs or sharp ridges, which can nick conductor strands and trigger future outages.

These inspection checkpoints are not formalities — they are the difference between a clamp that performs across a 20-year service life and one that fails within seasons. Insisting on third-party test reports or factory audit documentation before committing to a volume order is standard B2B practice.

Pricing, MOQ, and Lead Time Factors

Pricing varies based on material grade, finish type, and conductor size range. Requesting itemized quotes that distinguish unit cost from packaging, logistics, and customs duties helps procurement managers compare suppliers accurately. FLA Industrial & Trading Co., Ltd. maintains over 2,000 tons of inventory, ships standard Products" target="_blank" style="color:blue" >products promptly, and fulfills custom orders within 7–15 days. Custom specifications — including non-standard groove geometries and special-shaped hardware — are supported with 3D modeling assistance.

Installation and Maintenance Best Practices for Bolted Dead End Clamps

Pre-Installation Site Preparation

Before mounting any overhead line clamp, linemen must wire-brush the conductor surface to remove the aluminum oxide layer and apply a conductive oxide-inhibitor grease inside the conductor groove. Skipping this step increases contact resistance and creates hot spots that accelerate conductor fatigue. PPE — including insulated gloves, fall protection, and arc-rated clothing — is mandatory when working at height or near energized infrastructure.

Correct Torque Application

Torque values vary by bolt size: typically 40 ft-lbs for 1/2" bolts and 75+ ft-lbs for 5/8" bolts. Always use a calibrated torque wrench for Bolted Dead End Clamp. Under-torquing allows slippage and resistive heating at the contact point, while over-torquing causes cold flow deformation of the aluminum conductor, which gradually reduces grip force. Spring washers (split lock or Belleville type) are included in the hardware assembly specifically to compensate for the thermal expansion and contraction of aluminum conductors during seasonal cycling, maintaining consistent clamp pressure over time.

Routine Inspection and Maintenance Schedule

After initial installation, schedule the first re-torque inspection within 6 months. Annual inspections should check for zinc coating degradation on the steel hardware, visible deformation of the keeper or body, and any signs of conductor strand damage at the bell-mouthed exit point. Replace bolts, nuts, and spring washers at every reinstallation — even if the aluminum body passes a visual inspection — because galvanization may be compromised and threads fatigued from the original torque application.

Making the Right Choice: How to Select the Best Bolted Dead End Clamp for Your Project?

Bolted vs. Compression vs. Wedge Clamps

Each termination technology suits different scenarios. Compression dead ends are permanent and require hydraulic tooling — appropriate for high-voltage transmission where re-sagging is never anticipated. Wedge clamps install quickly without bolts but offer limited adjustability and a narrower conductor range. The bolted dead end clamp occupies a practical middle ground: adjustable, re-tensionable, and range-taking. A single SKU can accommodate conductors from #6 solid to 336.4 MCM, which significantly reduces inventory carrying costs for distributors and utility MRO teams.

When to Specify OEM or Custom Solutions?

Standard catalog items cover most distribution applications. However, angle tower installations with unusually high wind loading, or substation gantry terminations requiring a specific bolt pattern, may warrant custom-machined bodies or non-standard groove radii. FLA Industrial & Trading Co., Ltd. specializes in non-standard and special-shaped components, with engineering support available to validate Bolted Dead End Clamp fitment before production.

Certifications and Warranty Terms

For U.S. procurement, verify that the product references ANSI C119.4 Class A performance criteria and that the manufacturer holds an active ISO9001 quality management certification. IEC 61284 compliance is the internationally recognized standard for overhead line fittings. Products from FLA carry both ISO9001 and IEC certifications. Confirm warranty terms in writing, including coverage for material defects and any conditions under which warranty claims are processed.

Trusted Suppliers and Brands: Where to Buy Quality Bolted Dead End Clamps?

Evaluating Global and U.S. Suppliers

The U.S. market is served by both domestic manufacturers and certified export suppliers. When evaluating any bolted dead end clamp supplier, request documentation of ISO9001 certification, test reports referencing IEC 61284 or ANSI C119.4, and galvanization certificates referencing ASTM A153. Verified certifications carry more weight than marketing claims alone.

FLA Industrial & Trading Co., Ltd. — A Proven Manufacturing Source

With nearly 40 years of production experience and partnerships with Fortune Global 500 companies, FLA Industrial & Trading Co., Ltd. manufactures overhead line hardware, electrical tools, and clamps across more than 1,000 product specifications. The company exports to the United States, Germany, Australia, and other markets, with quality controls verified through ISO9001 certification and IEC compliance. Direct manufacturer pricing eliminates intermediary markups, and a dedicated technical team responds to inquiries within 24–48 hours.

Procurement Channels and Bulk Purchasing

B2B buyers can source through direct factory orders, authorized distributors, or verified B2B platforms. For volume purchases, direct factory engagement typically provides better pricing, priority production scheduling, and faster resolution of specification questions. FLA supports bulk orders with documented packing lists, certificates of conformance, and full export documentation for U.S. customs clearance.

Conclusion

Selecting the right overhead conductor clamp for a power line project requires matching mechanical ratings to conductor specs, verifying supplier certifications, and following correct installation procedures. The bolted dead end clamp offers adjustability, broad conductor compatibility, and long service life when properly installed and maintained. For procurement teams prioritizing both cost control and safety compliance, sourcing from a manufacturer with documented ISO9001 and IEC credentials reduces procurement risk significantly. Visit flaindustry.com to review product specifications and request samples before committing to volume orders.

FAQ

Can a bolted dead end clamp be reused after removal?

The aluminum body and keeper may be reused if they show no stress fractures, arc marks, or visible deformation. However, replace all bolts, nuts, and spring washers at every reinstallation — thread fatigue and galvanization damage from initial torque-down compromise their integrity.

Is this clamp compatible with copper conductors?

Standard aluminum-body clamps are not compatible with copper conductors. Direct aluminum-to-copper contact causes galvanic corrosion where aluminum acts as the anode and corrodes rapidly. Copper lines require bronze-alloy or tin-plated hardware.

What conductor sizes does one SKU typically cover?

A range-taking bolted strain clamp commonly accommodates conductors from #6 solid to 336.4 MCM, reducing inventory complexity for distributors and MRO teams managing multiple line sizes.

How does hot-dip galvanization protect the hardware?

Hot-dip galvanization deposits a zinc coating above 86 microns (per ASTM A153) on steel components. This sacrificial zinc layer corrodes preferentially, protecting the steel substrate from rust and preventing bolt seizure during future maintenance.

What torque range applies to standard bolt sizes?

Torque typically ranges from 40 ft-lbs for 1/2" bolts to 75+ ft-lbs for 5/8" bolts. Always use a calibrated torque wrench — under-torquing causes slippage; over-torquing causes conductor cold flow.

Request a Quote from FLA Industrial & Trading Co., Ltd.

Your next power line project deserves hardware that performs without compromise. FLA Industrial & Trading Co., Ltd. supplies certified bolted dead end clamps — manufactured to ISO9001 and IEC standards, available in aluminum alloy with steel core and hot-dip galvanized finishes, and backed by direct manufacturer support. As a trusted bolted dead end clamp supplier with nearly 40 years of industry experience, we offer volume pricing, custom specifications, and responsive technical support. Contact Us at sales@flaindustrial.com or visit flaindustry.com to request a quote today.

References

1. IEEE — IEEE Guide for the Installation of Overhead Transmission Line Conductors, IEEE Std 524, 2016.

2. International Electrotechnical Commission — IEC 61284: Overhead Lines — Requirements and Tests for Fittings, IEC, 2013.

3. ASTM International — ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware, ASTM, 2016.

4. American National Standards Institute — ANSI C119.4: Electric Connectors — Connectors for Use Between Aluminum-to-Aluminum or Aluminum-to-Copper Bare Overhead Conductors, ANSI, 2016.

5. Rural Utilities Service, U.S. Department of Agriculture — RUS Bulletin 1724E-200: Design Manual for High Voltage Transmission Lines, USDA, 2015.

6. International Electrotechnical Commission — IEC 60900: Live Working — Hand Tools for Use Up to 1000 V AC and 1500 V DC, IEC, 2018.
