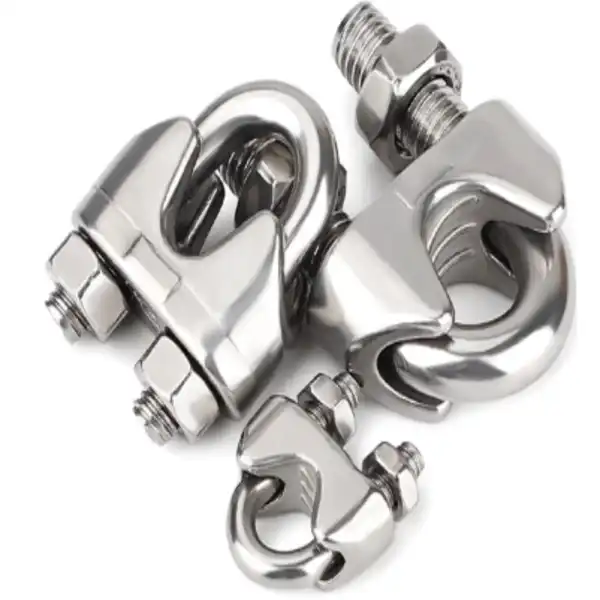

Stainless Steel Rope Clips Ensure Secure Cable Fixing in Outdoor and Industrial Applications

Stainless steel rope clips are precision-engineered wire rope fastening components designed to secure, connect, and terminate wire ropes across demanding outdoor and industrial environments. Manufactured from AISI 304 or AISI 316 stainless steel, these clips deliver dependable corrosion resistance, high load retention, and long service life where standard galvanized hardware fails prematurely. From marine rigging and construction safety cables to shipbuilding and overhead crane assemblies, wire rope clamps of this grade consistently meet the mechanical and environmental demands that procurement teams across the U.S. prioritize most.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips: Types, Features, and Benefits

What Are Wire Rope Clamps and How Do They Work?

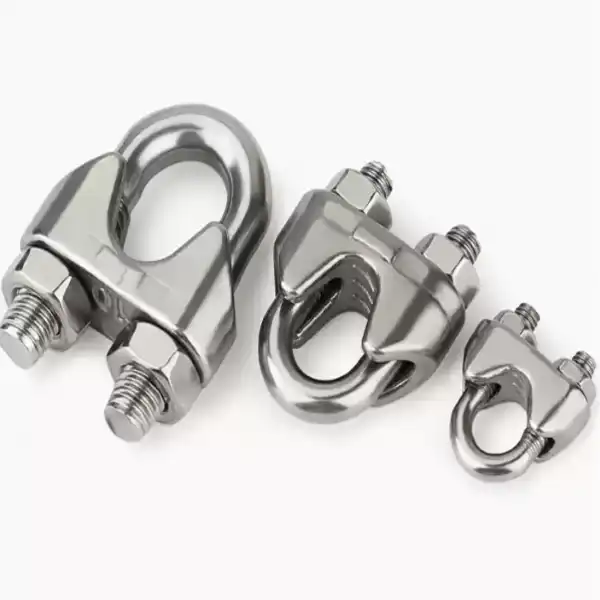

Stainless Steel Rope Clips consist of three main parts: a U-bolt, a seat that is either machined or cast, and two hexagonal nuts. The saddle holds the load-bearing end of the rope, and the U-bolt presses against the dead end. This creates friction that keeps the whole thing together. According to industry standards like US Fed Spec FF-C-450, a set of clips that is properly installed retains 80–90% of the wire rope's rated breaking strength. For safety reasons, it is imperative that the right clips are chosen and set up.

304 vs. 316 Stainless Steel: Choosing the Right Grade

For construction, architecture, and indoor industrial use, AISI 304 stainless steel is a good general-purpose metal that doesn't rust. AISI 316 has 2–3% molybdenum added to it, which makes it much more resistant to chlorides, salt spray, and industrial solvents. Stainless Steel Rope Clips made of 316-grade wire are usually used for naval rigging, dockside mooring, or chemical plants. It is important to use 316 in places where hydrogen sulfide or chlorine is present because it stops pitting corrosion that would destroy cheaper materials in months.

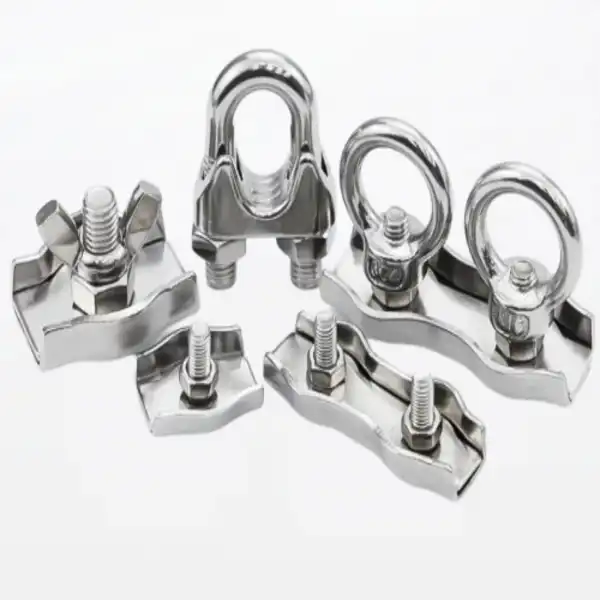

U-Bolt vs. Forged Clips: Performance Differences

U-bolt clips, like DIN 741 types, are better for lighter jobs like fences, guardrails, and decorative wire handrails. Forged drop-type clips, which are also known as US-type clips, are made for heavy lifting and rigging. When compared to cast alternatives, their forged saddle construction gives them higher tensile strength and fatigue resistance. When load ratings and operational safety margins matter, forged clips are the right specification for procurement teams looking for hardware for overhead crane lines, lifting gear, or safety barriers.

How to Use and Install Wire Rope Clips Properly for Maximum Safety?

Step-by-Step Installation Guide

There is a clear order to correct placement. As directed by the manufacturer, first turn the wire rope back to make the eye or loop you want. Make sure to leave enough dead-end length. Second, put the first clip one or two rope-widths away from the thimble so that the saddle is on the live end and never the dead end. Third, add more clips evenly spaced out and tighten the nuts to the pressure level given. For ropes up to 5/16" (8 mm) wide, you need at least two Stainless Steel Rope Clips. For wider lines, you need three to four.

The "Never Saddle a Dead Horse" Rule

This installation rule is often used as the most important safety rule for using Stainless Steel Rope Clips. The seat must always touch the rope's live end. When you put the saddle on the dead end, it crushes the load-bearing wires. This makes the assembly much less effective at holding things together—sometimes below 50%—which makes it more likely to break under load. Before any rigging work starts, site supervisors and procurement engineers should make sure that this rule is clearly understood by all installation staff.

Inspection, Maintenance, and Corrosion Prevention

After the first load, tighten all of the clip nuts again to account for the rope settling. Set up regular inspections at times that are right for the amount of use. When you check, look for thread damage, saddle warping, and any signs that the rope is slipping. Use fresh water and a light detergent to clean steel clips and get rid of any salt or chemical buildup. Stainless steel's passive chromium-oxide layer fixes itself when it gets scratched, but keeping it clean keeps this layer in good shape and extends its useful life in damp or salty places.

Comparing Wire Rope Fasteners: Selecting the Right Solution for Your Business

Stainless Steel vs. Galvanized vs. Aluminum Clips

Galvanized clips are cheaper to buy, but they lose their zinc coating over time, especially in saltwater or chemically harsh environments. This lets rust form and weakens the structure. Aluminum clips are light, but they aren't strong enough for heavy-duty rigging because they can't hold their shape. Different from other types of grips, Stainless Steel Rope Clips stay the same size, don't rust, and work well even when the temperature goes from very cold to about 425°F (800°C). Stainless steel has a lower total cost of ownership for long-term business-to-business purchases where downtime and repair costs are important.

Application-Specific Grade Selection

304-grade clips will work just fine for construction workers working onshore on structural safety lines. The needs of electrical installation teams securing conduit support lines in dry places are similar. But plumbing and HVAC workers who work near water treatment plants or utility companies that run infrastructure along the coast should ask for 316-grade parts. The choice between types is based on chloride exposure in the environment, not just cost.

Dimensional Range and Standardization

FLA Industrial & Trading Co., Ltd. makes Stainless Steel Rope Clips from M2 to M32 standards, which cover a wide range of wire rope sizes. Standard hexagonal nuts can be installed with standard torque wrenches, so job sites don't need as many specialized tools. During production, the thread pitch accuracy and saddle groove radius are checked against standard tolerances to make sure that all batches fit the same way. This is an important factor for hardware dealers who have to keep track of a lot of different SKUs.

Procurement Guide: How to Source Quality Wire Rope Clips Efficiently?

Key Factors for B2B Buyers

When reviewing a Stainless Steel Rope Clips supplier, procurement managers should check the following before placing orders. Quality certifications like ISO9001 and CE show that manufacturing rules have been recorded. Verification methods for materials, like XRF spectroscopy for identifying 304 or 316 types, make sure that the alloy's makeup matches what was ordered. The quality of the passivation is proven by the results of salt spray tests (ASTM B117, 72 hours or more).

When buying in bulk, these are the most important factors that determine a supplier's ability to do the job:

• Certified quality management: ISO9001 and CE certifications show that all steps of the production process, from receiving raw materials to packing them, are in line with written standards.
• Verification of dimensions: Go/No-Go thread gauges and high-precision measuring tools compare the U-bolt threads and saddle groove radii to the limits set for each production batch.
• Load testing protocols: Pull tests on assembled loops confirm holding efficiency ratings before products leave the facility. This eliminates the chance of receiving hardware that doesn't work right.
• Stock depth and lead times: A seller with a lot of finished goods in stock can ship standard sizes quickly, but custom or non-standard sizes should have a proven production window.

All of these things lower the risk of procurement and help keep project deadlines consistent for both contractors and distributors.

Factory Direct Sourcing Advantages

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and keeps 2,000 tons of Products" target="_blank" style="color:blue" >products in stock that meet more than 1,000 specifications. Standard orders are shipped quickly from stock, but non-standard or custom-shaped clip configurations are made to order and delivered in 7–15 days. Within 24 to 48 hours, the company responds to requests for pricing information, weight checks, and 3D designs. This gives buying teams the speed they need to keep projects on schedule.

Conclusion

Choosing the correct wire rope fastening gear has a direct impact on the safety of the project, its service life, and the total cost of acquisition. Where galvanized alternatives fall short, Stainless Steel Rope Clips made to 304 or 316 grade specifications offer proven performance in marine, construction, shipbuilding, and industrial settings. Long-term dependability is based on three things: proper installation, regular inspection, and choosing the right materials for the job. FLA Industrial & Trading Co., Ltd. helps buying teams keep projects going smoothly by keeping a large collection of approved goods and expert help available at all times.

FAQ

How many clips are needed per wire rope termination?

The number depends on how wide the rope is. For ropes up to 5/16" (8 mm), you need at least two Stainless Steel Rope Clips. When it comes to holding ropes, bigger diameters usually need three to four clips to work as well as they should. For torque values and clip spacing requirements, you should always look at the manufacturer's specification sheet.

Can these wire rope grips be reused after removal?

Most of the time, clips can be used again as long as the U-bolt threads are still good and neither the seat nor the U-bolt has been bent. The rope piece that was clamped before will be permanently compressed, and it needs to be trimmed before it can be clamped to a new end.

Are 316-grade clips necessary for all marine applications?

Yes. Chlorides in saltwater are strong enough to eat away at 304-grade stainless steel over time, a process called pitting corrosion. Because it has molybdenum in it, AISI 316 is the only metal that can stand up to this kind of attack. This makes it the only choice for yacht rigging, dockside hardware, and coastal construction.

What inspection interval is appropriate for loaded clip assemblies?

After the first load is applied, tighten the nuts again. After that, check it at regular intervals based on how often it is loaded and how it is exposed to the environment. For example, check it every three months for static applications and once a month for dynamic or high-cycle rigging systems.

Connect with FLA Industrial & Trading Co., Ltd. for Your Wire Rope Clip Needs

FLA Industrial & Trading Co., Ltd. has been making Stainless Steel Rope Clips for almost forty years, so they know how to make them well. Our team responds quickly, offers products that are ISO9001 and CE certified, and gives you direct factory prices, whether you need standard bulk quantities or products that are engineered to your exact specifications. To get a product brochure, sample review, or bulk quote, email our sales team at sales@flaindustrial.com or visit flaindustry.com. Get in touch with a reliable Stainless Steel Rope Clips manufacturer right away to get your supply.
