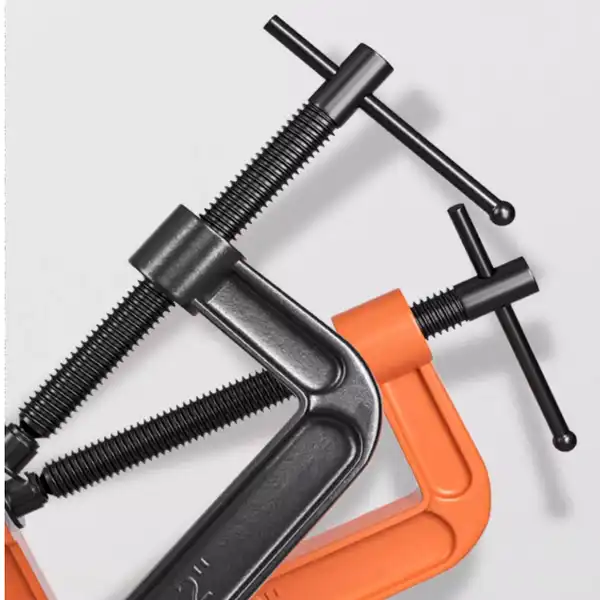

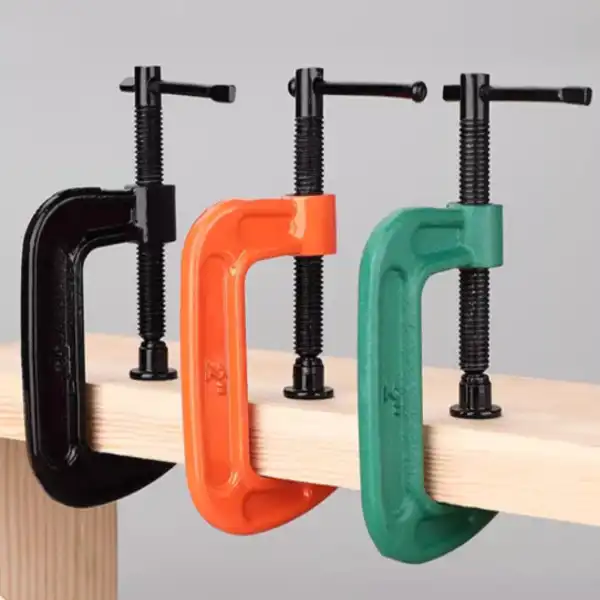

Standard American C-Clamp Offers Reliable Clamping Performance for Industrial Assembly Lines

When production quality depends on every joint, weld, and cut staying exactly where it should, the clamping tool you choose matters more than most people realize. The Standard American C-Clamp is a heavy-duty fastening device built from ductile iron and a precision-machined steel screw rod, designed to hold workpieces firmly during woodworking, metalworking, and structural assembly operations. Available in sizes from 4 to 12 inches, with finish options including painted, blackened, and powder coated, this clamp type has become a go-to choice for assembly lines, fabrication shops, and construction sites across the United States.

Specification

Specification	Rod Diameter (mm)	Rod Length (mm)	Total Length (mm)	Middle Width (mm)
4 Inch	22	115	195	50
5 Inch	22	145	240	60
6 Inch	22	170	270	65
8 Inch	22	227	340	85
10 Inch	22	275	395	85
12 Inch	22	332	450	85

Understanding the Standard American C-Clamp: Features, Sizes, and Materials

Structural Design and Comparison to Other Clamp Types

The C-clamp gets its name from the shape of its frame, which is in the shape of a C. This shape gives it a fixed throat depth and makes it very rigid when it's loaded. The American standard version puts more emphasis on frame stiffness and clamping force than F-Clamps, which use a sliding bar for longer reach, or European-style clamps with narrower frames. Its I-beam frame cross-section spreads stress out widely, which lowers the chance of it deforming when force is applied. Because of its shape, it works better for heavy-duty metalworking and manufacturing than lighter options.

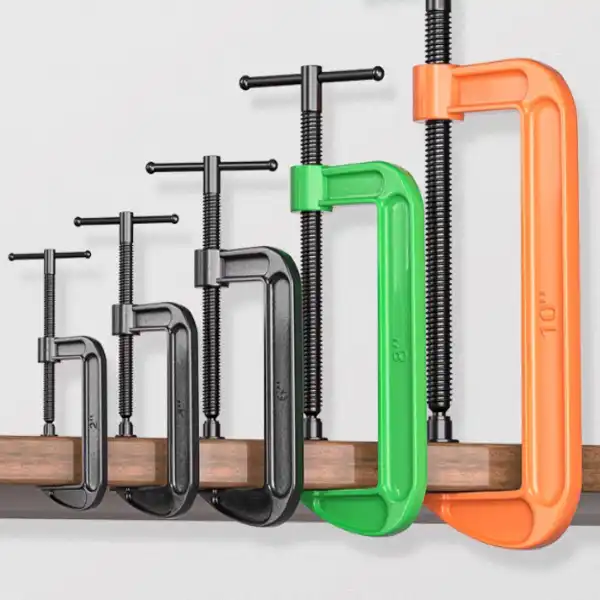

Size Variations and Jaw Capacity

Fla's product line has six different sizes of jaw openings. This is the full table of specs:

Specification	Rod Diameter (mm)	Rod Length (mm)	Total Length (mm)	Middle Width (mm)
4 Inch	22	115	195	50
5 Inch	22	145	240	60
6 Inch	22	170	270	65
8 Inch	22	227	340	85
10 Inch	22	275	395	85
12 Inch	22	332	450	85

The rod diameter stays the same at 22 mm for all sizes. This makes sure that the thread strength and torque capacity are the same across the whole range.

Material Choices and Load Performance

These clamps are made by FLA from ductile iron frames and steel screw rods. Ductile iron has a tensile strength of about 65,000 PSI, which means it doesn't break easily when the load changes quickly. Precision threading is carved into the steel screw rod to make sure it moves smoothly without binding or rolling. Surface treatments, like painting, blackening, or powder coating, keep things from rusting in wet or chemically active places, so Standard American C-Clamp lasts longer without having to be replaced as often.

How to Use a Standard American C-Clamp Effectively on Industrial Assembly Lines?

Positioning and Adjustment Technique

To start with the right position, place the swivel pad so that it is exactly over the point where it touches the subject. Use steady, even torque to tighten the screw rod instead of sudden force. To make sure that pressing pressure is spread out properly on assembly lines, workers should place several clamps in advance. This keeps the piece from warping during glue-up, welding, or machining, and it also keeps the tolerances for size within acceptable ranges.

Selecting the Right Size for Your Application

How far the clamp can reach into a piece of work is directly related to the throat depth and jaw opening. Most woodworking shops use the 6-inch or 8-inch version to glue panels together. The 10-inch and 12-inch types have longer reach and more stable clamping force, making them better for making structural steel or putting together big frames. If you're not sure what size to choose, go up one size. An over-sized clamp won't lose any performance, but a small one could slip under full load.

Maintenance to Extend Service Life

Regular maintenance keeps clamps working for thousands of gripping cycles. These are the most important steps to take:

• Clean threads after every shift: Metal chips and debris cause thread wear. Wipe the screw rod with a clean rag and inspect for burrs after each use.
• Lubricate the screw rod weekly: A light coat of machine oil or anti-seize grease keeps thread engagement smooth and prevents seizing during high-heat welding applications.
• Inspect the swivel pad monthly: Check that the pad rotates freely and that the retaining ring holds securely. A loose pad under load can become a safety hazard.

These three steps give each clamp a longer useful life that can be measured and cut down on unnecessary downtime on busy production lines.

Comparing the Standard American C-Clamp to Alternatives for Industrial Use

Quick-Release Clamps vs. C-Clamps

Quick-release clamps make positioning chores faster, but they give up some clamping power. Quick-release systems work best on assembly lines with a lot of parts and where speed is more important than maximum pressure. For heavy wood gluing or welding fixtures, on the other hand, the threaded Standard American C-Clamp keeps the pressure on more consistently over longer hold times without the risk of accidentally releasing.

F-Clamps and Bar Clamps for Reach-Intensive Work

With F-clamps and bar clamps, you can reach a lot farther than a normal throat depth lets you. Bar clamps are often preferred by furniture makers who glue down wide tabletops because they can hold more. The trade-off is frame rigidity—when the force is at its strongest, a bar clamp bows slightly, causing small movements. When there is no need for movement, like in precision machining tools or welding jigs, the stiff C-clamp frame works better.

Swivel Jaw Models for Irregular Surfaces

Swivel jaw designs can work with bent or slanted surfaces that a set pad can't cleanly grip. These are good for fixing cars and putting together aircraft jigs. FLA's basic C-clamp comes with a swivel pad that can handle mild surface irregularity without the need for a specialty model. This gives procurement teams good value without having to pay more for niche designs.

Procurement Guide: How to Source and Purchase Standard American C-Clamps for Your Business?

Evaluating Suppliers and Certifications

When buying a lot of industrial clamps, ISO9001 certification is the very least that should be expected in terms of quality. It proves that the manufacturer's output method is being watched, written down, and checked. FLA Industrial & Trading Co., Ltd. has both ISO9001 and CE product safety certifications, which show that they meet the standards for both the U.S. and European markets. Before confirming large orders, purchasing managers should ask for batch test reports, dimensional drawings, and material certifications.

Pricing Structure and Bulk Purchase Considerations

Prices for industrial clamps go up as more orders are placed. When you order in bulk, you save money on both the cost per unit and the cost per shipment of freight. FLA keeps 2,000 tons of stock on hand, so standard-sized orders can be sent out right away. FLA can deliver within 7 to 15 days for unique designs like jaw holes that aren't normal, special coatings, or changed throat depths. It takes a lot less time than the 4 to 6 weeks that many OEM sites say it will take for non-standard things.

Leading Brand Benchmarks for B2B Buyers

Both Irwin Tools and DeWalt make C-clamps that meet American standards and are well known in stores. Stanley and Milwaukee both make models with long warranties that are aimed at skilled builders. When buying in bulk for a business, however, going straight to a Standard American C-Clamp manufacturer like FLA gives you cost options and the ability to make changes that most retail brands don't provide. Full technical documentation, flexible order quantities, and direct engineering support are some of the benefits that buyers get. These are benefits that matter on busy production floors.

Benefits and Value of Using Standard American C-Clamps in Industrial Assembly

On industrial assembly lines, ductile iron C-clamps are better than other clamps in more ways than one. A clamp that is the right size keeps the part from moving while it is being machined, which directly cuts down on scrap and repair time. The Fabricators & Manufacturers Association says that on a medium-sized production line, even a 1% drop in scrap yields a measurable yearly savings.

These clamps are worth the money because of the following main benefits:

• Consistent clamping force across the full jaw range: The 22mm steel screw rod maintains even torque transmission from the 4-inch through 12-inch models, preventing uneven pressure that causes surface damage.
• Low maintenance cost over the product lifecycle: Ductile iron resists deformation under cyclic loading, meaning the frame retains its geometry after thousands of uses. Combined with corrosion-resistant finishes, replacement frequency drops significantly compared to lower-grade cast iron alternatives.
• Versatility across materials and industries: The same clamp secures hardwood panels in a furniture factory, holds steel plates during MIG welding, and positions conduit brackets on a construction site. This cross-industry usability reduces the SKU count procurement teams need to manage.

Clamping force that stays the same across the whole jaw range: The 22mm steel screw rod makes sure that the torque is transferred evenly from the 4-inch to the 12-inch types. This stops the uneven pressure that damages the surface.- Low costs for care over the life of the product: Because ductile iron doesn't change shape when loaded and unloaded many times, the frame will still have the same shape after thousands of uses. When corrosion-resistant treatments are added, replacements happen much less often than with lower-grade cast iron options.

Conclusion

Because it puts structural integrity over complexity, the Standard American C-Clamp is still one of the most reliable clamping solutions used in industrial assembly. It is made of ductile iron and precision-threaded steel, comes in sizes from 4 to 12 inches, and is finished to prevent corrosion. It works well in building, metalworking, and woodworking. For procurement teams in charge of assembly line tools, this type of clamp has a simple combination of proven performance and long service life that makes it a must-have for any serious industrial toolkit.

FAQ

What is the difference between a Standard and Deep Throat C-Clamp?

A standard throat depth matches the jaw opening in a roughly square ratio, concentrating clamping force close to the frame spine. This geometry delivers higher clamping pressure per unit of clamp weight. A deep throat model extends reach into wider workpieces but places more leverage stress on the frame, slightly reducing maximum force capacity.

Why is ductile iron preferred over malleable iron for heavy industrial use?

Ductile iron has a nodular graphite microstructure that absorbs impact energy before fracturing. Malleable iron suits light carpentry tasks but lacks the fatigue resistance needed for welding fixtures and heavy machining operations, where sudden load spikes occur regularly.

How do I prevent welding spatter from damaging the screw threads?

Apply a thin coat of high-temperature anti-seize grease to the screw rod before each welding session. This prevents molten spatter from bonding to the thread surface, which is one of the most common causes of thread damage in fabrication shops.

Can I order custom jaw sizes for non-standard assembly fixtures?

Yes. FLA Industrial & Trading Co., Ltd. produces non-standard configurations with modified jaw openings, throat depths, and surface finishes. Custom orders typically ship within 7 to 15 days after design confirmation.

What does the ISO9001 certification mean for my procurement process?

ISO9001 certification confirms that every stage of production — from raw material inspection to final packaging — follows a documented quality management process. For procurement teams, this reduces audit burden and provides a reliable baseline for product consistency across batches.

Request a Quote from FLA Industrial & Trading Co., Ltd.

For your assembly line to work well, you need tools that always hold. FLA Industrial & Trading Co., Ltd. is a reliable Products" target="_blank" style="color:blue" >products">Standard American C-Clamp seller with nearly 40 years of manufacturing experience and ISO9001 certification. They offer six standard sizes, multiple finish choices, and custom designs, and they keep 2,000 tons of stock on hand. You can email our sales team at sales@flaindustrial.com or go to flaindustry.com to get prices on large orders, samples, or more information right away.
