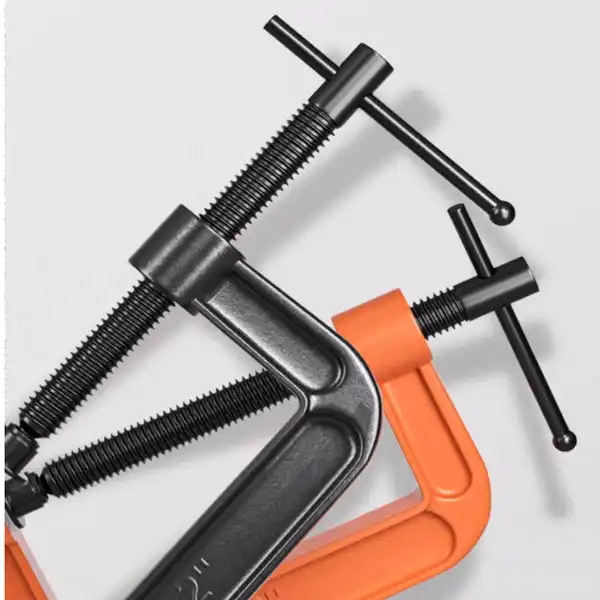

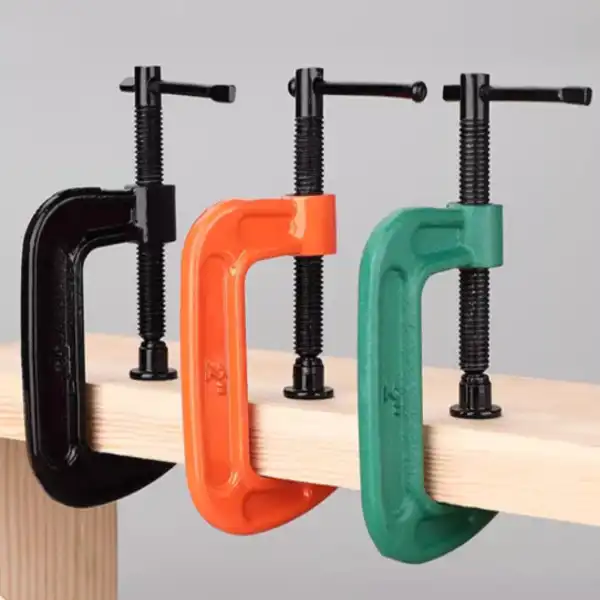

Quick-Action C-Clamp Reduces Setup Time for Efficient Welding and Manufacturing Operations

A quick-action C-clamp is a specialized industrial fastening tool built to cut clamping cycle time without sacrificing grip strength. Unlike conventional screw clamps that require repeated handle rotations, this tool uses a rapid-slide mechanism—often a half-nut trigger or gravity-clutch system—that lets the jaw travel freely to the workpiece in seconds. Once contact is made, the threads re-engage for full-torque compression. In high-volume welding and fabrication environments, that speed difference adds up fast, reducing setup time by as much as 40–70% per cycle.

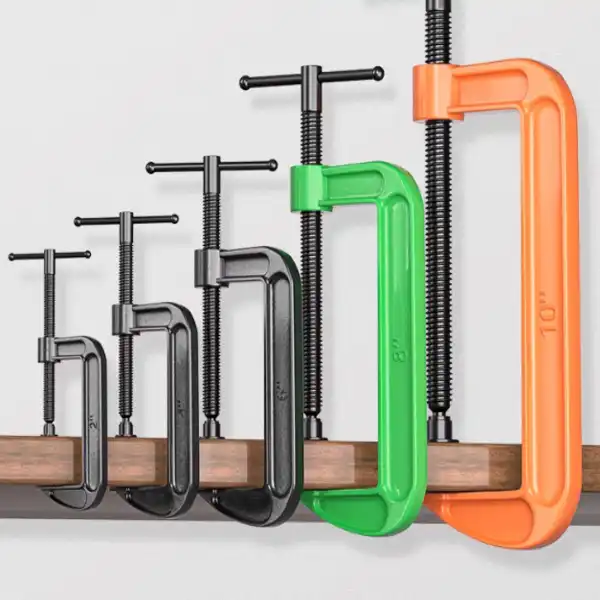

Specifications

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Quick-Action C-Clamps and Their Role in Manufacturing Efficiency

What Makes a Quick-Action C-Clamp Different?

The main difference is the system for the moving spindle. With traditional C-clamps, the thread has to be wound by hand from open to closed, which takes a lot of time and has to be done hundreds of times a day. A rapid-release clamp cuts down on that waiting time by letting you place your jaw right away. The user slides the jaw to the opening they want, and with one turn of the handle, the workpiece is locked in place.

Material Construction and Load Capacity

FLA's Quick-Action C-Clamps are made with rigid iron frames and precise steel screw rods. Ductile iron, which is also known as spheroidal graphite iron, is much more resistant to contact than weak gray cast iron. Heavy manufacturing needs over 4,000 pounds of clamping force, while light-duty work only needs 600 pounds. The steel spindle is made to very close specs, which means that the threads stay in place even when the machine is under heavy loads.

Why Setup Time Matters in Competitive Production?

Money is lost every minute that clamps take too long to work. In a manufacturing shop that does 300 setups per shift, saving just 30 seconds per clamp would add up to 2.5 hours of extra work every day. The Manufacturing Institute says that unplanned breaks and tools that don't work well together can add up to 15% to the total cost of making metal fabrications. That loss is directly fixed by clamping faster.

Quick-Action C-Clamp vs. Traditional and Alternative Clamping Solutions

Comparing Speed and Ergonomics

Standard C-clamps need the wrist to be turned all the way through the thread, which can take 10 or more full turns. Musculoskeletal strains at work have been linked to this action being done over and over again. With a rapid-slide clamp, that motion is cut down to a single slide-and-lock motion. Several studies from the National Institute for Occupational Safety and Health (NIOSH) show that limiting repeated wrist rotation lowers the chance of cumulative trauma disorder in assembly workers.

Fixed Pad vs. Swivel Pad Options

Fixed anvil pads work well on flat metal surfaces that will always make contact. Swivel pads, on the other hand, can adjust themselves to surfaces that aren't flat or straight, so they can clamp down evenly without damaging the wood grain or finish on metal. When working with wood or making furniture, swivel pad patterns protect delicate surfaces while keeping a strong grip. FLA has both of these options available across all of its Quick-Action C-Clamp Products" target="_blank" style="color:blue" >products.

When Bar, Spring, and Locking Clamps Fall Short?

Bar clamps can be used for long-span glue-ups, but they can't apply enough pressure to welding fixings. While spring clamps are quick, they don't hold much. Locking plier clamps work great in small areas, but the jaws can only open a certain amount. The Quick-Action C-Clamp is strong enough for working with metal, fast enough for production lines, and accurate enough for putting together furniture.

How to Effectively Use and Maintain Quick-Action C-Clamps for Long-Term Performance?

Step-by-Step Operating Technique

Place the frame of the clamp firmly on top of the item. Move the moving jaw around until it touches the surface of the material. Engage the spindle handle and apply steady, controlled force. Do not go over the frame's maximum load. When welding, make sure the spindle tip is either copper-plated or induction-hardened (HRC 40–50) so that dust doesn't stick to it and the tip doesn't change shape when it gets hot.

Routine Maintenance Practices

The most important things you can do to make sure that rapid-release clamps keep working well over time are listed below:

• Clean threads after every heavy-use session. Metal chips and weld spatter pack into spindle threads and accelerate wear. Use compressed air to clear debris before it causes thread stripping.
• Lubricate with dry graphite or PTFE spray. Heavy grease attracts abrasive dust in dusty shop environments. A dry lubricant keeps the quick-release trigger moving freely without grit buildup.
• Inspect the engagement spring regularly. Slippage under load usually signals spring fatigue or half-nut wear. Replace the mechanism before it fails during a critical operation.

Regular maintenance greatly increases the life of clamps and stops them from breaking down without warning, which could slow down production or pose a safety risk.

Safety Guidelines for Industrial Use

Never load a clamp beyond its stated capacity. If you use a C-clamp to lift something overhead, the quick-release mechanism could come loose due to vibration, which is against OSHA rules for rigging. When welding in places with high temperatures, keep the body of the clamp away from the sparks. FLA clamps are certified by ISO9001 and are tested for strength at 150% of their rated capacity before they are sent out.

Selecting and Procuring the Right Quick-Action C-Clamp for Your Manufacturing Needs

Key Evaluation Criteria for B2B Buyers

A clamp's frame size, throat depth, and maximum jaw opening will tell you if it works for your purpose. For building with solid steel, choose types that can handle heavy loads and have frames made of drop-forged or ductile iron. When working with wood, a clamp with a swivel pad and a coated finish keeps the surface from getting cut. Always make sure that the thread profile—Acme or modified buttress—meets the production process's torque needs.

Bulk Procurement Advantages

Hardware stores and tool wholesalers can get a lot of benefits from buying in bulk from a straight Quick-Action C-Clamp maker like FLA. FLA has more than 2,000 tons of stock on hand, can meet unique requirements in 7–15 days, and can send technical datasheets within 24–48 hours of receiving a request. When procurement teams have to meet the deadlines for big construction or manufacturing contracts, that supply reliability is important.

Packaging and SKU Diversity

For resale outlets, strong packaging that is ready for selling is important. FLA's clamps come in branded boxes that can be used for both workplace storage and showing off at the point of sale. Its catalog has more than 1,000 product specifications, so procurement managers can get all the SKUs they need from a single supplier.

Case Studies and Real-World Applications Demonstrating Efficiency Gains

Welding Shop: 40% Reduction in Setup Time

Mid-sized structural steel fabricator in the Midwest got rid of all of its old screw clamps and replaced them with fast-action clamps for all three welding stations. In just 60 days, the average time it took to set up a fixture dropped from 4.5 minutes to 2.7 minutes per assembly, a 40% improvement. The shop said that the increase was due to less time spent spinning threads and better setting of the jaws when using one hand.

Furniture Factory: Ergonomics and Throughput

A company that makes hardwood furniture and does more than 200 glue-up rounds a day moved to swivel-pad rapid-release clamps. Within the first week, workers said their wrists were much less tired. Over the next three months, 18% more chair frame assemblies were made. This was mostly because workers were able to secure all the joints before the adhesive's open time ran out because they could clamp them down faster.

MRO Field Teams: Faster Emergency Repairs

Maintenance crews that need to do emergency fixes in tight mechanical spaces, like engine bays, structure recesses, and pipe chases, depend on the quick-slide feature to place clamps without having to swing a handle over and over again. In the field, that speed and ability to use with one hand cut down on repair time and make it safer for workers in confined spaces.

Conclusion

A rapid-release Quick-Action C-Clamp is not a small improvement to a tool; it is a choice about how to make things. With its malleable iron construction, precision steel spindle rods, and fast-slide mechanism, this machine saves a lot of time in woodworking, manufacturing, and welding. The data from real shop floors makes a strong case for procurement teams looking for reliable clamping tools on a large scale: faster clamping means higher output, less tiredness, and more consistent welds. Your budget and production plan will be safe if you choose a provider with ISO9001 certification, tried-and-true load testing methods, and a wide range of SKUs.

FAQ

What is the main advantage of a quick-action C-clamp over a standard C-clamp?

The primary advantage is speed. A rapid-slide mechanism allows instant jaw positioning without thread winding, cutting clamping cycle time by up to 70% in production environments.

Can these clamps handle the heat of a welding environment?

Yes, provided you select a model with an induction-hardened spindle tip (HRC 40–50) and a copper-plated or oxide-coated spindle to resist weld spatter adhesion and tip deformation.

How do I choose the right clamp size for metalworking?

Match the jaw opening to your maximum workpiece thickness, then verify the throat depth fits your geometry. For heavy steel fabrication, select a model with a ductile iron frame rated above 2,000 lbs clamping force.

Is the quick-release mechanism durable under heavy daily use?

Quality models undergo 10,000+ mechanism cycle tests during quality control. The engagement spring and half-nut threads are the highest-wear components—inspect and replace them periodically to maintain reliable operation.

Are these clamps suitable for woodworking as well as metal fabrication?

Yes. Models with swivel pads and powder-coated frames work well on wood surfaces, distributing pressure evenly without marking finished grain.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next C-Clamp Order

Every Quick-Action C-Clamp made by FLA Industrial & Trading Co., Ltd. is the result of almost 40 years of manufacturing experience. We are a dependable Quick-Action C-Clamp supplier for distributors, contractors, and manufacturers all over the United States thanks to our ductile iron and steel screw rod construction, ISO9001-certified processes, and 2,000-ton capacity. You can get a quote or look through our whole catalog at flaindustry.com. You can also email our sales team at sales@flaindustrial.com to talk about bulk pricing and specific needs.
