How to Choose a Permanent Screw Jack Manufacturer for Heavy-Duty Industrial Applications

Choosing the right permanent screw jack manufacturer directly affects the safety, efficiency, and longevity of your heavy-duty operations. Permanent screw jacks are mechanical lifting devices engineered for precise vertical load transfer, long-term structural support, and synchronized positioning across industries like construction, manufacturing, and infrastructure. With load capacities ranging from 500 kg to 100 tons, selecting a qualified supplier requires evaluating material quality, certifications, customization capability, and after-sales support. This guide walks procurement professionals through every critical factor.

Specifications

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3

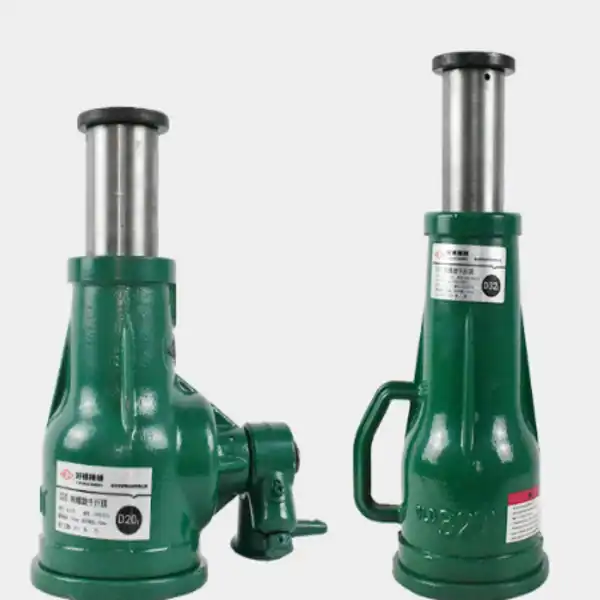

D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Permanent Screw Jacks and Their Industrial Applications

What Are Permanent Screw Jacks?

Through a precision-threaded lead screw, a Permanent Screw Jack changes rotational motion into controlled linear motion. The mechanism is self-locking, which means that the load stays in place even if there is no power going to it. Because of this, these devices are perfect for long-term structure support jobs where hydraulic systems need to be kept under steady pressure. The alloy or carbon steel body, the tempered or quenched lead screw, and the metal or industrial plastic nut systems are some of the most important parts.

Core Industrial Applications

Heavy-duty screw lifting systems are used in many different fields. They keep structural beams stable and hold up floor systems during renovations in building. They are used by factories to level and place big machines while they are being set up. Infrastructure projects use synchronized jack arrays to fix slabs and fix up bridges. For each of these uses, exact load transfer is needed, and there can be no room for creep or movement when the weight is kept on it.

Performance Standards for Heavy-Duty Use

Industrial-grade mechanical jacks must meet standards that are known all over the world, like ISO 9001, CE marking, and DIN/AGMA/EN requirements. In heavy-duty situations, a safety factor of 2:1 to 4:1 is the norm. As part of the factory acceptance testing, the operating temperature ranges, corrosion resistance ratings, and thread geometry tolerances are all checked. Before making a final decision about a purchase, buyers should ask for test documentation.

Core Criteria for Choosing a Permanent Screw Jack Manufacturer

Material Quality and Manufacturing Precision

How the jack works when it is compressed axially over a long period of time depends on the material of the lead screw. Housings made of alloy steel or carbon steel are paired with heat-treated lead screws that have been either softened or cooled. The material of the nuts is also important. Bronze is good for heavy-duty applications because it doesn't rust, and industrial plastics are better for settings that aren't as harsh on corrosion. Precision cutting, grinding, milling, and heat treatment should all be part of the manufacturing process. After that, the parts should be carefully inspected for their dimensions.

Certifications and Compliance

The list of certifications a company has shows you if their goods are legal and safe to bring into your supply chain. ISO 9001 confirms that a quality management system has been written down. Many of the U.S.'s export partners also use the CE mark to show that a product meets European safety standards. Dimensional compatibility is ensured by DIN and AGMA thread standards for Permanent Screw Jacks. Before you place a large order, you should ask for the real certificate numbers and check with the granting body to make sure the dates of validity are correct.

Customization and Load Range Options

No two industrial projects have the same space or load requirements. A good manufacturer should have a range of configurations that can hold loads from 500 kg to 100 tons and have lift heights from 100 mm to 2,000 mm. You should be able to choose between trapezoidal, Acme, and metric thread types based on the task at hand. In dirty or wet places, extras like dust covers and oil surfaces make the service life longer. Surface treatments like spray painting and corrosion-resistant coatings keep units safe when they are used outside or in places with a lot of humidity.

Comparing Manufacturers: What Sets the Best Apart?

Product Range and Design Depth

Strong makers give both manual and motorized models, set and changeable layouts, and a full range of SKUs that can be used by both OEMs and people who want to resell them. When a company sells more Products" target="_blank" style="color:blue" >products, it cuts down on the number of suppliers it has to manage, which lowers the cost of doing business. Along with that, it shows that the company has real engineering knowledge and isn't just copying one product design.

Supply Chain Reliability and Lead Times

For buyers in building and industry who are trying to stick to project schedules, reliable delivery is a must. Before you sign anything, you should check these supply chain indicators:

• Production capacity documentation: Ask for monthly output numbers and written lead time promises.
• Inventory buffer for standard SKUs: Reliable sellers keep sizes that move quickly in stock so that repeat orders don't have to wait.
• Export experience and shipping records: Manufacturers who have exported goods from the U.S. before know what the rules are for packing, marking, and customs.
• Quality inspection at shipping stage: Not just during batch sample, but every unit should pass the final check before it leaves the building.

All of these things together show if a source can keep your project on track when demand goes up or there are problems with shipping.

Verified Track Record and Client References

When doing business with other businesses, export qualifications, third-party audit reports, and names from Fortune 500 procurement teams are all very important. A manufacturer that has been in business for almost 40 years and has relationships with industry clients around the world is an example of an organization that can last. Buyers should ask for client references from industries that are similar to their own. For example, a procurement head in construction would benefit most from references in structural support applications rather than automotive assembly.

Installation and Maintenance Best Practices for Heavy-Duty Screw Jacks

Site Preparation and Installation Protocols

Permanent load-bearing jacks need to be set on stable, reinforced concrete footings that are the right size for the point load density. Differential settlement happens no matter how well the jack works because the footings are too small. Use a precision level to check the straight line during installation. Check the locking collar or double-nut system manufacturer's torque specs to make sure thread creep doesn't happen when the system is vibrating.

Routine Maintenance Schedule

Mechanical screw jacks work well for decades with little to no maintenance. Here is a useful structure for maintenance:

• Lubrication intervals: Every six months in normal conditions, grease the lead screw threads with the right kind of grease. Every three months in high-cycle or high-humidity conditions. This process is easier to do with units that have lubrication interfaces built in.
• Visual inspections: At every planned repair visit, look for damage to the outside coating, worn threads, and rust on the base plate.
• Load verification checks: Check the locking nuts on a regular basis to make sure they are still fully engaged and that the support column hasn't bent in any way that can be seen.

Once you're done with these checks, write down everything you found in a maintenance log for Permanent Screw Jacks. Finding thread wear or covering failure early on saves money on expensive repairs and protects the structure's long-term health.

Troubleshooting Common Issues

If the lead screw is hard to turn while it's under load, it's probably because it isn't well oiled or because dirt is getting into the threads and damaging them. A dust cover attachment directly stops this failure mode. If you can see that the jack is moving up and down over time, check the locking device for wear. If you see thread damage, weld cracks at the base plate, or column deformation, you should contact the manufacturer's technical support team right away. These problems need to be looked at by a professional before they can be fixed.

Making the Final Decision: Matching Your Needs with the Right Manufacturer

Aligning Specs with Project Requirements

Before you order, make sure that the jack's rated load capacity and lift height match up with the loads that your structure can hold. Don't just think about static loads; dynamic loads as well. Vibrating machinery environments need higher safety factors than static structural bracing. Make sure that the operating temperature range of -20°C to +80°C works for your site, and if moisture is going to be an issue, specify surface treatments that will prevent corrosion.

Balancing Cost, Warranty, and Support Terms

The best choices about what to buy are based on the total cost of ownership, not just the unit price. Longer warranties and quick customer service after the sale lower the chance of expensive downtime. Ask manufacturers to be more specific about when replacement parts will be available, how long they promise to answer technical questions, and whether 3D design support is included for making custom configurations. Before production starts, these service terms should be written down in a formal service level agreement.

Scalability and Future Procurement Planning

Pick a maker that can handle the size of your order for Permanent Screw Jacks. If the size of your projects grows, you need a source that can make more without changing the sizes. Manufacturers with advanced quality management systems and well-documented production methods are better able to handle sudden number increases or growing SKU needs without letting quality slip.

FAQ

What load capacities are typical for heavy-duty screw jacks?

Heavy-duty mechanical jacks can usually hold loads between 500 kg and 100 tons, but this depends on how they are set up. The estimated capacity is different for each lead screw width, material grade, and thread pitch. When figuring out the maximum working load, always use the safety factor given by the maker, which is usually between 2:1 and 4:1.

How do screw jacks and hydraulic jacks work for permanent support?

Screw jacks keep loads in place passively through a self-locking thread mechanism, so they don't need fluid systems that are under pressure. Over time, hydraulic jacks can lose their strength, which means they can't be used for long-term support. Screw-type devices also need less infrastructure for upkeep and work reliably in temperatures ranging from -20°C to +80°C, which is the range recommended for industrial settings.

Can permanent screw jacks be made in custom sizes or materials?

Yes. Reliable makers allow full customization, including non-standard sizes, special thread shapes, building in stainless steel for environments that are likely to rust, and different mounting arrangements. Asking for a review of the 3D design before production starts helps make sure that the unique unit fits the needs of the site before production starts.

What surface treatments protect screw jacks in wet or outdoor conditions?

Spray-painted finishes, dust covers, and coats that don't rust make things last longer in wet or outdoor settings. Units that will be used in places with a lot of humidity should be ordered with better surface protection from the start.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Procurement

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and brings that experience to every order. We are a reliable Permanent Screw Jacks seller in the U.S., Germany, and Australia. Our lifting solutions are ISO 9001 and CE-certified, and they can hold up to 100 tons of weight. Within 24 to 48 hours, our team gets back to you with quotes and confirmations of the 3D design. To get a price right away, email us at sales@flaindustrial.com or go to flaindustry.com.

References

1. American Society of Mechanical Engineers (ASME). ASME B30.1: Jacks, Industrial Rollers, Air Casters, and Hydraulic Gantries. ASME, 2020.

2. International Organization for Standardization. ISO 9001:2015 Quality Management Systems — Requirements. ISO, 2015.

3. American Gear Manufacturers Association. AGMA 6022: Design Manual for Cylindrical Wormgearing. AGMA, 2014.

4. Deutsches Institut für Normung. DIN 103: Trapezoidal Threads — General Plan. DIN, 2019.

5. American Society for Testing and Materials. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.

6. European Committee for Standardization. EN 1570-1: Safety Requirements for Lifting Tables. CEN, 2011.
