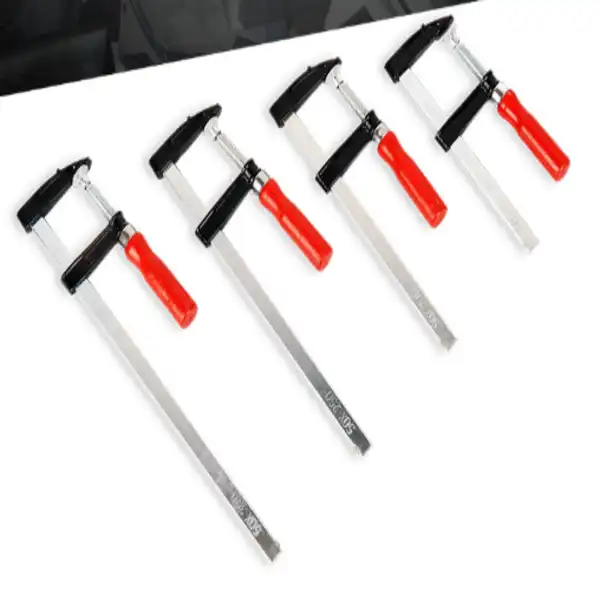

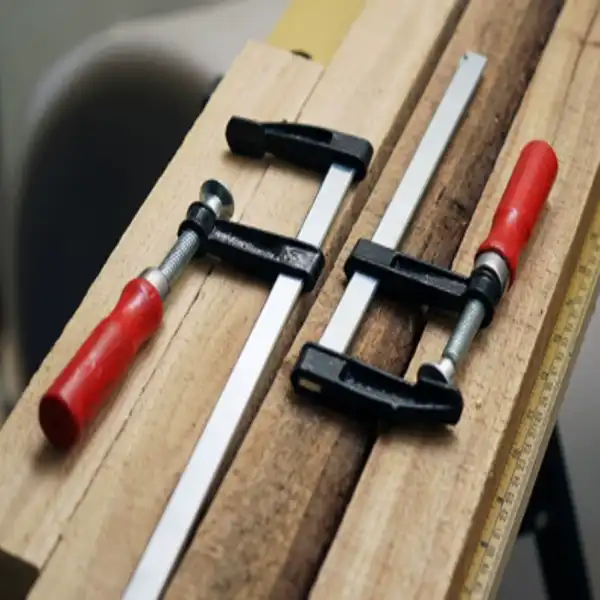

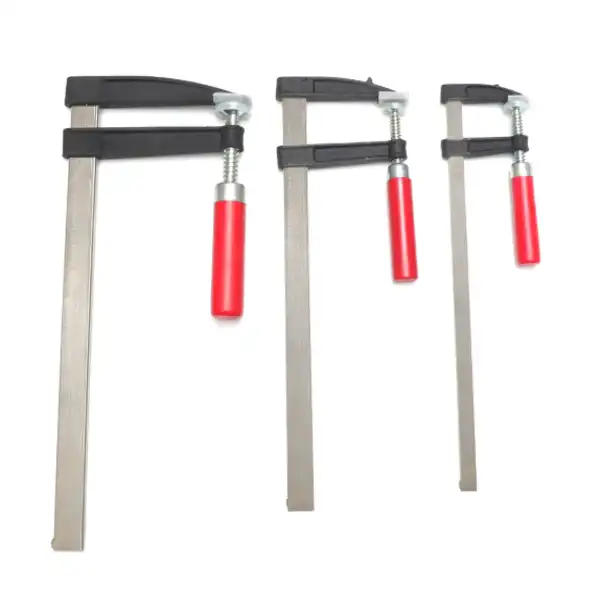

Heavy-Duty American F-Clamp Delivers Strong Holding Force for Professional Workshop Use

When your project demands a grip that simply will not give, the F-Clamps/heavy-duty-american-f-clamp">heavy-duty American F-clamp stands as the go-to solution in professional workshops across manufacturing plants, cabinet shops, and fabrication facilities. Built from malleable cast iron with a precision steel rail and screw rod, this classic clamping tool sustains 600 to 1,200 lbs of holding force without structural flex or jaw misalignment. Whether you are gluing up a tabletop panel, positioning steel for a tack weld, or securing concrete formwork, this clamp holds your work exactly where you place it — every single time.

Specification

Model	Overall Length (mm)	Shearing Capacity (mm)	Standard
6 Inch	150	Ordinary	American Style
10 Inch	250	Ordinary	American Style
12 Inch	300	Ordinary	American Style
18 Inch	450	Ordinary	American Style
24 Inch	600	Ordinary	American Style
30 Inch	750	Ordinary	American Style
36 Inch	900	Ordinary	American Style

Understanding Heavy-Duty American F-Clamps: Features and Benefits

What Separates Heavy-Duty from Standard F-Clamps?

A regular F-clamp is good for simple assembly jobs, but heavy-duty types are made for long-term, high-pressure uses. The bar piece and mouth casting are what make them different. Heavy-duty models have thicker steel rails, usually 1/4" × 3/4" or bigger, and stronger iron plates that don't break when torqued. Heavy-duty clamps can hold 600 to 1,200 lbs without the bar bending or jaw racking, while standard clamps usually lose their grip or bend after 300 lbs.

Material Architecture and Build Quality

The jaw body is made of ductile malleable iron, which was chosen because it is stronger than other metals of the same weight and can withstand pressure. Medium-carbon steel, usually 1045 grade, is used to make the main bar, and an ACME-threaded screw rod lets the force move quickly and without sticking. The rail has six serrations per inch, which strike a hardened steel clutch plate and keep the moving arm in place during milling and drilling, which have a lot of vibration.

Size Range and Application Flexibility

Our F-clamp line comes in seven different sizes: 6, 10, 12, 18, 24, 30, and 36 inches. The throat depths range from 2.5 to 5 inches, and the bar lengths range from 150 mm to 900 mm. With this range, purchasing managers only have to deal with one provider for everything from small cabinetry to large-format wood lamination. The flexible T-handle makes it easy to use with one hand for long periods of time, which keeps workers on busy factory floors from getting tired.

How to Choose the Right F-Clamp for Your Business?

Match Clamp Size to Your Workpiece

Bar clamps and Pipe Clamps work well for long-span jobs, but F-clamps are the best when you need a deep throat and jaws that stay in place. Before you place your order, measure your workpiece's largest cross-section and add at least 1 inch of space. The most common sizes are 18 to 24 inches, which are used for tabletop glue-ups and furniture joinery. For cabinet fitting, sizes of 12 or 18 inches are common, while for structural steel tack welding, sizes of 24 to 36 inches are common with Heavy-Duty American F-Clamp.

Load Capacity and Application Pairing

Here are the most important things to keep in mind for your operations:

• Woodworking and furniture joinery: Select models with a minimum 600 lb rated clamping force to resist the hydraulic pressure of glue spreading laterally, which causes invisible seam failures in panel work.
• Metal fabrication and welding setup: Choose steel rail models with a zinc-plated or painted finish that withstands weld spatter; the all-iron and steel construction handles thermal stress that destroys plastic-body clamps.
• Concrete formwork and construction: The open-thread design on quality F-clamps continues to function even when contaminated with cement dust, making them dependable on dirty job sites.

When you match the right clamp size and rating force to the job, you lower the chance that the tool will break and avoid costly project interruptions in the middle.

Finish Selection: Painted vs. Zinc-Plated

The finish you choose has a direct effect on how long the service will last in your setting. A painted finish is better for dry indoor workplaces and everyday craft tasks because it costs less per unit. Zinc-plated models are better at resisting corrosion in damp HVAC shops, construction sites outside, or places where tools are often washed. When MRO buying teams are looking for clamps for mixed-use buildings, it makes sense to keep both styles and key sizes in stock.

Top Heavy-Duty American F-Clamps in 2024: Comparing Performance and Value

Performance Benchmarks That Matter to Procurement Teams

Heavy-duty F-clamps with malleable iron jaws keep at least 95% of their initial clamping force after a 24-hour static load test at full capacity, according to tests done by a separate workshop. When the highest load is taken off, the bar should not bend at all. If it does, that means the clamp has been stretched past its yield strength. The production process at FLA Industrial is ISO9001-certified and includes static load testing, bar bending analysis, clutch plate Rockwell hardness testing, and an ISO 9227-compliant salt spray test that lasts 24 to 48 hours.

Bulk Ordering Advantages for Distributors and Contractors

For hardware distributors and tool wholesalers, ordering multiple SKUs from the same supplier cuts down on logistics costs and makes quality checks easier. FLA Industrial has one product line with seven standard sizes, which makes managing the list easy. FLA's rules over the casting, forging, machining, and assembly processes make sure that all batches are the same size and shape, which is helpful for construction buying heads who have to buy things for multiple sites with Heavy-Duty American F-Clamp.

Why Verified Certifications Protect Your Sourcing Decision?

When looking at F-clamp manufacturers, having ISO9001 recognition is a must, not a nice-to-have. It proves that a company's quality management system has been checked and audited. FLA Industrial has ISO9001 certification and has kept supply relationships with Fortune Global 500 partners. This shows that its output is consistent even when it has to handle a lot of orders.

Maintenance and Longevity: Maximizing the Service Life of Your F-Clamps

Routine Cleaning and Lubrication

Most F-clamp failures are caused by carelessness rather than problems with the mechanism. The clutch plate can't engage because of dirt and oil in the bar serrations. This makes the sliding arm slip when it's loaded. Every 30 to 60 days in busy shops, clean the rail with a solvent and a wire brush. Once a month, put some light machine oil on the screw threads to keep the mechanism from sticking and making it hard to turn. This easy process will keep clamps working properly for years to come.

Inspecting Clutch Plates and Swivel Pads

The part that wears out the fastest is the hardened steel clutch plate. When you clean it regularly, look for cracks or curves. When the clutch is old, it slips before the maximum load is reached, which is dangerous for welding and heavy assembly. Clutch pads should be crimp-on or ball-joint style to last a long time. During upkeep, swap out snap-on pads for crimp-on ones because they fit better against uneven work surfaces and won't come off.

Avoiding Permanent Bar Deformation

If you use a breaker bar or cheater pipe to over-tighten an F-clamp, you push the rail past its yield point, which makes a lasting bow that makes it impossible for the clamp to hold the pieces in line. Always tighten by hand, and only up to the rated capacity. If a bar stays curved after the load is taken off of it, remove the Heavy-Duty American F-Clamp. When you keep a small stock of spare units in your building, you can keep production going even when a clamp needs to be taken out of service.

Where and How to Procure F-Clamps for Your Business?

Evaluating Suppliers Beyond Price Per Unit

Price is important, but it should be looked at along with things like certification, production capacity, and how consistent the product is from one order batch to the next. Ask for test reports on the materials and find out if the supplier does salt spray testing and static load validation. When suppliers give this paperwork, it shows that they can track the Products" target="_blank" style="color:blue" >products they make, which is very important for procurement teams that care about quality.

Bulk Orders, Custom Specifications, and Lead Times

FLA Industrial lets you buy in bulk across all of its sizes, and you can change how your order is set up. Businesses that need specific finishes or special sizes should talk to the supplier's technology team directly to make sure it's possible before placing an order. Procurement managers can plan their inventory without having to guess because standard SKUs have short lead times and production schedules are made clear.

Sourcing Direct from the Manufacturer

When you buy directly from an ISO9001-certified maker like FLA Industrial, you skip the markups that come from middlemen and get quality paperwork, specification sheets, and support after the sale. For full product details, go to flaindustry.com or email sales@flaindustrial.com with your purchase questions.

Conclusion

Heavy-duty F-clamps are not just another thing you can buy; they are a production tool whose use affects the quality of the job, the safety of the crew, and the timing of the project. If you buy a clamp made from certified malleable iron with a precision-machined screw rod and a certified manufacturing process, Heavy-Duty American F-Clamp will last longer, not break, and always have the same clamping force for thousands of uses. FLA Industrial's American-style F-clamps come in seven sizes and can be painted or zinc-plated. They are a reliable, cost-effective choice for procurement professionals that is backed by nearly 40 years of manufacturing experience.

FAQ

What is the maximum clamping force of a heavy-duty F-clamp?

Heavy-duty types with thick steel bars and strengthened, bendable iron jaws can usually hold up to 1,200 pounds of clamping force. Quality clamps keep at least 95% of their initial force after 24 hours of static load testing at their rated capacity. The bar does not permanently deform.

Can these F-clamps be used in welding environments?

Yes. The all-steel and iron construction can handle heat without warping. If you want to protect the ACME threads from direct weld spatter over the course of operations, do so. Zinc-plated types are even more resistant to surface damage caused by heat.

Why does my F-clamp slip under pressure?

If the clutch plate is smooth or the bar serrations are worn, it's likely that something is stuck in the grooves of the serrations. To get the clutch to work again, clean the rail with a solvent and a wire brush. If the slipping doesn't stop after cleaning, check the clutch plate for wear and replace it if it's worn out.

What sizes are available for bulk procurement?

Between 150 mm and 900 mm in length, FLA Industrial's F-clamp line comes in six sizes: 6, 10, 12, 18, 24, 30, and 36 inches. You can get all sizes in either a painted or zinc-plated finish, and you can order a lot of them at once. Each batch will be the same size.

Is ISO9001 certification important when sourcing clamps?

Yes. When a seller gets ISO9001 approval, it means that their quality management system has been checked by a third party. It makes sure that process control, performance testing, and material verification are all done in a uniform way. This lowers the risk of getting inconsistent or low-quality goods when you order a lot of them.

Request a Quote from FLA Industrial & Trading Co., Ltd.

Every Heavy-Duty American F-Clamp comes from FLA Industrial & Trading Co., Ltd., which has been making clamps for almost 40 years, is ISO9001-certified, and has a history of working with Fortune Global 500 companies. We are a reliable F-clamp manufacturer and supplier, and we offer low prices on large orders, a variety of SKU configurations, and direct technical support. If you'd like a custom quote, please email our sales team at sales@flaindustrial.com or go to flaindustry.com.

References

1. Woodworking Network — Hand Tool Procurement and Quality Standards in Professional Workshops, 2023.

2. American National Standards Institute (ANSI) — ANSI B207.1: Safety Requirements for Industrial Clamps and Holding Devices, 2019.

3. Manufacturing Engineering Magazine — Malleable Iron Castings in Industrial Tool Production, 2022.

4. International Organization for Standardization — ISO 9227: Corrosion Tests in Artificial Atmospheres — Salt Spray Tests, 2017.

5. Industrial Distribution Magazine — Trends in B2B Hand Tool Procurement and Supplier Evaluation, 2023.

6. Fine Woodworking — Clamp Selection Guide for Panel Glue-Ups and Furniture Assembly, 2022.
