Mech Grooved Fittings Simplify Pipe Connections for Fast Industrial Piping Projects

Mech grooved fittings are mechanical pipe connectors that join pipe sections through a precision-cut or roll-formed groove at each pipe end, secured by a housing and elastomeric gasket — no welding required. In fast industrial piping projects, this technology cuts assembly labor by 30–50% compared to traditional methods. Made from ductile iron or carbon steel and certified to ISO9001, CE, and UL/FM standards, grooved pipe connectors serve firefighting pipelines, HVAC systems, and water supply networks reliably across demanding job sites in the United States and globally.

Specification

Specification	Size (mm)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Mech Grooved Fittings: Definition and Key Features

What Are Mech Grooved Fittings?

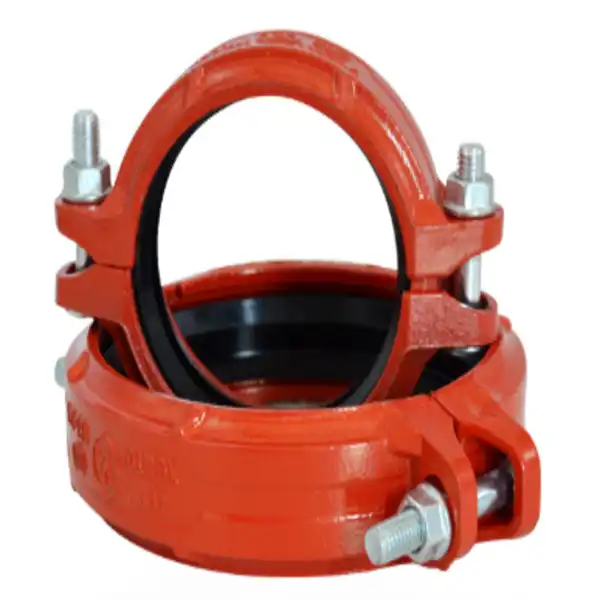

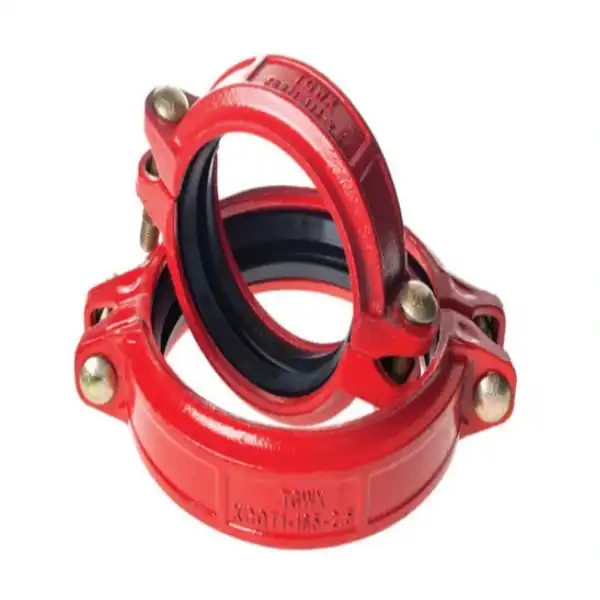

A Mech Grooved Fittings connects two pipes by putting a housing over the ends of the pipes that have grooves in them. When the working pressure is applied, the shell clamps around an elastomeric gasket that responds to pressure. This gasket is usually made of EPDM, Nitrile, or Silicone. With this method, you don't need any hot-works permits or trained welders on site at all. The result is a joint that can be used again and again, is easy to check, and can be put together in minutes by field workers.

Types and Materials

Couplers (both stiff and bendable), elbows, tees, reducers, and caps are the main types. These are made by FLA Industrial & Trading Co., Ltd. from Ductile Iron Grade 65-45-12 (per ASTM A536), which has a minimum tensile strength of 65,000 psi and high impact protection, and carbon steel for heavy-duty uses. If you choose a finish like red paint, epoxy coating, or hot-dip galvanizing, it will protect against corrosion in harsh service environments.

Technical Specifications at a Glance

FLA's Mech Grooved Fittings come in sizes ranging from 1" to 48" (25mm to 1200mm), can handle up to 500 PSI (normal) or 300 PSI (2.07 MPa), and can work in temperatures ranging from -29°F to 230°F (-29°C to 110°C). ANSI, DIN, and JIS all agree on thread requirements. The fittings are approved by ISO9001, CE, and UL/FM, which means they can be used for fire protection, municipal water systems, and industrial fluid systems.

Benefits of Using Mech Grooved Fittings in Industrial Piping Projects

Switching from welded or flanged joints to Mech Grooved Fittings is better for both the job site and the supply chain. Here are the main benefits that site engineers and buying teams value the most:

• Faster Assembly: Grooved connection technology gets rid of the need for threading and bonding, which speeds up the assembly process. Field data constantly shows that installation times are cut by 60% or more compared to traditional ways. This means that labor costs are lower and project schedules are shorter.
• Flexible System Design: You can use the fittings with steel, ductile iron, and other types of pipes. There are two types of couplings: rigid and flexible. Flexible couplings can handle changes in temperature, earthquake movement, and pump shaking, keeping nearby equipment from being stressed out by alignment issues.
• Low Maintenance Burden: Each grooved joint has a built-in union point that lets workers check, take apart, and put back together sections without having to cut the pipe. This makes it much faster to find problems and repair parts during set maintenance windows.
• Corrosion Protection: Epoxy coating and hot-dip galvanized finishes protect against corrosion in places like water treatment plants, chemical lines, and outdoor city systems where chemicals and water make metal break down faster.

These advantages directly address the concerns of construction contractors, HVAC engineers, and plumbing procurement teams who need continuous project availability without costly rework or downtime with Mech Grooved Fittings.

Comparing Mech Grooved Fittings With Other Pipe Connection Solutions

Grooved vs. Welded Connections

For welded joints to be safe, they need licensed welders, hot-works permits, fire watches, and a check after the weld is done. Welding is usually not allowed at all in high-rise buildings and places where people are working. Those needs aren't needed with Mech Grooved Fittings because they let you change or replace parts without grinding or cutting, which is a big safety and time-saving benefit.

Grooved vs. Flanged Connections

Flanged fittings need exact control over the bolt pressure, replacement of the gasket every time the fitting is serviced, and more material weight. A grooved coupling joint is lighter, easier to put together, and the gasket is completely contained within the case, which makes it less likely that the fitting will go wrong. When you look at lifecycle costs, grooved systems are cheaper because they require less work at each repair cycle.

Grooved vs. Compression Fittings

Compression fittings are best for low-pressure, small-diameter jobs. They don't work well for sizes 1" to 48" or for working pressures 300 to 500 PSI, which are typical in industrial fire suppression and cold water loops. Mech Grooved Fittings can be used for large commercial and industrial projects because they don't lose any performance as the sizes get bigger.

Installation and Maintenance Guide for Mech Grooved Fittings

Pipe Preparation and Installation Steps

To do a proper fitting, first check that the groove sizes on each end of the pipe meet ANSI/AWWA C606 standards. For thin-wall pipe, the grooves should be roll-grooved, and for heavy-wall pipe, they should be cut-grooved. Standard Mech Grooved Fittings can be used with both types of grooves. If you use the manufacturer-approved lubricant on the seal before placing it, it won't tear during assembly. A "pad-to-pad" confirmation is the standard way to see that the installation is correct. Tighten the housing bolts evenly and alternately to the torque value given until the metal bolt pads make full contact.

Routine Maintenance Practices

Check seals once a year for chemical breakdown, compression set, or surface cracks. EPDM gaskets that are rated for water service keep their elasticity between -30°F and 230°F and are made to last more than 50 years if they are kept within the specified parameters and kept out of direct UV light. Nitrile gaskets can handle media that is oil-based. During planned shutdown times, replace any gasket that has permanently changed shape or surface wear for Mech Grooved Fittings.

Troubleshooting Common Issues

Leaks at the joint are usually caused by a bolt pad that doesn't touch completely, a seal that has been rolled, or a gap that isn't the right size. Misalignment in flexible couplings means that the bolts are too tight, which limits the intended angular deflection. Rust on the outside of the housing's covering means that it needs to be cleaned, treated, and re-coated right away to stop the rust from going all the way to the base metal.

Procurement Insights: How to Source and Buy Mech Grooved Fittings Efficiently?

Pricing Factors and Bulk Order Strategy

Mech Grooved Fittings cost different amounts depending on the type of material, the width of the pipe, the finish, and the licensing needs. Products" target="_blank" style="color:blue" >products that are UL or FM-listed cost more, but they are worth it for fire prevention uses where approval is needed. When you buy in bulk, the cost per unit goes down, and the supply stays stable while the project is ongoing. Along with price quotes, procurement managers should ask for hydrostatic test results and dimensional check records.

Verifying Supplier Credentials

Fake or poor quality parts are a real risk to the supply chain. Check that each seller gives you traceable mill certificates for the base metal, makes sure that the ductile iron casting has nodularity (a spheroidalization rate above 90%), and tests it under 150% of its rated working pressure before sending it to you. It is normal practice for FLA Industrial & Trading Co., Ltd. to provide full item traceability and third-party inspection documents.

Lead Times and Order Logistics

Standard sizes usually ship within the lead times that were agreed upon when the order was confirmed. For non-standard sizes or requests for special alloys, extra time needs to be added to the production schedule. Ask for a formal timeline when you get the quote. Minimum order numbers depend on the size and style of the item. Talk about volume needs early on to make sure that project delivery plans are in line with production capacity.

Conclusion

Construction companies, HVAC engineers, fire protection installers, and procurement teams can use Mech Grooved Fittings systems to speed up projects, keep costs down, and make sure systems work well in the long term. These fittings are perfect for all kinds of industrial piping needs because they come in sizes from 1" to 48" and can handle pressures up to 500 PSI. The finishes also keep them from rusting in harsh conditions. Everything that FLA Industrial & Trading Co., Ltd. sells is backed by strict quality control, foreign certifications, and direct expert support. This makes them a reliable partner for industrial projects in the U.S. and other countries.

FAQ

Are grooved fittings compatible with different pipe materials?

Yes, Mech Grooved Fittings can be used with steel, ductile iron, stainless steel, and other pipe materials as long as the groove sizes meet the requirements set by ANSI/AWWA C606.

Can these fittings handle the same pressure as welded joints?

Grooved couplings with a rating of 300 to 500 PSI are good for most business and industrial uses. There are high-pressure custom couplings for devices that need up to 1,000 PSI. Check the connection series and seal grade against the design pressure of your system.

What is the difference between rigid and flexible couplings?

Rigid fittings hold the pipe tightly and don't let it move. They're best for long, straight runs and valve connections. Flexible couplings let you control both linear and angular deflection, so they can adapt to things like temperature changes and earthquakes.

What warranty do reputable suppliers offer?

Good manufacturers offer warranties on both the materials and the work they do. These warranties cover flaws in the casting, problems with the dimensions, and failures of the gasket material under certain service conditions. Before you place an order, ask for a written copy of the warranty terms.

Are FLA's fittings UL/FM listed for fire protection?

Some of FLA's products have UL/FM listings, which means they can be used with automatic sprinkler systems and other fire control systems.

Get a Quote From FLA Industrial & Trading Co., Ltd. Today

FLA Industrial & Trading Co., Ltd. has nearly 40 years of production experience and supplies certified Mech Grooved Fittings to clients across the United States and global markets. As a trusted mech grooved fittings manufacturer, FLA offers ISO9001, CE, and UL/FM certified products, fast quotation response within 24–48 hours, and custom specifications for non-standard projects. Visit flaindustry.com or contact our procurement team at sales@flaindustrial.com to request a product catalog, bulk pricing, or technical consultation.

References

1. American Water Works Association. ANSI/AWWA C606: Grooved and Shouldered Joints. AWWA, 2022.

2. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

3. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. ASTM, 2019.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. Factory Mutual Global. FM Approval Standard 1920: Grooved-End Fittings for Fire Protection. FM Approvals, 2020.

6. Nayyar, Mohinder L. Piping Handbook, 7th ed. McGraw-Hill, 2000.
