Pneumatic Bag Jack Enhances Vehicle Lifting Efficiency for Repair and Maintenance Operations

A pneumatic bag jack is a compressed air-powered lifting device that inflates a reinforced rubber air bag to raise heavy loads — typically vehicles ranging from 2.5 tons to over 150 tons — in seconds. For repair shops, fleet maintenance teams, and industrial facilities, this technology directly addresses the slowdowns and safety concerns tied to traditional hydraulic or mechanical jacks. By replacing slow pump actions with rapid air inflation, an air bag jack cuts lift time to under five seconds, reduces operator fatigue, and keeps workflows moving without interruption.

Specification

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2 MPa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2 MPa	205mm	400mm	195mm	100kg

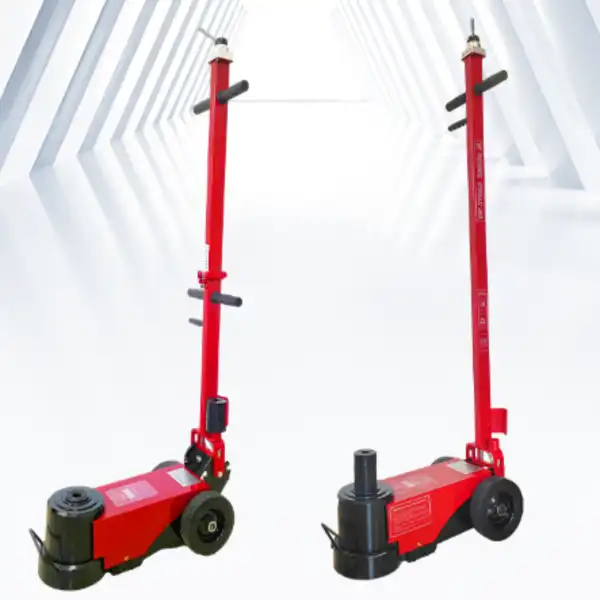

Folding Rod	National Standard 50T	50T/25T	0.8-1.2 MPa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2 MPa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2 MPa	205mm	380mm	175mm	73kg

Understanding Pneumatic Bag Jacks and Their Operational Principles

How Compressed Air Powers the Lift?

An air jack doesn't use hydraulic fluid or a screw system that needs to be turned by hand. Instead, it uses shop-grade compressed air, usually between 6 and 10 bar (90 and 145 PSI), to blow up a strengthened rubber bladder with multiple layers. This bag gets bigger under the car and lifts it up in a smooth, steady motion. Most normal garage compressors can provide enough power, so shops don't need to buy specialized tools very often.

Key Components That Define Performance

A vulcanized rubber air bag reinforced with steel mesh or multi-ply nylon cord (like tire carcasses), an internal telescopic steel stabilizer that stops the tire from shifting laterally during inflation, a pressure regulator, a non-return check valve, and a safety valve that is built right in make up the core assembly. Chrome plating is often used to protect the inside of the cylinder from corrosion and make sure the piston moves smoothly. In a wide range of temperatures, seals made of fluororubber or nitrile rubber stay sealed.

Material and Build Quality

If the load rate and use require it, FLA Industrial & Trading Co., Ltd. can make air jacks out of carbon steel, alloy steel, or aluminum alloy. The anodized or spray-painted outside doesn't wear down easily in the workshop, and the exhaust muffler keeps the noise level down while it's running. Each unit has been certified for quality control according to ISO 9001 and for product safety according to CE. For explosive situations, ATEX solutions are also available.

Enhancing Vehicle Lifting Efficiency with Pneumatic Bag Jacks

Speed and Workflow Impact

With a regular hydraulic floor jack, the car has to be lifted several times before the jack can move off the ground. This can take more than a minute. It takes an air-powered lifting bag three to five seconds to reach its full height. That time difference between dozens of daily lifts means that more vehicles can be serviced during each shift in tire shops and fleet maintenance bays that handle a lot of vehicles.

Load Distribution on Soft or Uneven Surfaces

Surface compatibility is a useful benefit that many operators don't think about. Water jacks with narrow wheels can sink into sand, mud, or gravel. The wide base of a pneumatic lifting bag spreads the weight of the car over a bigger contact area, which keeps the jack from sinking. This makes Pneumatic Bag Jack air bag jacks very useful for recovery off-road, fixing things in an emergency on the side of the road, and keeping up with upkeep on building sites.

Lower Total Cost of Ownership

For long-term cost savings, here are the main benefits that make it worth it:

• No hydraulic oil: Eliminates fluid replacement costs, spill cleanup, and environmental disposal requirements.
• Chrome-plated cylinder interior: Reduces internal wear and extends the service interval significantly.
• Durable rubber bag: With proper care — keeping the bag away from sharp edges and corrosive fluids — the reinforced bladder lasts three to five years under heavy commercial use.
• Rapid cycle time: Fewer mechanical movements per lift cycle means less mechanical fatigue across the unit's lifespan.

Because of these benefits, air jacks have a lower total cost of ownership than hydraulic alternatives. This makes them a good choice for operations that need to lift things a lot.

Comparing Pneumatic Bag Jack Solutions for Informed Procurement Decisions

Pneumatic vs. Hydraulic Lifting Bags

When very big static lifts need to keep applying pressure for long amounts of time, hydraulic lifting bags are better. But pneumatic systems are faster, cleaner, and easier to set up in busy workshops where vehicles are constantly coming and going from service bays. The equipment's size is also smaller because there are no hydraulic lines.

Pneumatic vs. Electric Jacks

Electric jacks are useful in places with reliable power, but they can cause sparks and fires in places with a lot of fuel, like refineries, fuel depots, and some factory floors. For environments with explosives, ATEX approval makes pneumatic systems the better and more compliant choice.

What to Look for in a Supplier

Before placing large orders, procurement teams should check the following with a Pneumatic Bag Jack maker or supplier:

• ISO 9001 and CE certifications covering the specific models being ordered
• Burst pressure test records confirming a safety factor of at least 3:1 over rated working pressure
• 24-hour static load test results showing less than 5% air pressure loss at 125–150% rated capacity
• Cycle fatigue test data covering a minimum of 5,000 inflation/deflation cycles under load
• Lead time commitments and available stock volumes for repeat orders

These data points show which makers' goods are compliant and which ones haven't been tested.

How to Select and Procure the Right Air Jack for Your Business?

Match Load Capacity to Application

There is a wide range of size for air jacks. Light-duty types can take 2.5 to 5 tons, which is enough for most passenger cars and light trucks. Heavy-duty versions can hold up to 50 to 150 tons of work vehicles, rail equipment, and industrial machines. A common way to make sure you get the right Pneumatic Bag Jack unit is to make sure the listed capacity gives you at least a 20% buffer above your highest expected load.

Evaluate Portability and Integration

Low-profile designs with a minimum height of about 135–150 mm make it possible for the unit to fit under cars that don't have a lot of ground clearance. For mobile repair teams or first responders, aluminum alloy models are a great way to cut down on weight without sacrificing strength. To avoid adaptor problems, make sure that the air hose interface works with the shop air system you already have.

Direct Manufacturer vs. Distributor

When you buy directly from a maker like FLA Industrial & Trading Co., Ltd., you can get custom specs, faster production times (7–15 days for non-standard configurations), and expert help from the producer. Distributors make it easier for people to place smaller orders, but they usually charge extra and may not be able to see all of the production paperwork. When B2B buyers place large orders, direct sourcing usually leads to better pricing and clearer documentation.

Practical Applications and Future Outlook of Air Jack Technology

Current Industrial Use Cases

Pneumatic Bag Jacks are used in three main business-to-business settings. They are used on alignment racks and frame machines in high-throughput auto service centers where fast cycling increases service bay revenue. First responders and accident repair experts depend on their low profile to get under crushed cars and free people who are trapped inside. The pneumatic operation also keeps sparks from starting. Heavy-duty configurations are used to replace parts on a regular basis in fleet maintenance operations for trucks, trains, and heavy construction equipment.

What's Coming Next

IoT-connected pressure sensors will be built into the next generation of air lifting systems. These sensors will record real-time inflation data and alert users to problems before they happen. New lightweight hybrid bladder materials are being developed that should make service life longer than what is currently expected. As safety rules get stricter in the U.S. (OSHA) and around the world (PED/GB), certified pneumatic systems will stop being a luxury and become the norm.

Conclusion

Repair shops, fleet operators, emergency services, and industrial maintenance teams can all tell that an air bag jack works better than hydraulic and mechanical options. These tools are useful and affordable because they can lift things quickly, work cleanly, can adapt to different surfaces, and have a strong approval rating. Procurement teams can greatly cut down on downtime and make technicians safer by making the right choices based on load capacity, surface conditions, and how often the equipment is used. FLA Industrial & Trading Co., Ltd. backs up every Pneumatic Bag Jack unit with strict testing and international approval to make sure it always works well in the field.

FAQ

What air pressure does a pneumatic bag jack require?

At 6–10 bar (90–145 PSI), standard units work. This is true for most industrial shop machines. To keep internal valves from rusting over time, dry air is suggested.

Is it safe if the air hose disconnects during lifting?

At the intake, professional units have a non-return check valve. If the supply line breaks, the load stays in place until it is physically freed by air that is trapped inside it.

Can it be used as a long-term support stand?

No, this machine quickly lifts and positions things. As soon as the car is raised, jack stands or automatic locks must be put under the trunk. Changes in the temperature of the air and small leaks can slowly lower the pressure.

How long does the rubber bladder last?

While being careful to stay away from sharp metal edges, welding sparks, and toxic fluids, the strengthened bag can be used heavily in a business setting for three to five years. Deep surface cracks or cord reinforcement that can be seen are signs of wear.

What certifications should I verify before purchasing?

Check that the pressure equipment meets ISO 9001, CE, and any other relevant standards (PED/GB). If the model you're ordering is going to be used in an explosive setting, you should ask for ATEX approval.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Pneumatic Bag Jack Order

FLA Industrial & Trading Co., Ltd. has been making hardware for almost 40 years, and we use that experience in every Pneumatic Bag Jack we make. Our air jacks meet ISO 9001 and CE standards and come with proof of full pressure tests and cycle wear. Over 2,000 tons of stock are always in stock, and we can customize Products" target="_blank" style="color:blue" >products to meet specific needs within 7–15 days. This helps procurement teams that need a stable supply without having to worry about order number limits. You can email our team at sales@flaindustrial.com or go to flaindustry.com to get a price, look at product information, or talk to our expert staff about your unique lifting needs.
