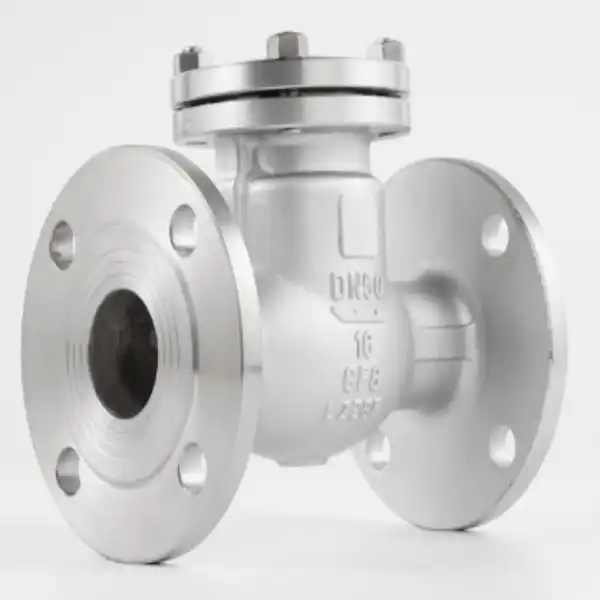

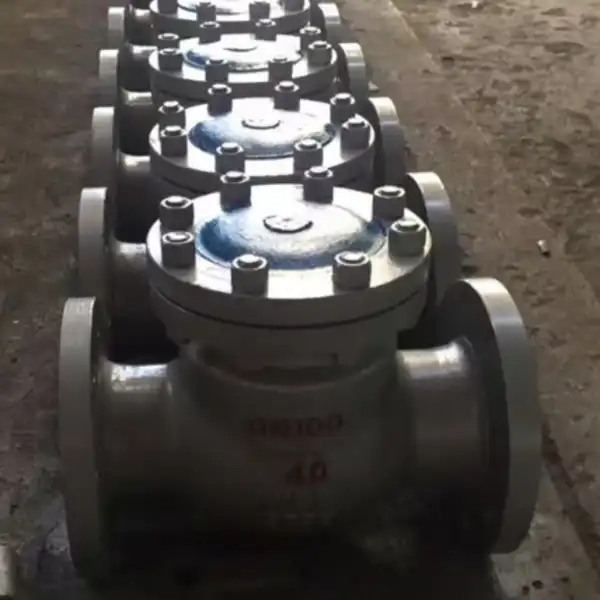

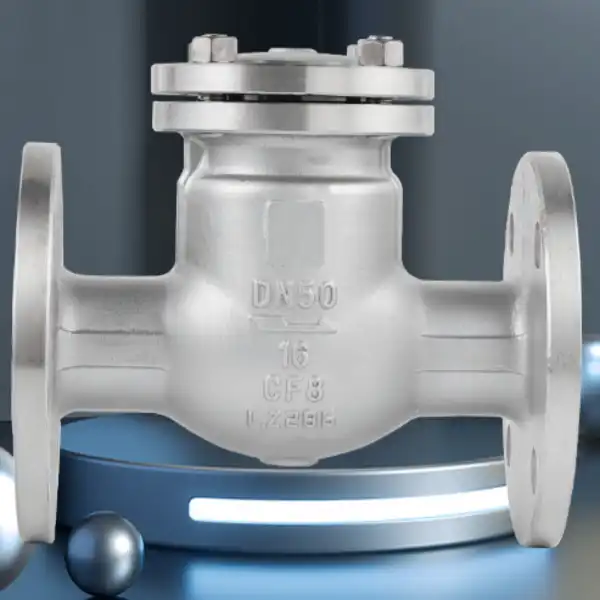

6 Swing Check Valve Helps Prevent Backflow in Large-Scale Fluid Control Systems

A 6 swing check valve is a DN150 (6-inch nominal bore) unidirectional flow control device engineered to stop backflow automatically in industrial piping systems. Its hinged internal disc opens under forward pressure and swings shut the moment flow reverses, protecting upstream equipment from reverse rotation and hydraulic shock. At FLA Industrial & Trading Co., Ltd., our 6 swing check valves are manufactured from cast iron, stainless steel, and carbon steel, and carry ISO9001, CE, UL, and FM certifications. They are widely deployed in fire protection systems, water treatment plants, HVAC networks, and large-scale pipeline infrastructure across the United States.

 Specification

Model (DN)	Type	Material Options	Connection Type
DN50	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN50	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN65	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN80	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN100	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN125	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN150	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN200	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN250	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Medium Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Large Body	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded
DN300	National Standard Heavy Body (Thickened)	Cast Iron / Stainless Steel / Carbon Steel	Flanged / Threaded

What Is a Swing Check Valve and How Does It Work?

The Basic Operating Principle

A disk on a hinge pin inside the valve body makes up a swing check valve. The disk opens when fluid pressure moves forward, letting free flow happen. When the flow changes direction or the pressure drops, back-pressure and gravity push the disk against the seat, immediately closing the line. The valve only responds to changes in pressure, so it doesn't need an actuator or an outside power source.

Types Available on the Market

There are different combinations to meet the needs of different systems. Standard horizontal pipes work well with designs that only have one door. When the diameter is bigger than a single disc's slam, the dual-door (double-flap) version works better. For small installations, wafer and lug styles fit between pipe flanges. Each type has its own pros and cons when it comes to cracking pressure, face-to-face dimension, and how easy it is to do maintenance.

Swing Check vs. Lift Check Valves

When there is a lot of pressure but not much flow, lift check valves are better because their piston moves in a horizontal direction. On the other hand, swing check valves provide a full-bore flow line with less pressure drop and can better handle higher flow rates. Swing designs usually use less energy and last longer in situations with changing flow rates for large-diameter pipes, especially 6-inch systems.

Advantages and Key Applications in Large-Scale Systems

Core Performance Benefits

When it comes to controlling fluids in industry, swing check valves are a clear winner. Because they do these main things well, they are the best choice for purchase engineers:

• Minimal pressure drop: The full-bore disc path reduces flow resistance, lowering pump energy consumption across the system.
• Automatic response: The disc reacts instantly to flow reversal without any manual intervention, protecting centrifugal pumps and compressors from reverse rotation damage.
• Durable across media: Cast carbon steel (ASTM A216 WCB) handles hydrocarbons; stainless steel (ASTM A351 CF8M) resists corrosive fluids; cast iron suits water and general-purpose lines.

As a result of these benefits, 6 Swing Check Valve swing check valves work especially well in high-flow industry settings where downtime costs a lot.

Industries That Rely on These Valves

They are put in place at pump release points by water treatment plants to stop sewage from going back into wet wells. In crude transmission lines, oil and gas midstream workers count on them to keep the flow of product from going backward when pumps stop working. HVAC experts use them in cold water loops where an imbalance of pressure between circuits would make it hard to control the temperature. Power companies use them on cooling water intake systems to keep the flow going in the same way even when the load changes.

Real-World Impact

A local water authority reported that water hammer events and the failure of pipe joints caused by them went down a lot after upgrading its pump station discharge headers with properly sized 6-inch swing check valves. Fewer emergency shutdowns directly led to lower annual maintenance costs, which procurement managers can clearly show to budget decision-makers.

How to Select the Best Swing Check Valve for Your Procurement Needs?

Pressure Rating and Dimensional Standards

Start with the system's working pressure and surge pressure. Most water and HVAC uses fall under ASME Class 150. Oil and gas lines fall under Class 300 or higher. Check the face-to-face dimensions against ASME B16.10 to make sure they are compatible with drop-in replacements. Compliance with API 6D is required for pipeline service, and API 598 sets the standards for how shell and seat leak tests should be done.

Material Selection Guide

Match the metal to the medium being sent. For clean water and low-pressure general service, cast iron is a good value. Carbon steel can handle high heat, steam, and fuels. For chemically aggressive fluids or clean process lines, stainless steel is the right choice. Duplex stainless steel offers extra protection to corrosion in harsh conditions without lowering its mechanical strength.

Connection Type and Installation Orientation

FLA's Six-Swing Check There are both flanged and threaded end connections for valves, which gives buying teams options for different pipe designs. Large-diameter headers fit flanged versions easily, while smaller branch lines work best with threaded connections. Always make sure you know which way the installation is supposed to go. Horizontal installations are normal, but upward-flow vertical installations are fine as long as gravity can help the disk close.

Installation, Maintenance, and Troubleshooting

Proper Installation Practices

Before tightening the screws, make sure that the flow-direction arrow on the valve body is lined up with the path that the flow is supposed to take. Place the hinge pin horizontally so the disk can move easily in horizontal runs. Installing 6 Swing Check Valve swing check valves right after elbows or reducers is not a good idea because the turbulent entry flow can cause the disk to spin. As much as possible, let at least five pipe diameters of straight run upstream.

Routine Maintenance Schedule

Most 6-inch swing check valves have a fixed cover that lets the valve body be serviced from the top without taking it out of the line. Plan for visual checks to happen at every planned halt. Check to see if the hinge pin is worn, make sure the seating surfaces are smooth, and make sure the disk can swing all the way around without any problems. In rough work, hardened seat coatings (like Stellite 6) make lapping much more infrequent.

Troubleshooting Common Issues

Valve chatter means the disk is oscillating instead of staying fully open. This is because the flow speed is too low to hold the disk against its stop. Either raise the flow rate through the system or replace the valve with one that has a smaller hole that fits the real speed of operation. If the seat leaks after it's closed, it's likely because something foreign got stuck on the surface of the seat. Flush the line and test again. A disk that won't close suggests that the hinge pin is corroded or has dirt on it. This can be quickly fixed with a bonnet-access check.

Procurement Tips: Buying Swing Check Valves for Industrial Applications

Evaluating Suppliers and Certifications

As a minimum, when looking for a 6 Swing Check Valve provider, make sure they have ISO9001 quality control certification. In the United States, fire safety systems must have both UL listing and FM approval. Ask for mill test results for casts to make sure the material meets ASTM standards. A lot less risk is involved in a project when suppliers offer third-party inspection reports and traceable heat numbers.

OEM Customization and Volume Purchasing

When engineering teams buy from OEMs, they can ask for non-standard bore sizes, special metal grades, or changed face-to-face measurements that stock items can't provide. FLA Industrial & Trading Co., Ltd. keeps more than 2,000 tons of standard specifications in stock so that orders can be shipped the same week. Custom configurations take between 7 and 15 business days to finish. Tiered pricing works best for large orders; talk to the sales team directly about project quantities and delivery dates.

Reducing Total Cost of Ownership

One thing that can change is the price per unit. Think about the lead time, the warranty terms, the availability of spare internals, and the technical support that the supplier offers. A valve that shows up on time and with all the necessary paperwork saves more money than a slightly less expensive unit that causes the project to be late. FLA answers questions about price and technical issues within 24 to 48 hours, which keeps the buying process on track.

Conclusion

In water treatment, fire protection, oil and gas, HVAC, and chemical processing systems, 6 Swing Check Valve swing check valves with a 6-inch width are a reliable way to stop backflow. If you choose the right material, pressure rating, and connection style, and then make sure you buy from a certified, experienced manufacturer, the valve will either last for years without any problems or need to be serviced often. FLA Industrial & Trading Co., Ltd. stands behind every valve with ISO9001, CE, UL, and FM certifications, quick technical support, and almost 40 years of experience making valves. The right partner is the first step in making the right valve choice.

FAQ

Can a 6-inch swing check valve handle both liquids and gases?

Yes, water, sewage, fuels, steam, and compressed gasses can all go through swing check valves. The material and type of seat must be right for the medium. Soft seats, like PTFE or EPDM, work well with clean water and gas, while metal seats can handle steam and rough fluids.

How often should I inspect a swing check valve?

Every time you shut down for maintenance, which is usually every 6 to 12 months in normal service, you should check. When the product has a lot of cycles or masses, the hinge pin and seating areas need to be checked more often.

When should I choose a swing check valve over a wafer check valve?

If the pipe is at least 4 inches wide and the flow rate is high, choose a swing design. Wafer check valves are smaller and work better in places where room is limited, but swing versions have less pressure drop and are easier to reach from the inside for maintenance.

What causes water hammer in swing check valve installations?

Normal swing disks can slam shut when a pump stops suddenly, which can cause pressure spikes. If you choose a valve with an external handle and balance or a hydraulic dashpot, the closing stroke is softer and surge is much lower.

Does FLA offer non-standard sizes?

Yes, FLA Industrial specializes in bore sizes and alloy shapes that aren't standard. Custom orders usually ship between 7 and 15 business days after the order is confirmed.

Partner With FLA Industrial for Your Next Valve Project

For almost 40 years, FLA Industrial & Trading Co., Ltd. has sold certified pipeline parts in the U.S. and around the world. As a reliable 6 Swing Check Valve manufacturer, we back up all of our Products" target="_blank" style="color:blue" >products with ISO9001, CE, UL, and FM certifications. We also ship stocked items the same week. You can email our expert team at sales@flaindustrial.com or go to flaindustry.com to get a price, look at product specs, or talk about making custom setups for your project.

References

1. American Society of Mechanical Engineers (ASME). ASME B16.34: Valves – Flanged, Threaded, and Welding End. ASME, 2017.

2. American Petroleum Institute (API). API 6D: Specification for Pipeline and Piping Valves. API Publishing Services, 2021.

3. American Petroleum Institute (API). API 598: Valve Inspection and Testing. API Publishing Services, 2016.

4. Hydraulic Institute. Pump Systems Matter: Energy Efficiency Guide for Industrial Pump Systems. Hydraulic Institute, 2020.

5. International Organization for Standardization. ISO 5208: Industrial Valves – Pressure Testing of Metallic Valves. ISO, 2008.

6. Valve Manufacturers Association of America. Valve Industry Report: U.S. Industrial Valve Market Trends and Standards Compliance. VMA, 2022.
