How to Match Grooved Coupling Clamps to Pipe Size and Pressure

Matching a grooved coupling clamp to the right pipe size and pressure rating is one of the most practical decisions a procurement engineer or site supervisor makes. Get it wrong, and you risk leaks, system failure, or costly downtime. A coupling clamp grooved system works by engaging a circumferential groove on the pipe end with the housing key sections, creating a pressure-responsive seal through an elastomeric gasket. To match correctly, you need to verify the pipe's actual outer diameter (OD), confirm the groove standard (roll or cut), and cross-check the clamp's rated working pressure against your system's operating conditions.

Specification

Specification	Size (inch)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding Grooved Coupling Clamps and Their Role in Piping Systems

What a Grooved Coupling Clamp Actually Does

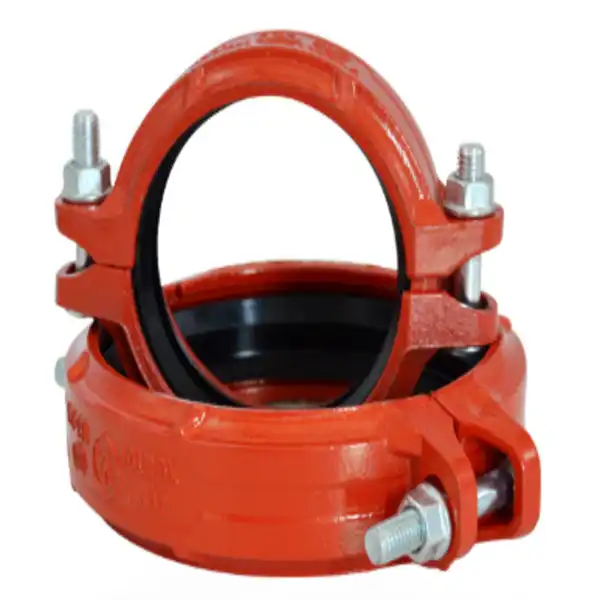

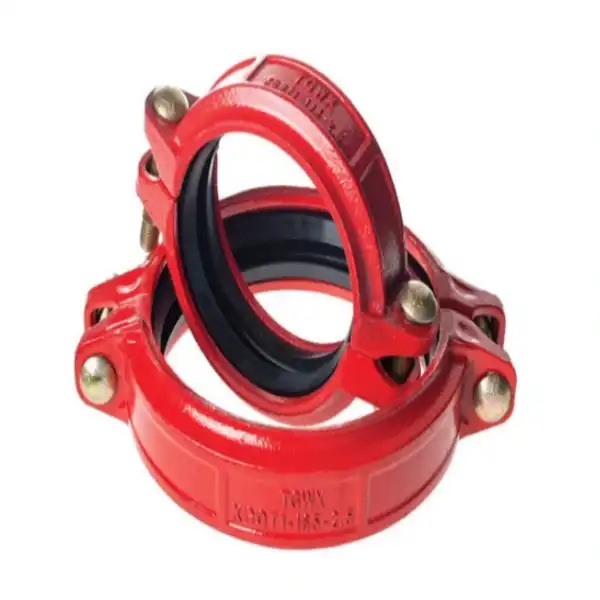

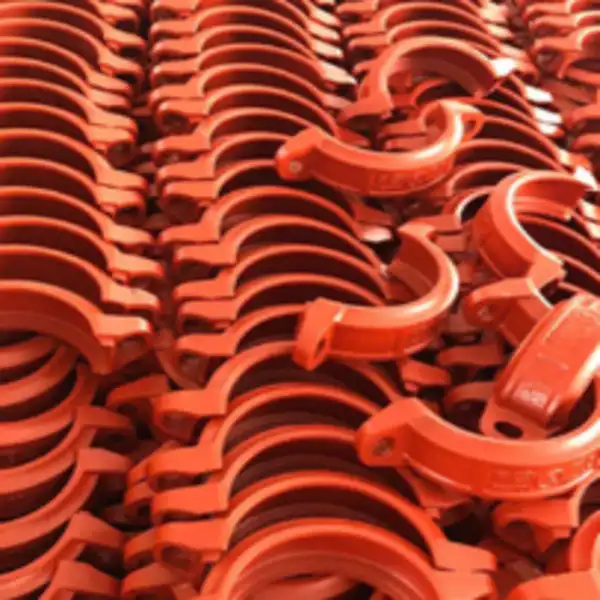

There are two ductile iron or carbon steel housing halves, a C-shaped elastomeric gasket, and track-head bolts that make up a grooved pipe coupling. The housing keys fit into the hole that was cut or rolled into the end of the pipe. This locks the joint in place. The gasket's C-profile gets even more compressed as the pressure inside the line rises. This makes the seal better when it's under load. This design gets rid of the need for hot work, which makes job sites much safer for fire.

Materials and Finish Options That Matter

Ductile iron that meets ASTM A536 Grade 65-45-12 has a tensile strength of 65,000 psi and a stretch of 12%, which means it can be used in most industry settings. For some configurations, carbon steel versions offer even more weight savings. Different types of surface finishes, like painted, epoxy-coated, or hot-dip galvanized, protect against corrosion in different ways. Hot-dip galvanizing is best for outdoor or marine environments, while epoxy coating is good for moderate chemical exposure.

Applications Across Key Industries

Grooved coupling systems are used in stairs for fire sprinklers, HVAC cold water loops, city water distribution, and industrial process pipes. In fire safety systems for tall buildings, riser stacks can handle inter-story drift without breaking because they are flexible during earthquakes. In mechanical rooms for HVAC systems, they keep pump vibrations out and allow for temperature cycling without the need for expansion joints. This directly lowers the cost of installation and maintenance over time.

Critical Factors to Consider When Matching Coupling Clamps to Pipe Size

Nominal Pipe Size vs. Actual Outer Diameter

This is where a lot of buyers go wrong first. Nominal pipe size (NPS) is just a number that serves as a guide; it is not a real measurement. That's right—a 2" NPS pipe has an OD of 2.375 inches. Always check the width of the pipe against the size chart provided by the clamp's maker. Groove sizes are controlled by standards like ANSI/AWWA C606 and ASTM A536, so making sure you know which standard your pipe follows before you order will keep you from getting mismatched pipes that leak or pull apart at the joints.

Reading the Size Chart Correctly

The Coupling Clamp Grooved size chart shows the range of pipe ODs each housing can fit, along with the required groove depth and width. AWWA C606 specifies that a 4" grooved coupler is designed for a pipe OD of 4.500 inches and a groove depth of 0.094 inches. Even slight deviations from these tolerances can weaken housing key engagement. Before installation, always check the "A" measurement, from the pipe end to the groove midpoint, against the manufacturer's specifications.

Choosing the Right Housing Material for Your Environment

Here are the most important things buyers should think about before placing an order:

• Ductile iron works well for standard water, HVAC, and fire protection systems operating in non-corrosive indoor environments. Its high tensile strength and nodular microstructure resist hydraulic shock.
• Carbon steel variants are selected where weight or specific mechanical properties require a different approach, particularly in custom industrial configurations.
• Epoxy-coated or galvanized finishes add a critical layer of protection for outdoor, coastal, or chemically aggressive environments where bare iron would corrode prematurely.

By choosing the right materials from the start, you can avoid early failures and protect your entire investment over the life of the system.

Assessing Pressure Ratings for Coupling Clamps in Pipe Systems

Working Pressure, Test Pressure, and Safety Factors

The working pressure number tells you the highest pressure that the coupler can safely handle over an extended period of time. Most of the time, 1.5 times the working pressure is used as the test pressure for hydrostatic testing. As long as the safety factor is 3:1 or 4:1, the hydraulic burst tests for quality-controlled connections must be passed at the rated working pressure. Before a 300 PSI connection ships, it is put through burst testing to make sure it will still hold up under 900 PSI.

Matching Pressure Ratings to Real Operating Conditions

Grooved joints from FLA Industrial & Trading Co., Ltd. come in sizes from 1" to 48" and can withstand up to 300 PSI (2.07 MPa). In the U.S. market, this range works well for most commercial fire protection, HVAC, and municipal water needs. When there are sudden changes in system pressure, like water hammer during fire suppression, the flexible gasket design of the coupling absorbs the impact without separating the joints. Welded or flanged connections can't do this.

Certifications That Confirm Pressure Performance

Certifications are more than just forms. The coupling works in fire prevention systems under certain pressure and temperature conditions, as shown by the UL 213 and FM Class 1920 ratings. European safety rules for pressure tools are met by CE approval. The ISO9001 quality management license proves that the production process is always controlled. When buyers ask for certified couplings, they lower their risk of liability and make sure that commercial projects meet insurance and code requirements.

Installation and Maintenance Best Practices for Efficient Pipe-Clamp Integration

Step-by-Step Installation Overview

Installing a Coupling Clamp Grooved connection takes less time than most workers expect. Compared with flanged connections, the grooved system can reduce labor hours by up to 50% because assembly requires no welding or threading. Clean the pipe end, apply the manufacturer's recommended lubricant to the gasket, position the gasket over the pipe end, fit the two housing halves together, and tighten all bolts evenly. Smaller sizes typically require 60–80 ft-lbs of torque. Always consult the supplied torque table to ensure the correct force is applied.

Routine Inspection and Corrosion Checks

Visual inspections should be done every six months on systems that are in environments that are corrosive or have a lot of vibration. Check for gaskets that stick out past the housing lip, bolts that are corroding or coming loose, and any damage to the surface coating that shows the base metal during each inspection. If you notice a coating failure early on, you can stop structural corrosion from spreading to the housing wall.

Troubleshooting Common Joint Issues

Leaks at a grooved joint are usually caused by three things: the groove not being deep enough (so the housing key can't fully engage), debris on the gasket seating surface, or a gasket getting pinched during installation. If the pipe OD isn't within the allowed range for that clamp size, it's likely that it will slip when pressure is applied. Before closing the housing, always use a groove gage to make sure the grooves are the right size, and before putting the gasket in place, look for scratches or other contamination on the surface where it sits.

Procurement Considerations and Choosing the Right Supplier

Balancing Cost, MOQ, and Lead Time

When buying grooved pipe fittings, there are more factors to consider than just the unit price. Buyers need to think about the minimum order quantity, the wait time, and whether or not the seller can accommodate requests for custom sizes. For hardware wholesalers who have to keep track of a lot of different SKU listings, a provider that offers sizes from 1" to 48" under one quality system makes inventory management a lot easier. Within 24 to 48 hours, FLA Industrial & Trading Co., Ltd. confirms prices and sends technical documents, which shortens the time it takes to source.

Evaluating Supplier Certifications and Quality Systems

When looking at different grooved coupling clamp providers, licenses help you tell the difference between reputable companies and cheap ones. Victaulic and Anvil are well-known brands in the U.S. market, but now certified Chinese manufacturers with UL/FM listings, ISO9001, and CE compliance can meet the same performance standards at lower prices. FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and has partners in the Fortune Global 500. From the raw materials to the final inspection, everything can be tracked.

Custom Solutions for Specialized Projects

Catalog items aren't always useful for all uses. Custom grooved coupling options are available for pipe ODs that aren't standard, coatings that are made to withstand chemical contact, or bolt setups that need to be changed. FLA's engineering team can help with all aspects of unique development, from the shape of the grooves to the final treatment of the surface. Before production starts, a 3D model is used to prove the design. When off-the-shelf parts don't work well on big infrastructure or industrial projects, this level of support is important.

​​​​​​​Conclusion

Choosing the right Coupling Clamp Grooved requires three things: an accurate measurement of the pipe's outside diameter (OD), confirmation of the groove standard, and a pressure rating that matches your system's working conditions. Material selection and surface finish provide additional protection, especially in corrosive or outdoor environments. Joints can perform throughout the system's service life when installed with the correct torque and inspected regularly. Working with a supplier that has the right certifications, supports custom configurations, and responds quickly makes the entire purchasing process easier and less risky.

FAQ

What is the difference between a rigid and a flexible grooved coupling?

A rigid coupling features tongue-and-groove interfaces that hold pipes in fixed alignment, functioning similarly to a weld. A flexible variant allows controlled angular deflection and limited linear movement, which is valuable in systems subject to thermal expansion or seismic activity. Choose rigid couplings for straight-run piping where alignment must be maintained, and flexible types where pipe movement is expected.

How do I choose between EPDM and NBR gaskets?

Use EPDM gaskets for water, sewage, and steam systems up to 230°F. They are not compatible with hydrocarbons. Use NBR (Nitrile) gaskets for oil-based fluids, petroleum Products" target="_blank" style="color:blue" >products, or hydraulic fluid applications. Selecting the wrong gasket material causes premature degradation and joint leakage.

Can grooved couplings be used on thin-wall pipe?

Yes, provided the pipe is roll-grooved rather than cut-grooved. Roll grooving displaces metal outward without removing material, preserving wall thickness. This makes it suitable for Schedule 10 and Schedule 5 pipe where cut grooving would reduce wall thickness below safe limits.

What causes a grooved joint to leak after installation?

Most post-installation leaks result from shallow groove depth, a contaminated gasket surface, or a gasket that was pinched during assembly. Always verify the groove "A" dimension and inspect the gasket surface before closing the housing halves.

Connect with FLA Industrial & Trading Co., Ltd. for Your Grooved Coupling Needs

FLA Industrial & Trading Co., Ltd. has UL/FM, CE, and ISO9001 certifications for all of their grooved coupling clamp products, which range in size from 1" to 48". FLA is a reliable Coupling Clamp Grooved maker that has been making products for almost 40 years. They offer tested quality, quick technical help, and custom solutions for difficult projects. You can get a price or expert advice right now by going to flaindustry.com or emailing the sales team at sales@flaindustrial.com.

References

1. American Water Works Association. AWWA C606: Grooved and Shouldered Joints. 2015.

2. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. 2014.

3. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. 2022.

4. Underwriters Laboratories. UL 213: Standard for Rubber Gasketed Fittings for Fire-Protection Service. 2021.

5. Factory Mutual Global. FM Approval Standard Class 1920: Grooved-End Pipe Fittings and Couplings. 2020.

6. American Society of Mechanical Engineers. ASME B31.9: Building Services Piping. 2020.
