Grooved Cross Fittings for Fire Protection: Flow and Fit Checks

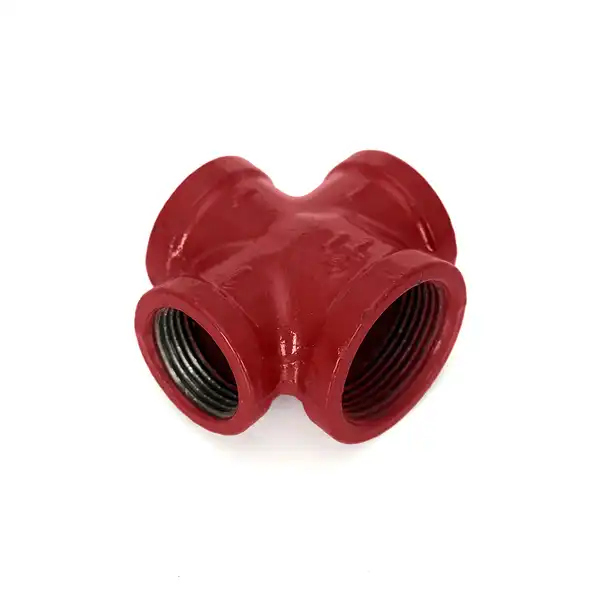

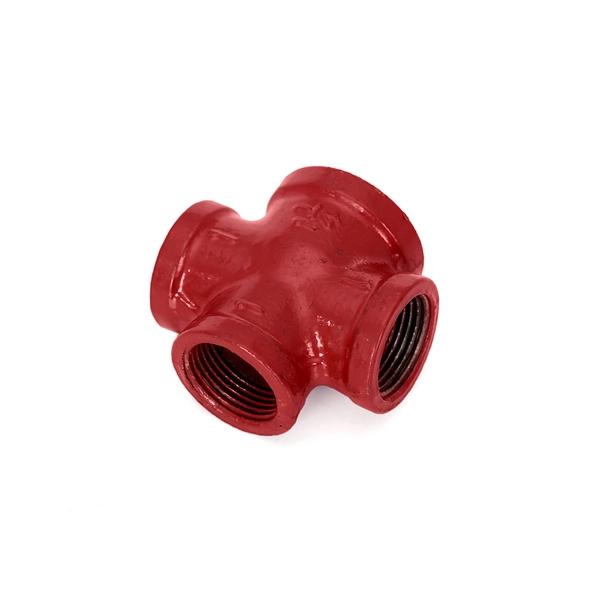

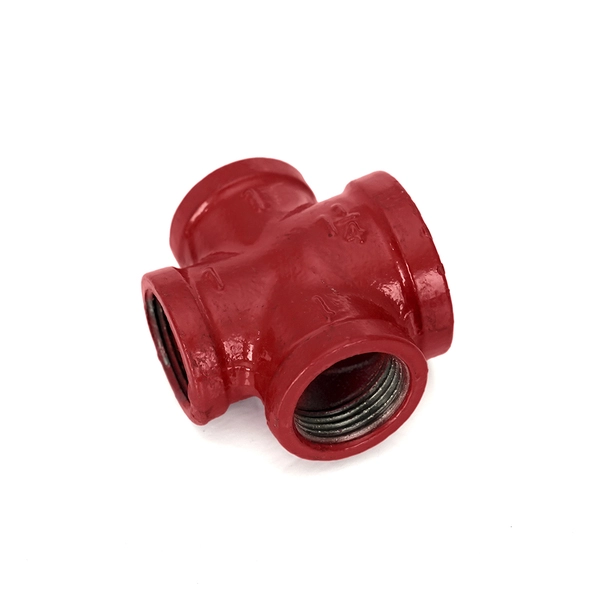

Grooved cross fittings are four-way mechanical pipe connectors that are made for fire safety systems that need to reliably branch or join water supply lines. A grooved cross is made from malleable iron and is held together with grooved connections. It removes the need for standard welding or threading and makes parts that are strong and won't leak. These fittings are used in commercial sprinkler systems all over the United States because they meet the standards set by NFPA, UL, and ANSI. Their design cuts fitting time by up to 50% compared to flanged options. This saves money on labour costs for building jobs that need to be done quickly.

Specifications

Type	Model	Outer Diameter (mm)
Grooved Cross	DN65	76
Grooved Cross	DN80	89
Grooved Cross	DN100	108
Grooved Cross	DN100	114
Grooved Cross	DN125	140
Grooved Cross	DN150	159
Grooved Cross	DN150	165
Grooved Cross	DN200	219
Grooved Cross	DN250	273
Grooved Cross	DN300	325

Understanding Grooved Cross Fittings in Fire Protection Systems

It's helpful to know how a grooved cross works and why it works well under pressure before choosing a pipe fitting for a fire suppression network.

What Is a Grooved Cross Fitting?

A grooved cross is a pipe fitting with four outlets, each of which is at a right angle to the others. There is a precisely machined groove on each end that fits into mechanical coupling housings. An elastic gasket inside the coupler presses against the groove face, making a joint that seals itself when pressure is applied, without the need for heat or heavy tools.

Materials and Standards

These fittings are made by FLA Industrial & Trading Co., Ltd. out of high-grade ductile iron, which is much stronger and less likely to break when hit than regular grey cast iron. You can choose from painting or epoxy-coated treatments, both of which offer good rust protection. The Products" target="_blank" style="color:blue" >products are certified by ISO 9001 and CE, and they meet the requirements set by NFPA 13 for installing fire sprinklers in commercial buildings in the United States.

Advantages Over Welded and Flanged Connections

Grooved mechanical connections get rid of the need for hot work permits, which slow down schedules in buildings that are already occupied. Assembling things only takes a wrench and some basic training, so they don't need as much trained labour. Crews can quickly disconnect a joint instead of cutting and rewelding pipe when a part of the system needs to be inspected or replaced. This is a clear benefit for facilities management teams that run ongoing maintenance programs.

Flow and Fit Checks: Ensuring Optimal Performance

If you get the flow shape and joint security right at the start, you won't have to pay a lot of money to fix things or have them fail in a fire.

Hydraulic Performance and Pressure Loss

The shape of the inside of a notched cross determines how much friction is lost across it. Engineers should use the equivalent pipe length data that the manufacturer has made public when they are figuring out the size of pumps. When FLA's ductile iron grooved crosses are made to very tight size specs, they have smooth inside sides that keep head losses the same from batch to batch.

Installation Best Practices

Before installing a grooved cross, ensure the pipe ends are square and the groove has the correct depth. During installation, these are the most important things every stage manager should check at each stage:

• Confirm groove dimensions match the coupling specification sheet for the pipe schedule being used (Schedule 10 or Schedule 40).
• Apply the recommended lubricant to the gasket before seating the coupling housing over the groove.
• Tighten coupling bolts evenly and to the torque value specified by the coupling manufacturer—not the fitting manufacturer.
• Inspect groove surfaces for burrs or rolling damage that could compromise gasket seating.

— Double-check that the groove sizes match the connection sheet for the Plan 10 or Schedule 40 pipe plan that is being used.

Routine Maintenance and Leak Troubleshooting

When tightening coupling bolts, make sure they are all the same size and use the torque number suggested by the coupling manufacturer, not the fitting maker. If the grooves have any burrs or rolling damage, it might be hard for the seal to fit right.

Comparative Analysis: Grooved Cross vs Other Fire Protection Fittings

Understanding how grooved crosses compare to other joining methods helps procurement managers make defensible purchasing decisions.

Grooved Cross vs Welded Cross

Welded crosses deliver a permanently rigid joint with high tensile strength, but they demand certified welders, hot work permits, and post-weld inspections. On a commercial high-rise project, the scheduling constraints alone can add days to a critical path. Grooved crosses assemble without heat, accommodate minor angular deflection, and allow pipe rotation after installation—capabilities a welded joint cannot offer.

Grooved Cross vs Flanged Connections

Flanged connections are common in larger-diameter systems but require bolt-circle alignment and gasket centering that slows installation. Flanges also add weight and take up more axial space in tight mechanical rooms. Grooved fittings are lighter, faster to assemble, and naturally self-restrained against end-load forces, which simplifies support hanger design.

Grooved Cross vs Threaded Fittings

Threaded pipe fittings work well in smaller diameters but become impractical above DN80 due to thread-cutting time and the difficulty of achieving leak-free joints at larger sizes. Grooved connections scale effectively from DN65 through DN300, covering the full range of diameters used in commercial and industrial fire suppression headers.

Procurement Considerations for Grooved Cross Fittings

It's not enough to just compare prices per unit to find the right four-way pipe fitting. Lead time, paperwork, and professional help from the supplier all have an effect on how much a job costs altogether.

Evaluating Supplier Qualifications

When buying in bulk, buyers should look for ISO 9001 certificates, CE statements, dimensional test reports, and hydrostatic pressure test records. Grooved cross companies with a good name, such as FLA Industrial & Trading Co., Ltd., offer full paperwork packages that make it easier for UL-listed systems to get safety checks and approvals. What groove sizes does the seller offer? Make sure they will work with the brand of mechanical link you've already picked for the project.

Size Range and Customization

The most popular pipe sizes for industrial sprinkler systems in the U.S. are DN65 (76 mm OD) and DN300 (325 mm OD). These pipe sizes can fit FLA's curved crosses. Within 7–15 days, FLA can deliver custom-machined fittings for configurations that aren't standard. To keep making things even when things are busy, they keep 2,000 tons of raw materials on hand.

Bulk Ordering and Lead Times

It's best for big construction projects to order all the materials they will need at once so that prices don't change in the middle of the job. When you send an order to FLA, they treat it all the same, professionally. And the engineering team responds to questions about prices and technical problems within 24 to 48 hours. At flaindustry.com, you can find the full specs sheet and size grid.

Case Studies and Real-World Applications in Fire Protection

Because they work better than other ways of joining, grooved mechanical valves are useful for real-world projects.

Commercial Office Tower, U.S. Midwest

In over 400,000 square feet, an NFPA 13-compliant wet sprinkler system had to be put in for a 24-story office building. It was changed from a flanged header design to a grooved cross fittings design at the points where the risers join. The project team said that 35% less time was spent putting pipes in at those points. Also, the rough-in for the sprinklers was done two weeks early, and the authority having jurisdiction (AHJ) hydrostatic test was passed the first time.

Industrial Processing Facility, Texas

A company that works with chemicals needed a fire control header that could handle pump shaking and small changes in temperature without damaging the joints. The vibration was lowered by grooved mechanical connections and flexible couplings, and the modular fitting design let one piece of the header be disconnected and taken out. This way, process equipment could be moved without having to cut any pipes. The repair teams were able to finish the move in one shift.

Shopping Center Expansion, California

A new watering zone had to be hooked up to an existing wet system while the store was open so that it could grow. If the links were threaded, workers could put together branch pieces away from the job site and then quickly connect them all together. With soldered links, the system would have been down for more than four hours. This kept it up for less than four hours.

Conclusion

Grooved cross fittings are a good way to split four-way pipes in fire safety systems that also meet code requirements. Because they are made of ductile iron, have precisely machined groove surfaces, and can be finished with epoxy or paint, they are reliable enough to use in business and industry. It's easy to see how they help with mechanics: they make repairs easier in the future and assembly faster on the job site. Gapped mechanical fittings are a good long-term investment for procurement managers and project engineers who are looking at different pipe fitting choices. This is because they come with verified certifications, public dimension data, and easy access to expert support.

FAQ

Can grooved crosses handle seismic movement?

Yes. When paired with flexible grooved couplings, a grooved cross allows angular deflection and limited axial movement. This makes the assembly suitable for seismic zones where NFPA 13 requires swing-joint or flexible connection provisions to prevent pipe fractures during building sway.

Are grooved fittings compatible with Schedule 10 and Schedule 40 pipe?

FLA's ductile iron grooved crosses work with both roll-grooved and cut-grooved steel pipe, provided the pipe-end groove dimensions match the coupling specification. Always verify groove depth and width against the coupling data sheet before assembly.

What pressure ratings apply to these fittings?

Pressure ratings depend on the coupling selected, not the fitting alone. Standard grooved couplings typically rate to 300 psi (approximately 2,070 kPa) for fire protection service. FLA subjects each fitting batch to hydrostatic pressure testing that exceeds normal working conditions before shipping.

How does a grooved cross affect friction loss calculations?

Engineers express friction loss through an equivalent pipe length value, published by the fitting manufacturer. Use this figure in hydraulic calculations per NFPA 13 to correctly size system pumps and ensure adequate residual pressure at the most remote sprinkler heads.

Do I need special tools to install or disassemble a grooved cross?

No specialized equipment is required. Standard torque wrenches and basic hand tools are sufficient. This significantly reduces labor costs and makes field modifications or emergency repairs accessible to standard mechanical crews.

Partner with FLA Industrial for Your Next Project

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and can stand behind every grooved cross we ship. They are made of cast iron and have ISO 9001 and CE certifications. They come in sizes DN65 to DN300 and have all the technical paperwork you need to make sure they meet all the rules. We make well-known grooved crosses for projects all over the United States. We keep stock on hand and can also make changes quickly. Send your needs to sales@flaindustrial.com or go to flaindustry.com to get a price right away.
