Light-Duty F-Clamps for Woodworking Assembly: Avoiding Frame Deflection

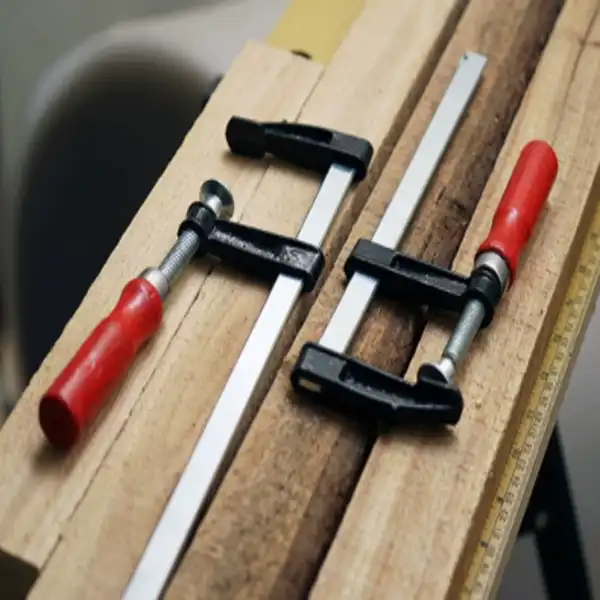

When woodworkers and cabinet manufacturers talk about failed glue joints or misaligned frames, the conversation almost always circles back to one root cause: uncontrolled clamping pressure. A F-Clamps/light-duty-f-clamp">light-duty F-clamp, when selected and applied correctly, addresses this problem at the source. It delivers calibrated holding force — typically between 600N and 1,500N — across a workpiece without crushing fibers or inducing the rail bow that ruins precision assemblies. This article breaks down how these tools work, why frame deflection happens, and how to choose the right clamp for your production line or job site.

Specifications

Specification	Total Length (mm)	Total Width (mm)	Clamping Length (mm)	Clamping Width (mm)
6 Inch	248	110	160	60
12 Inch	395	110	308	60
18 Inch	550	110	460	60
24 Inch	700	110	615	60
30 Inch	850	110	765	60
36 Inch	1000	110	915	60

Understanding Light-Duty F-Clamps and Their Role in Woodworking

What Makes a Clamp "Light-Duty"?

A light-duty bar clamp fits into a certain range of performance. It's not a big structural tool; it's a precise tool for holding work. The clamping force range of 600N to 1,500N keeps softwoods like pine and spruce from having their fibers compressed while still securely holding hardwoods and laminates in place while the glue dries. A cold-drawn steel bar is usually used for the rail shape. It is thin enough to let several clamps sit next to each other on a face frame without any mechanical problems.

Core Materials and Build Quality

FLA Industrial & Trading Co., Ltd. makes F-bar clamps with steel rails, precision-machined screw rods, and teeth made of cast iron that can be shaped. Gray cast iron is more likely to break when hit suddenly, but malleable cast iron is better at resisting this. This is important in high-cycle cabinet shops. The painted or zinc-plated surface finish is corrosion-resistant enough for wet woodworking areas, and the ISO9001-certified production process makes sure that every batch is the same size.

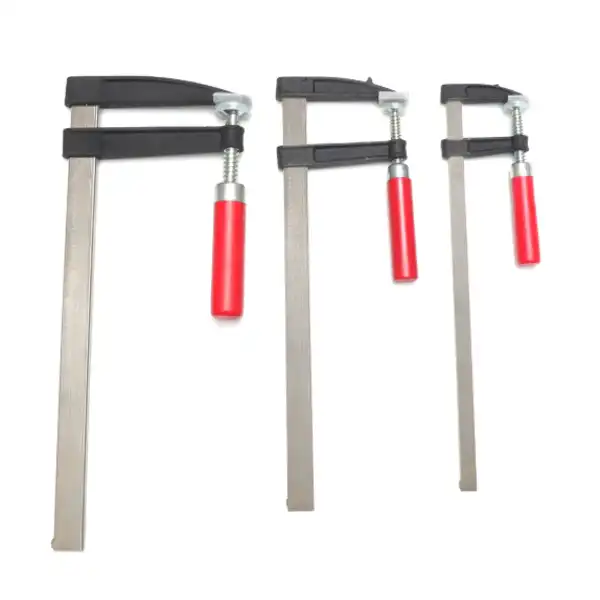

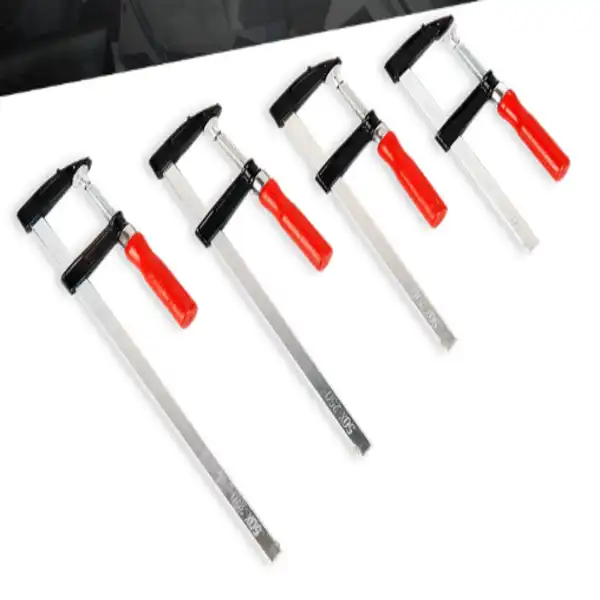

Size Range and Load Capacity

The product line comes in six sizes, ranging from 6 inches (248 mm long, 160 mm wide) to 36 inches (1,050 mm long, 915 mm wide), and all of them have the same 60 mm jaw width. This 60mm bearing surface spreads the pressure across the face of the object instead of focusing it in one place. This directly lowers localized stress and frame twist during assembly.

Avoiding Frame Deflection: Best Practices with F-Clamps

Why Deflection Happens?

There are two main reasons why frames bend when they are being put together in woodworking. First, applying more torque to one clamp than the ones next to it causes an uneven clamping pressure that turns the frame out of square. Second, if the clamp spacing isn't right, the load is concentrated at gaps that are too big for the material to cover, which causes the rail to bend under the pressure. A good steel rail doesn't bend easily, but the standard says that permanent deformation must be zero after the load is released, and elastic deflection must stay well below 5 degrees.

Correct Placement and Tightening Sequence

For standard hardwood panels, position each Light-Duty F-Clamp about 12 inches apart along the glue joint. Tighten from the center toward the outer edges and back again to build pressure evenly. Using consistent hand torque on each screw handle instead of fully tightening one at a time helps prevent the assembly from racking. FLA's clamps feature an ergonomic handle that ensures consistent torque without causing wrist fatigue during long production runs.

Maintenance to Preserve Clamping Accuracy

Don't let old glue or sawdust get into the rail serrations. Keep them clean. To keep the screw thread from sticking, a dry PTFE-based lubricant is used. This keeps the rail surface from getting slippery, which would let the sliding jaw clutch slip when it's under load. Regularly check the swivel pads; if one is torn or moved on the spindle tip, it will apply force at an angle instead of straight onto the workpiece face, which causes shear stress in the joint.

Comparing F-Clamps with Other Clamping Solutions

F-Clamps vs. C-Clamps

C-clamps are stiffer and have a deeper throat reach, but because their jaws are set, adjusting takes a lot longer. The sliding jaw of an F-bar clamp makes setup time much shorter on a cabinet face frame assembly line where clamps are moved dozens of times an hour. C-clamps are also heavier, which makes operators tired after a full shift.

F-Clamps vs. Spring Clamps

Inconsistent force is what makes spring clamps fast. The clamping force is completely determined by the spring tension, which can't be changed and gets weaker over time. Spring clamps are not a good alternative for glue-ups where joint pressure needs to be kept steady for 30 to 60 minutes. During the cure window, F-clamps with a screw mechanism keep the force that was set without any help from the user.

F-Clamps vs. Quick-Release Bar Clamps

It's possible for quick-release triggers to be less accurate, but they are faster. They work well for rough placement of assemblies, but if the locking device goes out, they can slip under long-term load. For furniture makers and woodworking OEM lines where accurate measurements directly impact product quality, the threaded screw of a traditional F-clamp provides more consistent and repeatable clamping force. This is especially true for stock that is less than 2 inches wide, where jaw alignment is very important.

Selecting and Procuring the Right F-Clamps for B2B Woodworking Needs

Key Selection Criteria

To choose the right clamp, you must first make sure that the jaw reach and throat depth are the right size for the workpiece. A light rail with a 50mm throat depth is very stiff. A 120mm throat depth causes cantilevering physics, which lowers the holding force and increases the risk of jaw skew. Most of the time, the normal jaw shape in FLA's range is enough for putting together face frames and panels without making the tool too complicated.

Evaluating Supplier Credibility

When looking for a Light-Duty F-Clamp supplier, B2B procurement teams should make sure the supplier is ISO9001 certified, look at the material test records, and ask for load-test data that shows the clamp won't slip under the rated load. Every production batch at FLA Industrial & Trading Co., Ltd. goes through several stages of quality control. These include inspecting the raw materials as they come in, checking the dimensions as they are being made, trying the clamping force, and finally doing a final visual review before packing. FLA has been making things for almost 40 years and has partners in the Fortune Global 500. From the raw materials to delivery, the company is responsible for the whole supply chain.

Bulk Purchasing and Logistics

FLA keeps 2,000 tons of stock on hand, which lets them quickly ship standard-sized orders. Custom specs, like rail lengths that aren't normal or jaw configurations that aren't the norm, ship within 7–15 days. The company doesn't have a minimum order size, so they can take orders of any size, from single samples to big restocking orders. At flaindustry.com, purchasing managers can ask for price lists and specification sheets.

Enhancing Woodworking Assembly Efficiency with F-Clamps

Reducing Cycle Time Without Sacrificing Quality

How fast an assembly line goes is directly related to the choice of clamps that are used. When each clamp applies the same amount of force every time, workers don't have to spend as much time making sure joints are square and fixing gaps between them. The FLA's smooth-sliding screw mechanism makes it easy to move between clamping cycles, and the six-size range means that each workstation only has to carry the sizes it needs, which cuts down on clutter and handling time.

Training Assembly Teams on Proper Use

Even a well-made clamp doesn't work well if the screw is over-torqued or the jaws are put on an uneven surface without a caul board. In high-volume furniture shops, repair rates can be cut by a large amount after a short training lesson that covers tightening sequence, torque awareness, and pad inspection. When new clamping hardware is introduced, procurement engineers should include training on how to use the tools in the rollout plan.

Common Pitfalls to Avoid

In production settings, over-tightening and under-spacing are the two mistakes that happen most often. When you fix something too much, the joint glue lines get too thin, which cuts off the bond. If you put the clamps too far apart, the panel can bow between the clamping points. Both issues are related to mechanical discipline and not tool failures. They can both be avoided by having clear shop rules and the right tools.

Conclusion

Frame deflection in wooden production can be fixed. If you use the right F-clamp, make sure it's the right size, place it at the right intervals, and tighten it in a controlled way, it will keep the joints square and the glue lines straight during the cure cycle. FLA's Light-Duty F-Clamps are made from precision steel and cast iron that can be shaped according to ISO9001 standards. They are a reliable tool that can be used over and over again for jobs ranging in size from 6 to 36 inches. The first step is to find a clamp that is right for the job. The second step is to buy from a company that has quality control records.

FAQ

Why does my clamp lose tension overnight during a glue-up?

If the clamp itself releases, the likely cause is worn clutch plates or contaminated rail serrations. A quality clamp should maintain 95% of its set clamping force over a 24-hour static load period. If you suspect wood creep rather than clamp failure, check the joint first — glue absorption can reduce joint volume slightly, which appears as slack in the clamp.

Can I use these clamps on metal welding projects?

FLA's F-clamps are built with a steel rail and malleable cast iron jaws, making them suitable for light welding staging. However, prolonged direct arc exposure near plastic pads or handles should be avoided. For heavy tack welding applications, ensure the pad and handle materials are clear of the heat zone.

How do I choose between a 6-inch and a 24-inch clamp?

Match the clamping length to your workpiece span. The 6-inch model offers a 160mm clamping length, suited for small panels and frames. The 24-inch model reaches 615mm, covering most standard cabinet and door assembly widths. Using a clamp significantly larger than the workpiece introduces unnecessary rail weight and can reduce positioning control.

What is the correct maintenance routine for the rail?

Clean the serrated rail with a dry wire brush after each use to remove glue and sawdust. Apply a dry PTFE lubricant to the screw thread only — not the rail serrations. Wet grease on the rail surface causes the sliding jaw clutch to slip under load.

Partner with FLA Industrial & Trading Co., Ltd. for Your Clamping Needs

Your production line needs a Light-Duty F-Clamp maker with a track record of quality that can back up every order. For almost 40 years, FLA Industrial & Trading Co., Ltd. has sold hardware to hardware stores, woodworking factories, and building buying teams all over the United States and other countries. You can look at all of our specifications at flaindustry.com or email our sales team at sales@flaindustrial.com to get samples, bulk pricing, or custom configurations. We answer within 24 to 48 hours.
