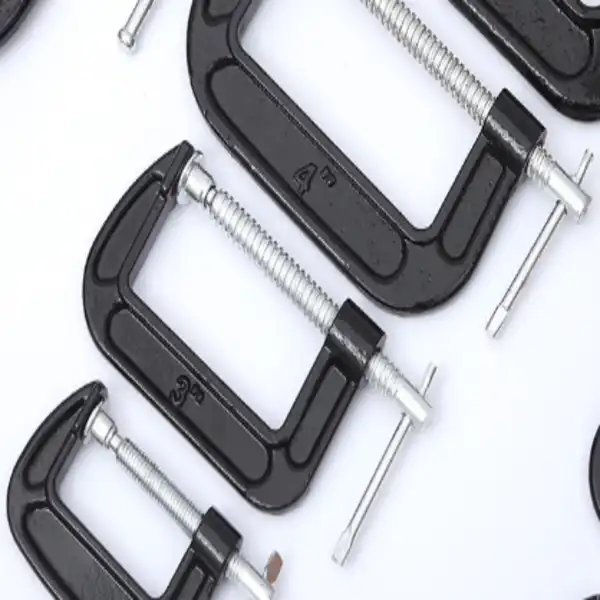

Quick-Action C-Clamps for Fast Fixture Setup on Production Lines

Production lines live and die by cycle time. A quick-action C-clamp addresses one of the most overlooked sources of downtime on any shop floor: the time spent opening and closing a traditional screw clamp hundreds of times per shift. By combining a ductile iron frame with a rapid-slide spindle mechanism, these professional-grade clamps cut fixture setup time by up to 70% compared to conventional models. Whether your team runs woodworking glue-ups, metal fabrication jigs, or assembly fixtures, the right rapid-clamping tool keeps production moving without sacrificing holding force or safety.

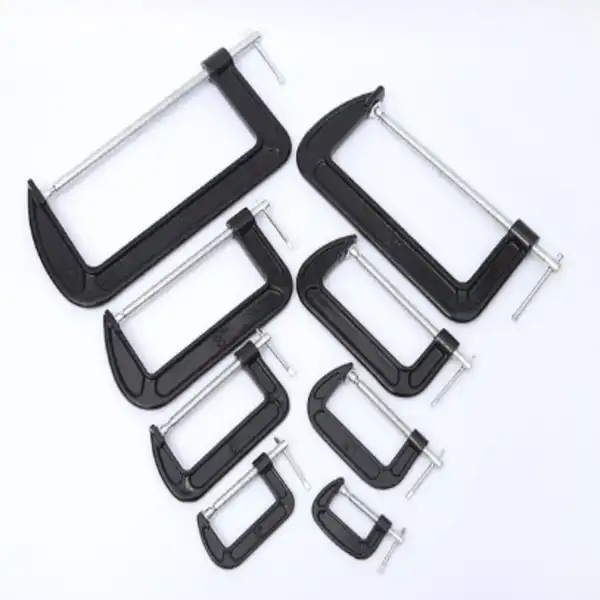

Specifications

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Quick-Action C-Clamps: Features, Benefits, and Applications

What Sets Them Apart from Standard Clamps?

When the standard C-clamp is used, the screw has to be wound from fully open to touch each time. The spindle can move easily until it hits something. A quick-action clamp has either a half-nut trigger or a gravity-clutch system. After that, it engages the thread again to make it tighter all the way. This cuts down on "dead time" and the stress that comes from turning the wrists over and over. In places where there is a lot of work to be done, that difference in speed and ergonomics saves a lot of work over the course of a day.

Materials and Construction That Matter

FLA Industrial & Trading Co., Ltd. makes rapid-clamping clamps with frames made of malleable iron and screw rods made of steel that have been carefully cut. Ductile iron, which is also called spheroidal graphite iron, is much stronger and less likely to break than gray cast iron. In other words, it can hold clamping forces of at least 2,000 pounds for a long time. The steel shaft is machined to stay straight within very small gaps. When the clamp is placed, this stops it from moving. If you paint or powder-coat the metal, it won't rust in a damp workshop.

Where These Clamps Perform Best?

This kind of clamp is used in a lot of different lines of work. In crafts and furniture making, rapid-action clamps let you hold several pieces together while you glue them together before the glue sets. When the screws are slow, this is almost impossible to do. Users of metalworking and welding don't have to keep re-threading when jigs are in place during tack welding. Builders use them to make temporary forms and links for building. Mechanics who work in tight engine bays or on buildings benefit from being able to use one hand to hold a clamp in place.

How to Use Quick-Action C-Clamps Effectively in Industrial Settings?

Proper Setup and Clamping Technique

Make sure the clamp is in a place where the spindle axis is straight across from the task at hand. Place the movable jaw in place, and then use controlled torque to put the last bit of pressure on the handle. Be careful not to tighten it more than the given amount of grip. Use a swivel pad or a protective cap between the spindle tip and the finished surface at all times to keep it safe. People who use spindles with hardened tips (usually HRC 40–50) can keep the item safe, but it's still the operator's job to do so.

Safety Protocols Worth Following

A Quick-Action C-Clamp should never be used to lift something overhead or as a mounting tool. It can come loose if struck or exposed to vibration, creating a serious risk of dropping the load. OSHA rules prohibit using regular C-clamps as lifting devices. Before use, check the frame, trigger spring, and thread engagement for cracks. If the frame shifts or the threads skip repeatedly, remove the clamp from service immediately.

Maintenance for Long Service Life

Take a look at the quick-release trigger and make sure it is clean. The best way to clean dusty or rough spots is with compressed air. Do not use thick greases that pick up grit. This will keep the mechanism moving freely and stop the grit from building up. Use a dry graphite lubricant or a light PTFE spray instead. When making things at a high frequency, you should check them visually every 250 cycles. FLA has an ISO9001-certified quality management system at the plant level that checks that the measurements are correct and that the mechanisms work as they should. But care still needs to be taken in the field to make sure the systems work well.

Making the Right Choice: Selecting Quick-Action C-Clamps for Industrial Procurement

Matching Size and Capacity to Your Application

Look at the throat depth and opening size of a clamp to choose one. Most of the time, 600 to 1,200 pounds of clamping force is enough for light woodworking. 2,000 pounds or more may be needed for heavy fabrication or building assembly. It is important that the frame size is the same as the stack height, but not so tall that it trips the spindle. People who work there have to make do when the sizes don't match, which can be unsafe and cause fixtures to not be level.

Comparing Clamping Solutions for Different Sectors

However, Quick-Action C-Clamps aren't always necessary. Twist clamps are the best choice for repeat pressing jigs when the object's thickness doesn't change. Longer lengths can be held together with bar clamps. The rapid-slide C-clamp is still the best and least expensive choice for welding, gluing, and building frames that need different opening sizes and a lot of compression force. Buy teams don't have to settle for a close match when they need to find the exact capacity and frame shape they need thanks to FLA's more than 1,000 product specs.

Evaluating Suppliers for Bulk B2B Purchasing

As important as the product specs are, the supplier's reputation is also very important. Make sure the product is ISO9001-certified, comes with clear directions on how to do a proof-load test, and has data from mechanism cycle tests that show at least 10,000 stable contacts. Check to see if the supplier can meet your needs for the number of SKUs and delivery times. There are 2,000 tons of goods in stock at FLA Industrial & Trading Co., Ltd., and special orders can be filled in 7–15 days. It takes 24 to 48 hours to send technical quotes.

Procurement and Logistics: Where and How to Buy Quick-Action C-Clamps

B2B Purchasing Channels and Price Structures

Going straight to the manufacturer of a Quick-Action C-Clamp is usually the best way to get competitive prices and reliable quality control when buying in bulk. Business-to-business buyers should request written quotes that specify the material, finish, load rating, and packaging method. Strong packaging keeps clamps in good condition during sea freight and reduces damage claims.

Managing Lead Times and Inventory Coordination

Just-in-time supplies will work if your seller can back up their shipping. FLA sends standard-size clamps right away from stock that they already have. When an order has specific needs, the 7–15 day production window lets production planners fit it into the schedule for the next steps of the project. Adding two to three weeks to your buying plan for the first time through customs sales will give you time for shipping and customs clearance.

Shipping and Customs Considerations

It is determined by certain HTS numbers how much the clamps from China cost when they are brought into the United States. Before you figure out the arrival cost, you should talk to a licensed customs expert to make sure of the classification. FLA's export team takes care of all the paperwork that is needed to get goods through customs quickly and with less wait time at U.S. ports of entry.

Industry Insights and Future Trends for Quick-Action C-Clamps

Materials and Design Directions

Because the whole industry wants to put more power into smaller, lighter tool kits, the frames have changed from gray cast iron to ductile iron. Powder coating has mostly taken the place of paint on high-end clamps because it sticks better and doesn't scratch as easily when used in rough conditions. More and more welders are using copper-plated spindle tips because they don't let spatter stick to them. This keeps the quick-release threads clear.

Lean Manufacturing and Fixture Efficiency

Lean production says that time that isn't used to make something else is waste. The time it takes to switch between fixtures is directly related to the time it takes to cycle the clamps. This is what people who work with the Toyota Production System call a setup loss. It is simple, cheap, and useful to switch from clamps with screws only to ones with quick-action systems. This change fits with both 5S and SMED goals. A lot of production workers don't think this change is important until they check it out.

Sustainable Sourcing and Long-Term ROI

Powder coating gives off fewer volatile organic compounds (VOCs) than solvent-based paint methods, and the whole thing can be recovered. When procurement teams are making sustainable supply chain documentation, these choices of material and finish help them report their Scope 3 emissions. Total cost of ownership and the number of times it needs to be changed over a three- to five-year output period are both cheaper with a better clamp that lasts longer.

Conclusion

Quick-Action C-Clamps are a real, quantifiable improvement for any production setting where fixture setup speed and keeping reliability are crucial. These clamps are made of precision steel and iron that can be shaped. It cuts down on cycle time and keep workers from getting tired. They work well in making metal parts, putting things together, and working with wood. Make sure that the load capacity, frame size, and mechanism type of the clamp you choose all work with the way you work. You should also buy from a seller with a large enough stock, quality approval, and shipping options to make sure your production plan stays on track.

FAQ

How do I select the right clamp size for heavy-duty fabrication?

Match the clamp's rated clamping force to your application load. For heavy fabrication, select a frame rated at 2,000 lbs or higher. Verify that the throat depth accommodates your material stack and that the spindle travel covers your full opening requirement. Undersized clamps risk permanent frame deflection.

How often should I inspect and maintain these clamps in production use?

In high-frequency environments, inspect every 250 operating cycles. Check the trigger spring, thread engagement, and frame visually. Clean the mechanism with compressed air and apply a dry PTFE lubricant. Remove any clamp showing thread skip or visible frame cracking.

Can rapid-action clamps hold composite or non-parallel surfaces?

Yes, if the clamp includes a swivel pad on the spindle tip. The swivel compensates for minor surface angle variations without concentrating pressure on a single contact point. Always use a protective pad on finished or soft material surfaces to prevent indentation.

Are quick-action clamps compatible with automated fixture systems?

Standard trigger-release models are designed for manual operation. However, their speed and consistent clamping force make them compatible with semi-automated jig stations where a human operator performs final tightening. Full automation typically requires pneumatic or hydraulic clamp actuators.

Partner with FLA Industrial for Your Next Clamp Order

The US, Germany, and Australia all buy things from FLA Industrial & Trading Co., Ltd. They have been in business for almost 40 years. Because we know you can trust us to make good Quick-Action C-Clamps , we keep more than 2,000 tons of stock in over 1,000 different sizes. The ISO9001 standard says that our quality is good, and we can quickly fill both standard and special orders. You can email our team at sales@flaindustrial.com or visit flaindustry.com to get a quote in 24 to 48 hours.
