How to Select a Coupling Clamp Grooved Supplier for Secure Industrial Pipe Connections

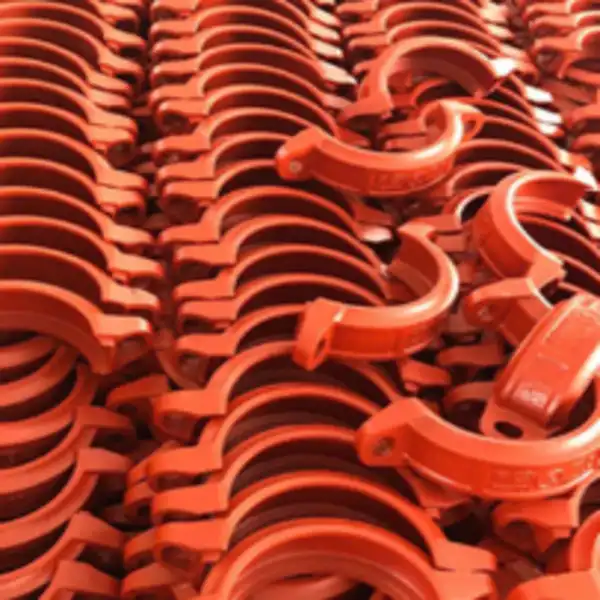

Selecting the right coupling clamp grooved supplier directly determines whether your pipe system holds under pressure or fails mid-project. A grooved pipe coupling consists of two ductile iron housing segments, an elastomeric gasket, and zinc-plated bolts that engage a circumferential groove on the pipe end — no welding, no threading required. For procurement managers, site engineers, and MRO teams sourcing Products" target="_blank" style="color:blue" >products for fire protection, HVAC, or water supply systems, the supplier choice affects safety compliance, project timelines, and long-term operating cost. This guide walks you through every factor worth evaluating before you commit.

Specification

Specification	Size (inch)	L (mm)	H (mm)	φ Diameter (mm)
1	33	98	42	54
1½	48	114	43	69
2	60	127	43	82
2½	76	145	44	99
3	89	159	44	112
4	108	186	47	133
4	114	192	47	140
5	133	214	48	161
5	140	221	48	167
6	159	245	49.5	189
6	165	251	49.5	195
6	168	254	49.5	198
8	219	324	59	254
10	273-1.6	416	61	316
10	273-2.5	416	62	317
12	325-1.6	467	61	370
12	325-2.5	469	62	372

Understanding the Basics of Grooved Coupling Clamps

You need to have a good, detailed understanding of what you want to buy before you call any suppliers. A grooved mechanical coupling is not a standard pipe fastening; its shape, material, and gasket chemistry are all carefully designed to work in certain situations.

Material and Pressure Specifications

Most grooved pipe couplings are made from ductile iron that meets ASTM A536 Grade 65-45-12 standards. This type of iron has a tensile strength of 65,000 psi and a 12% elongation, which is enough flexibility to handle hydraulic shock without breaking. There are versions made of carbon steel for situations where weight or cost are important. Working pressures usually go up to 300 PSI (2.07 MPa), which is enough to put out most fires and distribute water.

Gasket Selection Matters More Than Most Buyers Realize

The EPDM rubber gasket used in fire and water protection systems makes a C-shaped seal that responds to pressure. The seal gets tighter as the line pressure inside the system rises. NBR (nitrile) seals are used instead of EPDM for devices that use oil-based fluids. A common procurement mistake that leads to early joint failure is picking the wrong gasket material. Always confirm the fluid medium with your supplier before finalizing specs.

Size Range and Connection Standards

Grooved couplings come in sizes ranging from 1" to 48" (25mm to 1,200mm), which can be used for everything from home plumbing to large-bore industrial headers. The minimum requirement is that the dimensions must meet ANSI/AWWA C606 and ASTM A536. Any coupling put in a fire safety system in the US needs to be listed with UL and have FM approval. Make sure to check these certifications on every order, not just the first one.

Core Criteria for Selecting a Grooved Coupling Clamp Supplier

Once the technical needs are clear, the supplier is the next thing that is evaluated. An item may look good on paper, but it may still not work if the company that made it doesn't have process rules or responsibility after the sale.

Certification as the Non-Negotiable Starting Point

Suppliers you can trust have ISO 9001 quality management certification, CE product safety certification, and UL/FM approval for fire defense uses. These are not marketing claims; they are standards that have been checked by a third party. For U.S. projects, following UL 213 and FM Class 1920 is often required by contract. Find out from providers what current certificate numbers and expiration dates they have, and then check them against the public record of the issuing body for Coupling Clamp Grooved.

Quality Assurance Depth Beyond the Certificate

Certification only proves that a system exists; it doesn't mean that every batch will meet standards. Ask suppliers how they make sure that the housing keyways meet the pipe groove exactly according to AWWA C606. Also, find out if they test for hydrostatic burst at a safety factor of at least 3:1 over the rated working pressure and how they test coated surfaces for salt spray (ASTM B117). A supplier who can answer these questions with specific numbers and written procedures is on a higher level than one who only gives you a PDF certificate.

Transparency on Lead Times, MOQ, and Customization

Hardware wholesalers that buy a lot of different SKUs need to know when their orders will arrive. Construction buying heads need to know that their stocks will always be available for use on the job site. Ask the supplier to write down the minimum order quantities, standard lead times by size range, and their ability to work with non-standard sizes or coating needs like hot-dip galvanizing or epoxy finishes. When suppliers check prices, weigh items, or look over drawings within 24 to 48 hours, that shows they are operationally efficient, which is what large-scale buying needs.

Comparing Grooved Coupling Clamps: Making the Right Choice

Knowing how grooved systems compare to other options can help stakeholders who might choose more familiar methods understand why the specification is important.

Here is a direct comparison of the three main ways to join pipes:

• Welded connections provide high rigidity but require hot work permits, trained welders, and longer installation windows. They cannot accommodate thermal expansion or seismic movement without separate expansion joints — a high cost in HVAC and fire riser applications.
• Flanged connections work well at high pressures but demand precise bolt-hole alignment, gasket replacement access, and longer assembly times. They add weight and space constraints in mechanical rooms.
• Grooved mechanical couplings eliminate hot work entirely, reduce installation labor by up to 50% according to industry data, and inherently absorb vibration and linear pipe movement through the elastomeric gasket. In seismic zones, flexible-type grooved couplings allow inter-story pipe drift without fracture.

When speed, safety, and the ability to rotate or reposition pipe sections without cutting are important, like in fire sprinkler systems, HVAC chilled water loops, mining slurry lines, and marine piping, grooved systems always do better in terms of total installed cost and long-term maintenance access.

Procurement Best Practices for Grooved Coupling Clamps

Getting a lot of curved joints adds risks that aren't covered by the product specs. There are reports of fake or low-quality couplings getting to job sites in the U.S. market, and if a fitting fails in a fire suppression line, the results are very bad.

Verify Supplier Traceability Systems

A reliable manufacturer keeps track of all of the materials they use, from the raw iron or steel through casting, machining, surface treatment, and final inspection. Ask for proof of how each production batch is kept track of. One sign of a mature process is spectrographic analysis that confirms the nodularity rates in the ductile iron melt. Suppliers who keep an eye on this regularly are not skimping on metallurgy for Coupling Clamp Grooved.

Manage Bulk Orders with Clear Contract Terms

Written contracts should spell out dimensional tolerances, surface coating thickness, test certificates per batch, and packing standards for hardware dealers and building buying teams that buy in large quantities. Strong packaging keeps threaded bolt contacts and covered surfaces safe during freight. This is one of the things that sets experienced exporters apart from those who ship goods without protection.

Build Supplier Relationships That Support Downtime Prevention

Suppliers who offer extra gasket kits, new bolt sets, and expert help for troubleshooting in the field make it less likely that your project will be late. When a joint leaks on the job site, the fastest solution is a supplier who can quickly figure out what's wrong (like an incorrect groove depth, a pinched gasket, or the wrong bolt torque) and send out replacement parts.

Installation and Maintenance: Maximizing the Life of Your Grooved Couplings

Even a certified, well-made grooved pipe fitting will not work if it is installed incorrectly or not checked for damage.

Step-by-Step Installation Protocol

Clean the end of the pipe, make sure the groove dimensions match the key profile of the coupling housing, use the manufacturer's recommended lubricant to coat the gasket, place the housing halves in place, and tighten the bolts one at a time until the torque range is reached. For smaller sizes, this range is usually 60 to 80 ft-lbs; for larger sizes, it's listed in the product data sheet. When working with pressure-rated systems, you should never use eye proof of pad-to-pad contact as a replacement for measuring torque.

Routine Inspection Priorities

Check couplings at least once a year in normal service conditions and more often in places where corrosion is a problem or where there is a lot of vibration. Check for coating wear, bolt thread rust, gasket pushing out past the housing lips, and any slot distortion that you can see. It is much cheaper to find a damaged gasket during a check than to have to shut down the system because of a broken joint.

Compliance with U.S. Safety Standards

NFPA 13 (Standard for the Installation of Sprinkler Systems) says that all grooved fittings must have current UL and FM listings for fire protection installations. During commissioning, insurance underwriters and AHJs (Authorities Having Jurisdiction) look over the certification paperwork. For the project record, keep the source certificates on file.

Conclusion

Choosing a grooved pipe connection provider for business uses is a technical and financial choice that has real safety effects. Give more weight to suppliers who have both ISO 9001 certification and valid UL/FM listings. These suppliers should also be able to show proof of quality control at the metallurgical and structural levels and keep you informed about lead times and customization options. The way you set up and maintain the system after you buy Coupling Clamp Grooved is just as important for its long-term stability. It's more important to find a supplier that can help you with the whole lifecycle of a product, from specification to troubleshooting in the field.

FAQ

How does a grooved coupling differ from a welded joint?

A soldered joint uses heat to fuse the ends of two pipes together, making a strong, long-lasting link. A grooved coupling automatically clamps the ends of pipes with a housing that keys into a circumferential gap. This lets the pipes move in both straight and angled directions. This means that grooved systems are easier to maintain, faster to install, and can naturally handle thermal expansion and seismic displacement without any extra gear.

How do I verify that a supplier's grooved fittings are genuinely UL/FM listed?

Find the certificate number and compare it to either the UL Product iQ database or the FM Approvals product directory. These are registries that anyone can access.

Can grooved couplings handle both rigid and flexible pipe movement requirements?

Yes. Like a joint, rigid-style grooved connections lock the pipe in place. Flexible couplings let you control both straight-line movement and angular deflection. Choose the right type based on whether your system needs to be able to handle earthquakes, handle temperature growth, or stay in place.

What is the correct gasket for a fire suppression water system?

Most of the time, EPDM gaskets are used for water, fire suppression, and steam up to 230°F. Never use EPDM in systems that carry hydrocarbons or fluids based on petroleum; those systems need NBR (nitrile) gaskets instead.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Procurement Cycle

Every Coupling Clamp Grooved product that FLA Industrial & Trading Co., Ltd. sells is the result of almost 40 years of experience making them. We offer everything from 1" fittings for homes to 48" large-bore industrial couplings made of carbon steel and ductile iron. Our goods are certified by ISO 9001, CE, and UL/FM, and before they are shipped, each batch goes through hydraulic testing, measurement verification, and a coating check. We answer price and technical questions about our Coupling Clamp Grooved within 24 to 48 hours because we are a reputable company that serves the U.S. market. You can email our team at sales@flaindustrial.com or go to flaindustry.com to get specs or to start talking about sources right away.

References

1. American Water Works Association (AWWA). AWWA C606: Grooved and Shouldered Joints. American Water Works Association, 2015.

2. ASTM International. ASTM A536: Standard Specification for Ductile Iron Castings. ASTM International, 2014.

3. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022.

4. FM Approvals. FM Class 1920: Pipe Couplings, Fittings, and Accessories for Fire Protection. FM Global, 2021.

5. Underwriters Laboratories. UL 213: Standard for Rubber Gasketed Fittings for Fire-Protection Service. UL Standards, 2019.

6. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.
