Quick-Action C-Clamp Factory Selection Guide for Efficient Workshop and Manufacturing Operations

Choosing the right quick-action C-clamp supplier can make or break your production schedule. This guide gives purchasing managers, site engineers, and workshop operators a clear, practical framework for selecting a factory partner that delivers consistent clamping performance. Whether you run a high-volume fabrication line or a precision woodworking shop, understanding what separates a capable manufacturer from an average one will save time, reduce waste, and protect your workforce. From material specs to bulk procurement strategy, every section here speaks directly to real operational needs.

Specifications

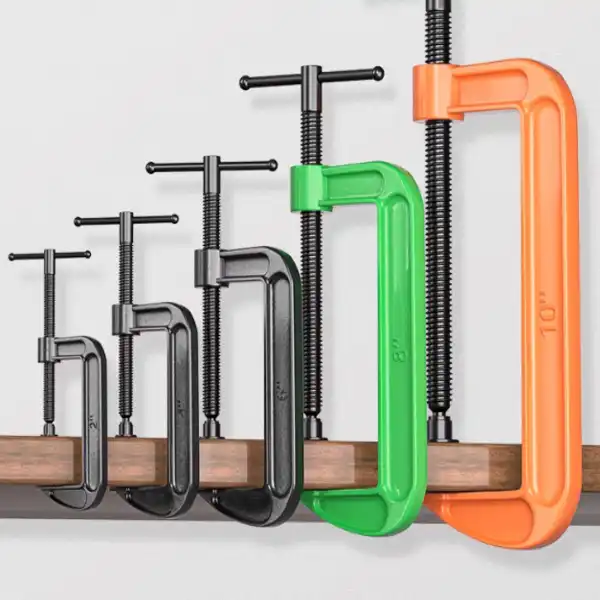

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Quick-Action C-Clamps: Features, Benefits, and Applications

What Sets Them Apart from Standard C-Clamps?

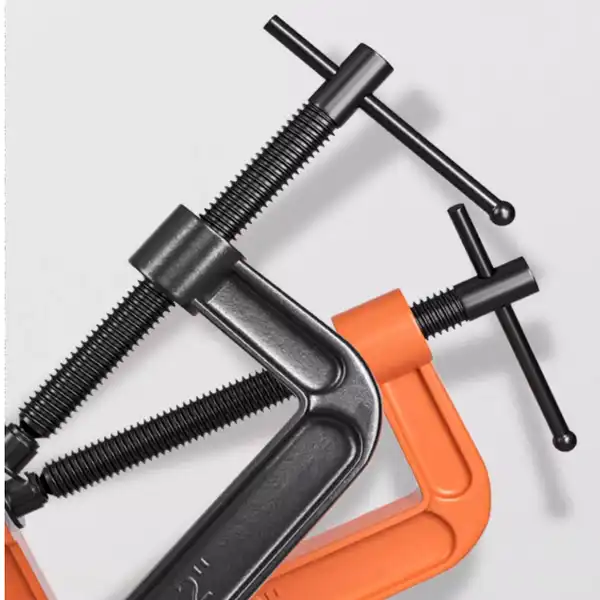

There is a half-nut trigger or gravity-clutch mechanism in a Quick-Action C-Clamp that lets the spindle slide freely to the workpiece before re-engaging the thread for one last torque. This gets rid of the need to wind slowly, turn by turn, as is needed with regular clamps. This one design difference can cut the time it takes to clamp by up to 70% in high-frequency production environments. This directly reduces operator fatigue and speeds up assembly lines.

Materials That Define Durability

Ductile iron, which is also known as spheroidal graphite iron, is used to make the best Quick-Action C-Clamp frames. It has a lot more tensile strength and impact protection than regular gray cast iron. Most screw rods are made of precision-machined carbon steel and are finished with paint or powder coating to keep them from rusting in shops that are damp or have a lot of chemicals. These choices of materials meet the needs of both metalworking and crafts without making the tool heavier than it needs to be.

Clamp Types Matched to Industry Needs

There are three main versions that are used for different tasks. Light to medium woodworking and building jobs can be done with standard Quick-Action C-Clamps. Heavy-duty models with stronger frames are used to weld steel and fittings, and they usually have a clamping force of more than 2,000 pounds. Types with toggles work with fast-cycle production lines that do the same thing over and over. By knowing which type works best for your workflow, you can avoid giving too many details and keep your procurement budget on track.

Comparing Quick-Action C-Clamps: Making the Right Choice for Your Procurement Needs

Performance vs. Traditional Clamps

A Quick-Action C-Clamp's main benefit is speed, but frame stiffness is also very important. The trigger-release device breaks the thread path, so it usually has a slightly lower peak yield force than a heavy-duty bridge clamp with a fully solid screw shaft. Maximum weights of 600 to 2,000 pounds are more than enough for most fabrication and woodworking tasks. Before agreeing to a standard, buyers looking for materials for work that involves a lot of welding should check proof-load test data.

Brand Benchmarks Worth Knowing

There are a number of big names in different market places. Many people in the North American trade lines admire Irwin and Bessey for making frames that are consistent and having parts available after the sale. DeWalt places its clamp line in the same environment as its power tools, which makes it appealing to builders who already use that brand. Bosch and Makita are both good mid-range brands that work well for maintenance and electrical teams. Procurement teams can use these standards as a guide when buying Quick-Action C-Clamp directly from a factory and comparing certifications and test results to them.

Matching Clamp Specs to Your Industry

Fine woodworking needs swivel pads to protect finished surfaces and precise jaw alignment to keep the workpiece from moving. For metalworking, spindle tips that have been induction-hardened (usually HRC 40–50) are needed so that they don't grow when pressure is applied over and over again. Copper-plated or oxide-coated wheels that shed weld dust instead of collecting it are better for welding. By choosing the right surface treatment and hardness from the start, you can avoid having to replace things too often and keep the total cost of ownership low.

Efficient Procurement Strategies for Quick-Action C-Clamps in B2B Markets

Evaluating Supplier Reliability Before You Commit

Before placing a bulk order, procurement professionals should ask for proof-load test results that are written down, batch inspection records, and copies of the ISO certification. A reliable manufacturer tests the mechanism 10,000 times to make sure that the trigger spring and half-nut will always re-engage during the product's lifetime. In addition, the factory's quality records should list spindle alignment tolerances, which are usually less than one degree of deviation from the anvil face.

Before signing a supplier deal, you should look at these main buying factors:

• Quality documentation: Make sure that the load-test certificates, ISO9001 certification, and measurement accuracy records are up-to-date and cover the SKU you are buying.
• Lead-time transparency: To be clear about lead times, standard stock sizes should ship within days, while custom shapes usually need 7–15 production days. Any plant that offers shorter custom lead times without a clear description of their ability needs to be looked at more closely.
• Customization capability: You should be able to change the frame geometry, jaw depth, finish color, and packing style to fit your private name or application needs.

These things together tell you if a supplier can grow with your business without letting quality slip or delivering unexpected items.

Direct Factory Sourcing vs. Distribution Channels

Buying from approved sellers makes things easier, but it cuts into your profit margin and limits the ways you can customize your Products" target="_blank" style="color:blue" >products. When procurement teams buy directly from a certified manufacturer, they can see the prices, check the production processes, and get engineering help when they are defining the products. Direct sourcing also makes version control easier across product lines for hardware wholesalers who keep a lot of different SKU catalogs.

FLA Industrial's Manufacturing Position

FLA Industrial & Trading Co., Ltd. has been making hardware for almost 40 years, and their Quick-Action C-Clamps are the result of that experience. The company has over 2,000 tons of stock on hand and can give quotes within 24 to 48 hours. They can handle both normal bulk sales and custom-engineered solutions. Its ISO9001-certified factory checks ductile iron frames through several steps, including Dye Penetrant Inspection, to find casting holes below the surface before any unit leaves the production floor.

Maintenance, Safety, and Longevity Tips for Quick-Action C-Clamps

Daily Cleaning and Lubrication Protocols

Make sure to use compressed air to clean the jaw faces and trigger mechanism of metal chips, wood dust, and glue residue after each shift. To keep the Quick-Action C-Clamp quick-release lever and spindle thread smooth, use a dry graphite lubricant or a light PTFE spray. When it's dusty, don't use thick petroleum greases because they attract rough particles that speed up thread wear and make the mechanism slip when it's loaded.

Safe Handling Practices on Active Job Sites

You should never use a Quick-Action C-Clamp to lift something. The quick-release trigger can come off when the machine is hit or vibrated, which is against OSHA rules for wiring and poses a major fall risk. When clamps are accidentally released, they should always be placed so that the workpiece falls instead of facing the operator. Before each session in welding zones, make sure that the spindle coverings are still in good shape so that spatter doesn't block the release mechanism.

Identifying Wear Before Failure Occurs

When you put pressure on something, slipping is the first sign that the half-nut threads or engagement spring are wearing out. Regularly check the condition of the spindle tip. If the tip has mushroomed or pitted, it means that the hardening layer has worn through. A simple dye penetrant test kit that you can get from most MRO suppliers can find hairline cracks in ductile iron frames. If you find these problems early, you can avoid unexpected downtime during important production runs.

Future Trends and Innovations in Quick-Action C-Clamps for Manufacturing

Advanced Materials Entering the Market

Manufacturers are trying non-conductive Quick-Action C-Clamp frames made of glass-fiber-reinforced polymer composites. These frames are aimed at electrical work teams that need grounding-safe tools for fixing things. Titanium alloy spindles are still very expensive, but their strength-to-weight ratio is making them more popular in aerospace subassembly environments. These changes in the materials will slowly affect how normal businesses buy things over the next product cycle.

Digital Procurement and IoT Integration

With cloud-based inventory platforms, procurement engineers can now keep track of how much clamp is used at each desk and set automatic reorder points for when stock goes below a certain level. Some factories that are ahead of the curve attach a digital batch certificate with a QR code to each shipment. This way, quality teams can quickly find out where the goods came from without having to file paperwork on paper. Choosing a plant partner that already works with these digital transportation systems cuts down on administrative work by a large amount.

Sustainability and Long-Term Partnership Value

U.S. buyers who have to deal with ESG reporting standards are becoming more interested in factories that spend in casting methods that use less energy and packaging that can be recycled. A supplier that keeps track of where materials come from, goals for reducing waste, and carbon footprint information gives buying teams the proof they need to pass internal environmental reviews. This isn't just an extra thing to think about anymore; it's becoming a normal way to screen long-term supplier deals.

Conclusion

To find the right clamp factory, you need to look at more than just catalog pictures. If a procurement decision lasts for thousands of production cycles, it depends on the quality of the materials, the cycle life of the Quick-Action C-Clamp mechanism, the proof-load documentation, and the supplier's ability to grow with your needs. This guide gives you an organized way to look at sources, make sure that their specs are right for your business, and keep your team safe on the job. A factory with real inventory depth, quality systems that have been checked, and tech help on call will always do better than a cheaper option that doesn't test as well.

FAQ

How do I choose the right clamp size for my application?

Add 10–15% to the highest thickness of the piece you want to work on. Match the jaw opening to that number and choose a throat depth that lets the frame touch the edge of the workpiece without touching the jaws. Most factories will help you figure out the right size for a large order based on the materials you provide.

What lead times should I expect for bulk orders?

When the factory has enough stock, standard catalog sizes usually ship within a few business days. For non-standard finishes or custom frame profiles, a production run is needed. This usually takes 7–15 days, but it depends on how many orders are coming in and how much capacity is available at the moment.

How do I keep workers safe when using Quick-Action C-Clamps?

Teach workers to make sure the half-nut is fully engaged before they apply pressure. Do regular checks on your tools to get rid of any Quick-Action C-Clamps that have frame cracks, trigger slip, or spindle mushrooming. Don't use these tools to lift things or hold things up from above.

Can Quick-Action C-Clamps match the force of heavy-duty standard clamps?

Good forged models can hold at least 2,000 pounds. A heavy-duty clamp with a continuous thread, on the other hand, usually has a higher yield point. If you need maximum compression, check the factory's test paperwork for the rated proof load before you place your order.

Does the mechanism wear out faster in dirty environments?

Yes, abrasive dust speeds up the wear on half-nut threads. It is best to use dry lubricants, clean the mechanism after every shift, and replace worn springs before they cause problems with production.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Clamp Order

FLA Industrial & Trading Co., Ltd. produces professional-grade Quick-Action C-Clamps made of ductile iron frames and precision steel screw rods, finished with paint or powder coating, and approved under ISO9001. We provide hardware distributors, contractors, and manufacturers all over the U.S. and beyond as a reliable Quick-Action C-Clamp supplier with nearly 40 years of experience. To get a price or examples of our products right away, email sales@flaindustrial.com or go to flaindustry.com.
