Metal Drain Gully Cover Buying Guide: How to Select Durable Solutions for Infrastructure Projects

Choosing the right metal drain gully cover is one of the most consequential decisions in any infrastructure project. Whether you are managing a highway expansion, an industrial facility, or an urban drainage upgrade, the wrong cover can fail under load, corrode prematurely, or create safety hazards. This guide walks B2B procurement professionals, site engineers, and hardware distributors through every key selection factor—from material grades and load ratings to supplier evaluation—so you can specify the right drainage cover with confidence and precision.

Understanding Metal Drain Gully Covers: Types, Materials, and Designs

What Is a Drain Gully Cover?

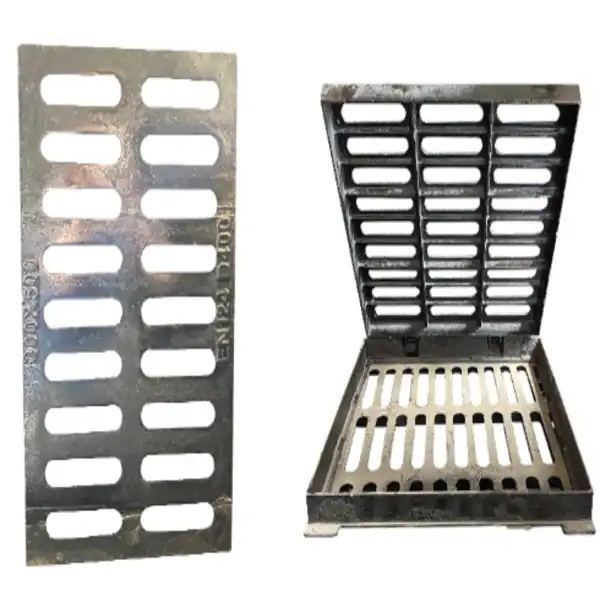

A drain gully cover is a grate that holds weight and is put on top of a catch basin or gully pot. Surface water should be able to flow through it, but big objects should be stopped, and it should support foot or vehicle traffic above. Engineered versions made from ductile iron (Spheroidal Graphite Iron, GJS-500-7) have a tensile strength of at least 500 MPa and an elongation of at least 7%. This means they can bend before breaking, unlike gray cast iron, which is very brittle.

Material Options Compared

Gray cast iron, ductile iron, stainless steel, and coated steel are the four most popular types of metal. Ductile iron is the most popular choice for heavy-duty uses because it is cheap and doesn't break easily when hit. Stainless steel works well in places that are likely to rust, like chemical or coastal areas. When it comes to residential drainage, galvanized steel works well for lighter loads. Plastic and concrete covers are less expensive, but they break over time when they are hit by cars and UV light.

Design Formats and Sizing

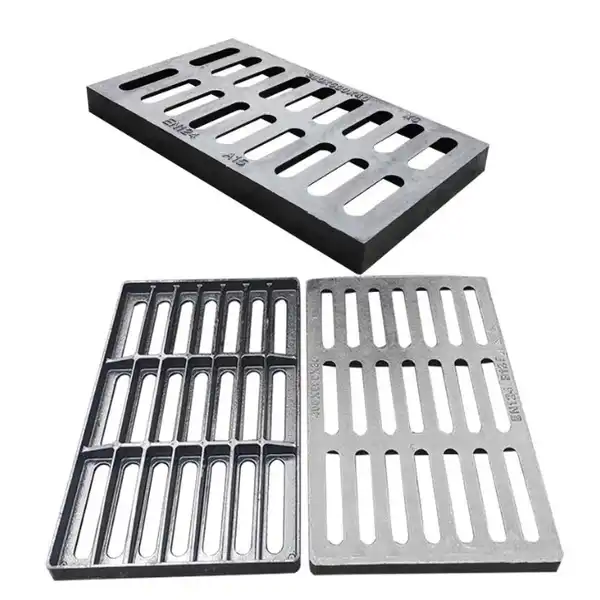

Drainage grates come in square, rectangular, and round shapes, and they can have holes shaped like bars, slots, or mesh. Hydraulic capacity is directly related to the aperture ratio, which is the amount of open surface area. When it rains a lot, a higher waterway area lets more water enter faster, which keeps the top from pooling. Standard sizes are based on EN 124 or AASHTO M306 standards, but lengths, widths, and heights can be made to order for setups that don't follow these standards.

Key Criteria for Selecting Durable Drainage Covers

Load Rating Classification

The load rating is the most important thing to look at. As per EN 124, there are six types of roads: A15 is for green belts and walking paths; B125 is for sidewalks and parking lots; C250 is for curbsides and areas with slow traffic; D400 is for main roads and public streets; E600 is for docks and freight terminals; and F900 is for airports and very heavy industrial loads. As a safety measure, always choose one class above the highest amount you expect.

Corrosion Resistance and Coating Standards

Service life is directly related to how the surface is treated. ISO 1461 says that hot-dip galvanizing or standard bituminous coatings should have a zinc thickness of at least 70 microns to protect against road salt, acid rain, and chemical exposure. When used in harsh conditions, like wastewater treatment plants or seaside roads, luxury epoxy or polyurethane coatings on metal drain gully cover greatly increase the time between services and lower the overall cost of replacement over the lifetime of the product.

Dimensional Accuracy and Seating Tolerance

A cover that shakes or rocks when traffic goes by makes noise complaints and wears out frames faster. The seating areas of premium covers are made to have tolerances of less than 1 mm, or they have PE/neoprene gaskets inside the frame to absorb shaking. The clear opening's (CO) measurements must be accurate enough to meet certified standards so the cover stays in place and sits flush for the life of the product.

Installation and Maintenance: Ensuring Optimal Performance

Step-by-Step Installation Guidance

Check the frame sitting area for damage or debris before putting the cover on. Make sure the frame is exactly level with the ground surface around it, giving or taking 2 mm. Spread the mortar bedding out evenly, and let it cure for the full amount of time before letting people walk on it. Use anti-seismic locking designs or fixed hinge systems in areas with a lot of shaking, like main roads, to keep things from moving when you brake or speed up.

Routine Maintenance Schedule

Regular inspections keep expensive failures from happening. Check the covers every six months in areas with a lot of traffic and once a year in areas with little traffic. Look for cracks, surface rust, and frame splitting. After it rains a lot, clean out the entry holes of any sediment and leafy debris. If the protective layer starts to come off on the surface, especially in places that get de-icing salts in the winter, you should apply it again.

Troubleshooting Common Problems

Rocking or moving after installation is usually a sign of bad mortar bedding or a worn frame seating surface. If the waterway area is too small for the catchment zone, it will keep getting clogged. Corrosion spots that showed up within two years show that the covering grade wasn't right for the place. Taking care of these problems early on keeps the structure from being damaged and extends the cover's useful life.

Comparing Popular Solutions: Ductile Iron vs. Other Options

Ductile Iron vs. Grey Cast Iron

For many years, gray cast iron has been used in drainage systems, but it breaks when hit hard. On the other hand, ductile iron has irregular graphite that is formed when magnesium is added during the casting process. This lattice with nodules absorbs energy instead of breaking. When the temperature is above C250, ductile iron is the best material to use. Most local and DOT building standards call for it.

Stainless Steel and Galvanized Steel Options

As a result of their high resistance to corrosion and clean appearance, stainless steel gully covers are ideal for business properties, food processing plants, and sites near the coast. The cost of the materials goes up as a result. For lighter home or garden uses, galvanized steel metal drain gully cover covers are a good middle ground. There is no material that can hold as much weight as ductile iron when it comes to heavy traffic areas.

Certifications and Compliance Markers

Before placing an order, procurement teams should ask for proof. Check for the CE mark (ensures it meets EN 124-2:2015 standards), the ISO 9001 quality management mark, and, if needed, NSF or AASHTO test reports. Certified goods have test records that can be used to find out about their load capacity, accuracy in measurements, and layer thickness. These papers keep procurement teams from being sued and make sure that the product will work as promised on site.

Where and How to Procure Drainage Covers for Infrastructure Projects?

Evaluating Suppliers and Manufacturers

A trustworthy company that makes drain gully covers should offer mill certificates, test reports from a third party, and written quality control procedures. Ask for references from industrial or municipal projects that have already been finished. Check the supplier's wait times, minimum order amounts, and ability to handle custom sizes. Procurement teams are more confident in the stability of the Products" target="_blank" style="color:blue" >products they buy when suppliers offer 3D design proof and pre-shipment inspection reports.

Bulk Ordering and Customization Options

When you buy in bulk for big building projects, the cost per unit goes down, and operations are made easier. To keep the project on schedule, make sure that your supplier has enough standard grades in stock—ideally 2,000 tons or more. Before contracts are signed, custom designs, such as frame depths that aren't standard and anti-theft locking systems that aren't standard, should be confirmed within a clear production and delivery timeline.

After-Sales Support and Warranty Coverage

Strong help after the sale is what sets reliable sellers apart from transactional ones. This includes technical help during installation, easy access to replacement parts, and a clear warranty period that covers problems caused by manufacturing. Also, procurement engineers should make sure that sellers keep them up to date on the progress of custom orders so that projects stay on schedule and there are no last-minute shocks.

Conclusion

To choose the best drainage cover for a building project, you have to think about how well it handles loads, how long the material will last, how good the finish is, and how reliable the seller is. Ductile iron ditch covers that meet EN 124 standards are still the best choice for industry and road use because they are strong for their weight and don't cost too much. Put certified products at the top of your list, check the tolerances for dimensions, and build relationships with suppliers that include real technical support for metal drain gully cover. When all of these things come together, you get a drainage system that works well for decades.

FAQ

What load rating should I specify for a main road installation?

For arterial roads and public streets, specify D400 at minimum. This class supports a 400 kN (approximately 40 metric tons) test load. For docks or freight terminals with heavy equipment, step up to E600 or F900.

How do I prevent theft of drainage covers?

Specify covers with captive hinge systems that permanently attach the lid to the frame, or require pentagon-head or turnbuckle locking bolts. These features significantly reduce theft risk compared to loose-lid designs.

Can I order covers in non-standard sizes?

Yes. Reputable manufacturers offer dimensional customization for both the frame and the cover. Provide exact measurements for the clear opening, frame depth, and overall footprint, and confirm tolerances before production begins.

How often should drainage grates be inspected?

High-traffic installations warrant inspection every six months. Lower-use locations can be checked annually. After major storm events, always clear inlet slots and check for frame movement or surface damage.

What certifications should a supplier provide?

Request CE marking under EN 124-2:2015, ISO 9001 certification, and third-party load test reports. These documents confirm the product meets dimensional, load, and coating standards required for public infrastructure.
