Mechanical Grooved Tee Applications for Adding Branch Lines to Existing Fire Protection Pipes-FLA Industrial & Trading Co., Ltd.

You don't have to join fire protection pipes together to make a branch line with a Mechanical Grooved Tee. You cut a short piece out of the main and groove the ends of the pipes to lock each joint. Then you use a curved coupler to connect the tee to the pipe. With this method, you don't need a hot work permit or an open fire. While they are being fixed up, this keeps warehouses, factories, and other business buildings safer. The new fountain heads, zones, or levels can be linked to the old ones with a clean T-shaped link. These parts are made by FLA Industrial & Trading Co., Ltd. from carbon steel or carbon steel that can be bent. This guide will show you how to use them.

Specification

Model	Model
DN50×DN25 (60×33)	DN100×80 (114×89)
DN65×25 (76×33)	DN125×25 (140×33)
DN65×32 (76×42)	DN125×32 (140×42)
DN65×40 (76×48)	DN125×40 (140×48)
DN65×50 (76×60)	DN125×50 (140×60)
DN80×DN25 (89×33)	DN125×65 (140×76)
DN80×DN32 (89×42)	DN125×80 (140×89)
DN80×DN40 (89×48)	DN150×25/32/40/50 (OD 165)
DN80×DN50 (89×60)	DN150×65 (165×76)
DN100×25 (114×33)	DN150×80 (165×89)
DN100×32 (114×42)	DN200×25/32/40
DN100×40 (114×48)	DN200×50/65 (219×60×76)
DN100×50 (114×60)	DN200×80 (219×89)

Understanding the Mechanical Grooved Tee in Fire Protection Systems

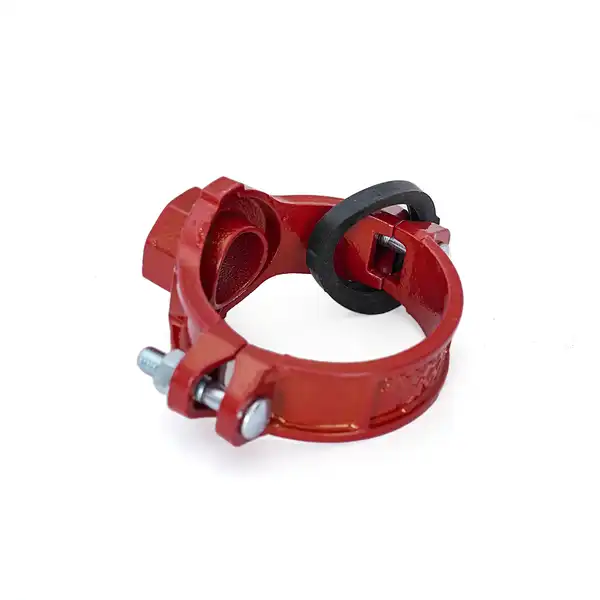

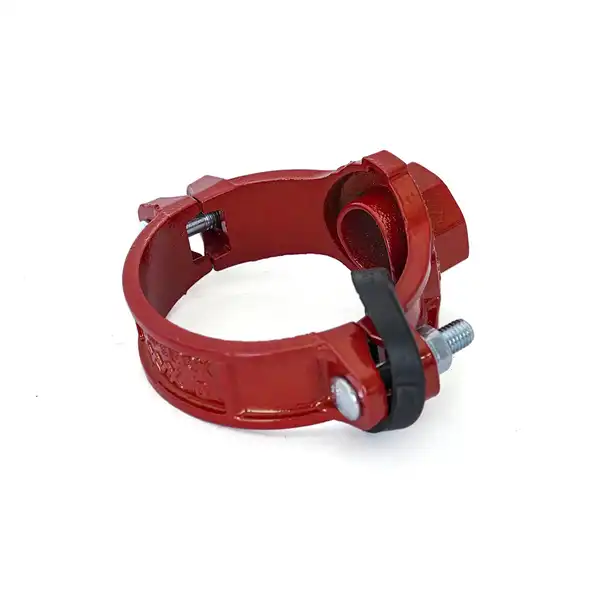

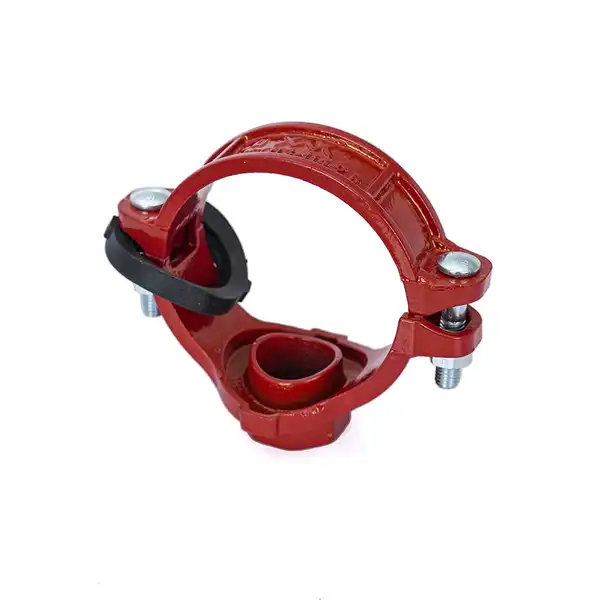

What Is a Mechanical Grooved Tee?

It can be used in three different ways because its sides are curved. A grooved coupling can fit on each end. The joint doesn't move because of a rubber cap inside the coupler. The plugs that hold the pipes in place fit into the grooves and hold them in place. It's not enough to just match the size on paper for the link to work. The shape of the slot, the outside diameter of the pipe, and the fit of the seal must also match. The iron or steel that is cast and then machine-ground is used to make our T-shirts. All of the grooves are the same size because of machine work. This means that all of the tees can use standard couplings and gaskets. When it comes to size-based plans, make sure you know the difference between reducing tees and equal tees.

Mechanical Grooved Tee vs. Welded and Threaded Branch Connections

To do a branch weld, you need a hot work permit, a certified welder, and a fire watch. When you weld, cut, or do other hot work, NFPA 51B tells you how to stay safe from fire. Before teams can start working, they have to spend more time planning for each permit. Things with threads on them keep fires out, but it takes tools and floor space to cut the threads off of bigger pipes. To put together a grooved joint, you only need a coupler, a groove, and a key. When you connect joints together, they don't move, and small branches with threaded ends can still use them. An electric tee outlet fits over a hole in the main, and a curved tee is between two line joints. Connecting pipes with grooves makes it easier to set them up and make sure they work.

Why Branch Lines Get Added to Existing Fire Protection Pipes?

Where a Mechanical Grooved Tee Fits Best: Applications by Project Scenario

Warehouse and Commercial Sprinkler Retrofits

Sprinklers that are built in change after the first one is put in. A factory adds a new line of goods, a renter adds racks, or a business owner turns a room that isn't being used into offices. For every change, you might need a new zone or a new water head. To connect the new heads to the main line, there needs to be a branch line. Building fire systems in the US have to follow the rules set out by NFPA 13. A good contractor should make sure that the system still meets the new rules for water flow and safety. With a Mechanical Grooved Tee, the team can build that branch off the main line without having to do hot work inside the building, where people and things are still present.

Woodworking Plants and Factories Where Hot Work Is a Concern

Sawdust and things that are easy to set on fire are made by companies that work with wood and furniture. This means that welding near production areas does raise the risk of fire. These jobs take even longer if you need a hot work permit and a fire watch. A Mechanical Grooved Tee pulls the flame out of the process. This means that plant managers don't have to weld gaps when they change the pipes during production shifts. In the same way, it is unsafe to have open flames near wires and panels in places that sell electrical parts and equipment. You can pick the paint or coating that will work best for you in each plant because they have different amounts of dust and humidity.

HVAC, Plumbing, and Industrial Piping Beyond Fire Protection

This type of flat connection can also be used for other things. We move industrial fluids, cold and hot water for HVAC systems, lines in businesses, hospitals, and schools, and work on water projects for the city. MRO teams can buy more things with less trouble because plumbers and HVAC techs use the same part family for more than one system. Keep in mind that just because sprinklers are safe to use doesn't mean that all fluids, temperatures, and pressures are safe. Make sure you know the system's running pressure, closing solution, and area code before you place your order. The procurement engineers sent us the medium and operating conditions. We will talk about whether they are right for the job.

Installation Steps for Adding a Branch Line Without Welding

Planning, Isolation, and Draining

Make plans ahead of time to get things set up well. Find the branch on the approved plan and see how much water the new heads need. The main and branch pipes should be the same size. This is the last step. Tell the building owner and the people in charge, and then follow your disability processes. In NFPA 25, it tells you how to test, manage, and check water-based fire defence systems. It also tells you what to do if something goes wrong. Before you cut the pipe, make sure there is no damage there. Based on the tee's center-to-end length and the connection gap given by the manufacturer, draw lines where you want to cut it. You won't have to push on the pipe to make the new piece fit.

Fitting the Tee and Tightening Couplings

Once the pipe ends are cut, they need to be smoothed out to get rid of any rough spots. Then, they need to be grooved so that they fit the hub's shape. A lot of the time, AWWA C606 is used to figure out the size of a grooved joint. If the coupling owner tells you to, grease the gasket and clean the seat of the gasket. Then, put the gasket on one end of the pipe. Place the coupling housings in the holes and then slide the seal across the joint. Put the tee in the middle of the pipe ends. Change which side of the bolts you tighten once the housings have reached the pressure or pad contact that the manufacturer says they should have. Each housing needs to fit all the way into its groove. One should be placed next to the new tee to keep the joint from being squished by a branch line.

Inspection, Pressure Testing, and Documentation

Check the balance, supports, seal position, and how the case fits together before putting the system back into service. After that, test. NFPA 13 says that new pipes should be tested hydraulically at 200 psi for two hours, or 50 psi above the normal working pressure if that pressure is more than 150 psi. Flush the line if the plan says to. Make the switches and alarms work again. After that, let the owner know that the system is back up and running. Write down the test, the kind that works, and the name of the person who gave it. The size is off, the seals are broken, the support is weak, or you forget to try something. This could lead to leaks or a failed inspection.

Specifications, Materials, and Coatings to Check Before You Order

Sizes and Outside Diameters in the FLA Range

In millimetres, our Mechanical Grooved Tee list shows how wide the pipe is around the outside. It also matches a branch size with each main size. What does DN50DN25 stand for? It means a main that is 60 mm wide and a branch that is 33 mm wide. DN80 DN50 means 89 mm x 60 mm. DN100 to DN65 (114 to 76), DN125 to DN80 (140 to 89), DN150 to DN80 (165 to 89), and DN200 to DN80 are the bigger pairs. The main lines are from DN50 to DN200, and the branch lines are from DN25 to DN80. Other than their name, there are other ways to tell if these bent links fit. Make sure they fit the pipe you already have before you buy them. Tell us if the real shoes are the right size after you look at them. As we get better at what we do, the shoes might look and fit differently.

Ductile Iron, Carbon Steel, and Anti-Corrosion Finishes

The t-shirt is made from either C-steel or iron that can be shaped. ASTM A536 sets the rules for how ductile iron castings must be made. Because it is strong and won't break when bent, ductile iron is often used for parts that need to be bent. If someone needs steel parts, they should buy carbon steel. It is painted or cleaned so that each tee doesn't rust after it has been cast and made. It's important to have a finish on bare metal because humidity, wet air, and being outside can all damage it. Going outside in rough weather will make a coated t-shirt last longer and need less care. Once you tell us where the pipe goes, we'll talk about whether it's better to paint the area or make it resistant to corrosion. There are the same ways to break both gears and bolts.

Pressure Ratings and Certification Questions

Each joint, coupler, seal, and pipe is different, so I can't give you a single number for all of them. Other terms that are not the same are working pressure, test pressure, and highest allowed pressure. When you read a guide, keep these words separate. Our T-shirts have been given both ISO9001 and CE certifications to show that they are safe. Extra to that, we do random hydraulic tests above the limits of what can be used. People in charge of sprinkler projects in the US might want parts that are UL Listed or FM Approved. We need to know what you need right away, along with the temperature and pressure, so we can look over your job carefully before you place an order.

Choosing a Supplier and Verifying Quality for Bulk Orders

Quality Control Steps Behind Each Fitting

Being good begins before the mould is made. Its mechanical properties are checked to make sure it is strong and flexible, and its chemical make-up is checked to make sure it is the right stuff. Fine measuring tools are used to check the holes' and grooves' shapes, lengths, and widths. Every so often, hydrostatic tests are done on the building above the working pressure rates to make sure it is strong. The protective finish is checked for its thickness and its ability to stick to other things. There is a code on each part that can be connected to test results, production records, and certificates of material. You can use this to find something later if you need to. In the eyes of the buyer, this paper trail is just as important as the casting. This is because project engineers and inspectors often need it.

What Distributors and Contractors Should Request?

Before you buy a lot of something, make sure you have the datasheet, a clear picture, material certificates, records of pressure tests, information about the finish, and certification records for the exact model and size. Check to see how many pairs of each size there are, how they are packed, and how they keep water out. If you sell hardware and tools in bulk, you should make sure that the people who work the counter can read the labels on the boxes and find all SKUs. Contractors and site supervisors should look at the building schedule to see what supplies are on hand and when they will be sent. If the project is big or important, you might want to have someone else look it over before you send it out. Most of the time, it's better to look at the total set cost instead of just the unit prices. This includes freight, paperwork, staff, and new materials.

Customization, Stock, and Lead Time at FLA

FLA Industrial & Trading Co., Ltd. has been in business for almost 40 years and has made more than 1,000 types of metal tools, craft clamps, electrical line tools, and bendable iron pipe fittings. You don't have to wait for a production run to get normal Mechanical Grooved Tee items because we have 2,000 tonnes of them in stock. They are sent out right from stock. Our team draws things, shows them in 3D, and can change the settings if your project needs a certain shape. Orders made just for you take 7–15 days to arrive. We get back to people who ask for quotes, weights, or 3D drawings in 24 to 48 hours. People in the U.S., Germany, and Australia buy from us, and clients in the Fortune Global 500 trust our work.

Conclusion

A Mechanical Grooved Tee lets builders and building teams connect new fire safety pipes to old ones without having to weld them together. Grooved connections work as long as the outside width of the pipe and the shape of the groove are the same. Factory buildings, stores, and business buildings can all be changed with it. There's no need for a flame. To do a good job, you need to think ahead, check the link and separation force, test, and keep records as needed by the project's design and fire code. People who want to buy something should look at the different sizes, the coating, the pressure data, the certification, and the government approvals that it needs. It is more accurate to compare the total fixed cost than just the unit price. You can be sure that these options are good.

FAQ

Can a Mechanical Grooved Tee go into an existing sprinkler system?

Yes, as long as the fitting is okay with both the design team and the local government, and the outside width of the pipe, the shape of the slot, and the joints all match. The teams took turns cutting up the piece and draining it. Then they cut it out, made the ends smooth, and put the T-shirt on.

How do I size a grooved tee?

Match the pipe's outside width. One type of pipe, DN80, is 89 mm wide on the outside. Put the branch sizes on the same list as the main sizes.

Does FLA's tee carry UL or FM listing?

The ISO9001 and CE marks on our t-shirts show that they are safe to wear. Let us know if your school needs UL or FM before you place your order. We can then talk about your project.

What do you need for a quotation?

Send us the main and branch sizes, the number of items, the material, the finish, the proof you need, and the address where the goods should be sent.

Request a Mechanical Grooved Tee Quote from FLA Industrial & Trading Co., Ltd.

Planning a sprinkler retrofit? FLA Industrial & Trading Co., Ltd. is a Mechanical Grooved Tee manufacturer with nearly 40 years of experience, ISO9001 and CE certification, and 2,000 tons of stock. Send your main and branch sizes, quantity, finish, and certification needs to sales@flaindustrial.com. We reply within 24–48 hours, and custom orders are delivered in 7–15 days. Visit flaindustry.com for more details.

References

1. NFPA 13: Standard for the Installation of Sprinkler Systems (2022)

2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems (2023)

3. NFPA 51B: Standard for Fire Prevention During Welding, Cutting, and Other Hot Work (2019)

4. AWWA C606: Grooved and Shouldered Joints (2015)

5. ASTM A536: Standard Specification for Ductile Iron Castings (2019)

6. ISO 9001: Quality Management Systems – Requirements (2015)
