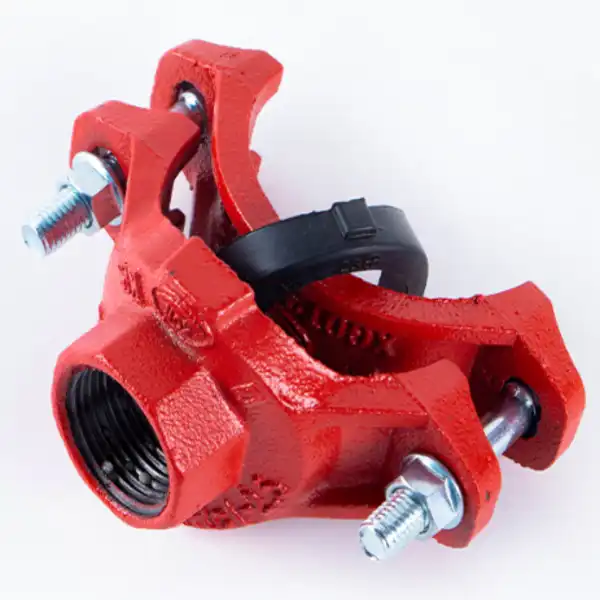

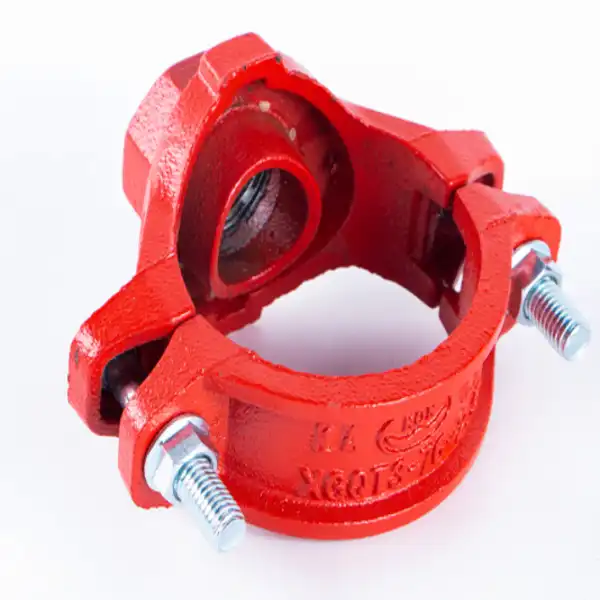

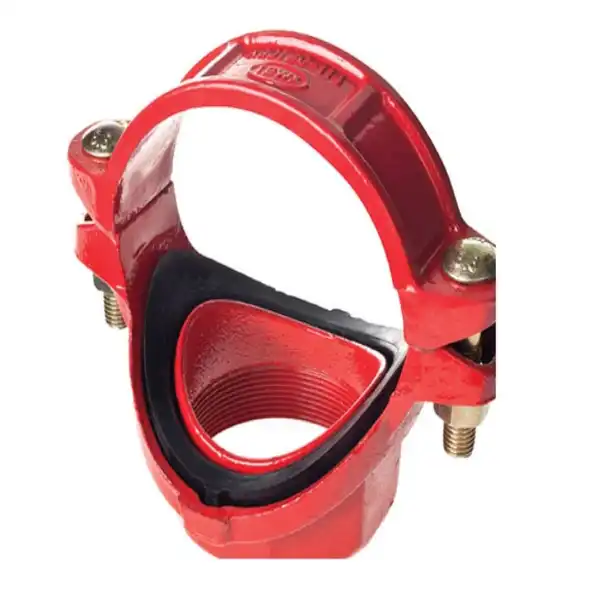

Mechanical Grooved Tee Supports Flexible Branch Connections in Modern Piping Networks

A mechanical grooved tee is a purpose-built pipe fitting that creates reliable T-shaped branch connections without welding or hot work. Manufactured from ductile iron or carbon steel, this fitting uses precision-machined grooves on each end to engage standard grooved couplings, forming a secure, leak-resistant joint in minutes. Whether you are managing a fire sprinkler network, a commercial HVAC system, or an industrial fluid transport line, grooved tee fittings offer measurable advantages in speed, safety, and long-term system flexibility. This article walks through everything procurement managers, contractors, and distributors need to know before buying.

Specification

Model	Model
DN50×DN25 (60×33)	DN100×80 (114×89)
DN65×25 (76×33)	DN125×25 (140×33)
DN65×32 (76×42)	DN125×32 (140×42)
DN65×40 (76×48)	DN125×40 (140×48)
DN65×50 (76×60)	DN125×50 (140×60)
DN80×DN25 (89×33)	DN125×65 (140×76)
DN80×DN32 (89×42)	DN125×80 (140×89)
DN80×DN40 (89×48)	DN150×25/32/40/50 (OD 165)
DN80×DN50 (89×60)	DN150×65 (165×76)
DN100×25 (114×33)	DN150×80 (165×89)
DN100×32 (114×42)	DN200×25/32/40
DN100×40 (114×48)	DN200×50/65 (219×60×76)
DN100×50 (114×60)	DN200×80 (219×89)
DN100×65 (114×76)

Understanding Mechanical Grooved Tees in Piping Networks

Prior to choosing a fitting, it is helpful to know how the product works and what rules govern it.

How the Grooved Connection System Works?

A grooved tee fitting needs a groove that can fit a mechanical connection housing. This groove can be cast into the fitting or made after it was cast. The elastomeric gasket inside the coupler box presses against the pipe surface when it is bolted around both the fitting groove and the pipe groove. This makes a pressure-tight seal. A welded joint can take thirty minutes or more to finish, but this one only takes five minutes. This speed advantage cuts down on the time it takes to work on big business or industrial projects.

Materials and Pressure Classifications

Grooved branch tees from FLA are made of carbon steel and ductile iron. When compared to other metals, ductile iron is more resistant to impact and can bend without breaking. This is very important in seismic areas or high-rise buildings where pipe risers move. When higher working pressures or certain chemical compatibility are needed, carbon steel is the best choice. Pressure rates are based on ASTM and ANSI standards. Most standard ductile iron fittings are rated for working pressures that are widespread in HVAC, fire protection, and industrial plumbing systems.

Compliance Standards You Should Verify

People who are specifying fittings for fire safety projects need to make sure that they have UL and FM certifications. NSF-61 certification is needed for uses that use drinking water. For projects that will be exported, CE certification (which FLA has) and ISO 9001 quality management certification make sure that the production methods meet foreign standards. It's also important that the groove dimensions match AWWA C606. The A dimension is the groove's diameter, the B dimension is its width, and the C dimension is its gasket seat. If they don't, the couplings won't seal properly.

Advantages of Grooved Tee Fittings Over Traditional Connection Methods

A lot of the time, contractors and buying teams wonder if switching from welded or flanged joints is worth the money. There is strong proof.

Here are the main reasons why curved branch tees are better at performance than other methods:

• No hot work required. Welding permits, fire watches, and certified welders add cost and scheduling risk. A grooved connection eliminates all three, making installation safe in occupied buildings, chemical plants, and any space where open flame is restricted.
• Up to 60% faster assembly. Industry data from grooved piping system studies shows joint assembly time drops by roughly 60% compared to welding, directly cutting labor costs on time-sensitive projects.
• Thermal and seismic flexibility. When paired with flexible couplings, the Mechanical Grooved Tee grooved tee accommodates linear pipe movement caused by temperature swings or ground settlement. Welded joints transmit that stress directly into the fitting, leading to fatigue cracks over time.
• Faster disassembly for maintenance. Any branch connection can be broken and reassembled without pipe cutting. This matters enormously for MRO teams in manufacturing plants or hospitals where downtime costs are high.

There is no need for hot work. Welding permits, fire watches, and certified welders add cost and schedule risk. A grooved link gets rid of all three, so it's safe to put in places with people, chemicals, or where an open flame isn't allowed.

Installation and Maintenance Guide for Grooved Branch Tees

The most important thing for joint function is that it is installed correctly. If installed wrong, a fitting that doesn't cost much can do a lot of damage that costs a lot of money.

Step-by-Step Installation Procedure

First, make sure that the pipe groove's measurements match the fitting's requirements. Clean the ends of the pipes and look for cuts or deformations in the seal. Put the lubricant that the manufacturer suggests on the gasket, then place the fitting and coupling housings over the groove. Alternately tighten the bolts by hand, then use the torque setting on the connection manual to make sure everything is tight. If you over-torque, the gasket seat can become deformed, which can lead to slow leaks.

Common Installation Errors and How to Avoid Them

The most common trouble in the area is misalignment. Before connecting, make sure the pipe and fitting are on the same line. If they aren't, the gasket will sit unevenly and leak when pressure is put on it. Before bolting, you should always support the pipe and fitting separately. The second most common problem is gasket degradation. Keep gaskets in a cool, dry place that is out of direct sunlight and check them before each assembly. It doesn't cost much to replace a gasket during installation. It costs a lot more to get a new one after a pressure system breaks.

Recommended Maintenance Practices

Check grooved joints at the same times you check other mechanical connections in the system—every year for business buildings, more often in harsh process settings. Make sure that the covering on the fitting body is still good. The anti-corrosion paint finish on FLA does a good job of protecting, but any scratched areas should be fixed before water gets inside and causes surface corrosion under the coupling housing.

How to Choose the Right Grooved Tee for Your Application?

Picking the right nominal diameter is only one part of selection. The right pick is affected by a number of technical and business factors.

Size, Material, and Pressure Rating

FLA has grooved reduction tees in sizes DN50×DN25 (60×33 mm) all the way up to DN200×80 (219×89 mm), which are big enough for most business and light industrial uses. First, fit the main run width to your pipe plan. Then, make sure the branch outlet size is correct. Make sure that the Mechanical Grooved Tee fitting's pressure number is higher than the highest working pressure in your system, this includes water hammer bursts. This spike limit can't be changed for fire sprinkler systems.

Industry-Specific Requirements

In tall buildings, HVAC chilled water risers need fittings that work with flexible couplings to handle temperature changes that happen as the building rises. Fittings that are UL/FM-listed are needed for fire prevention devices. For corrosion protection, industrial process lines may need models that are lined with epoxy or covered with a special material. If you choose the right finish when you place your order, you can avoid costly changes in the field.

Bulk Procurement and Customization

FLA has over 2,000 tons of stock and can quickly ship standard amounts to builders and distributors who order a lot. It takes 7 to 15 days to make custom sizes or non-standard configurations, like unequal reducing tees that aren't in the standard size table. Before making a big order, it is good buying practice to ask for a technical datasheet and a material proof. This is something that FLA supports as standard.

Practical Procurement and Ordering Insights

Finding the right source for grooved pipe fittings affects both the cost of the job and how well it stays on schedule.

Evaluating Supplier Credibility

As a starting point, look for ISO 9001 certification. This shows that the provider uses written, auditable production methods instead of depending on unofficial quality checks. Ask for records of the batch hydrostatic tests. FLA's quality control process includes checking the chemical make-up of each batch of materials, making sure that the groove geometry fits within the limits set by AWWA C606, and doing random hydrostatic proof tests at pressures higher than the rated working pressure.

Lead Times, Pricing, and Logistics

Within normal business wait times, standard catalog sizes ship from FLA's warehouse stock. It takes 7 to 15 days to finish a custom order. FLA responds to requests for quotes and technical questions within 24 to 48 hours, which helps keep projects on track. For large orders, get in touch with the sales team to talk about how to arrange the prices.

Technical Support and Samples

Before committing to a purchase, FLA offers 3D drawings, proof of parameters, and trial product support. This documentation process lowers the risk of getting non-conforming product on the first production order for procurement engineers who are checking out a new supplier.

Conclusion

A grooved branch tee fitting is one of the most useful additions you can make to your pipe system. It's easier to keep up, safer to use, and faster to install than welded or threaded options. When choosing fittings for a fire sprinkler network, an HVAC system, or an industrial process line, it's important to make sure you get a certified Mechanical Grooved Tee product from a company that has a history of quality control. This will protect both your project and your image. FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years and is ISO 9001 and CE certified. They can handle any order, from catalog sizes to unique setups.

FAQ

Can a grooved tee be used in high-pressure applications?

Standard grooved ductile iron tees can handle the working pressures that are common in irrigation, HVAC, and fire protection systems in businesses. For process applications that need higher pressures, choose versions made of carbon steel and compare the pressure rating to the highest operating and surge pressures of your system. Before stating, you should always ask for the manufacturer's pressure number paperwork.

How much faster is installation compared to welded tees?

Studies done in the field on grooved piping systems consistently show that they take about 60% less time to put together than welded connections. A single grooved joint can be made in five minutes, while a soldered joint can take thirty minutes or more, and there is no need for time to cure or cool down.

Are grooved fittings suitable for underground installation?

Yes. Grooved tee fittings can be used underground as long as they have the right coating (epoxy or bitumen) and connections that are rated for straight sinking. The joint's flexibility also helps it stand up to ground settlement forces, which are what break rigid systems.

What is the difference between cut groove and roll groove compatibility?

The fitting can be used with both cut-grooved and roll-grooved pipe ends as long as the outside diameter of the pipe fits the stated size of the fitting. The most important thing is that the groove depth meets AWWA C606, not the groove method.

What certifications should I verify before purchasing?

UL and FM listings are good for fire safety. For water used for drinking: NSF-61. FOR ALL BUSINESS AND EXPORT PROJECTS: ISO 9001 and CE. FLA's grooved fitting range has both ISO 9001 and CE standards.

Connect with FLA Industrial & Trading Co., Ltd. for Your Next Piping Project

FLA Industrial & Trading Co., Ltd. is a reliable company that has been making Mechanical Grooved Tees for almost 40 years, has ISO 9001 certification, and has a 2,000-ton inventory ready to ship right away. In 24 to 48 hours, our team will answer questions about pricing and technical issues. To get a quote, technical datasheet, or product sample right away, email sales@flaindustrial.com with your requirements or go to flaindustry.com.
