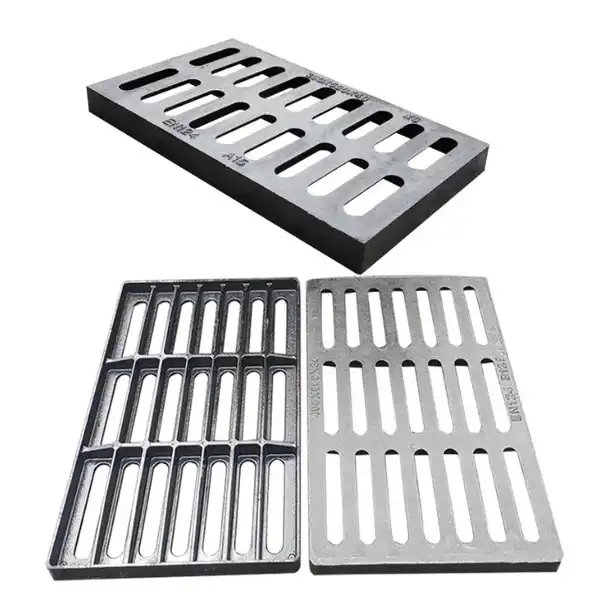

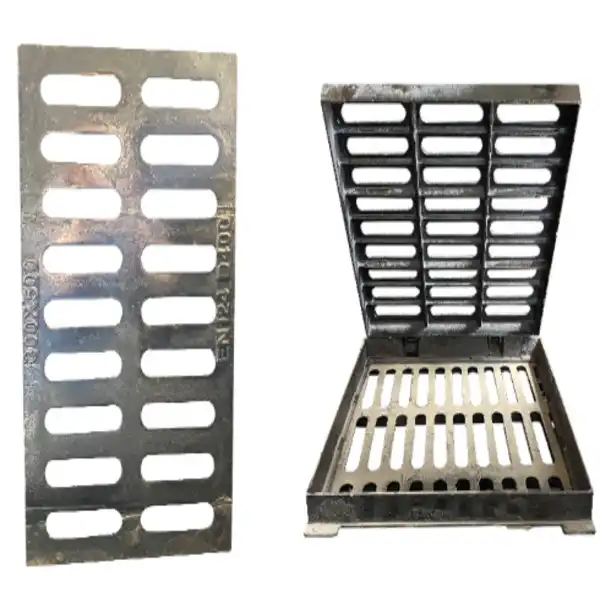

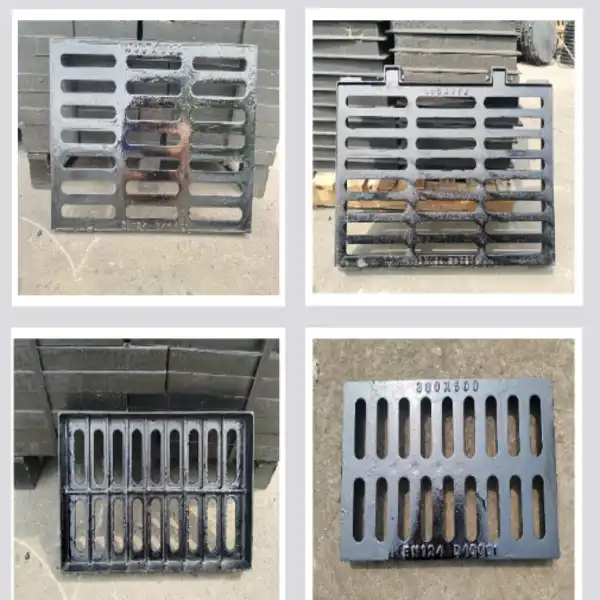

metal drain gully cover Provides Durable Drainage Solutions for Urban Areas

When urban drainage fails, the consequences extend far beyond a puddle. Flooded streets, structural damage, and safety hazards can bring city operations to a standstill. A well-engineered metal drain gully cover sits quietly at the intersection of infrastructure reliability and public safety. Built from ductile iron and rated across load classes B125 through E600, these drainage covers protect catch basins while managing surface water flow under pedestrian and vehicular traffic. At FLA Industrial & Trading Co., Ltd., we manufacture covers that meet the demands of modern urban infrastructure — with nearly 40 years of proven experience behind every product.

Specification (mm)	Load Capacity	Specification (mm)	Load Capacity
590×480×20	A15	380×500×20	A15
590×300×20	A15	350×500×40	C250
500×500×40	C250	350×500×30	B125
500×500×30	A15	350×500×30	B125
450×750×40	B125	320×500×20	A15
450×750×30	A15	300×500×40	C250
400×600×40	C250	300×500×30	B125
400×600×30	B125	300×500×20	A15
400×500×40	C250	250×500×30	B125
400×500×30	B125	200×400×20	A15
394×594×30	A15	340×500×20	C250
380×500×40	B125	-	-

Understanding Metal Drain Gully Covers and Their Role in Urban Drainage

What Makes Ductile Iron the Material of Choice

A magnesium-based spheroidization process turns graphite flakes into clusters in ductile iron, which is also known as Spheroidal Graphite Iron (GJS-500-7). This change to the structure stops cracks from spreading when there is dynamic stress. It has a tensile strength of at least 500 MPa, a yield strength of at least 320 MPa, and an extension of at least 7%. Gray cast iron breaks quickly when hit, but ductile iron bends before it breaks. This makes it the most common material used in EN 124-compliant drainage infrastructure around the world.

Load Classes and Urban Safety Compliance

The EN 124 and AASHTO M306 load grades are used to group surface drainage goods. Each class tells you how much weight a cover can hold without permanently deforming. You can get our gully covers in:

• B125: Sidewalks, pedestrian zones, and light vehicle access — rated up to 125 kN
• C250: Curbside parking, roadside channels, and light road shoulders — rated up to 250 kN
• D400: Main urban roads and standard traffic lanes — rated up to 400 kN
• E600: Docks, freight terminals, and heavy logistics corridors — rated up to 600 kN

You can't switch between these ratings. A structural liability is created when a cover rating is lower than the actual traffic load. When you choose a class, make sure it takes into account both static weight predictions and high dynamic loads.

In addition to supporting weight, a metal drain gully cover is also very important for controlling the flow of hydraulic fluid and surface water. Calibrated aperture ratios and optimized slot patterns can increase the effective drainage area without reducing the thickness of the structural ribs of a metal drain gully cover. Slip-resistant surface designs can also help improve pedestrian safety when a metal drain gully cover is installed in walkways or other areas with regular foot traffic. Vandalism and theft are ongoing concerns for urban utility infrastructure, so captive hinge systems and locking mechanisms can provide additional security for each metal drain gully cover. By combining effective drainage, structural strength, slip resistance, and security features, a properly designed metal drain gully cover can provide reliable performance in demanding urban applications.

Comparing Metal Drain Gully Covers: Choosing the Right Type for Your Project

Ductile Iron vs. Other Materials

The choice of material has a direct effect on how well it works, how long it lasts, and how much it costs to own. Here's how common materials stack up against some of the most important buying criteria:

• Ductile Iron: Superior impact resistance, high tensile strength, excellent corrosion resistance when coated with bituminous treatment or hot-dip galvanization (ISO 1461, zinc thickness >70 microns). Ideal for high-traffic urban and industrial applications. Longer service life reduces replacement frequency.
• Grey Cast Iron: Lower material cost upfront, but brittle under cyclic dynamic loads. Higher risk of sudden fracture without visible warning — a significant liability for high-traffic environments.
• Stainless Steel: Excellent corrosion resistance in chemical or coastal environments, but significantly heavier in total installed cost. Better suited to specialty applications than widespread municipal use.
• Polymer/Plastic: Lower initial investment, but substantially reduced load capacity and service life. Prone to UV degradation and deformation under vehicular loads. Not recommended for roadway applications.

When procurement managers compare upfront cost to value over the product's lifetime, cast iron drainage covers always have the best cost-performance rates. They are the usual choice for municipal projects in the U.S. and around the world because they require less upkeep, can handle a wider range of loads, and are available for more load classes.

Customization in terms of dimensions is also very important. Our covers come in non-standard lengths, widths, and heights so they can fit perfectly with existing infrastructure. This saves you the money and time it takes to make changes when off-the-shelf sizes don't work for installation.

Installation and Maintenance of Metal Drain Gully Covers for Long-Term Performance

Site Assessment and Fitting Best Practices

Correct fitting starts before the metal drain gully cover even arrives on site. A full site inspection should check the clear opening sizes, frame depths, and condition of the seating surfaces to ensure that the metal drain gully cover will fit correctly. Seating surfaces that are precisely machined to tolerances of less than 1 mm can help provide a stable fit and reduce unwanted movement or noise from the metal drain gully cover during use. Before completing the installation, it should be standard practice to perform a wobble test to confirm that there is no excessive movement between the metal drain gully cover and its frame. These installation checks help ensure that every metal drain gully cover remains stable, quiet, and properly positioned during long-term service.

Scheduled repair after placement greatly increases the service life. Every six months, a routine check finds rust, sediment buildup, or frame misalignment in their early stages, before they get worse. Cleaning out drainage holes stops hydraulic ponding that happens when it rains a lot. Inspections of bituminous or epoxy coatings should confirm even coverage above 70 microns, especially in places where road salts or acidic waters are present. Protective recoating in the early stages costs a lot less than replacing the whole unit.

For covers used in places with a lot of vibration, like freight hubs and major roads, make sure that the anti-seismic locking mechanisms and 3-point suspension systems stay in place after long traffic cycles.

Procurement Strategies: How to Source Quality Metal Drain Gully Covers for Urban Projects

Evaluating Suppliers for B2B Infrastructure Procurement

A reliable supply chain is the first step toward a reliable drainage system. When procurement experts look at a metal drain gully cover maker, they should focus on:

• Certifications: ISO quality management compliance and CE safety certification confirm standardized manufacturing processes and product traceability.
• Metallurgical verification: Spheroidization rate inspection — confirming graphite nodularity exceeds 85% — validates the ductility that separates genuine ductile iron from inferior castings.
• Load-bearing test documentation: Hydraulic press testing records should confirm permanent set values within EN 124 limits (residual deformation <1/300 of clear opening).
• Coating QC reports: Zinc or bitumen thickness documentation protects against premature corrosion failures in the field.

These quality checks tell the difference between common Products" target="_blank" style="color:blue" >products and infrastructure-grade drainage covers that do what they're supposed to do for their whole design life.

Bulk purchasing metal drain gully cover products gives wholesalers and procurement teams managing multiple project areas real economies of scale. The ability to customize dimensions, load ratings, surface slot configurations, and protective coatings allows buyers to standardize metal drain gully cover SKUs and simplify supplier management. For large orders, selecting a manufacturer that can provide consistent specifications for every metal drain gully cover can also reduce purchasing complexity and improve project coordination. After-sales support, warranty terms, and access to expert technical advice can further reduce project risk when sourcing metal drain gully cover products. By combining customization, consistent production, and reliable supplier support, buyers can obtain metal drain gully cover solutions that meet the requirements of multiple applications while improving overall procurement efficiency.

Future Trends and Innovations in Metal Drain Gully Covers for Urban Sustainability

Smart Drainage and Eco-Responsible Materials

The field of urban drainage is going through a big change. New protective coatings make things last longer and require less upkeep, which lowers the infrastructure's carbon footprint over a 20–30 year period. Recyclable ductile iron fits in with the circular economy models that are becoming more and more important to U.S. cities when they buy things.

IoT-enabled sensor integration is the next big thing. Flow sensors and structural monitoring systems that are built in send real-time data to city management platforms. This lets maintenance be planned ahead of time, before problems happen. This feature directly helps smart city projects that are a top priority in budgets for planning urban infrastructure. Long-term environmental compliance is becoming more and more important in procurement decisions, along with initial unit specifications. This means that material recycling and coating durability are becoming competitive differentiators for forward-looking suppliers.

Conclusion

Urban drainage infrastructure is responsible for much more than its appearance on the surface. A properly rated and precisely fitted metal drain gully cover, supported by regular maintenance, can help protect infrastructure, public safety, and municipal budgets at the same time. As urban populations continue to grow and sustainability standards become stricter, the material and construction choices made during procurement will influence infrastructure performance for decades to come. FLA Industrial & Trading Co., Ltd. manufactures drainage covers designed to meet these requirements, with nearly 40 years of manufacturing experience, ISO certification, and customization options for a wide range of urban applications. For procurement teams, selecting a reliable metal drain gully cover with the appropriate load rating, dimensions, and surface protection can support long-term drainage performance. By choosing a properly manufactured metal drain gully cover, cities and contractors can improve reliability, safety, and lifecycle value across demanding infrastructure projects.

FAQ

What load rating should I specify for a main urban road installation?

EN 124 Class D400 covers a 400 kN load capacity and meets the standard requirement for main urban roads and typical traffic lanes. For freight corridors or dock areas, specify E600. Always calculate based on peak dynamic loads rather than average static weight.

How does ductile iron differ from grey cast iron in drainage applications?

Ductile iron contains spheroidized graphite nodules that absorb impact and resist crack propagation. Grey cast iron is brittle and prone to sudden fracture under cyclic loads — making it unsuitable for high-traffic drainage applications despite its lower material cost.

What prevents a gully cover from rattling under traffic?

Precision-machined seating surfaces with sub-1mm tolerances, combined with PE or neoprene gasket inserts within the frame, eliminate the micro-movement that causes noise. A wobble test during installation confirms a stable, secure fit.

Can covers be customized for non-standard installation dimensions?

Yes. We manufacture covers in custom lengths, widths, and heights to match existing infrastructure precisely. Custom dimensional orders typically ship within 7-15 days of confirmation.

What anti-theft features are available?

Covers with captive hinges — permanently attached to the frame — and proprietary locking bolts (pentagon or turnbuckle configurations) significantly reduce theft and vandalism risk compared to standard loose-lid designs.

Partner with FLA Industrial & Trading Co., Ltd. for Your Next Drainage Project

FLA Industrial & Trading Co., Ltd. is a reliable company that has been making metal drain gully covers for almost 40 years. They have ISO and CE certifications and keep 2,000 tons of stock on hand so they can ship quickly. From the proposal phase to the delivery phase, our engineering team offers full technical support, 3D design proof, and dimensional customization. Visit flaindustry.com or email us at sales@flaindustrial.com to talk about your project needs and get a quote.

References

1. British Standards Institution. BS EN 124-2:2015 — Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas. BSI, 2015.

2. American Association of State Highway and Transportation Officials. AASHTO M306: Standard Specification for Drainage, Sewer, Utility, and Related Castings. AASHTO, 2021.

3. International Organization for Standardization. ISO 1461: Hot-Dip Galvanized Coatings on Fabricated Iron and Steel Articles. ISO, 2009.

4. Ductile Iron Society. Engineering Properties of Ductile Iron. Ductile Iron Society Publications, 2020.

5. American Society of Civil Engineers. Infrastructure Report Card: Stormwater and Drainage Systems. ASCE, 2021.

6. McGraw-Hill Construction. Urban Drainage Infrastructure and Materials Selection Guide. Engineering News-Record, 2019.
