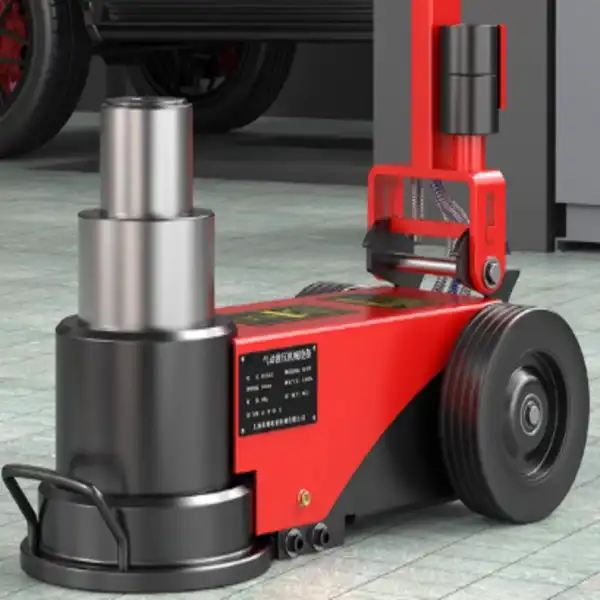

Small Pneumatic Jack Supports Compact Lifting Needs in Automotive Service

When speed and precision matter on the shop floor, a small pneumatic jack delivers results that manual and hydraulic alternatives simply cannot match. Powered by compressed air, this compact lifting device reaches full extension in as little as three to five seconds, dramatically reducing technician fatigue and vehicle turnaround time. At FLA Industrial & Trading Co., Ltd., we have spent nearly 40 years engineering reliable hardware tools for demanding industrial environments. This guide walks procurement teams, service managers, and tool distributors through the technology, comparison data, maintenance protocols, and sourcing strategies they need to make a confident, well-informed purchasing decision.

Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks and Their Role in Automotive Service

How the Technology Works

Through an internal cylinder and piston system, a pneumatic air jack turns compressed air pressure, which is usually between 0.4 and 0.8 MPa, into vertical lifting force. Chrome plating on the inside of the cylinders reduces friction and increases service life. Fluororubber or Nitrile Rubber seals keep the airtightness of the system from -20°C to +80°C. There is a safety button and an exhaust muffler built into the machine that protect both the user and the machine during every lift cycle.

Practical Applications in Automotive Workshops

This technology is used by high-throughput tire service centers because a small pneumatic jack can be set up in less than five seconds. When technicians rotate tires, check brakes, or repair suspensions, using a small pneumatic jack can reduce the physical strain associated with manually pumping a conventional jack. The low-profile, foldable design, with a minimum height of about 130 to 150 mm, lets the small pneumatic jack slide under low-clearance sports cars, modified cars, and luxury sedans where a regular floor jack could damage side skirts or body panels. This tool can also be used for light trucks and off-road platforms in addition to passenger cars, making the small pneumatic jack useful in service bays that handle a variety of vehicle fleets. For busy workshops, a properly selected small pneumatic jack can provide fast setup and convenient lifting for diverse maintenance applications.

The unit's portability is also very useful. Its small, spray-painted or anodized body is easy to move from one workstation to another, and the standard air hose interface can connect to any shop compressor that delivers 85 to 115 PSI, so you don't need any special equipment.

Small Pneumatic Jack vs Other Lifting Solutions: Making the Right Choice

Buying choices are rarely made by themselves. Knowing how an air-powered jack compares to other technologies helps buyers make smart spending decisions.

Here's a useful way to compare the four main types of lifting:

When it comes to floor jacks, pneumatic vs. hydraulic: hydraulic jacks can handle higher loads and don't need an outside air supply, but they need regular maintenance on their oil seals and can only lift things slowly. In a dusty workshop, a hydraulic piston can get stuck or score, but a pneumatic unit's chrome-plated cylinder is better at keeping dirt out. When moving things over and over again, the air-powered choice makes the operator much less tired over time.

Pneumatic jack vs. hydraulic floor jack: Hydraulic jacks handle heavier rated capacities and need no external air supply, but they require regular oil seal maintenance and deliver slower lift speeds. A hydraulic piston can score or seize in dusty workshop environments, whereas the chrome-plated cylinder of a pneumatic unit resists contamination more reliably. For high-frequency, repetitive lifting tasks, the air-powered option reduces cumulative operator fatigue measurably.
Pneumatic jack vs. electric jack: Electric jacks offer push-button convenience and suit operators without access to compressed air. However, battery dependency limits deployment in large bays, and charging downtime interrupts workflow. A pneumatic unit tied to a central compressor network operates continuously without recharging.
Pneumatic jack vs. manual scissor jack: Manual jacks demand the most physical effort and the slowest deployment. They remain viable for infrequent roadside use but are impractical in commercial service environments where a technician may complete dozens of lifts per shift.

Each type of technology has its place, but the air jack category makes the strongest case for high-volume auto repair shops that value speed, ergonomics, and low-clearance access. These differences can have a direct effect on labor prices, throughput capacity, and technician retention, all of which are very important to buying managers who need to buy a lot of tools.

Maintenance and Safety Best Practices for Small Pneumatic Jacks

Routine Inspection and Lubrication

Regular upkeep will help keep your small pneumatic jack safe and reliable. Before each shift, inspect the rubber seals and air hose connections for signs of damage, such as cracks, leaks, or water ingress that could affect the performance of a small pneumatic jack. Follow the manufacturer's service plan for lubricating moving parts and regularly draining water from the air compressor tank. Frozen or rusted inlet valves are a common reason why lifting speed slows down in cold environments, so proper maintenance is especially important for a small pneumatic jack used in low-temperature conditions. By carrying out these checks consistently, operators can help extend the service life of the small pneumatic jack, maintain stable lifting performance, and reduce unexpected downtime.

Safety Protocols Every Operator Must Follow

In any professional setting, following safety rules is a must. Pneumatic jacks are designed to quickly move and lift things, not to hold things in place for a long time. Once the vehicle reaches the desired height, it is always best to use rated mechanical jack stands. Only use on flat, hard surfaces; uneven ground can put stress on the internal telescopic guide and cause the load to become unstable. It should be normal practice to wear safety gear like steel-toed boots and safety glasses whenever a car is raised.

There is a 5,000-cycle life test for premium units, dynamic overload testing at 125–150% of rated capacity, and burst pressure validation to make sure there is a safety factor greater than 3:1 above the nominal working pressure. When buying, teams buy from a maker that keeps records of these tests; they know they can be checked before a single unit is sent to the shop floor.

Procurement Guide: Selecting and Buying Small Pneumatic Jacks for Your Business

Key Specifications to Evaluate

Smart buying is based on matching technical factors to practical needs. Check the lifting capacity against your largest vehicle platform, make sure the lowest collapsed height works with your models with the least space, and make sure the air pressure range works with the compressors you already have. The type of material—carbon steel, alloy steel, or aluminum alloy—affects both weight and load rate. Before making a bulk order, make sure you know which configuration works best for your process.

Evaluating Supplier Reliability

Certifications show that a company knows how to manufacture equipment properly, which is especially important when purchasing a small pneumatic jack for professional applications. As a minimum, buyers should look for ISO 9001 quality management certification and CE marking to support consistent manufacturing and applicable market requirements for a small pneumatic jack. ATEX certification is necessary for a small pneumatic jack intended for use in areas with potentially explosive atmospheres, such as certain fleet repair shops. A reliable provider should also be able to supply written reports covering leak tests, pressure tests, and lifecycle validation when requested. Reviewing these documents helps buyers verify the quality and reliability of each small pneumatic jack before purchase and supports more informed procurement decisions.

FLA Industrial & Trading Co., Ltd. makes pneumatic jacks that have all of the above approvals. They also allow OEM customization for lifting heights, mounting setups, and material types that aren't standard. We've been making things for almost 40 years and have provided for Fortune Global 500 partners in the US, Germany, and Australia. We have over 1,000 product specs. Within 24 to 48 hours, procurement teams get price and technical paperwork. This cuts down on delays in the sourcing cycle.

When you buy in bulk from a direct manufacturer, the cost per unit goes down, and the quality stays the same across large orders. This is important for hardware distributors, construction procurement heads, and fleet maintenance programs.

Conclusion

FAQ

What lifting capacity does a small pneumatic jack typically offer?

Most small-class setups can hold between 2.5 and 3 tons, which is enough for most cars, light trucks, and off-road vehicles. Before launching on heavier platforms, you should always check the individual rated load.

How often should these units be serviced?

Before each shift, check the connections and seals. In a business workshop, a full service with valve inspection and internal lubrication should be done every three to six months, or after about 500 operating runs.

Can I use a pneumatic jack on off-road vehicles?

That's right, up to the rated capacity. But always work on an area that is flat and packed down. When you drive on uneven ground, the internal support isn't meant to handle the side forces that come with it.

What happens if the air line disconnects during a lift?

Professional units have a non-return check valve that keeps air in the cylinder and raises the load safely until the user releases it by hand.

Why is my unit lifting more slowly than usual?

Lower lift speed usually means that the input filter is clogged, the compressor output pressure isn't high enough, or there is too much moisture in the air line, which has damaged the internal valve mechanism.

Partner With FLA Industrial & Trading Co., Ltd. for Your Next Bulk Order

FLA Industrial & Trading Co., Ltd. has been making high-quality Small Pneumatic Jacks for almost 40 years and is a reliable company. Our air jacks are certified by ISO 9001 and CE, and we offer full OEM support and quick technical service. All over the U.S., procurement teams depend on us for steady quality, low bulk prices, and quick response times on paperwork. Get in touch with our team at sales@flaindustrial.com or go to flaindustry.com to get a price and learn about all the lifting options we can make for your business.
