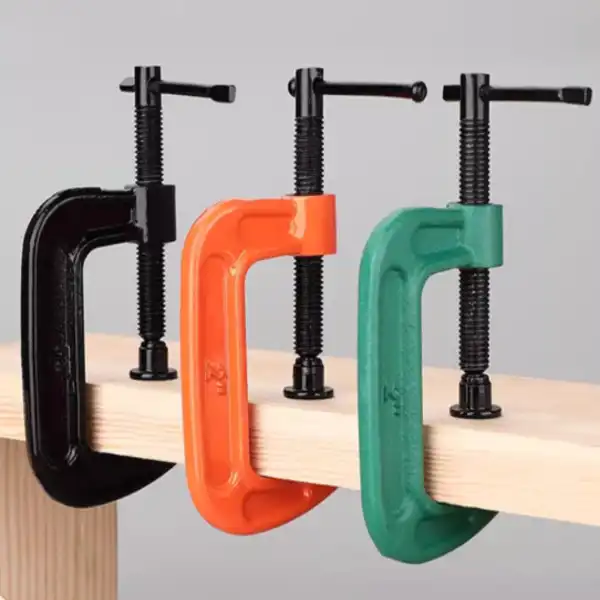

Quick-Action C-Clamp Speeds Up Fixture Setup in Metalworking Projects

If you've ever lost valuable production time wrestling with a traditional C-clamp during a metalworking setup, you already understand the problem. A Quick-Action C-Clamp eliminates that friction entirely. By integrating a rapid-slide mechanism into a ductile iron frame with a precision steel screw rod, this tool allows operators to position, secure, and release workpieces in seconds rather than minutes. Whether you manage a fabrication shop, run a woodworking facility, or source tools at scale for resale, understanding how this clamp reshapes fixture workflow is directly relevant to your bottom line.

Specifications

Specification	Depth (mm)	Maximum Opening (mm)	Overall Dimension (mm)
1 Inch	28	25	75×45×12
2 Inch	33	58	115×53×18
3 Inch	65	86	170×95×25
4 Inch	70	110	204×106×28
5 Inch	80	140	245×115×28
6 Inch	85	160	275×120×28
8 Inch	105	220	330×150×30
10 Inch	105	260	375×155×30
12 Inch	115	310	440×170×33

Understanding Quick-Action C-Clamps and Their Role in Metalworking

What Sets This Clamp Apart from Conventional Models

With a normal C-clamp, the user has to wind the screw spindle across the full jaw opening before applying pressure. This is a repetitive process that takes time and puts stress on the hand when there are a lot of things to do. This is not needed at all with a quick-release clamp. The half-nut trigger or gravity-clutch mechanism lets the spindle move freely to the workpiece and then re-engages the thread to compress it with torque. Compared to standard screw-only clamps, this one change in design cuts gripping time by up to 70%. This is a clear productivity boost on any shop floor.

Material and Build Quality That Handles Industrial Demand

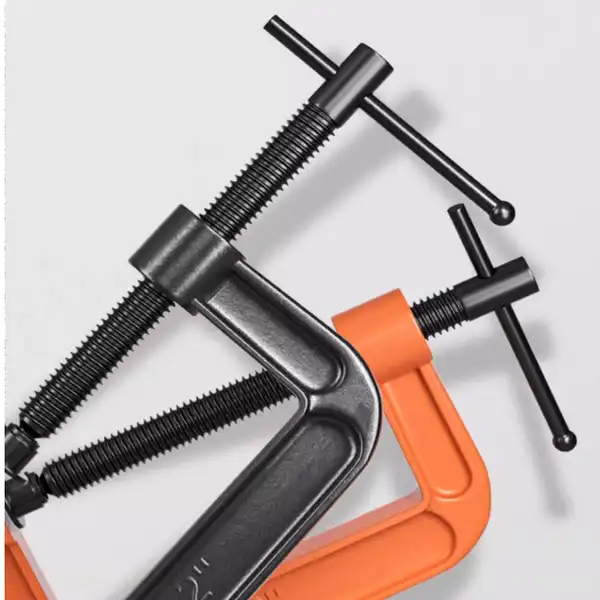

FLA Industrial & Trading Co., Ltd. manufactures its Quick-Action C-Clamp Products" target="_blank" style="color:blue" >products with steel screw rods and ductile iron frames. Ductile iron, also known as spheroidal graphite iron, can provide high tensile strength and better resistance to shock loads than more brittle cast iron, making it a suitable material for a Quick-Action C-Clamp used in demanding workshop applications. Because the screw rod is machined to precise dimensions, the threads of each Quick-Action C-Clamp can engage smoothly even when the rod is subjected to substantial clamping loads. In wet or chemically rich workshop environments, a painted or powder-coated finish helps protect the Quick-Action C-Clamp against corrosion. Each unit is manufactured under an ISO 9001-certified quality management system using controlled casting and machining processes. Before shipment, every Quick-Action C-Clamp undergoes multiple inspection stages, including material checks, dimensional verification, and functional testing, helping ensure consistent quality and reliable performance.

How Quick-Action C-Clamps Speed Up Fixture Setup: Performance Optimization Approach

The Real Cost of Slow Fixture Changeovers

Most of the time, production problems happen during the changes between steps in the machining process. Fabrication teams that use more than one weld device per shift can lose 15 to 30 minutes a day just making changes to the clamps. That's a real difference in speed when you look at it over a five-day week. According to data from the industry, using the right fixtures can cut cycle times by 30% or more, and fast-action clamping tools are a big part of that.

Here are the main performance benefits that directly deal with delays in setting up fixtures:

• Single-handed rapid positioning: The sliding jaw mechanism allows an operator to bring the clamp to full contact with one hand, freeing the other to stabilize the workpiece. This prevents alignment drift before compression is applied — a common failure point with traditional clamps.
• Reduced operator fatigue: The ergonomic handle design distributes grip pressure evenly, limiting repetitive strain during high-frequency clamping operations. Less fatigue translates to fewer positioning errors over a full shift.
• Consistent clamping force: Precision-machined contact surfaces maintain grip uniformity across repeated applications, ensuring fixture stability without over-tightening that could damage delicate metal stock.

All of these benefits solve the problem of throughput that procurement engineers and site directors face on busy production lines. When the speed of setup gets faster, activities like welding, cutting, and assembly can continue without stopping.

Quick-Action C-Clamp vs. Traditional Clamps and Market Alternatives: Rational Choice Approach

Evaluating Your Options Against Project Requirements

Bar clamps and toggle clamps are both useful in their own ways. When working with wood, bar clamps are great for holding wide glue-up assemblies together. Toggle clamps work well for jig parts that need consistent, set pressure. However, neither of them is as good as a quality quick-action model when it comes to being able to be adjusted, having a strong grip, and deploying quickly. This is especially true in metalworking applications where workpiece sizes change often.

The decision to buy a Quick-Action C-Clamp is based on three factors: the clamping force required, how often the jaws need to be adjusted, and the unit cost compared with the expected service life. Quick-Action C-Clamp products may cost more initially than basic screw clamps, but the return on investment can change when buyers consider reduced setup time, fewer positioning errors, and the durability of a ductile iron frame that resists deformation under rated proof loads. For workshops that use a Quick-Action C-Clamp frequently, faster adjustment can help improve productivity and reduce repetitive setup work. Because this clamp format is highly versatile, a Quick-Action C-Clamp can serve a wide range of customers, from woodworking shops to metal fabrication facilities. This flexibility makes the Quick-Action C-Clamp a practical option for hardware distributors that need to stock a diverse range of SKUs.

Maintenance, Safety, and Troubleshooting of Quick-Action C-Clamps

Keeping the Mechanism Reliable Over Time

The part that is most likely to get worn down or dirty is the quick-release trigger. When there is a lot of dust or dirt around, abrasive particles can get into the half-nut threads and make them not connect. Particle buildup can be removed with compressed air on a regular basis, and a dry PTFE-based lubricant keeps the release button and spring working easily without attracting grit. This is an important difference from heavy grease, which makes contamination spread faster.

Most of the time, grip loss under load means that the half-nut threads are worn or that the clamp is consistently over-torqued beyond its maximum capacity. Operators should never use more binding force than what the maker says is safe, and frames that are clearly deformed should be taken out of service right away. It needs to be said again: these clamps are only meant for fixing things and placing workpieces. Using them to lift things off the ground or suspend them from the ceiling is against OSHA rigging safety rules and puts the load at risk of catastrophic disengagement.

When purchasing managers look at different suppliers, they should make sure that they offer technical support, maintenance documentation, and replacement parts after the sale. FLA Industrial & Trading Co., Ltd. offers technical support from design advice to production, making sure that customers can get help at any time during the tool's useful life.

Procurement Considerations: How to Buy the Right Quick-Action C-Clamp

What B2B Buyers Should Verify Before Placing an Order

There's more to choosing the right rapid-clamping tool provider than simply comparing the unit price of a Quick-Action C-Clamp. Technical checks such as proof-load certification, mechanism cycle testing, and batch consistency can reveal the difference between a reliable supply and inconsistent product quality. Load testing at 150% of the stated capacity is performed on every production batch by responsible manufacturers to verify that neither the ductile iron frame nor the quick-release mechanism of the Quick-Action C-Clamp fails under stress. For buyers sourcing Quick-Action C-Clamp products in bulk, documented test results and consistent quality control are important for reducing procurement risk. A manufacturer that can provide reliable testing records for every Quick-Action C-Clamp batch can give distributors and industrial buyers greater confidence in product performance.

Hardware distributors and wholesale buyers can get clamps from FLA Industrial & Trading Co., Ltd., which has over 2,000 tons of stock in standard sizes. Custom orders are usually filled within 7 to 15 days. Within 24 to 48 hours of an inquiry, quotes and technical specifications are sent out, which helps speed up the procurement process for projects that need to be done quickly. With nearly 40 years of manufacturing experience and partnerships with Fortune Global 500 customers, the company has a proven track record of serving both local and foreign markets, such as those in the US, Germany, and Australia.

Conclusion

A good rapid-action clamping tool does more than simply hold a workpiece; a Quick-Action C-Clamp can change how quickly and efficiently a team completes each production cycle. Durable ductile iron frames, precise steel screw rods, ergonomic operation, and a reliable quick-release mechanism work together to make a Quick-Action C-Clamp suitable for reducing the operational costs associated with fixture setup time. For distributors building a competitive clamp product line, contractors managing ongoing on-site work, and plant managers seeking greater efficiency in woodworking production, a Quick-Action C-Clamp can provide a practical solution for frequent clamping tasks. Buying a Quick-Action C-Clamp from a company with ISO 9001 certification, proven load-testing procedures, and responsive technical support can reduce procurement risk and help ensure consistent long-term performance. For demanding applications, selecting the right Quick-Action C-Clamp based on load requirements, construction quality, and intended use is essential.

FAQ

What materials are used in a professional-grade quick-release C-clamp?

High-quality models have frames made of malleable iron and precision steel screw threads. When compared to regular cast iron, ductile iron has higher tensile strength and shock resistance. The steel spindle makes sure that the threads join smoothly even when heavy loads are applied. Under ISO9001 quality standards, FLA Industrial & Trading Co., Ltd. makes its clamps by casting and milling them.

How much clamping force do these clamps typically generate?

For light-duty models, the clamping force is around 600 pounds, while for heavy-duty industrial models, it's over 2,000 pounds. The exact volume is based on the frame grade and the size of the jaw hole. Before making a choice, you should always make sure that the listed size fits your needs.

Can quick-action clamps be used for overhead work?

No, these clamps can only be used for horizontal positioning and fixing. The quick-release device can break when it is hit or vibrated, which means that using it overhead is directly against OSHA safety rules.

How should the trigger mechanism be maintained in dirty environments?

Often, use compressed air to get rid of trash. Instead of heavy grease, which traps abrasive particles and speeds up mechanism wear, use a dry graphite or PTFE spray lubricant.

What is the typical lead time for bulk orders?

Standard sizes are quickly sent out from stock. It takes 7 to 15 days to finish custom setups. Within 24 to 48 hours of an inquiry, quotes are sent out.

Partner with FLA Industrial for Your Next Clamping Tool Order

With nearly 40 years of experience, ISO9001 certification, and a proven track record of supplying both U.S. and foreign markets, FLA Industrial & Trading Co., Ltd. is a reliable Quick-Action C-Clamp maker. We help distributors, builders, and makers who need reliable tools on a large scale by keeping 2,000 tons of stock on hand, turning around quotes quickly, and letting customers make full customizations. To get prices and specifications, email our team at sales@flaindustrial.com or go to flaindustry.com right now.
