How Does Agricultural Machinery Counterweight Enhance Machine Balance?

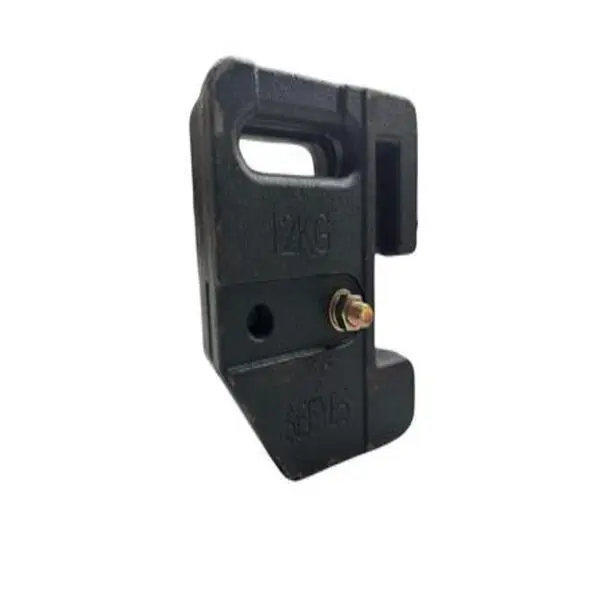

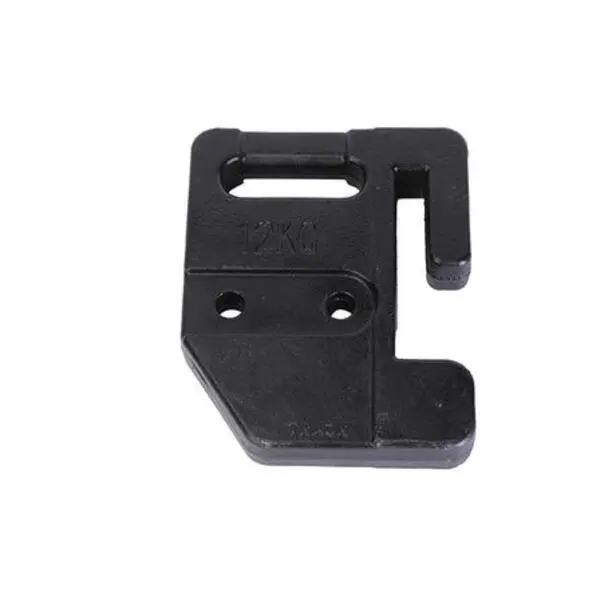

An agricultural machinery counterweight is a precision ballast component engineered to optimize axle load distribution, stabilize the center of gravity, and improve tractive efficiency across heavy-duty farming equipment. When a tractor pulls a rear-mounted plow or a combine harvester lifts a wide corn header, uneven mass distribution can trigger dangerous tipping or uncontrollable steering. By strategically positioning cast iron or steel ballast weights on the front bracket, wheel rim, or rear hitch, operators restore dynamic equilibrium — keeping all axles grounded, maximizing power transfer to the soil, and dramatically reducing accident risk during complex field operations.

Specification

Product Name	Weight Specification	Design Type
Agricultural Machinery Counterweight	20kg	Narrow Slot
Agricultural Machinery Counterweight	20kg	Wide Slot
Agricultural Machinery Counterweight	20kg	Square
Agricultural Machinery Counterweight	40kg	Old Model
Agricultural Machinery Counterweight	40kg	New Model
Agricultural Machinery Counterweight	45kg	Standard
Agricultural Machinery Counterweight	50kg	Arc-shaped

Understanding Agricultural Machinery Counterweights

Most people don't know this, but ballast weight technology is much older than they think. However, its technical principles are still very important today. A counterweight moves the center of gravity of a machine so that no one axle has to carry an excessive load. A study in Biosystems Engineering says that uneven axle load distribution can lower the traction economy of tractors by up to 25%, which directly leads to more fuel use and more compacted dirt.

Common Types of Tractor Ballast Weights

The field is mostly made up of three main configurations. Suitcase weights are attached to the front bracket and balance out heavy tillage implements mounted on the back. The goal is to have a 40% front/60 rear axle load split. Wheel weights attach directly to the rim and improve grip on the ground without putting too much stress on the transmission housing. Three-point hitch ballast boxes are attached to the back of the front-loader to keep it stable. This keeps the front axle from becoming dangerously overloaded when moving hay or pulling round bales.

Material Standards That Matter

Gray Cast Iron graded HT200 or HT250 (equivalent to ASTM A48 Class 30/35) is a standard material for an Agricultural Machinery Counterweight, valued for its high density of about 7.2 g/cm³ and excellent vibration-damping ability. This material provides the mass needed for an Agricultural Machinery Counterweight while helping control vibration during equipment operation. Spheroidal Graphite (Ductile) Iron is another suitable option for an Agricultural Machinery Counterweight when the application requires higher tensile strength above 400 MPa and better impact resistance. For OEM-grade fitting, it is necessary to meet the dimensional limits specified by ISO 185 and ISO 4298, ensuring that each Agricultural Machinery Counterweight can be manufactured to the required dimensional specifications. Selecting the appropriate material and verifying dimensional accuracy are essential when producing an Agricultural Machinery Counterweight for agricultural equipment.

Benefits of Using Counterweights in Agricultural Equipment

When machinery is properly ballasted, it has measurable operating benefits that can be measured by purchase managers and site engineers. Wheel slip should be kept below 10–15% according to industry standards when heavy draft work is being done. Without enough front ballast, high-torque tractors often slip more than 20%, wasting fuel and compacting the soil, which is an expensive cycle that lowers yield potential season after season.

When you choose the right ballast weights, you get these main performance gains:

• Improved traction and reduced wheel slip: Distributing weight correctly across all four contact points transfers engine torque efficiently to the ground. Studies indicate that optimizing the weight-to-power ratio (targeting 45–55 kg/hp for heavy draft) can reduce fuel consumption by 8–12% per operating hour.
• Elimination of dynamic instability: When a combine harvester raises a wide, heavy header on uneven terrain, rear-axle counterweights keep the steering wheels grounded, preserving directional control on hillsides where tip-over risk peaks.
• Extended component lifespan: Balanced load distribution reduces abnormal stress on wheel bearings, axle housings, and hydraulic linkages, cutting unplanned maintenance intervals and lowering total cost of ownership.
• Operational safety compliance: Properly distributed ballast weight directly reduces tip-over risk — a leading cause of fatal farm equipment accidents recorded by OSHA and NIOSH annually in the United States.

When applied to a whole fleet, these benefits add up. If the person in charge of purchasing manages 20 tractors and makes sure that all of the ballast configurations are the same, the equipment investment will likely be returned within one harvest season through fuel savings and less downtime.

Choosing the Right Counterweight for Your Agricultural Machinery

Long-term worth is driven by the choice of material and design. Agricultural Machinery Counterweight solutions made from cast iron are still the most popular choice among professionals. Its density is about three times that of concrete, which allows designers to create compact structures that save ground space and maintain operator visibility. Concrete ballast boxes are larger and more likely to break under vibration, making them unsuitable for high-end OEM applications.

Fixed vs. Adjustable vs. Removable Configurations

Tractors that do the same job over and over, like specialized plowing units, work best with fixed weights. Adjustable stack configurations let operators add or remove individual plates as the loads on the implements change, which is great for fleets that are used for more than one thing. Removable units give seasonal operations the most flexibility by getting rid of extra weight during light-duty transport runs and reducing fuel use.

Tolerance for weight is just as important. The standard in the business allows a difference of ±2–3% from the stated weight. Tighter tolerances of ±1% are required for high-end truck lines that need accurate axle load estimates. Underweight castings are dishonest, and overweight castings put extra stress on the frame and fixing bracket.

Installation and Maintenance of Agricultural Machinery Counterweights

Making sure that the mounting bolt design exactly matches the tractor's front bracket or wheel rim specification is the first step in a proper fitting. When mounting points aren't lined up correctly, they cause vibrations that damage the tractor frame over time. This is a key reason for rejecting a product in any good quality control inspection. Use a calibrated wrench to make sure that the torque on fasteners is set to the manufacturer's recommended value. Check the torque again after 8–10 hours of use.

Inspection and Surface Protection Protocols

Ballast parts work reliably as long as they are maintained regularly. Every 50 hours of use, check the mounting hardware for fretting corrosion, bolt holes that are too long, and hairline fractures near areas of high stress. Internal casting flaws like shrinkage holes or sand inclusions can't be seen with the naked eye but can be found with ultrasonic NDT testing, which reliable sources do before shipping.

Protecting the surface is also very important. A professional finish with three steps—shot blasting to a cleanliness level of Sa 2.5, an Electrophoretic Deposition (E-Coat) primer, and a high-solid Polyurethane topcoat—passes ASTM B117's 500-hour salt spray test. This amount of corrosion protection can stand up to fertilizer splashes, exposure to manure, and UV damage over several growth seasons.

Leading Brands and Procurement Advice for Agricultural Counterweights

If you want to find good agricultural ballast components, you need to evaluate providers based on factors that can be measured, not just catalog descriptions. Ask for chemical composition reports that have been checked by a spectrometer and show that they meet the requirements for HT200 or HT250 material grades. For all mounting connections, you should insist on CMM or Go/No-Go gage inspection records of the dimensions. As usual, a good Agricultural Machinery Counterweight maker will give you salt spray test certificates and NDT records.

When looking for an Agricultural Machinery Counterweight supplier, give the most weight to those that can do OEM customization. Different platforms, like John Deere, Kubota, and AGCO, have different mounting hole shapes, bolt pattern spacing, and weight stack arrangements. Suppliers who use 3D scanning and reverse engineering can promise that two parts will fit together perfectly without you having to send them real models.

Every part we make at FLA Industrial & Trading Co., Ltd. comes from almost 40 years of experience with precision casting. Our ballast weights are made of high-quality cast iron and steel that is designed to withstand harsh outdoor conditions. We can also make them to fit the exact weight requirements, measurements, and mounting arrangements of any big tractor platform. Multiple finish options with anti-corrosion treatments make the surface resistant to rust and environmental damage, and engineering that makes sure the weight is evenly distributed lowers the risk of tipping over and improves overall operational safety. Our partners in the Fortune Global 500 in the US, Germany, and Australia value our quality control systems. Your procurement team can do the same.

Conclusion

Machine balance is not a side issue; it is the engineering foundation that determines how well, safely, and economically farm equipment operates. Choosing the right Products" target="_blank" style="color:blue" >products">Agricultural Machinery Counterweight configuration, ensuring that the material meets required specifications, confirming that the mounting fits precisely, and maintaining protective surface coatings are all decisions that can have significant operational and financial effects over the service life of a machine fleet. A properly selected Agricultural Machinery Counterweight can help maintain equipment stability and distribute loads more effectively during demanding agricultural operations. Working with a trusted and experienced manufacturer of Agricultural Machinery Counterweight products can help protect equipment performance and operating costs, whether you manage tractor fleets for large-scale row cropping or source components for OEM assembly lines. For long-term fleet reliability, selecting the appropriate Agricultural Machinery Counterweight and verifying its quality and compatibility are essential procurement considerations.

FAQ

How do I know if my tractor needs additional front ballast?

If the rear wheel slips more than 15% during draft work or the front axle lifts a lot when the rear implement contacts, this means that there isn't enough front ballast. In the field, the front axle weight is measured with movable scales and compared to the 40% goal of the total machine weight.

Are counterweights interchangeable between different tractor brands?

Not without checking first. Different manufacturers use very different mounting bolt patterns and bracket notch geometry. Before you buy, you should always compare the supplier's mounting drawings to the repair instructions for your particular model.

What causes premature fracturing in cast iron ballast weights?

If the phosphorus level is above 0.15%, it leads to cold shrinkage, which makes casts break easily when hit. The other main cause is internal porosity from flaws in the casting. Suppliers you can trust strictly control the amount of phosphorus in the metal and use ultrasonic NDT to check finished castings before they are shipped.

What weight tolerance should I specify for OEM applications?

±2–3% is fine for most business applications. A ±1% tolerance standard helps with accurate axle load engineering for precision ballasting uses in high-end tractor lines.

 How long does the anti-corrosion coating last in field conditions?

If you use the right E-Coat primer and topcoat, it can withstand 500 hours of salt spray tests according to ASTM B117. This means that it will protect against fertilizer and water for many seasons as long as the covering surface stays intact.

Partner With FLA Industrial & Trading Co., Ltd. for Precision Ballast Solutions

The right ballast weight provider is the first step to making sure your equipment is stable. OEM-grade Agricultural Machinery Counterweights are made to order by FLA Industrial & Trading Co., Ltd. They can be made with any mounting configuration, any material grade, and any corrosion-resistant finish that works better than standard catalog options. We are ready to help you reach your buying goals. We have been making things for almost 40 years and have clients all over the world. Get a quote from our team right away by emailing sales@flaindustrial.com or going to flaindustry.com.

References

1. Zoz, F. M., & Grisso, R. D. (2003). Traction and Tractor Performance. American Society of Agricultural and Biological Engineers (ASABE).

2. Biosystems Engineering — Tractor Ballasting and Energy Efficiency in Field Operations. Elsevier, 2018.

3. National Institute for Occupational Safety and Health (NIOSH). Tractor Overturn Fatalities in U.S. Agriculture. Centers for Disease Control and Prevention, 2020.

4. ISO 185:2019 — Grey Cast Irons: Classification. International Organization for Standardization, 2019.

5. ASTM International. ASTM B117-19: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.

6. Goering, C. E., & Hansen, A. C. (2004). Engine and Tractor Power (4th ed.). American Society of Agricultural and Biological Engineers (ASABE).
