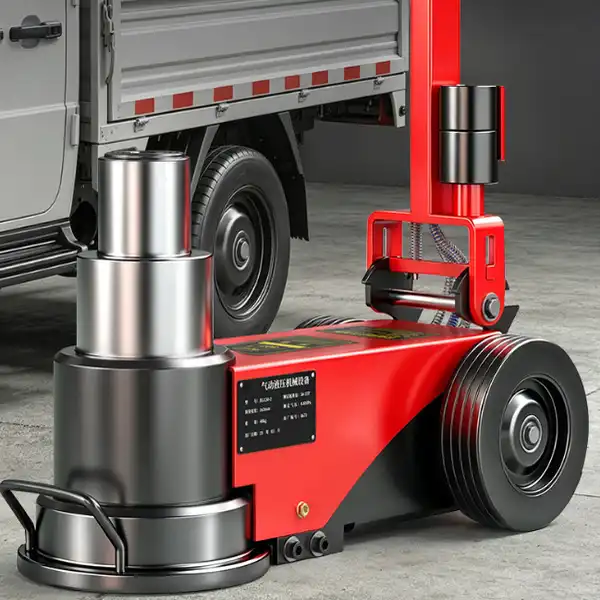

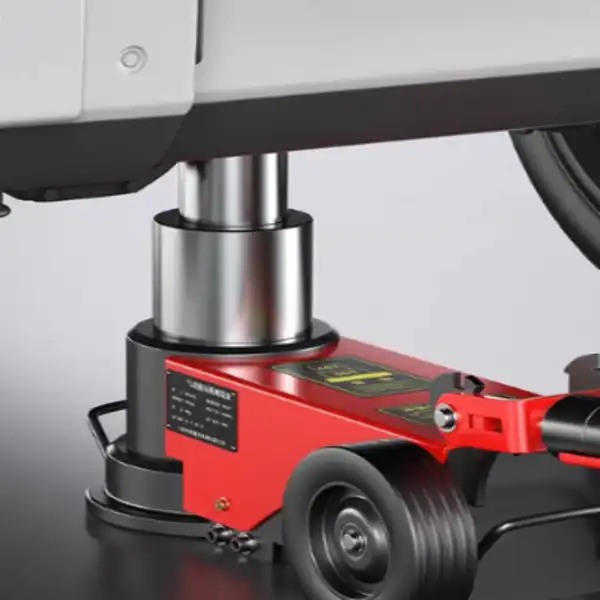

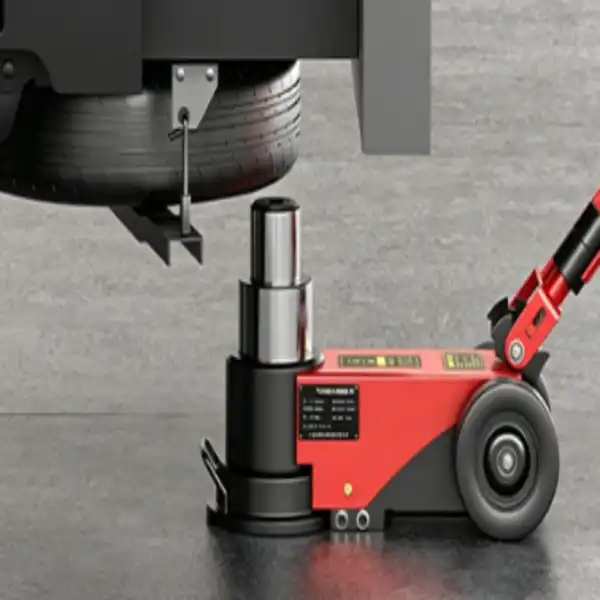

How Does a Small Pneumatic Jack Improve Maintenance Efficiency?

A small pneumatic jack improves maintenance efficiency by converting compressed air into rapid vertical lifting force, achieving full extension in as little as 3–5 seconds. Unlike manual or hydraulic alternatives, this air-powered lifting device eliminates physical pumping effort, reduces operator fatigue, and accelerates task turnaround in high-frequency environments. Built from carbon steel, alloy steel, or aluminum alloy with chrome-plated cylinder interiors and durable rubber seals, these compact tools integrate seamlessly into automotive repair bays, industrial assembly lines, construction sites, and mining operations—delivering consistent, repeatable performance where downtime is costly, and speed is non-negotiable.

 Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks: Functionality and Core Benefits

A pneumatic air jack works on a simple idea: pressurized air coming through a standard hose interface inflates an internal device, which pushes the piston up with steady, controlled force. The inside of the cylinder is chrome-plated to protect it from wear, and Fluororubber or Nitrile Rubber seals keep the pressure stable over a temperature range of -20°C to +80°C and a working pressure of 0.4 to 0.8 MPa. There is a safety button and an exhaust muffler put in to protect both the user and the load at all times.

When it comes to structure, air-powered lifting devices are better than hydraulic floor jacks because they don't have hydraulic oil seals that wear out or leak over time. This directly means lower costs for parts and fewer unplanned maintenance periods for the jack itself. A Small Pneumatic Jack is much easier to move around than an electric lift table, which makes it useful for mobile maintenance teams and field service operations.

Why Air-Powered Lifting Outperforms Manual Methods

It's hard on your body to do a full shift of manual jacking because you have to do the pump strokes over and over again while they are loaded. With a pneumatic lifting device, that factor is completely taken away. Studies on ergonomic tool design regularly show a link between less manual effort and a lower rate of musculoskeletal injuries among repair techs. This is a strong reason for fleet managers and site procurement heads to look at total staff efficiency, not just the cost of equipment.

Key Factors That Enhance Maintenance Efficiency

There is no one-size-fits-all answer to choosing the right moving equipment. It is better not to under-engineer or over-size the jack than to match its stated capacity to the real load, which is usually between 2.5 and 3 tons in small-class configurations. Different models are also important. Single-stage units work best for simple vertical lifts, while scissor-type configurations have a lower minimum height profile (about 130–150 mm), which lets technicians work under low-clearance vehicles or machinery that regular floor jacks can't reach.

This is a list of the practical factors that directly lead to savings:

• Lifting speed and cycle time: A pneumatic jack reaches maximum height in under 5 seconds at rated pressure, enabling high-throughput tire service centers handling dozens of vehicles daily to cut per-vehicle turnaround significantly compared to hydraulic pumping cycles.
• Internal telescopic stabilization: A steel telescopic guide inside the airbag assembly prevents lateral shear during inflation, eliminating the wobble risk that undermines confidence and slows technicians who might otherwise hesitate before proceeding with a task.
• Minimal preventive maintenance burden: Without hydraulic fluid circuits, routine upkeep focuses on air filter inspection, seal integrity checks, and periodic cycle testing—tasks that take minutes rather than hours.

These benefits directly lead to output that can be measured. When each lift cycle is 60–80% faster than a similar manual process, a commercial vehicle repair shop that does 40 or more lifts per day saves a lot of time over time. When procurement engineers and site managers ask for a small air jack, they are really asking for that added speed.

Matching Jack Specifications to Application Demands

Reliability is more important than speed on construction sites and in mines. In these demanding conditions, a Small Pneumatic Jack made from carbon steel or alloy steel, with a spray-painted or anodized surface for corrosion resistance, can provide the durability required for heavy-duty applications. Compared with lighter aluminum designs, a properly selected Small Pneumatic Jack can offer greater structural robustness for challenging work environments. Variable pressure control is also useful for industrial assembly lines that require precise positioning. It allows technicians to adjust the lifting height of a Small Pneumatic Jack with a level of accuracy that may be difficult to achieve with basic hydraulic lifting systems. For applications where controlled movement and dependable operation are essential, choosing the right Small Pneumatic Jack can help support consistent lifting performance and production efficiency.

Selecting the Right Pneumatic Jack for Your Procurement Needs

The global market for air-powered lifting equipment has grown up a lot. Now, procurement professionals can find ISO 9001 and CE-certified suppliers that can meet both performance standards and legal requirements. ATEX-certified types that meet PED/GB pressure safety guidelines must be used in places that could be explosive, like some mines or chemical processing plants.

In a business-to-business (B2B) setting, the following factors are the most important when judging suppliers:

• Certification traceability: ISO 9001 certification confirms documented quality management across the manufacturing process, including leak testing, pressure testing, and life cycle validation.
• OEM and customization capability: Non-standard lifting heights, custom load capacities, or special mounting configurations are often necessary for integration into proprietary production lines. A supplier with rapid prototyping capability shortens specification-to-delivery timelines meaningfully.
• After-sales responsiveness: A 24–48-hour response window for technical queries and pricing directly reduces procurement cycle friction for purchasing managers working against project deadlines.

The right way to measure this is by the total cost of ownership, not by the unit cost. It is more reasonable to buy from a certified pneumatic jack provider that offers confirmed life cycle testing data than from an uncertified option that costs less.

Implementing Pneumatic Jacks in Your Maintenance Operations

Operational integration starts with a structured needs assessment. For each maintenance application, this means making a list of the load weights, ground clearance limits, lift frequency, and environmental conditions. The information given determines both the specifications of the jack and the size of the compressor. For most Small Pneumatic Jack uses, a standard shop compressor delivering 85–115 PSI continuously is enough, since the air volume needed isn't as high as with high-CFM air tools.

Three things that operators must always do during training are: make sure the load is placed on flat, hard surfaces before inflating the jack (slopes create shear forces that the internal guide can't fully resist), make sure the safety valve works before every shift, and know that pneumatic jacks are only good for quick positioning tasks and not for long-term static support, which needs an extra mechanical lock.

Real-world adoption data from high-throughput auto repair shops shows that technician fatigue complaints go down a lot when they switch from manual to air-powered lifting. Also, reports of jack instability incidents go down when technicians get structured training on how to place the jack correctly and manage the pressure.

Conclusion

A Small Pneumatic Jack is more than just a handy lifting tool; it can also help maintenance teams complete tasks more efficiently. It is a useful addition to many maintenance operations because a Small Pneumatic Jack can shorten lift cycles, reduce operator fatigue, require little to no hydraulic maintenance, and support applications across automotive, construction, industrial, and mining environments. The most lasting efficiency gains come when procurement professionals ensure that Small Pneumatic Jack specifications match actual load and ground-clearance requirements, purchase from certified manufacturers, and provide appropriate operator training. By selecting the right Small Pneumatic Jack for the application and using it correctly, businesses can support consistent lifting performance, improve workflow efficiency, and achieve better long-term value from their equipment investment.

FAQ

What routine maintenance does a pneumatic jack require?

Check the air intake filter once a week to keep the pressure from dropping. Every month, look at the rubber seal to see if it is cracking or deforming. Regularly remove water from the air supply line, especially in cold places where mist can freeze valve parts inside. Every three months, make sure the integrity of the check valve by doing a pressure retention test: pump up to the recommended load, turn off the air supply, and make sure there is no height loss after 30 minutes.

How do I select the correct lifting capacity?

Figure out the jack's highest single-point load and add at least 25% more to that number as a safety cushion. For vehicles, look at the axle weight statistics provided by the maker. When it comes to machinery, use technical load specs instead of guesses.

Where can I source certified pneumatic jacks reliably?

Only buy from companies that have ISO 9001 and CE certifications that can be checked and have test reports for leaks, pressure, and life cycle validation. Before agreeing to bulk orders, ask for quality paperwork at the batch level.

Partner With FLA Industrial for Your Next Lifting Equipment Order

FLA Industrial & Trading Co., Ltd. has been making things for almost 40 years, and each unit we make shows that. As a reliable Small Pneumatic Jack provider, we offer air jacks made from alloy steel with chrome-plated cylinders, Fluororubber seals, and built-in safety valves. These air jacks are ready for use in automotive, building, mining, and other industries. OEM customization is possible, and response times are 24 to 48 hours. To get details and bulk pricing, email our team at sales@flaindustrial.com or go to flaindustry.com.
