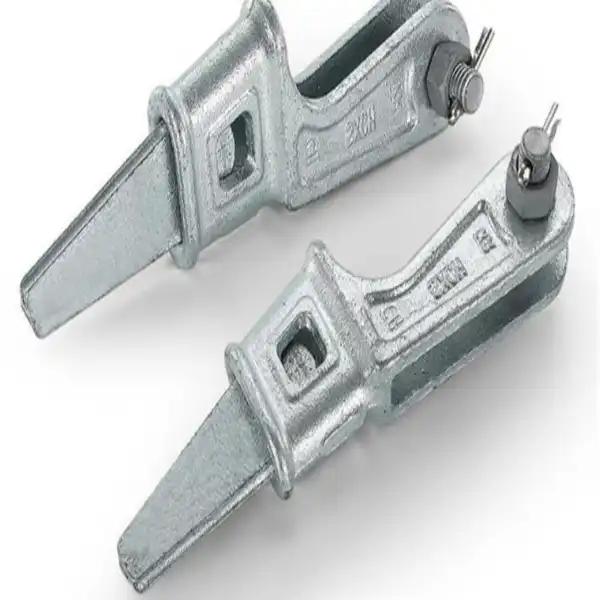

Wedge-Type Clamp Ensures Secure Cable Fixing in Power Installations

When overhead power lines carry thousands of volts across miles of infrastructure, every mechanical connection point carries enormous responsibility. A Wedge-Type Clamp addresses that responsibility directly — it anchors and connects conductors in aerial installations using a self-locking wedge mechanism that converts cable tension into radial gripping force. Unlike conventional bolted clamps, this design holds without crushing insulation, resists environmental degradation, and allows rapid deployment. For procurement managers, electrical engineers, and utility contractors across the United States, understanding this hardware category can meaningfully reduce installation risk and long-term maintenance burden.

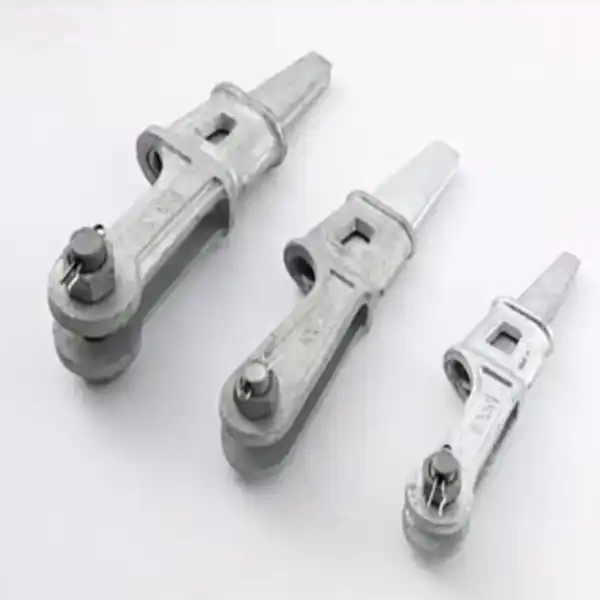

Specifications

Product Name	Applicable Range	Material Options	Finish
National Standard Hot-dip Galvanized NX-1 (Upper Handle)	6.6-7.8mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-2 (Upper Handle)	9-11mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-3 (Upper Handle)	13-14mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum
National Standard Hot-dip Galvanized NX-4 (Upper Handle)	15-16mm	Steel/Aluminum Alloy	Hot-Dip Galvanized/Natural Aluminum

Understanding Wedge-Type Clamps in Power Installations

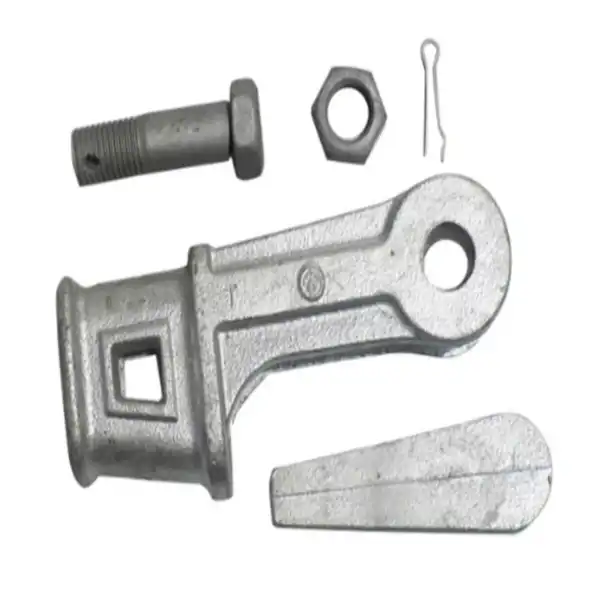

How the Wedge Mechanism Works

The idea behind how a wedge-type wire clamp works is incredibly simple. When the strain on the wire goes up, the wedge parts are pushed deeper into the outer shell. This changes the longitudinal pull into radial clamping pressure around the conductor. Grip tightens in proportion to load, which means that the clamp can adjust itself to real-world stress instead of relying on a technician's guess of how much torque to use. In standard bolted hardware, stress concentration points can break conductors or cause insulation to micro-crack. This proportional grip feature gets rid of those places.

Materials and Finish Options

These Wedge-Type Clamp Products" target="_blank" style="color:blue" >products are made by FLA Industrial & Trading Co., Ltd. from two main material options: high-strength steel and corrosion-resistant aluminum alloy. The aluminum alloy version has a natural aluminum finish, making the Wedge-Type Clamp lighter and suitable for installations where reducing weight at elevated positions is important. The steel version is hot-dip galvanized, providing a protective zinc coating that helps prevent corrosion and galvanic reaction. This makes the steel Wedge-Type Clamp particularly suitable for coastal or high-humidity environments. Both material options meet applicable IEC requirements and are manufactured through die casting, forging, and precision machining processes to help ensure consistent dimensions across every batch of Wedge-Type Clamp products.

Overhead power lines, strain release points, conductor support frames, and aerial bundled cable (ABC) termination nodes are all things that these clamps are used for. They can work with standard configurations used in North American utility grids because they can handle different conductor outer diameters.

Why Wedge-Type Clamps Are the Optimal Choice for Secure Cable Fixing

Purchasing engineers who have bought screw clamps or toggle-style hardware for work on overhead lines know how frustrating it can be: these old-fashioned fixings need to be tightened by hand, break down when they're vibrated, and can wear through wire jackets over time. Wedge-type conductor clamps don't depend on human skill alone to avoid any of these failure types. Instead, they do it through geometry.

Here are the main performance benefits that make this type of hardware stand out:

• Proportional Grip Under Load: Gripping force scales linearly with cable tension, so the clamp self-tightens during high-wind or ice-loading events — exactly the moments when conventional clamps are most likely to slip. Field data from overhead distribution deployments confirms that properly matched wedge clamps hold cables up to 95% of the cable's rated breaking strength without slippage or shell fracture.
• Insulation Integrity Preserved: The wedge contact surface is engineered to distribute pressure over a broad area rather than a concentrated edge. This prevents jacket puncturing, which is a critical requirement for XLPE-insulated aerial bundled cables where moisture ingress at a breach point triggers accelerated insulation failure.
• Corrosion and Vibration Resistance: Hot-dip galvanized steel variants withstand 500–1,000 hours of salt fog exposure per standard testing protocols, and aluminum alloy bodies resist galvanic corrosion inherently. Both material options maintain structural integrity through sustained vibration cycles common to long-span overhead lines.

All of these benefits work together to cut down on unplanned maintenance and increase the life of cables, which is a clear return on investment for utility companies that run large transmission networks.

How to Select the Right Wedge-Type Clamp for Your Power Installation Needs

Matching Clamp Range to Cable Outer Diameter

The outer diameter (OD) of the wire or cable being secured is the first parameter that can't be changed. Each model of clamp only works with a certain range of ODs. For example, a clamp that is rated for 10–14 mm doesn't work well outside of that range. Mismatching OD range is the main reason why cables slip during field installations, so before placing an order, procurement teams should compare the manufacturer's datasheet to the cable specification sheet.

Load Capacity and Environmental Classification

In addition to making sure the ODs match, buyers should check the Maximum Working Load (MWL) number against the tension that was measured for their particular span configuration. Hot-dip galvanized steel is the best way to protect against rust in seaside or chemically-rich industrial settings. For systems that are sensitive to weight or fiber optic co-deployment, aluminum metal lowers the mechanical load on support structures.

When working on big projects, buying in bulk can save you money and time. FLA Industrial & Trading Co., Ltd. keeps more than 2,000 tons of standard product lines in stock so that they can be sent out quickly for projects that need to be finished on time. With an engineering turnaround time of about 7–15 working days, you can get custom configurations that include non-standard OD ranges or specialized geometry. This flexibility is very helpful for procurement managers who are looking for Wedge-Type Clamp suppliers for U.S. distribution projects, especially for line upgrades with a mix of specifications.

Installation and Maintenance Best Practices for Wedge-Type Clamps

Step-by-Step Installation Protocol

The right fitting is easy once the right clamp size has been chosen. First, make sure that the gage of the wire is within the rated range of the clamp. Place the clamp at the anchor or end point that was given, then manually slide the wedge parts into the shell. Let the span's natural cable stress finish the tightening process. Most new designs don't need any tools, like a torque wrench or a tuning tool. When working on or near electrical equipment, you should always wear the right PPE, such as insulated gloves and safety glasses.

Routine Inspection and Wear Indicators

During routine line sweeps, inspect each installed Wedge-Type Clamp for obvious shell cracking, wedge movement, or surface corrosion at metal-to-metal contact points. If a Wedge-Type Clamp has been removed from service, it should not be reinstalled because the wedge components may conform to the wire profile during initial installation, and reuse can reduce the reliability of the grip. Replacement intervals for each Wedge-Type Clamp should be coordinated with the company's overall asset management plan and should meet applicable OSHA and NESC requirements for overhead line hardware. Regular inspection and timely replacement of a Wedge-Type Clamp can help maintain secure conductor connections and support reliable overhead line operation.

Procurement Insights: Buying Wedge-Type Clamps for Industrial Power Projects

To find power line hardware for U.S. projects, you need vendors who can provide both detailed technical documentation and quick logistics. For almost 40 years, FLA Industrial & Trading Co., Ltd. has been doing business in countries like the US, Germany, and Australia. They follow ISO9001 standards at every step of the production process. Every production batch goes through quality assurance checks that make sure the materials are correct, the measurements are correct, and the clamping force is correct.

For price and technical questions, the answer time is 24 to 48 hours. Custom engineering help starts with reviewing the 3D design and continues with keeping you up to date on the production process until the delivery. Hardware sellers who have to keep track of many different SKU catalogs will find FLA's portfolio of over 1,000 product specs in the tool and fitting categories helpful for combining products from multiple lines. Partnerships with Fortune Global 500 companies show that they can reliably make a lot of things.

Conclusion

Wedge-type cable clamps are a mature and well-tested solution for securing wires in overhead power systems. Because a Wedge-Type Clamp can provide a self-locking connection, long service life, and tool-free installation, it is a practical option for utility workers, electrical engineers, and distributors who need reliable performance and cost-efficient installation. The most important factor for long-term dependability is choosing the correct Wedge-Type Clamp for the conductor's outside diameter (OD), required load capacity, and environmental conditions. FLA Industrial & Trading Co., Ltd. maintains a large stock inventory and is ISO 9001 certified, helping the company provide consistent production and flexible purchasing options for demanding power infrastructure projects. By selecting the appropriate Wedge-Type Clamp and working with a qualified supplier, buyers can support secure conductor installation and reliable long-term performance.

FAQ

Are wedge-type clamps reusable after removal?

In most cases, no. When the wedge parts are first put together, they bend to fit the shape of the wire jacket perfectly. When you reinstall used wedges, the grip gets weaker and you might be breaking safety rules. It is standard practice to replace old hardware with new hardware.

Do these clamps damage cable insulation?

If you choose and place an overhead conductor clamp correctly, the pressure is spread out over a large contact area, which keeps the jacket from getting punctured. This keeps the insulation in good shape and keeps water out, which is a very important performance requirement for XLPE-insulated aerial cables.

What causes cable slippage in wedge-type installations?

The main reason is OD mismatch, which happens when you use a clamp whose rated range doesn't match the wire width. Low-quality materials that expand when heated can also slowly loosen their grip when they are under a lot of pressure and the temperature is high.

What standards govern quality validation?

Manufacturers with a good reputation test their products against IEC 61284 for tensile and mechanical performance, ASTM G154 for UV aging, and ISO 9227 for salt sprays. FLA Industrial & Trading Co., Ltd. has ISO9001 and IEC certifications for the ways it makes things.

Partner With FLA Industrial for Your Next Power Line Project

For major power infrastructure projects, FLA Industrial & Trading Co., Ltd. offers approved, field-proven Wedge-Type Clamp hardware that comes in a wide range of sizes and can be customized. Our team is ready to help you meet your purchase deadline. We have reasonable prices, nearly 40 years of experience making things, and a promise to answer your questions within 24 to 48 hours. Today, ask for a price, a detailed datasheet, or a sample of the product. You can email us at sales@flaindustrial.com or go to flaindustry.com.
