Small Pneumatic Jack Delivers Compact Lifting Performance for Maintenance Work

When maintenance schedules tighten and downtime costs escalate, the right lifting equipment becomes non-negotiable. A small pneumatic jack transforms routine lifting tasks into swift, efficient operations by harnessing compressed air technology in a compact, portable design. Unlike traditional hydraulic jacks requiring repetitive manual pumping, these air-powered devices achieve full extension within seconds, dramatically reducing physical strain on technicians while improving workflow productivity. This lifting solution addresses critical pain points across automotive repair shops, industrial assembly lines, and construction sites where low-clearance access and rapid positioning determine operational success.

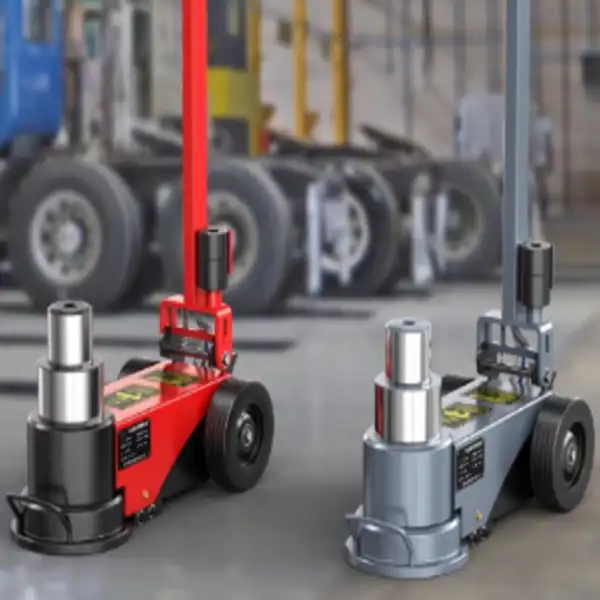

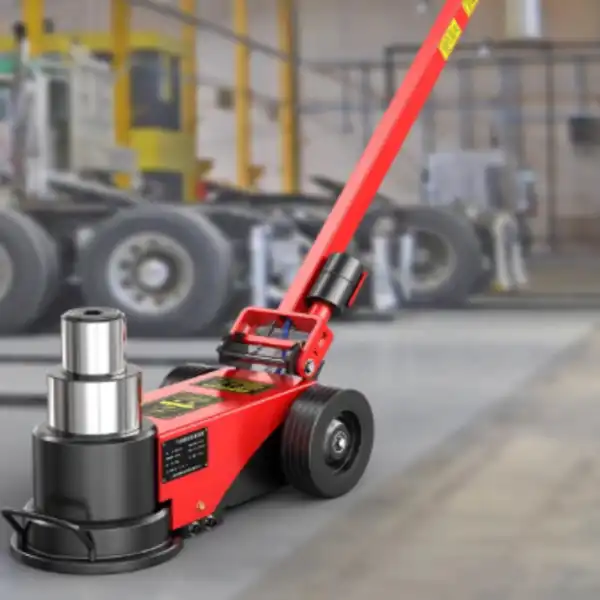

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg

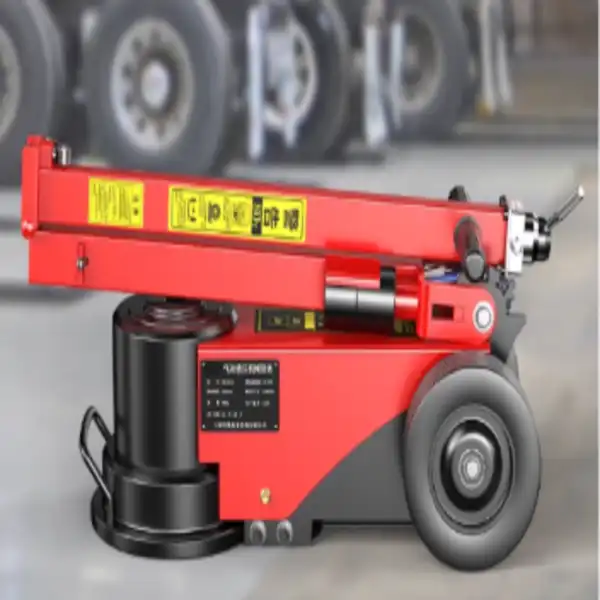

Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding Small Pneumatic Jacks: Operation, Benefits, and UsageHow Pneumatic Jacks Work

Compressed air powers a piston cylinder or inflates a multi-layered reinforced rubber bladder. When hooked up to a normal shop air compressor that puts out 85 to 145 PSI, the device uses an internal telescopic stabilization system to turn pneumatic energy into vertical lifting force. This stabilizer keeps the load secure during the pulling cycle by stopping side shaking during inflation. The triple-layer vulcanized rubber bladder is strengthened with steel cords or synthetic fiber mesh, and it can handle three to four times the standard working pressure before it bursts. Premium models have fluororubber seals and chrome-plated cylinder interiors that keep them from leaking in harsh conditions. The built-in safety valve lets go of extra pressure automatically, and the exhaust filter lowers noise while the machine is running.

Core Operational Benefits

The main benefit of air-powered lifting equipment is speed. These tools are faster than hydraulic ones that need to be pumped continuously by hand because they reach their highest point in less than five seconds. When technicians work on dozens of cars every day at high-volume tire service shops, this quick answer is very helpful. Without hydraulic oil, there is no chance that seals will break or fluid leaks will pollute work areas. This feature is especially useful for maintenance teams that work in dusty factories because pneumatic systems don't score or seize like particulate-contaminated hydraulic pistons often do. The small size makes them easy to carry, and most models have minimum collapsed heights of 130 to 150 mm. This low-profile design lets you get under lowered sports cars, modified tuners, or machinery with low ground clearance, where regular floor jacks can't go without hurting the bodywork or trunk parts.

Step-by-Step Operational Guidance

Put the device on a flat, hard surface before plugging the air hose into the standard port. Make sure the safety valve works right, and look for any blockages in the exhaust muffler. Once the air source is hooked up, change the valve pressure from 0.4 to 0.8 MPa to control the speed of the lift. Keep an eye on the load as it goes up and make sure the unit stays level under the lifting point. If the supply is cut off, the non-return check valve keeps air in the bladder, keeping the height until the user releases it. Never use more than the rated capacity or on sloped ground, because lateral shear forces can bend the internal telescopic guide, which could cause the load to fall completely. Once the lifting is done, slowly use the release device to change the speed of the fall. Take the air supply off and look inside the bladder for holes, cracks, or chemical damage from welding splatter or brake fluid. Keep the unit in a clean, dry place between -20°C and +80°C, which is its normal working temperature range.

Safety Protocols and Maintenance Requirements

For long-term static support, always pair a Small Pneumatic Jack with mechanical locking devices. These jacks are great for quickly placing things and doing the same thing over and over again, but they should never be used as the only support system during long repair jobs. Place the jack stands right away after reaching the desired height. As part of a routine inspection, the rubber bladder is looked at visually for ozone cracks, which are a sign that the material is breaking down and needs to be replaced. Every year, check the unit's ability to keep its height for 24 hours by inflating it to its fullest capacity, cutting off its air supply, and making sure it stays that way. It is necessary to regularly purge the air system and clean the filters because moisture in the air lines can freeze in cold places or damage the internal valve mechanisms. During quality control, dynamic overload testing at 125 to 150% of rated capacity confirms the structure's strength. This makes sure that the steel core and weld points can handle field stress. Cycle testing that simulates more than 5,000 lift/release operations makes sure that the rubber fold and release valve will last before the units are sent to customers.

Comparing Small Pneumatic Jacks with Other Lifting Tools for Optimal Procurement

Performance Analysis Against Hydraulic Systems

Hydraulic jacks can hold a lot of force, but they need constant manual work to change the height. Small Pneumatic Jacks get rid of pump tiredness and allow for faster lifting speeds. This makes them better options for operations that value worker comfort and output efficiency. Not having hydraulic fluid also means there are fewer pollution risks and cleanup tasks after seal fails. Maintenance times are much better for air-powered systems. Hydraulic systems need to have their oil changed, their seals replaced, and their systems bled to get rid of air spaces. Pneumatic units only need to have their seals checked and their moving parts oiled every so often. This lowers the long-term costs of ownership and makes it easier to keep track of repair supplies.

Portability Comparisons with Scissor and Bottle Jacks

Scissor jacks are stable, but they are slow to use and can only lift a certain amount. Their mechanical screw mechanisms need to be cranked over and over again, which makes them impractical for professional settings where several vehicles need to be serviced every hour. While bottle jacks offer small vertical storage, they don't have the low-profile access that air-powered bladder designs do. Technicians can't move around as easily in large buildings because of their weight. Aluminum alloy pneumatic models are much lighter than steel hydraulic models with the same capacity. This makes them easier to move from one workstation to another without affecting their structural integrity or ability to hold weight.

Environmental and Power Source Flexibility

Electric jacks get rid of the need to do things by hand, but they make you dependent on having outlets available and managing extension cords. Facilities that already have a system for compressed air can use pneumatic tools right away without having to make any changes to their electrical wiring or worry about their circuits' capacity. Construction sites and mines are great places to see how durable air-powered systems are in harsh environments. Extreme temperatures, dust, and vibrations that can damage electronic controls or hydraulic seals don't have much of an effect on strong pneumatic designs with chrome-plated cylinders and surface treatments that resist corrosion.

Procuring the Right Air Jack: Market Options and Buying Guide

Evaluating Capacity and Specifications

The rated lifting capacity for a Small Pneumatic Jack usually between 2.5 and 3 tons, which is enough for cars, light trucks, and modular machinery parts. Check that the specs include safety factors and burst pressure ratings. High-quality units should have ratios of more than 3:1 between failure levels and working limits. The makeup of a material affects how long it lasts and what it can be used for. The carbon steel construction can handle rough industrial settings, and the aluminum alloy versions are lighter and easier to move around without sacrificing strength. Seal materials are very important. Fluororubber is more resistant to chemicals than nitrile rubber, which means it lasts longer in places where petroleum Products" target="_blank" style="color:blue" >products are present.

Bulk Purchasing Advantages for Distributors

When hardware and tool sellers buy in bulk, they can get savings on the total amount of units they buy. Quality that stays the same from batch to batch is very important, so suppliers with ISO9001 certification and documented quality management systems are needed. Chrome-plated surfaces need to be protected during shipping, and the packaging needs to make it easy to stack in the warehouse. Distributors can serve a wide range of customers when they have a lot of SKU choices. By offering a range of capacity ratings, material specifications, and accessory packages, distributors can be seen as all-around solution providers rather than just selling one product. Strong packaging with clear labels helps with store appearance and lowers the number of returns due to damage in transit.

International Logistics and Compliance Considerations

When buying things across borders, you need to pay attention to the approval needs. CE marking shows that the product meets European safety standards, and ATEX certification shows that it is safe for use in mining and petrochemical industries. The Pressure Equipment Directive (PED) and GB standards make sure that pneumatic devices are safe. The right paperwork makes it easier to clear customs and pass regulatory inspections. Shipping logistics like to work with freight partners who are skilled and know how to handle compressed air tools. Valve damage and bladder punctures can be avoided during shipping by using the right packing. Expected lead times should take into account production cycles, quality checking procedures, and the time it takes for sea freight, which is usually between 45 and 60 days from the time an order is placed until it arrives at its target port.

Trusted Brands and Suppliers in the Global Market

Established Market Leaders

Ingersoll Rand is known for making industrial-grade air tools and having a large service network to back them up. Their Small Pneumatic Jacks have reinforced bladders and precision-machined parts that are made to last through years of heavy use. Campbell Hausfeld offers choices for contractors that are focused on value and strike a balance between price and performance needs. DEWALT uses the fact that building professionals know and trust its name to offer pneumatic lifting solutions that are built into larger tool environments. Snap-on makes high-end models for automotive professionals that have advanced safety features and ergonomic design improvements based on feedback from technicians.

Supplier Selection Criteria

Beyond the quality of the product, the long-term value of a partnership depends on how well the supplier takes care of customers after the sale. Quick technical support helps purchasing teams choose the right models for each application, and engineering collaboration makes it possible to create custom configurations that fit the needs of each workflow. The warranty should cover more than just the standard amount of time, and there should be clear rules about how to replace parts and where to find them. Case studies from the real world show how capable a provider is. Suppliers who work well with others change their production schedules to meet pressing restocking needs, check 3D designs for custom mounting interfaces, and give real-time production reports while an order is being filled. These aspects of service set special providers apart from transactional ones.

Innovation and Technological Advances

New technologies include smart pressure regulation systems that keep the lifting speed constant even when the compressor output changes. Improved rubber compounds are better at resisting ozone degradation, which makes bladders last longer when stored outside. With modular accessory systems, technicians can change the saddle configurations on a single base unit to fit a variety of lifting needs. Continuous growth processes are shaped by what users say. Maintenance workers asked for built-in pressure gages so they could see if the working settings were correct, which is why makers made this feature standard. Purchasing managers like it when sellers show they care about changing customer needs by making products that are responsive to those needs.

Conclusion

A Small Pneumatic Jack provides lifting performance that solves productivity problems in the construction, industrial, and automotive sectors. Because they are fast, portable, and need less upkeep, these devices are smart investments for businesses that need to move loads quickly without sacrificing safety. A good procurement decision is based on the quality of the materials, the supplier's dependability, and the supplier's ability to meet certification requirements. Facilities that have the right infrastructure for compressed air can send tools more quickly, and the range of capacity choices makes sure that the right tool is chosen for the job. Air-powered lifting solutions are necessary for repair processes that put uptime and technician health first because they are quick to use, have low profiles, and are comfortable for the operator.

FAQ

What lifting capacity do compact air jacks typically support?

Most Small Pneumatic Jacks can hold between 2.5 and 3 tons, which is enough for cars, light trucks, and flexible industrial equipment. When choosing a capacity, safety margins should be taken into account. The maximum rated load should never be used for normal use. Check that the structure is still strong at 125 to 150% of its claimed capacity by testing it for burst pressure.

How does maintenance compare with hydraulic alternatives?

A lot less maintenance is needed for air-powered systems than for hydraulic ones. When hydraulic fluid is taken away, worries about seal degradation and leak control go away. Visually checking the bladder, testing for pressure retention once a year, and lubricating moving parts every so often are all normal tasks. Not having to change the oil or bleed the engine cuts down on downtime and costs for parts.

Can pneumatic jacks operate safely on uneven surfaces?

Do not use these tools on slopes or ground that is not level. Positioning at an angle causes lateral shear forces that bend internal stabilizers, which increases the risk of quick load collapse. To keep the structure safe and the people working on it, you should always check that the load is level before you start lifting.

Partner with FLA Industrial & Trading Co., Ltd. for Premium Pneumatic Jack Solutions

Choosing the right Small Pneumatic Jack supplier has effects on how well your business runs for years after you buy it. FLA Industrial & Trading Co., Ltd. has been making high-quality pneumatic lifting tools for almost 40 years. Our quality control methods are backed by ISO9001 and CE certificates. Our engineering team specializes in making unique configurations that meet your exact needs for capacity, material, and mounting. Before full production, fast prototyping makes sure that all of the specifications are met exactly. We offer competitive pricing structures for bulk purchases to hardware stores, construction companies, and industrial maintenance companies. Before it is shipped, every unit goes through a full set of leak tests, pressure validation, and life cycle checks. Our helpful support team sends you quotes and technical details within 24 to 48 hours, so you don't have to wait to make a decision. As a reputable maker of Small Pneumatic Jacks that works with Fortune Global 500 companies in North America, Europe, and the Asia-Pacific region, we can give your business the dependability it needs. To talk about your lifting equipment needs, email our sales team at sales@flaindustrial.com. You can look through our full product catalog at flaindustry.com and learn how FLA Industrial's small-sized lifting capabilities change the way maintenance work is done.
