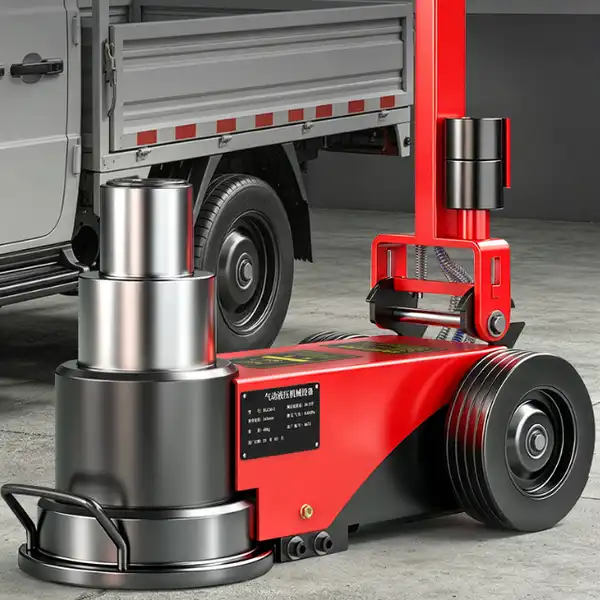

Small Pneumatic Jack Solves Low-Clearance Lifting Challenges in Workshops

Low-clearance lifting represents one of the most frustrating challenges facing modern workshops and industrial facilities, and a Small Pneumatic Jack solves this problem. When traditional hydraulic jacks simply cannot fit beneath low-profile vehicles or compact machinery, operations grind to a halt. Air-powered lifting devices have revolutionized how workshops approach this persistent problem. By harnessing compressed air technology within a remarkably compact chassis, these lifting tools deliver powerful vertical force where conventional equipment fails. They achieve full extension in seconds, sliding beneath vehicles with minimal ground clearance while maintaining stability and load capacity that meet rigorous industrial safety standards. Whether your facility handles luxury sports cars, modified vehicles, or precision machinery alignment, pneumatic lifting technology addresses the core pain point: accessing restricted spaces without compromising speed or safety.

Specifications

Type	Product Model	Lifting Capacity	Working Pressure	Minimum Height	Lifting Height	Stroke	Net Weight
Straight Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Straight Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Straight Rod	National Standard 120T	120T/60T	0.8-1.2mpa	205mm	385mm	180mm	90kg
Straight Rod	National Standard 150T	150T/75T	0.8-1.2mpa	205mm	400mm	195mm	100kg
Folding Rod	National Standard 50T	50T/25T	0.8-1.2mpa	195mm	430mm	235mm	46kg
Folding Rod	National Standard 80T	80T/40T	0.8-1.2mpa	195mm	370mm	175mm	60kg
Folding Rod	National Standard 100T	100T/50T	0.8-1.2mpa	205mm	380mm	175mm	73kg

Understanding the Low-Clearance Lifting Problem in Workshops

Aerodynamics and looks are becoming more and more important in modern car design, which is why ground clearances are often less than four inches. This trend in engineering makes it hard for techs to place standard lifting equipment, which causes big problems in car service shops. Most hydraulic floor jacks need to be inserted at least five inches below the floor, which means they can't be used with modern vehicle profiles.

In addition to car uses, similar problems can also be found in manufacturing settings. Maintenance on an assembly line often involves moving tools that are stuck in tight areas that standard jacks can't reach. Leveling and adjusting production machinery, vibrating screens, and transport systems needs to be done on a regular basis, but the places where they are placed often make it impossible to use normal tools.

Why Traditional Jacks Fall Short?

Manual jacks require technicians to do the same physical work over and over, which makes them tired and less productive in high-volume settings. Hydraulic systems are strong, but they can leak fluid, need to have their seals replaced often, and have lift cycles that are pretty slow. Because they are so big, they can't be moved easily between desks. Bottle jacks are good for small storage, but they don't have the very low profile that modern uses need. Electric jacks are convenient, but they also make things more difficult because you have to take care of the batteries and charge them.

These restrictions directly affect the costs of doing business. Longer wait times for services slow down business garages. When equipment is down for repair, it changes the plan for production. Technicians are more likely to get hurt and file a workers' compensation claim because they have to do more hard work.

Operational Impact Across Industries

When portability is important, construction sites have trouble keeping their tools in good shape. Heavy machinery needs to be serviced on a regular basis in places that aren't close to set lifting stations. When plumbing workers try to align pipe systems in crawl areas or under tall buildings, they run into the same problems. Even factories that make furniture need precise lifting for finishing equipment and assembly jigs that are close to the factory floors.

All of these situations have something in common: they all involve limited room and the need to lift something. Workshops need tools that can be quickly set up, have a low entry height, and hold enough weight to safely handle a wide range of operating needs.

Small Pneumatic Jacks: Features, Benefits, and Use Cases

Through a reinforced rubber bladder system, pneumatic lifting technology turns squished air into controlled vertical force. The three-layer design includes steel cord support inside vulcanized rubber, making a membrane that can withstand pressures that are much higher than what is needed for operation. Internal flexible supports keep the load stable during the whole lift cycle by stopping it from moving side to side.

You can build with carbon steel, alloy steel, or an aluminum alloy, which gives you a choice of materials that can adapt to different climatic conditions. Chrome plating on the inside of the cylinders stops corrosion and keeps the machine running smoothly at temperatures between -20 and +80 degrees Celsius. Seals made of fluororubber and nitrile rubber keep air in, even in harsh workshop conditions where chemicals and changes in temperature can damage equipment.

Core Advantages Driving Adoption

Speed is the main benefit in a competitive situation for a Small Pneumatic Jack. Getting to the highest lift height in five seconds cuts service time by a huge amount compared to manually pumping or building up hydraulic pressure. This efficiency goes up a lot in high-volume settings, where dozens of lift cycles per day save a lot of time. Less physical stress is just as important. Technicians only have to connect the air supply and keep an eye on the lift. This gets rid of the need to do repetitive pumping movements, which can lead to injuries from cumulative strain.

Compared to hydraulic alternatives, they require a lot less maintenance. Since there is no hydraulic fluid, there are no problems with seal failure, fluid contamination, or cleaning up the surroundings. Most workshops already have air supply systems that work well with this system, so no extra infrastructure needs to be bought. The small size makes it easy to store in tool carts and move between work bays, which supports flexible working setups.

Some safety features that are built into good designs are pressure relief valves that stop the air from getting too high, exhaust mufflers that lower noise levels, and non-return check valves that keep the load in place when the air supply is cut off. These building features follow safety rules at work and keep both workers and tools safe.

Real-World Application Scenarios

The clearest benefits are seen in auto service centers that rotate tires, check brakes, and work on suspensions. Workflow is sped up when lifting equipment can be put under low-clearance speed cars without the need for ramps or extra lifting stages. Service advisors claim faster response times, which makes customers happier and lets them schedule more services each day.

These tools are used on industrial assembly lines to position parts while they are being made. Manufacturing experts like how exact the height control is, which lets them line up heavy parts correctly during installation. The rapid deployment helps lean manufacturing by cutting down on movement and waiting time that don't add value.

The portable power is useful for rescue activities by emergency reaction teams. The small size makes it possible to use in tight spaces where quick lifting is needed to free a stuck car. Pneumatic jacks are used by mining companies to service heavy equipment in remote areas where portability is more important than permanent installation.

Choosing the Right Small Pneumatic Jack: A Decision Support Framework

When making decisions about purchases, technical specifications and operational needs must be carefully compared. The most important feature is the load capacity, which usually falls between two and five tons in small sizes. Safety margins require choosing a capacity that is substantially higher than the maximum anticipated loads. This is to account for uneven weight distribution and dynamic loading during operational adjustments.

Critical Technical Specifications

Application compatibility is based on the minimum and highest height values. Low-clearance work units have heights that fall to about 130 millimeters and rise to 400 millimeters or more. Baseline standards are set by measuring the real clearances in your building. Standard shop compressor outputs can be handled by operating pressure ranges of 0.4 to 0.8 MPa, which means you don't need any special air supply equipment.

How fast it lifts depends on the air pressure and the design of the bladder. With variable pressure control, workers can change the lift rates, which lets them move more slowly and precisely for precise alignment work or quickly for routine jobs. This adaptability is useful for a wide range of tasks in the same building.

Choice of material affects both weight and how long something lasts. Building with carbon steel is strong and doesn't cost a lot, so it's good for use in a stable workshop. Alternatives to aluminum alloys are much lighter, which is helpful for mobile uses where workers move equipment from one place to another. Corrosion protection is important in places that are wet or where chemicals are used often.

Certification and Compliance Considerations

International safety standards set standards for quality security. Getting ISO 9001 approval proves that the manufacturing process is consistent and that the quality management system works. The CE mark shows that it meets European safety standards, and the ATEX mark shows that it meets the requirements for being explosion-proof in dangerous places. Following the rules in the Pressure Equipment Directive makes sure that vessels meet the standards for structural stability for pressure equipment.

When evaluating a vendor for a Small Pneumatic Jack, procurement managers should ask to see proof of certification. Reports from third parties that show burst pressure validation, cycle life testing, and dynamic load stability provide concrete performance proof that goes beyond what the maker says.

Performance Comparison Framework

To compare alternatives in a structured way across many dimensions, you need to be able to evaluate them. The speed of pneumatic systems is faster than that of hydraulic or hand systems. Because they are simpler to build and don't have fluid systems, air-powered equipment is easier to maintain. The small size and light weight of profiles make them easier to carry. The safety features in high-end pneumatic designs are as good as or better than those in hydraulic systems. This is because they have built-in methods for relieving pressure and keeping loads.

Cost analysis looks at more than just the initial price of an item. When figuring out the total cost of ownership, you should think about things like the cost of maintenance, the availability of replacement parts, the gains in operational efficiency, and the expected lifespan. Faster lift processes and less downtime during repair procedures are especially helpful for facilities that work multiple shifts.

Maintenance, Safety Tips, and Troubleshooting for Small Pneumatic Jacks

For equipment to last as long as possible, it needs regular preventative repair that is timed to match its level of use. When processes happen often, they need to be inspected more often than when they only happen sometimes. Rubber bladders, connection fittings, and structural parts are checked visually before each shift to find damage that is clear. If you see any cracks, tears, or deformations on the equipment, you must take it out of service right away until a professional can look it over.

Performance and longevity are directly affected by the quality of the air supply. Over time, moisture in compressed air lines speeds up rust inside and wears down rubber seals. Putting inline filters and moisture separators in place protects all of the workshop's pneumatic equipment. Air quality standards are kept up by regularly cleaning filters and replacing desiccant. In cold places, moisture freezing in air lines can block flow, which can lead to slow lift reaction or total failure of the system.

Essential Safety Protocols

Operating procedures need to stress how to properly prepare the surface. For safe load distribution, pneumatic jacks need flat, hard, stable platforms. Uneven ground puts horizontal stress forces on internal guide systems, which could lead to the structure failing. Jacks should never be put in place on slopes, soft ground, or flooring that isn't stable.

Load placement is very important. Putting the load in the middle of the jack's lifting pad keeps it from falling over while it's being raised. To keep the vehicle stable and prevent damage to the body, it must be touched at lift places marked by the manufacturer. Lifting heavy machinery should only be done in places that are physically sound and are marked on the equipment's paperwork.

Pneumatic jacks are only used as short-term lifting tools. Extra mechanical supports or locking stands are needed for longer-term static load support. The structure of the bladder is strong when it is actively pressurized, but it could fail when it is loaded for a long time. Changes in temperature or small leaks can cause changes in air pressure that can last for a long time and cause dangerous drop potential.

Steel-toed shoes, safety glasses, and hearing protection are all pieces of personal protective equipment that workers must wear during long operations. Clear communication methods keep escapes from happening by mistake when several techs are working near heavy loads.

Common Troubleshooting Procedures

A slow lifting response usually means that there isn't enough air pressure or that the flow is being blocked. Checking the output pressure of the compressor makes sure there is enough supply. By checking the links between the hoses, you can find kinked lines or loose parts that are blocking airflow. When built-up debris blocks flow, cleaning or replacing inlet filters restores normal flow rates.

Different lift heights could mean that air is leaking through the seals or the bladder is damaged. Leak sources can be found by cutting off the air flow after lifting and keeping an eye out for height loss. Bladder harm needs to be fixed by a professional or the unit needs to be replaced. Leaks caused by valves can be fixed by replacing the seals with materials specified by the manufacturer.

When lifting with a Small Pneumatic Jack, lateral instability means that the internal guides are worn or damaged. This situation poses serious safety risks, so the tools must be taken out of service right away. A professional check tells you whether the problem can be fixed or if a new one needs to be bought.

Knowing when to get expert help from a supplier keeps you from making unsafe fixes yourself. Damage to the structure, replacing the bladder, and problems with internal parts are bigger problems than what a workshop can normally handle. Manufacturers usually offer technical help through hotlines and field service to back up guarantee coverage and difficult repairs.

Procurement and Logistics: How to Source Small Pneumatic Jacks Efficiently?

There are more factors than just price that need to be looked at when looking for approved sources. The ability of a seller to make things determines whether they can meet standard orders and special requests. Facilities that need non-standard lift powers, unique environmental resistance, or specific mounting setups need providers with technical resources that can help with custom development.

Order delivery times are affected by production ability. When suppliers keep an inventory of standard setups on hand, they can quickly deploy them to meet urgent business needs. Custom orders have longer lead times that include validating the design, testing the prototype, and planning when to make the product. Project delays can be avoided by being clear about timelines while evaluating vendors.

Building Strategic Supplier Relationships

Pilot testing and evaluation phases are good times to buy a single unit. Facilities that want to standardize equipment across multiple sites or plan fleet repair programs can save money by ordering in bulk. When you negotiate framework agreements, you set prices, delivery dates, and service level promises that support long-term buying strategies.

Warranty coverage varies a lot from one supplier to the next. Comprehensive guarantees that cover materials, workmanship, and performance standards lower the risk. Knowing how to file a warranty claim, what the coverage doesn't cover, and how long the service will take to arrive can help avoid arguments when equipment breaks down.

Support services after the sale are what set top providers apart from commodity vendors. Technical advice during the development of specifications makes sure that the right equipment is chosen. Installation help and training for operators speed up deployment to production. Troubleshooting support that is quick and helpful cuts down on downtime caused by practical problems. Spare parts are easy to find and are shipped quickly, so equipment stays up and running for longer.

International Sourcing Considerations

Global buying adds a level of complexity to shipping that needs to be carefully managed. Standards for packaging must protect equipment during international shipping so that it can withstand handling stress and exposure to the environment. Protocols for inspection upon delivery check the condition and completeness of shipments before they are accepted.

When setting a delivery date, you should take into account how long it takes to make the goods, clear customs, and move them. By adding enough "buffer" time to project plans, possible delays can be handled without affecting the ready for operations.

How quick your communication is is very important. Getting quotes and technical information from suppliers within 24 to 48 hours helps procurement cycles run smoothly. Language skills and time zone availability affect how well people can communicate. Some suppliers give you a personal account agent who helps you handle your projects more efficiently throughout the whole procurement process.

Quality management systems that are approved to international standards show that the production process is mature and well-run. More regular product quality comes from suppliers who test their Products" target="_blank" style="color:blue" >products thoroughly, including finding leaks, making sure the pressure is correct, and evaluating the product's life cycle.

Conclusion

Having trouble lifting things with low clearance requires special tools like a Small Pneumatic Jack that are small but strong. Traditional hydraulic and manual systems can't compare to pneumatic technology when it comes to speed of deployment, low maintenance needs, and operational flexibility. When you do strategic procurement, you have to carefully look at technical specs, safety certifications, and a supplier's abilities to make sure that the equipment you choose fits your needs and your budget. Regular preventative maintenance and following the right way to use equipment will make it last longer and keep the workplace safe. When you work with experienced makers, you can get access to technical advice, quality control, and quick help. This changes procurement from just buying things to improving operations in a strategic way.

FAQ

What lifting heights can pneumatic jacks achieve?

When it comes to low-clearance uses, compact pneumatic lifting equipment usually has a minimum reduced height of 130 to 150 millimeters and a maximum height of 350 to 450 millimeters. This spec changes depending on the model and the load level. To choose the right height ranges, you need to measure the real clearances at your building and make sure there is enough room to move to the working heights you need. Before buying something, you should always make sure that the specifications match your operational needs.

How does maintenance compare with hydraulic systems?

A lot less maintenance is needed for pneumatic systems than for hydraulic ones. Since there is no hydraulic fluid, there are no problems with seal degradation, contamination, or cleaning up the environment. Visual checks, air supply filtration, and checking the stability of connections are all important parts of regular upkeep. Every so often, hydraulic jacks need to have their fluids changed, their seals replaced, and their cylinders cleaned. When used for more than one year, pneumatic equipment has lower total maintenance costs because it requires fewer parts to be replaced and is easier to service.

Can these tools operate on uneven surfaces or outdoors?

Manufacturers make it clear that pneumatic jacks can only be used on stable, flat, hard surfaces. Uneven ground puts dangerous horizontal forces on internal suspension systems, which can cause the structure to fail and the load to fall. Using it outside comes with extra problems, like being exposed to water, high temperatures, and dirt and waste. The equipment can work outside as long as it's properly maintained, but the surface requirements are still safety requirements. When fixed hard surfaces aren't available, temporary flooring options or leveling platforms make placement safe.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Pneumatic Lifting Solutions

For a workshop to be efficient, the tools must work consistently under tough conditions. FLA Industrial & Trading Co., Ltd. offers air-powered lifting solutions that are reliable and work well thanks to its nearly 40 years of experience in manufacturing. Our wide range of products includes over 1,000 specs, so we can meet the exact needs of a wide range of industrial uses. International safety standards are met by every pneumatic jack manufacturer that is certified by ISO 9001, CE, and the relevant pressure standards.

Our engineering team is here to help you with all of your technical needs for a Small Pneumatic Jack throughout the whole buying process, from the initial meeting on specifications to delivery and operational deployment. When you can customize something, you can meet unique needs that off-the-shelf products can't. We can change the ranges of load limits, heights, materials, and mounting arrangements to fit your exact practical needs.

Quality control procedures that are built into all of our manufacturing processes ensure that the quality of our products is the same no matter how much we make. Before it is shipped, every unit goes through a lot of tests, such as finding leaks, making sure the pressure is right, making sure the seals are intact, and testing the operational cycle. Chrome plating has strict requirements for thickness and hardness, which protects against corrosion in a wide range of environmental conditions.

Both single-unit trials and bulk buying plans can be supported by competitive price systems. We offer good terms for volume agreements because we want to build long-term partnerships. Quotes and technical information are sent to you within 48 hours of responsive contact, so you don't have to wait to make a choice.

Get in touch with our purchasing experts at sales@flaindustrial.com to talk about your specific lifting needs. We offer dependable products and quick technical support to construction companies, factories, auto repair shops, and industrial maintenance businesses all over North America. Visit flaindustry.com to see all of our services and learn how working with an experienced provider can help your business run more smoothly.
