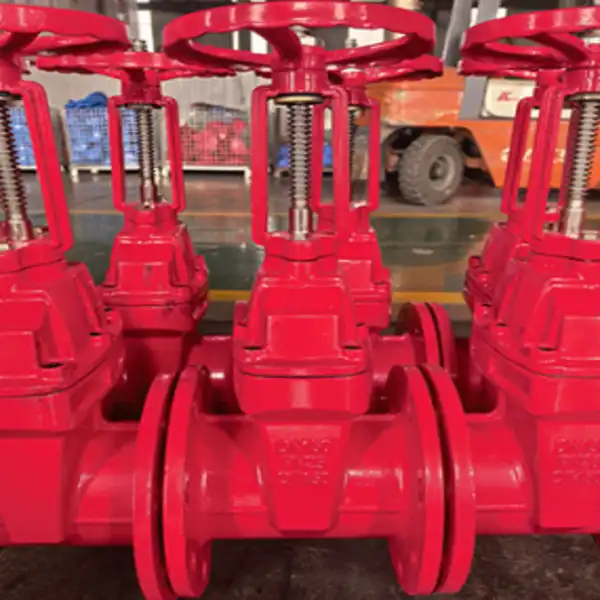

How Does a Fire Protection Flanged Valve Improve System Safety and Reliability?

A Fire Protection Flanged Valve serves as the backbone of dependable fire suppression infrastructure by delivering fail-safe flow control, robust pressure management, and corrosion resistance when emergency situations demand instant response. These valves, typically constructed from cast iron, ductile iron, or carbon steel with anti-corrosion coatings, integrate seamlessly into hydrant and sprinkler systems through standard flanged connections. Their engineered design minimizes leak risks and ensures operational readiness even after years of dormancy, making them indispensable for contractors, facility managers, and procurement professionals who prioritize life-safety compliance and long-term system integrity.

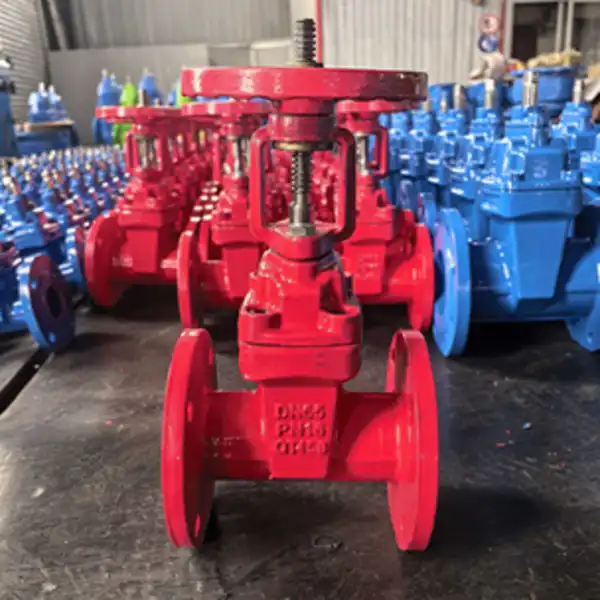

Specifications

Model (DN)	Valve Body Type and Rod Weight (kg)	Valve Body Length
DN40	National Standard Medium Body Steel Rod, 5.5 kg	Approx. 14.3 cm
DN40	National Standard Large Body Steel Rod, 7.5 kg	Approx. 16 cm
DN50	National Standard Body Steel Rod, 6.5 kg	Approx. 17.3 cm
DN50	National Standard Medium Body Steel Rod, 7.5 kg	Approx. 17.5 cm
DN50	National Standard Large Body Steel Rod, 9 kg	Approx. 17.2 cm
DN65	National Standard Body Steel Rod, 7.5 kg	Approx. 18.5 cm
DN65	National Standard Medium Body Steel Rod, 8.5 kg	Approx. 18.6 cm
DN65	National Standard Large Body Steel Rod, 10.5 kg	Approx. 18.5 cm
DN80	National Standard Body Steel Rod, 9 kg	Approx. 20 cm
DN80	National Standard Medium Body Steel Rod, 10.5 kg	Approx. 20 cm
DN80	National Standard Large Body Steel Rod, 12 kg	Approx. 19.7 cm
DN100	National Standard Body Steel Rod, 10 kg	Approx. 21.5 cm
DN100	National Standard Medium Body Steel Rod, 12.5 kg	Approx. 22.5 cm
DN100	National Standard Large Body Steel Rod, 17.5 kg	Approx. 22 cm
DN125	National Standard Body Steel Rod, 19 kg	Approx. 24.5 cm
DN125	National Standard Medium Body Steel Rod, 21 kg	Approx. 25 cm
DN125	National Standard Large Body Steel Rod, 24 kg	Approx. 25 cm
DN150	National Standard Body Steel Rod, 20 kg	Approx. 26 cm
DN150	National Standard Medium Body Steel Rod, 23 kg	Approx. 26.2 cm
DN150	National Standard Large Body Steel Rod, 29 kg	Approx. 26.3 cm
DN200	8-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	12-hole National Standard Body Steel Rod, 36 kg	Approx. 28 cm
DN200	8-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	12-hole National Standard Medium Body Steel Rod, 40 kg	Approx. 28 cm
DN200	8-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN200	12-hole National Standard Large Body Steel Rod, 50 kg	Approx. 28.4 cm
DN250	National Standard Medium Body Steel Rod, 70 kg	Approx. 32.5 cm
DN250	National Standard Large Body Steel Rod, 80 kg	Approx. 32.5 cm
DN300	National Standard Medium Body Steel Rod, 85 kg	Approx. 35 cm
DN300	National Standard Large Body Steel Rod, 111.5 kg	Approx. 35 cm
DN350	National Standard Large Body Steel Rod, 150 kg	Approx. 37.5 cm
DN400	National Standard Large Body Steel Rod, 175 kg	Approx. 40.5 cm
DN450	National Standard Large Body Steel Rod, approx. 251.5 kg	Approx. 430 cm
DN500	National Standard Large Body Steel Rod, approx. 340 kg	Approx. 45.5 cm
DN600	National Standard Large Body Steel Rod, approx. 450 kg	Approx. 50.7 cm

Understanding Fire Protection Flanged Valves and Their Role in Safety Systems

Fire Protection Flanged Valves are specialized control and isolation devices made just for life-safety water distribution networks. Unlike regular industrial valves, these parts meet strict regulatory standards set by groups such as UL, FM, and NFPA. This makes sure they work reliably in an emergency. The flanged end connections, which meet ANSI Class 125/150 or PN10/16 standards, create a safe, bolt-tightened link with pipe networks. They can handle pressures from 175 to 600 PSI without the structural problems that come with threaded connections in large-diameter situations.

Key Valve Types and Their Applications

There are three main types of valves that are used in fire safety systems. For main supply lines, Outside Screw and Yoke (OS&Y) gate valves are the norm. They have a visual stem position indicator that lets first responders check valve condition right away. Butterfly valves with tamper switches are a space-efficient way to isolate risers in buildings with more than one floor. Ball valves, on the other hand, are useful in small mechanical rooms where quarter-turn operation is useful. Before leaving the factory, each type is put through hydrostatic shell testing at two to four times its rated working pressure to make sure the structure is solid.

Material Selection for Harsh Environments

ASTM A536 Grade 65-45-12 ductile iron has replaced traditional gray cast iron as the most popular body material because it is stronger and less likely to break when it is hit. Different types of carbon steel work well in high-pressure situations with more than 300 PSI, like in factories that need a lot of hydraulic power. Fusion Bonded Epoxy (FBE) coatings are put on all valve bodies to meet AWWA C550 standards. The dry film thickness is more than 250 microns, which stops tuberculation and keeps the internal flow properties after decades of use. This choice of covering directly addresses the corrosion problems that plague systems with standing water, greatly increasing their useful life in both climate-controlled indoor settings and outdoor settings that are open to wide temperature changes.

Certification Standards That Build Trust

Listed on UL 262 and approved by FM 1120/1130 are mandatory requirements for fire safety valves in places that follow NFPA rules. These approvals show that valves have been through a lot of tests, such as seat-leaking checks at rated pressure, cycle endurance tests with more than 500 open/close operations, and coating integrity checks with high-voltage holiday detectors. During plan review and final inspection, procurement managers rely on these third-party validations to meet the requirements of the authority having jurisdiction (AHJ). This keeps projects from being held up by expensive equipment that doesn't meet the standards. ISO 9001 approval shows that a company is dedicated to quality management systems, and CE marking makes it easier for Products" target="_blank" style="color:blue" >products to be sold in European countries with similar standards.

Enhancing System Safety and Reliability Through Design Features

Modern fire protection valves are designed to get rid of the two main types of failure that make it harder to help in an emergency: mechanical stopping from being inactive for a long time and seal degradation under constant pressure. These weaknesses are fixed by new developments in material science and precise manufacturing methods used in advanced designs.

Fail-Safe Mechanisms and Pressure Management

The gate is surrounded by vulcanized EPDM rubber in resilient wedge shapes for a Fire Protection Flanged Valve. This lets the valve seal bubble-tight even when rust particles or mineral deposits get stuck in the flow path. If the metal-to-metal seat design were contaminated in the same way, this compressible sealing surface would leak. Stainless steel stems don't seize up like carbon steel stems do because they don't rust or pit. This means they will work smoothly during the yearly exercise cycles required by NFPA 25. Full-port gate valve design doesn't limit flow, so there is less head loss. This is an important thing to think about when doing hydraulic calculations, since even small drops in pressure can make sprinklers less effective at faraway system ends.

When choosing a pressure grade, you need to think about the hydraulics of the system, such as the pump output pressures and the static head that is caused by elevation. Low-rise commercial buildings that get their water from the city can use valves rated for 200 PSI. However, high-rise buildings with more than 20 stories and multistage fire pumps need valves rated for 300 PSI. Custom pressure ratings above normal grades are available for special uses, such as petroleum plants with pressurized deluge systems or naval installations that are affected by surge pressures caused by vessel roll.

Advanced Sealing Technologies

When traditional packing materials were switched out for graphite-impregnated PTFE stem seals, operational leakage dropped by a huge amount. These new sealing systems stay strong even when heated and cooled several times, from -20°C to 120°C. This means they can be used outside in cold places without having to make the seasonal changes that flax packing used to need. During quality control, holiday testing finds tiny flaws in the coating of valves before they are put into service. This stops the early internal rust that causes wedge binding and seat damage.

Maintenance Best Practices for Longevity

Visual checks of the valve supervisory state once a week make sure that the tamper switches are still in the right place and that the OS&Y stems are showing the right indication. Mineral buildup and rubber bonding breakdown that happen when valves are not used for long periods of time can be avoided by operating them once a year. Technicians keep an eye on the working force during these drills to find early signs of stem corrosion or packing stress. Minor stem leakage can be fixed by adjusting the packing glands without taking the valve apart. However, if the stems are bent from improper handling, the whole unit needs to be replaced to keep the certification. Full maintenance records meet the needs of insurance companies and show that you did your homework during inspections after an accident.

Comparing Fire Protection Flanged Valves with Alternative Solutions

It's helpful for procurement teams to know how flanged valves stack up against other connection options and competing products. The technical and economic trade-offs that affect long-term maintenance costs are made clearer by these similarities.

Flanged versus Wafer Valve Installations

When placed between pipe flanges without specific body flanges, wafer-style butterfly valves save money at first and are easier to install. But they make it harder to disassemble a pipeline for maintenance because taking out the valve means disturbing pipes next to it. When you disconnect and remove a flanged valve with integral body flanges, you can leave the pipeline alone, which is very helpful for emergency repairs or planned component upgrades. The bolted flange connections also spread the seating stress more evenly than wafer clamp designs, which lowers the chance of the seal compressing and leaking.

Metal versus Plastic Valve Options

People are interested in plastic valves made of PVC or CPVC because they don't rust and are lighter, but fire protection uses have operating needs that are too high for plastic materials to handle. Outdoor plastic installations are damaged by UV light, and the way plastic expands and contracts when heated or cooled makes it hard to seal systems where the water temperature changes during flow tests. It's odd that metal valves are better at resisting fire, but this is an important thing to keep in mind when the fire protection system itself is exposed to direct flames or radiant heat. Because ductile iron and carbon steel are strong mechanically, they also don't easily get damaged during construction, when rigging equipment or falling materials could hit valve bodies.

Performance Benchmarking Across Leading Brands

Well-known companies use data from decades of field use to improve their products like the Fire Protection Flanged Valve. Companies like Victaulic promote grooved-end mechanical couplings because they are easier to install than traditional flanged connections. However, they need system pipes that are compatible with these couplings. Tyco and Grinnell work on designing signaling valves with position switches so that they can be used with building automation. Each manufacturer offers a warranty that usually lasts between two and five years. For projects that were done by an approved installer network, there are even longer warranty programs. When purchasing from wholesalers, procurement managers should make sure that the dimensions match the current infrastructure. Mixing ANSI and PN flange patterns can lead to expensive adapter needs and weak spots in the hydraulic network.

Procurement Considerations for Fire Protection Flanged Valves

Finding the best valve provider means finding a balance between technical specs, pricing, and help after the sale. Procurement strategies that work well match the features of products with the needs of the project and build relationships with suppliers who can meet the long-term needs of the facility.

Technical Specification Alignment

Before choosing a size, hydraulic calculations are done to figure out the flow rates and pressure drops that are allowed. Most business and industrial setups can use valves between 2 inches (DN50) and 12 inches (DN300), but custom sizes can be made to fit specific needs. Which operating method to use—a manual handwheel, an electric actuator, or a pneumatic operator—depends on how easy it is to get to the valves and how well they work with building management systems. Facilities that want to be able to watch things from afar choose electric motors with feedback switches that tell central control panels where the valves are located. Thread standards (ANSI, DIN, or JIS) and face-to-face measurements that meet ANSI B16.10 make sure that the fittings will work with the pipes that are already in place, so there is no need to make changes in the field that could delay the installation plan.

Evaluating Supplier Credentials and Support

Companies that have ISO 9001 certification show that they manage quality in a planned way. However, this basic standard should be paired with fire-specific certifications like UL and FM approval. Premium suppliers have responsive technical support. Look for promises to respond within 24 to 48 hours to questions about price, specifications, and 3D CAD models for design planning. Customization is important when standard goods don't exactly meet the needs of the project. This could be because of non-standard pressure ratings, unique flange drilling patterns, or changed stem extensions for underground service with wall post indicators.

Commercial Terms and Lead Time Management

Minimum order quantities affect the economics of a project, especially for contractors who are in charge of multiple installations going on at the same time. Just-in-time delivery is possible with suppliers who offer flexible MOQs and keep inventory in multiple locations. This cuts down on the need for on-site storage and the capital that is wasted on staging materials. Lead times for standard products are usually between two and six weeks, but for custom configurations, they can be eight to twelve weeks, depending on how hard they are to make. Setting up blanket purchase orders with planned releases helps keep prices stable on projects that are done in stages and makes sure that materials are available at the right time for each stage of building.

We've been making things for almost 40 years, and we're experts at making reliable valve solutions that meet the strict needs of fire protection systems. Our product line includes more than 1,000 specs, and we can consistently deliver high quality thanks to our advanced casting and precision cutting capabilities. Our fire safety valves have UL, FM, and CE certifications that meet global compliance requirements. They are trusted by Fortune Global 500 partners in the building, manufacturing, and infrastructure sectors. We are a reliable partner for procurement professionals who can't afford system failures because we offer competitive manufacturing efficiency and full technical support.

Installation Best Practices to Maximize Safety and Reliability

If you install fire protection valves like a Fire Protection Flanged Valve correctly, they will work as well as they can and won't break down in ways that compromise the system. Following a set of steps makes sure that the code is followed and sets the stage for decades of effective service.

Pre-Installation Inspection and Preparation

When the valves are delivered, make sure that the nameplates match the requirements for size, pressure rating, and certification markings. Check the sides of the flanges for damage or dirt that could stop them from seating properly against the pipe flanges. Take off any shipping plugs or protection caps that are on the valve ports. Then, partially open and close the valve to make sure that the internal parts can move easily. Check that the gasket material is right for the job. EPDM or nitrile rubber gaskets are good for systems that handle potable water, while PTFE or graphite materials may be needed for systems that have antifreeze or high temperatures.

Flange Alignment and Torque Specifications

When flanges aren't lined up right, they cause bending stresses that can cause the gasket to fail early and the body to crack. Before you put in all the flange bolts, use alignment pins or temporary guide bolts to make sure that everything fits together evenly. Follow a star-pattern torque sequence to slowly tighten the bolts to the manufacturer's recommended levels. For 2-inch to 4-inch valves, this is usually 45 to 65 foot-pounds, and for bigger sizes, it's 90 to 130 foot-pounds. When you over-torque, the gasket material gets crushed, and the flange faces may become distorted. When you under-torque, the system vibrations can cause the bolt to loosen and leak. After the first pressurization, check the bolt tightness again because temperature cycling and gasket compression set can lower the clamp load.

Common Installation Errors to Avoid

When you install valves with the stems facing downward, dirt can build up in the bonnet, which speeds up packing wear and stem rust. When you can, put gate valves so that their stems are horizontal or facing up. Do not use valves as rigging points or pipe supports. External loads that were not considered when the valve was designed could crack the body casting or cause internal parts to not line up properly. Welding near installed valves is not a good idea because heat-affected zones can soften ductile iron, which weakens the structure, and welding spatter hurts protective coats. Check that the pipes next to the valves provide enough support so that the valve bodies don't have to carry the weight of the pipes, which can cause flange loads that cause leaks.

Post-Installation Validation

Before the system is put into service, it is tested hydrostatically at 200 PSI for two hours to make sure it is healthy. During this test, keep an eye on all of the flange connections to make sure they don't leak. Pay extra attention to the valve stem packing gland. Small stem leaks can usually be fixed by adjusting the packing. Tighten the gland nuts a little at a time while the system is under pressure until the leak stops. Be careful not to tighten them too much, as this will increase the working torque. Write down where and how high the valves were when they were first installed. This will help with hydraulic modeling and planning future maintenance. As required by NFPA 25, set up workout plans. For example, important isolation valves should be operated once a year, and control valves in deluge systems should be checked every three months.

Conclusion

Fire Protection Flanged Valves are an important part of life-safety infrastructure because they provide the dependability and performance that are needed in an emergency. Because they are made with high-quality materials, are precisely engineered, and meet strict approval standards, these valves keep systems ready for decades of use. If procurement pros know how to choose the right valves, evaluate suppliers, and install them in the best way possible, their companies can meet safety requirements and save money in the long run. Maintenance and operating discipline make sure that these important parts work perfectly when they're needed, saving people and property through reliable emergency water supply.

FAQ

What advantages do fire protection flanged valves offer over threaded connections?

When connecting pipes with a large diameter, flanged connections offer better structural stability because they spread bolt loads evenly around the pipe's length. This design can handle higher system pressures (175 to 600 PSI on average) without the thread contact problems that limit threaded valves to smaller sizes and lower pressures. Flanged valves also make it easier to take apart for repair or replacement, since workers can take the valves out without breaking or messing up the pipes next to them.

How often should these valves undergo inspection and operation?

According to NFPA 25, valve position indicators must be visually checked at least once a week or once a month, depending on the level of supervision. Each valve needs to be fully opened and closed once a year to keep it from seizing up from mineral deposits or rubber bonding. Because they are so important for quickly activating deluge systems, control valves may need to be checked every three months.

Can suppliers provide custom valve sizes for unique applications?

Manufacturers that can make a lot of different products can make valves with non-standard sizes, pressure values, and flange configurations. Custom solutions are made to fit infrastructure problems like low clearances or connections with old pipe systems that use old standards. Technical advice helps figure out whether standard products should be changed or completely new designs should be made for the project.

Partner with FLA Industrial & Trading Co., Ltd. for Certified Fire Protection Flanged Valve Solutions

To get reliable fire suppression parts, you need to work with manufacturers who offer both technical know-how and quick service. FLA Industrial & Trading Co., Ltd. offers Fire Protection Flanged Valve solutions that are built to last in tough commercial, industrial, and infrastructure settings. Our factory makes valves from 2 inches to 12 inches in sizes made of cast iron, ductile iron, and carbon steel. All of these valves have UL, FM, ISO 9001, and CE certifications that meet global compliance requirements. We are a reliable Fire Protection Flanged Valve seller with almost 40 years of experience in the field. We help procurement professionals with every step of a project, from reviewing the initial specifications and 3D models to making changes for non-standard uses. Get in touch with our expert team at sales@flaindustrial.com to talk about your unique fire protection needs and find out how our tried-and-true valve solutions make systems safer and more reliable.

References

1. American Water Works Association. (2020). Protective Coatings for Water Supply Facilities: AWWA Manual M27. Denver: AWWA Publications.

2. Factory Mutual Research Corporation. (2018). Approval Standard for Gate Valves, Butterfly Valves, and Alarm Check Valves for Fire Protection Service. Johnston: FM Approvals LLC.

3. National Fire Protection Association. (2023). NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. Quincy: NFPA Publications.

4. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.

5. Underwriters Laboratories. (2019). UL 262: Standard for Safety Gate Valves for Fire-Protection Service. Northbrook: UL LLC.

6. 6Walski, T.M., Chase, D.V., & Savic, D.A. (2001). Water Distribution Modeling. Waterbury: Haestad Press.
