Industrial Screw Jack Supports Heavy Equipment Alignment and Maintenance Operations

When heavy machinery needs precise positioning or long-term support during maintenance, the Industrial Screw Jack emerges as a critical mechanical solution. These robust lifting devices convert rotational motion into controlled linear movement, allowing technicians to raise, lower, and stabilize equipment weighing several tons with millimeter-level accuracy. Unlike fluid-based systems that risk leakage and pressure fluctuations, screw jacks provide mechanical rigidity and self-locking capabilities that hold loads indefinitely without continuous power input. This reliability makes them indispensable across construction sites, manufacturing plants, and infrastructure projects where equipment alignment directly impacts operational safety and productivity.

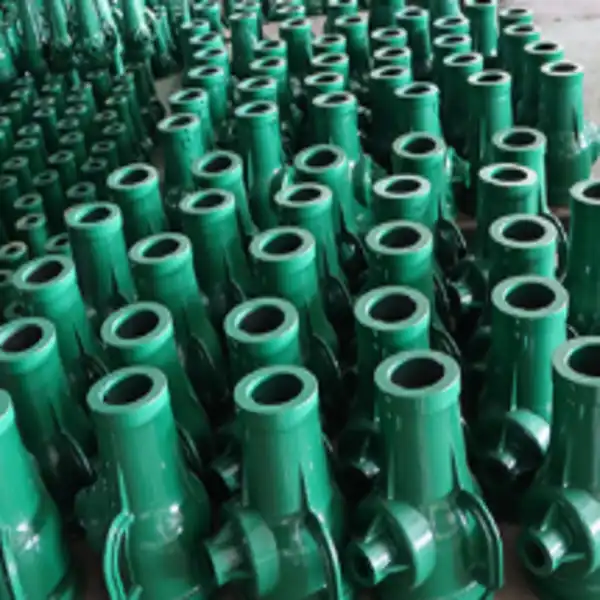

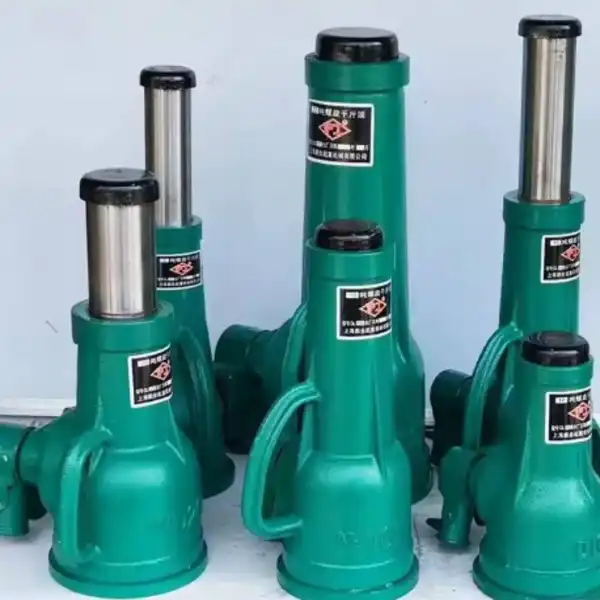

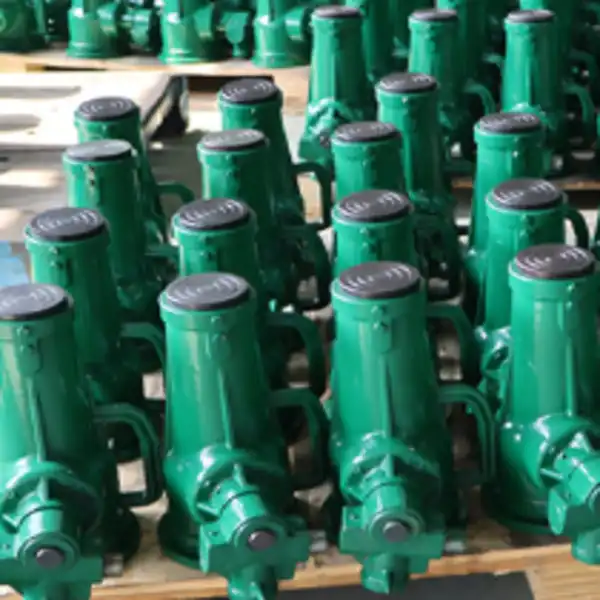

Specification

Model (t)	Top Cover (mm)	Bottom Cover (mm)	Minimum Height (mm)	Lifting Height (mm)	Weight (kg)
3.2	49	93	220	110	17.4
5	49	93	250	130	21.5
8	49	104	260	140	22.3
10	59	104	280	150	27.2
16	64	118	320	180	21.1
20	64	128	325	180	23.1
25	64	128	275	130	20.9
32	69	142	395	200	37.2
50	88	186	452	250	36.1
100	125	238	452	200	71.3
D10	59	104	200	75	22.4
D20	64	128	225	90	19.3
D32	69	142	320	150	33.4
D50	88	186	330	150	28.9

Understanding Industrial Screw Jacks and Their Operational Principles

Core Mechanical Function and Load Transfer

At its core, a screw jack uses a carefully designed thread system to turn rotary input into vertical or horizontal thrust. Either a trapezoidal lead screw or a ball screw assembly is driven by the worm gear set. This gives the workers a mechanical edge that lets them move heavy loads with little effort. The device has important parts inside a body made of cast iron or malleable iron. This keeps the structure strong during shock loads and keeps the internal workings clean.

The load is moved when the screw threads and the moving nut touch each other. When it comes to trapezoidal designs, thread friction makes them self-locking, which stops back-driving. This is a safety benefit when supporting equipment during long maintenance procedures. Ball screw versions give up self-locking for higher efficiency and faster travel speeds, which makes them good for uses that need to be adjusted often.

Material Engineering for Industrial Durability

The building materials have a direct effect on how well they work and how long they last under industry stress. When 42CrMo alloy steel is used, which has Rockwell C hardness levels between 28 and 32 HRC, it is used to temper or quench lead screws. This level of hardness makes it very resistant to wear while still being flexible enough to handle impact loads while in use.

Bronze metals like ZCuSn10Pb1 are often used in traveling nuts because they work well with steel screws and have better bearing qualities. Engineering plastics are an option for lighter-duty uses where chemical protection is more important than high load capacity. The building materials range from GG25 gray cast iron for everyday use to GGG40 ductile iron for situations where a higher tensile strength is needed.

Classification by Operational Type

Manual screw jacks are operated by hand using a handle or wheel. This makes them perfect for making occasional changes when it's hard to get to a power outlet. Electric motor-driven models have gear reducers built in to automate the lifting processes. This helps in production settings that need regular positioning without tiring out the operators.

Worm gear configurations have high gear ratios of 5:1 to 32:1, which means that a slow input speed can produce a strong lifting force that automatically locks into place. When room is limited or the way the motor is set up mechanically requires it to be placed horizontally, bevel gear designs let you set up a right-angle drive. Knowing these differences helps buying teams match the right type of jack to the needs of the equipment alignment situation and the repair process.

Comparing Industrial Screw Jacks with Alternative Solutions

Performance Metrics Against Hydraulic Systems

Hydraulic cylinders have high force densities and fast stroke speeds, but they are harder to maintain because they need to be filled with fluid, their seals need to be replaced, and they are sensitive to temperature changes. Screw jacks get rid of the risk of hydraulic oil leaking, which is very important in places like food processing or pharmaceuticals where contamination is not acceptable. Because it is mechanical, it can hold its place better without having to run the pump all the time. This saves energy during long support jobs.

When comparing load capacities, different strengths become clear. Screw jacks are the best for precise setting where accuracy of less than a millimeter is important, while hydraulic systems are best for tasks that need a 50-ton capacity or more and fast cycle times. Because engineers can predict how they will behave mechanically, they can figure out exact placement without having to account for how fluids compress or change viscosity with temperature.

Electric Linear Actuators Versus Mechanical Jacks

Electric linear actuators are small devices that have a motor, gearbox, and screw mechanism built in, while an Industrial Screw Jack offers a more mechanically robust alternative. They also have limit switches and feedback sensors built in. These units are good for automatic production lines because they are easy to set up and can be controlled from a distance. But because they are sealed, they are harder to fix in the field, and electronic parts make them vulnerable to electromagnetic interference and voltage changes.

Serviceability is better with traditional screw jacks that are taken care of by building teams. Mechanics don't need to know a lot about electronics to check, grease, and replace worn-out parts. The flexible design lets you connect several jacks together using mechanical shafts. This makes it possible to make synced multi-point lifting systems that keep loads level even when they are lifted at an angle. This mechanical synchronization works better than computer systems that try to combine different motors.

Cost-Effectiveness Over Equipment Lifecycle

The initial costs of purchase only tell a part of the story of acquisition. When you add up the costs of the pump units, valves, and plumbing installation, screw jacks are usually cheaper up front than hydraulic systems with the same capacity. Their operating costs are very low because they only use power when they're moving and not when they're keeping pressure on.

When there are already established mechanical repair plans, screw jacks are more cost-effective for maintenance. For inspection and service, standard shop tools are enough. You don't need hydraulic specialty equipment or computer diagnostic tools. Trapezoidal screw models can only be used 20 to 30 percent of the time, which works well for jobs like aligning equipment that happen during planned breaks instead of ongoing shifts. When uses need higher duty cycles, ball screw or bevel gear designs can help control heat without switching to completely different technology platforms.

Maintenance and Troubleshooting Best Practices for Industrial Screw Jacks

Lubrication Protocols for Extended Service Life

Lubrication directly affects how long a screw jack lasts and how much weight it can hold. Every 100 to 200 hours of use, high-pressure lithium-based grease with molybdenum disulfide additives needs to be put on trapezoidal screw threads through their marked lubrication openings. The frequency goes up in places with a lot of dust because the rough particles speed up wear. For ball screw systems to work, they need synthetic lubricants with a lower viscosity that keep the film strength without making too much friction heat at faster movement speeds.

There are faulty gear sets inside the gearbox housing that need their own attention. SAE 90 or 140 gear oil keeps the hardened worm shafts and bronze wheels meshing properly. The level of the oil needs to be checked every three months, and the whole oil needs to be changed once a year. Monitoring the rise in temperature during heavy operation helps find areas that need more lubrication before they wear out completely. Gearbox surfaces that are more than 70°C above ambient signal that they need service right away.

Routine Inspection Checklist and Load Testing

Visual checks done once a month find problems as they start to happen before they get bad enough to cause alignment problems during important repair tasks. Technicians check the soundness of the dust boot, looking for tears that let dirt into the screw threads. Verifying the torque of mounting bolts stops them from coming loose during cycle loads. When you listen to the process, you can hear strange grinding sounds that could mean that alien materials are getting in or there isn't enough oil.

Continuous capacity ratings and safety factors are checked every three months through load testing. Putting 125% of the maximum working load on something for five minutes shows any structural flaws or thread damage that could make the equipment less stable. During testing, dial indicators measure axial backlash. Too much space between the threads of a screw and a nut's cap indicates wear, which means the part needs to be replaced before it stops locating precisely.

Troubleshooting Common Wear Issues

Thread galling is a common way for different metals in an Industrial Screw Jack to fail when they come into high-contact stress without being properly oiled. Bronze particles move to steel screws and make their surfaces rough, which speeds up the wear and tear. For prevention, you need to keep up with greasing schedules and stay away from overload situations that put too much pressure on the threads. Once galling starts, the damaged parts need to be replaced because polishing rarely makes the gaps right again.

When a machine is running, noise levels rise usually because of worn bearings or damaged gear teeth. As races get dirty or lose their oil, radial bearings that hold screw shafts in place start to move. Systematic disassembly finds the source of the noise and lets you replace just the bearings you need without having to rebuild the whole jack. Worm wheel tooth wear from being out of alignment or being overloaded shows up as more backlash at the input shaft. Shim changes fix the proper space between the gear meshes, which extends the wheel's useful life until tooth damage forces it to be replaced.

Procurement Guide: Selecting and Buying Industrial Screw Jacks for Your Business

Technical Specification Evaluation

To find the load capacity, you have to add up the static and dynamic forces and the right safety factors. Static capacity takes into account long-term support situations, like when jacks hold the weight of equipment during long maintenance periods. Dynamic capacity takes acceleration forces into account when lifting things, and it should include a 2:1 safety cushion above the estimated loads. If you choose the wrong capacity, you could end up with either too many units that waste money or too few units that put the structure at risk of failing.

Stroke length and closed height measurements affect how easy it is to place within the footprints of current equipment. Carefully measure the vertical space that is available, keeping in mind that screw extension makes the housing taller. Travel speed estimates weigh the need for output against the limits of motor size and job cycle. Applications that need to be adjusted often benefit from faster linear speeds, but this usually means using ball screws, which have some problems with how they self-lock.

Supplier Evaluation and After-Sales Support

Manufacturers who are trustworthy show that they follow international standards by having ISO 9001 quality management systems and product-specific certifications like CE marking. Manufacturing development is shown by clear documentation about material grades, heat treatment methods, and tolerances for size and shape. By asking for material test certificates and inspection records, you can tell the difference between reputable sellers and those who offer unclear component origins.

When adding jacks to complicated equipment adjustment systems, being able to provide technical help is very important. Respondent engineering help helps specify the right mounting arrangements, synchronization shaft designs, and motor sizing calculations. Delivery reliability affects project schedules; suppliers with a large inventory usually ship standard configurations within days, but custom solutions that need specific stroke lengths or mounting interfaces take two to three weeks to manufacture and test.

Regional Sourcing Considerations and Value Services

Asian makers, especially Chinese suppliers with decades of experience making industrial parts, have reasonable pricing that works well for programs that buy in quantities. European precision manufacturers are at the top of the market thanks to tighter tolerance control and a wider range of alloy options that are useful for applications that need high levels of repeatability. The guarantee terms, the availability of spare parts, and the quality of the technical documents are all taken into account when the total cost of ownership is calculated instead of just the purchase price.

Value-added services set capable sellers apart from basic vendors for an Industrial Screw Jack. Custom measurement changes let different pieces of equipment connect without having to pay a lot of money for making adapters. Multi-jack systems that come already put together with connecting shafts and universal joints are ready to be installed. This cuts down on the time and trouble that comes with putting them together in the field. Professional help with starting makes sure that everything is set up correctly, so mistakes don't happen that could void contracts or put people in danger during the first few uses.

Case Studies: How Industrial Screw Jacks Enhance Heavy Equipment Alignment and Maintenance

Manufacturing Plant Machinery Realignment?

A company in the Midwest that made parts for cars had trouble with accuracy because their 15-ton pressing press would move out of level during high-volume production runs. In the past, maintenance on traditional hydraulic jacking required running the pump all the time and keeping an eye on it by hand to make sure it didn't settle. At each corner of the press, the facility put in four synced mechanical screw jacks with worm gear drives. These were linked through a central gearbox so that they could all be adjusted at the same time from a single input point.

In the first quarter, measurable effects started to show up. The time it took to realign went from 4 hours to 45 minutes, which cut down on planned maintenance downtime by 81%. The mechanical synchronization kept the press bed parallel to within 0.2 mm, which was three times better than the old hydraulic methods. During maintenance, a lot less energy was used because the jacks didn't need any power to hold up the press weight, so the hydraulic pump didn't have to run for eight hours each maintenance cycle.

Construction Equipment Field Servicing

A big construction contractor that specializes in fixing up bridges needed portable lifting solutions so that they could get to the gearboxes and hydraulic systems on crawler cranes that were working at faraway project sites. Hydraulic jacks were hard to move because they needed their own power packs, and they could spill fluids near rivers, which was bad for the environment. The contractor put 10-ton electric screw jacks with a 300mm stroke length in service trucks that were powered by batteries.

Field technicians said that work flow immediately got better. The small size of the jack allowed it to fit under equipment frames in tight spots where regular bottle jacks couldn't work. Self-locking threads kept loads safe during long repair sessions that didn't drain batteries or need extra help. Over two years in the field, the equipment worked 98% of the time with only regular lubrication needed. This proved that choosing mechanical simplicity over hydraulic power density for maintenance tasks was the right choice.

Future Trends in Precision Lifting Technology

New developments focus on adding sensors that check the condition of screw jack assemblies. Vibration analysis programs find patterns of bearing wear that set off maintenance alerts before crashes stop work. Load cells built into mounting bases give real-time feedback on weight distribution during coordinated lifts. This stops overloading situations that could damage equipment or put people in danger. Facilities that use predictive maintenance strategies like these smart features, but traditional mechanical reliability is still what these electronic improvements are based on.

Improvements in energy economy keep coming from choosing bearings and thread shapes that are better at reducing friction losses. Manufacturers are trying out new surface coats that last longer between lubrications and don't rust in tough settings. The basic mechanical principles have been around for a long time because they solve basic problems—like turning spinning motion into controlled linear force that holds its position—that other technologies have a hard time matching in terms of reliability and cost-effectiveness in heavy equipment alignment applications.

Conclusion

Screw jack technology like an Industrial Screw Jack has been used reliably for placing equipment and helping with repair in a wide range of industries. The mechanical design principles make it possible for self-locking safety, precise positioning control, and timing that are hard to achieve with hydraulic or electric options. When purchasing these devices, procurement teams weigh the needs for load capacity, operational job cycles, and easy repair access against application-specific factors such as power sources and environmental conditions. When installed correctly and oiled and inspected regularly, something will last for decades without breaking down. Mechanical lifting solutions are always changing, but they still have the main benefits that have made them essential for heavy equipment repair. This is because manufacturing plants and building sites need more uptime and accuracy.

FAQ

How Do I Determine the Correct Load Capacity for My Application?

Find the heaviest weight that your jack can hold in a steady position, then add the dynamic forces that come from pulling. For important jobs, use a safety factor of at least 2:1, which means that a 5-ton load needs a 10-ton rated jack. Think about shock loading if the equipment might move while it's being placed, and take into account that the weight of different jacks may not be evenly distributed.

What Maintenance Frequency Should I Follow?

How often you need to lubricate depends on how hard you're working. For light-duty, once-in-a-200-hour use, greasing is needed. For constant or high-cycle use, work is needed every 50 to 100 hours. Every month, check the dust boots and mounting hardware. Do full load tests every three months to make sure the threads stay in good shape and the capacity stays the same throughout the service life.

Can Screw Jacks Be Customized for Specific Dimensions?

Manufacturers often change stroke lengths, attaching plate patterns, and screw end configurations to fit different types of equipment. Lead times for custom solutions are usually two to three weeks longer than for normal store items. To make sure the right engineering is done and to avoid delays, give detailed dimensional drawings and load specifications early on in the procurement process.

Partner with FLA Industrial & Trading Co., Ltd. for Reliable Screw Jack Solutions

Choosing the right lifting equipment provider has a direct effect on how well your repair works and how safe your operations are. We at FLA Industrial & Trading Co., Ltd. have been making Products" target="_blank" style="color:blue" >products">Industrial Screw Jacks for almost forty years, and our ISO 9001 and CE certifications show that we are committed to quality. Our engineering team provides full technical support from the initial specification stage through installation, making sure you get the exact mechanical lifting solution to your problems with aligning heavy equipment. We have over 2,000 tons of inventory, which means we can quickly deliver standard configurations, and we can also make custom items that ship within 7–15 days. This means we don't have to worry about procurement delays that mess up maintenance schedules. As a trusted supplier of Industrial Screw Jacks to Fortune Global 500 companies in the US, Germany, and Australia, we know the high standards of performance your business needs. Contact our sales team at sales@flaindustrial.com right away to talk about your unique load capacity needs. Within 48 hours, you'll receive full technical drawings, and you can see how our precision lifting solutions can help you with your equipment maintenance.
