Stainless Steel Rope Clip Ensures Secure Wire Rope Connections in Marine Environments

When marine operations demand absolute reliability, every component matters. A stainless steel rope clip serves as the critical connector securing wire ropes in some of the harshest environments on earth. These precision-engineered fittings create stable terminations and loops that withstand constant saltwater exposure, dynamic loads, and temperature extremes. For hardware distributors, construction contractors, and marine equipment procurement teams, selecting the right wire rope fastening solution directly impacts operational safety and project longevity. Understanding what makes these clips indispensable begins with recognizing the unique challenges marine environments present.

Specification

Specification	Pitch (P)	Total Height (L) (mm)	Hole Diameter (a) (mm)	Screw Diameter (A) (mm)	Shank Diameter (d) (mm)	Clip Height (h1) (mm)	Hexagon Opposite Side (S) (mm)	Applicable Wrench (mm)
M2	0.4	17.1	4.5	3	2.5	9	5.4	5.5
M3	0.5	20.3	5.3	4	3.4	8.6	6.9	7
M4	1.25	22.7	6.6	4	3.4	9.8	6.9	7
M5	0.8	26.7	7.1	5	4.3	9.4	7.8	8
M6	1	32.3	7.1	6	5.2	11	9.8	10
M8	1.25	34.5	10.1	6	5.2	15	9.8	10
M10	1.5	44.8	10.1	8	7.1	15	12.5	12.5
M12	1.75	51.2	14.8	10	8.5	18.1	15.8	16
M14	2	56.3	14.4	10	8.6	21.3	15.8	16
M16	2	64.6	18.6	12	10.5	24	17.8	18
M18	2.5	73.6	20.1	12	10.7	29.5	17.8	18
M20	2.5	73.9	20.5	12	10.7	29.8	17.8	18
M22	2.5	76.5	25.1	12	10.7	32.5	17.8	18
M24	3	79.9	27.1	12	10.7	33	17.8	18
M26	3	86.6	27.8	12	10.7	35.6	17.8	18
M30	3.5	100.3	33.3	16	14.1	35.6	23.8	24
M32	3.5	100.3	33.6	16	14.5	35.6	23.8	24

Understanding Stainless Steel Rope Clips and Their Role in Marine Environments

Equipment that is used in marine settings is constantly corroded by saltwater, chloride ions, and humidity. For dockside uses, yacht rigging, and offshore platforms, wire rope systems need termination solutions that keep the structure strong even in harsh conditions.

What Defines a Quality Marine-Grade Wire Rope Clip?

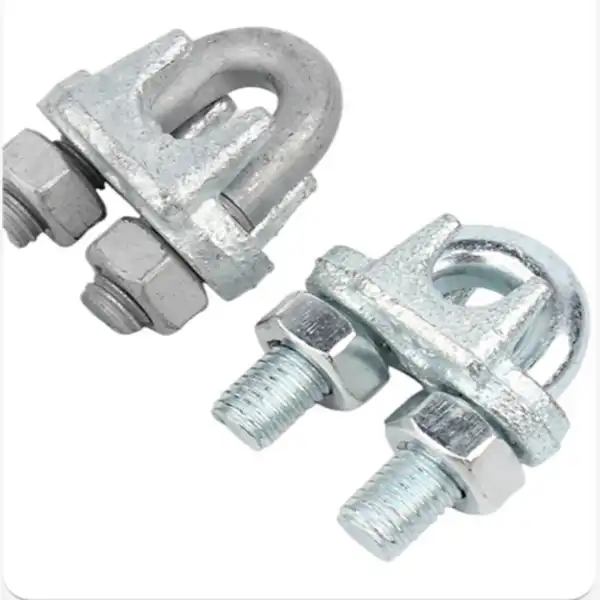

In order to safely hold wire rope, a Stainless Steel Rope Clip consists of a U-bolt, saddle, and two hexagonal nuts. Good clips made from grade 304 or 316 stainless steel have chromium and nickel in them that create an oxide layer that keeps the steel from rusting and cracking. The molybdenum percentage in Grade 316 material is between 2% and 3%, which makes it very resistant to the chlorides found in seawater. This metallurgical make-up sets marine-grade clips apart from normal zinc clips that rust in coastal settings within months.

The processes used in manufacturing have a big effect on performance. Precision casting, forging, drilling, and finishing make sure that the dimensions are correct and the surface finish is good. Each clip goes through testing of its material composition to make sure it meets the grade requirements. It also goes through salt spray testing according to ASTM B117 standards, which proves its resistance to corrosion after 72 hours of exposure. These quality control steps make sure that the parts that procurement teams get meet the standards for ISO9001 and CE approval.

Why Marine Applications Require Stainless Steel Over Galvanized Options?

The zinc layer on galvanized wire rope clips protects them temporarily, but it breaks down quickly in salt water. The zinc layer wears away due to chemical attacks, UV exposure, and mechanical wear, letting the carbon steel below rust. This wear and tear lowers the structure's load-bearing capacity and makes it less safe.

When used for long periods of time, stainless steel clips keep their shape. The naturally bright finish on the surface keeps it from getting dirty and makes inspections easier. When building ships, these qualities are very important because cargo-securing systems need to work well, when working on construction sites near the coast, safety cables are needed; and when designing buildings, decorative cable railings need to look good and stay strong.

Common Types Used in Marine Wire Rope Systems

Marine wiring experts can choose from different clip combinations based on the needs of the job. Most people still use U-bolt clips, which have a bent bolt that goes through the saddle and around the rope. When it comes to vital load lines, double saddle clips offer more gripping force. Forged clips are better for dynamic loading situations because they have better strength-to-weight ratios than cast clips.

The sizes of the clips range from M2 to M32, so they can fit wire rope widths ranging from small control cables to heavy anchor lines. It is very important for procurement managers to make sure that the dimensions of the clips match the diameter of the rope exactly. Clips that are too small or too large will not hold properly. When installed correctly according to the manufacturer's instructions, each clip design can hold between 80% and 90% of the breaking strength of the wire rope.

How to Properly Use and Install Stainless Steel Rope Clips for Maximum Safety?

The most common reason why wire rope connections fail is bad installation. When assembly methods don't follow standard procedures, even high-quality clips don't work right.

Step-by-Step Installation Process for Secure Connections

Preparing the rope is the first step in a proper fitting. Cut the ends of the wire rope cleanly so that the strands don't break. Make the needed eye or loop, making sure there is enough tail length for the clip to fit. As a general rule, the rope tail should stick out past the last clip by at least six rope diameters.

Place the U-bolt over the dead end, which is the short tail section, and press the saddle against the live end, which is the part that holds the load for a Stainless Steel Rope Clip. This setup keeps the live end from getting crushed when the load is put on it. Attach nuts to the U-bolt and use the right torque specs to tighten them evenly. Grade 304 and 316 stainless steel threads need an anti-seize lube with nickel or molybdenum disulfide in it to keep them from galling when they are being tightened.

Place several clips along the tail of the rope, leaving about six rope diameters between each one. The smallest diameter of the rope determines how many clips are needed. Ropes up to 1/2 inch in diameter need two clips, while ropes with a bigger diameter need three or more. After the initial setup, run the rope system while it's loaded, and then tighten all the clips back up to the torque levels recommended by the manufacturer. This process makes up for the effects of compression and sitting on the rope.

Common Installation Mistakes That Compromise Safety

Reversing the position of the saddle is a major mistake. When you put the U-bolt against the live end, it breaks the load-bearing strands, which makes the rope 50% or less strong. When you use too few clips, the grip length isn't long enough, which lets the rope slip under dynamic loads.

Tightening too much hurts both the clip and the structure of the rope. Too much torque bends the threads on the U-bolt and crushes the wire rope too much. On the other hand, if you don't tighten enough, the rope can move inside the clip assembly, which creates friction heat and speeds up wear.

If you don't retighten after the first load, the connection will gradually become loose. Wire rope stretches when it is first used, which lowers the stress in the clips. Connection integrity is maintained throughout the service life by inspecting it after the first load cycle and retightening it from time to time.

Industry Standards Governing Marine Wire Rope Connections

Safety standards for wire rope terminations in marine and industrial settings are set by ISO specifications and OSHA regulations. ISO 2408 sets the minimum breaking loads for wire rope, and ISO 16625 sets the standards for stainless steel wire rope. OSHA 1926.251 says that building sites, including naval construction sites, must use proper rigging methods.

The safety factors in these standards say that the working load limits should be between 1/17th and 1/50th of the rope's minimum breaking strength. Compliance makes sure that there are enough safety margins against overloading and dynamic loading effects. Teams in charge of buying things should make sure that sellers show proof that they follow standards and have load testing certifications.

Comparing Stainless Steel Rope Clips With Other Wire Rope Connection Solutions

When making a marine procurement decision, you have to weigh the pros and cons of different fastening options based on your application needs and your budget.

Stainless Steel Versus Galvanized Clips in Saltwater Environments

Within weeks of being used in the marine environment, differences in performance between these materials become clear. After being in saltwater for a short time, galvanized clips get rust spots, and their surfaces turn a different color. In order to keep safety limits, zinc coatings usually need to be replaced every six months.

Stainless steel clips last a lot longer than other types. If you keep your Grade 316 clips in good shape, they should last between 10 and 15 years in direct salt contact. This longer lifespan means lower costs for repair, less downtime, and better safety records. When you look at the total ownership time, the difference in the original cost is almost nothing.

Stainless steel is also better for a Stainless Steel Rope Clip because it can hold more weight. Galvanized fasteners lose strength over time because corrosion makes the effective cross-section smaller. Throughout its service life, stainless steel keeps its mechanical qualities and dimensional stability, making sure that it always works at its best under stated loads.

Wire Rope Clips Versus Ferrules and Swage Fittings

More binding power is provided by ferrules and swaged links, which usually reach 95 to 100 percent of the rope's breaking strength. Using hydraulic swaging tools to squeeze a metal sleeve onto the wire rope makes these links permanent. However, the process makes a very secure termination but doesn't allow for adjustments and needs special tools.

Wire rope clips are very useful for setups in the field and gear that can be changed. They are easy to install with normal tools and let you change the length of the rope after it has been set up. This adaptability is useful on building sites, for temporary rigging, and in other situations where the tension needs to be adjusted every so often.

Another thing to think about is maintenance accessibility. Clips make it possible to see the state of the rope under the saddle during regular checks. Swaged connections hide the inside of the rope, which makes it harder to figure out how damaged it is. Clips also make it possible to change ropes without special tools, which makes upkeep easier in remote areas.

Grade 304 Versus Grade 316 Material Selection Criteria

When choosing materials, performance needs and price limits must be balanced. Grade 304 stainless steel has about 18% chromium and 8% nickel, which makes it very resistant to rust in most weather situations. This alloy works well in inland marine settings, freshwater settings, and covered marine structures that don't come into direct contact with seawater.

Along with chromium and nickel, Grade 316 stainless steel has 2 to 3 percent molybdenum, which makes it much more resistant to chloride rust and pitting. This mixture is necessary for use in the open water, along the coast, and in submerged parts. The molybdenum content stops crevice corrosion in small spaces where oxygen loss speeds up the breakdown process.

Material choices should be based on the project's requirements. Grade 316 material is needed in coastal settings with a lot of exposure, chemical processing plants, and wastewater treatment plants. Protected areas with little to no saltwater contact can use grade 304 well, getting the most out of their budgets while still maintaining good performance margins.

Procurement Guide: How to Source High-Quality Stainless Steel Rope Clips for Marine Use?

Sourcing decisions have a direct effect on the safety of the project, how well the budget is used, and how reliable the operations are. Professionals in procurement must rate providers based on more than just unit price.

Evaluating Supplier Credentials and Quality Certifications

Manufacturers with a good reputation have complete quality control systems that are backed up by ISO9001 certification. It makes sure that production methods are always the same and that materials can be tracked back to their source. For each production batch, suppliers should give mill test reports that confirm the material's make-up and mechanical properties.

The CE mark shows that the product meets European safety standards and is therefore suitable for use in commercial marine environments. Extra approvals, like those from the American Bureau of Shipping (ABS) or Det Norske Veritas, prove that the quality is marine-grade for important offshore sites.

The ability to make things needs to be carefully evaluated. When suppliers use precision casting, forging, and CNC cutting, the dimensions they offer are more accurate than when they only use basic casting. Electropolishing the surface makes it more resistant to rust than normal passivation processes. These differences in how things are made set premium suppliers apart from commodity producers.

Benefits of Bulk Ordering and Custom Sizing for Marine Projects

A lot of clips like a Stainless Steel Rope Clip are needed for big marine jobs with a range of rope diameters and load levels. Bulk purchasing lowers unit costs and makes sure that the project's specifications are always met. When suppliers have a lot of stock on hand, they can fill regular orders right away, without having to wait for lead times that throw off building schedules.

Custom sizing lets you meet non-standard needs that are common in marine applications. Different rope diameters, longer U-bolt lengths for thick-walled cable, and changed saddle geometries can all be used to meet the specific needs of each project. Manufacturers that offer customization services help with the design process by providing technical support such as dimensional models and load estimates that make sure the right parts are chosen.

Production wait times for custom parts are usually between 7 and 15 days, as long as the maker has an efficient production system. This quick turn-around keeps projects on plan even if non-standard requirements come up during the building stages.

Strategic Considerations for Global B2B Procurement

International purchasing can help you save money, but you need to be very careful when evaluating suppliers. With the help of modern manufacturing technology and quality control methods, Chinese companies have become very good at making precise metal parts. Suppliers with almost 40 years of experience in the field show that their processes are mature and reliable.

Communication protocols are necessary for international purchasing to go smoothly. When suppliers offer reaction times of 24 to 48 hours for quotes, detailed drawings, and weight confirmations, it's easier to make quick decisions. Full expert help during the whole procurement process, which includes design checking and process optimization in the middle of the process, lowers specification mistakes and makes sure that parts meet application needs.

Timelines for projects need to be coordinated with delivery logistics. Suppliers who keep at least 2,000 tons of stock can quickly fill standard orders, and their ability to make custom parts makes sure that non-standard parts come within building windows. Procurement teams can coordinate the flow of materials with installation activities when there are clear delivery schedules and updates on the status of production.

Maintenance Tips to Extend the Service Life of Stainless Steel Rope Clips

Even materials that don't rust need to be maintained regularly to get the most out of their service life and keep safety margins high in harsh sea settings.

Routine Inspection Procedures for Early Problem Detection

Set check times based on how dangerous the exposure is and how important the load is. Most marine applications only need visual checks once a month, but critical rigging in high-exposure areas needs checks every week. Inspected procedures should keep track of the condition of clips, the wear on ropes, and the strength of connections.

Check for signs of rust like darkening on the surface, pitting, and corrosion in the cracks around the U-bolt threads. Even though stainless steel doesn't rust, it can sometimes break down in certain places, which means the part needs to be replaced. Check the rope strands under the saddle for damage like broken wires, crushing, and wear patterns that show too much use or bad installation.

Check that the torque is being retained properly on a Stainless Steel Rope Clip by using measured torque wrenches to check how tight the nuts are. Links can become loose over time because of thread galling and vibration. When torque checks show that clips are becoming less tight, tighten them back up to the manufacturer's specs. Replace clips that are warped, cracked, or have thread damage that makes them impossible to tighten properly.

Cleaning Methods for Saltwater Environments

Cleaning regularly gets rid of salt deposits and organic matter that speed up corrosion and hide damage. After being in saltwater, rinse clips and wire rope assemblies with clean water. This is especially important in splash zones that get wet and dry over and over again. This easy step greatly increases the life of parts by keeping salt from building up in cracks.

Using gentle alkaline soaps for deep cleaning every so often will get rid of built-up deposits without hurting the surface of the stainless steel. Cleaners with chloride and rough scrubbing that hurts the protective oxide layer should be avoided. Apply safe treatments like marine-grade rust inhibitors or thin lubricating films that get rid of moisture without attracting dirt after cleaning.

When stainless steel is exposed to air, it forms an inactive chromium oxide layer on its own. This natural defense system is helped by cleaning methods that keep surfaces clean. Electropolishing techniques used during production make surfaces smoother and less likely to get dirty, which makes upkeep easier in the field.

Recognizing When Replacement Becomes Necessary

For safety reasons, replacement is required when wear indicators go beyond what is considered normal. Broken wire strands that can be seen near where the clips are placed indicate that there is too much stress or that the installation was done wrong, which needs immediate attention. Deformed clips with permanent bending or thread damage can't keep up the right clamping force and need to be replaced, no matter how long they last.

Corrosion that goes deeper than surface coloring weakens the structure. Deep pitting, crevice corrosion that leaves holes between parts, and regular weathering that makes the material thinner all mean that it needs to be replaced. If you look closely and see these problems, you should replace the whole connection system, including the clips and the rope parts that are damaged.

Set up replacement schedules based on past service history and inspection results. To keep safety margins, critical apps may need to be replaced before they hit their full service life. Keep track of service records and write down what needs to be replaced. This will help with planning upkeep and meeting legal requirements.

Conclusion

Marine links with wire rope need fastening options that work reliably in high-load, corrosive conditions. The corrosion resistance, mechanical strength, and dimensional accuracy required for safe, long-term marine service are provided by high-qualityProducts" target="_blank" style="color:blue" >products"> Stainless Steel Rope Clips made from grade 304 or 316 materials. For proper selection, you need to know about the properties of the material, how to install it, and how to keep it in good shape so that it works at its best. When procurement teams buy from certified makers with proven quality systems, full technical support, and flexible production options, they set their projects up for success and lower the total cost of ownership by making the products last longer and needing less upkeep.

FAQ

What distinguishes stainless steel rope clips from galvanized alternatives?

The makeup of a material makes a big difference in how well it works. Stainless steel has an oxide layer made of chromium and nickel that protects it from corrosion, while galvanized clips use a zinc coating that wears away over time. Zinc protection breaks down quickly in marine settings, rusting within months. Because stainless steel stays strong for years, its higher original cost is justified by its longer service life and lower frequency of replacement.

How many clips does a proper wire rope connection require?

Rope diameter affects the minimum number of clips needed. Up to a 1/2-inch rope needs at least two clips. Ropes 5/8 to 3/4 inches in diameter need at least three clips, and ropes with a diameter of four inches or more need at least six clips. Along the tail section, place clips six rope diameters apart. The first clip should be one saddle width from the loop throat.

Can stainless steel clips withstand continuous saltwater immersion?

If you keep them in good shape, grade 316 stainless steel clips will work reliably in saltwater. Because it has molybdenum in it, it can withstand chlorine attack and pitting erosion. Routine inspections and rinsing with fresh water greatly extend the service life. While grade 304 material works well in splash zones, it doesn't work as well in continuous immersion as grade 316 material does.

Partner With a Trusted Stainless Steel Rope Clip Manufacturer for Your Marine Projects

To get reliable fastening solutions, you need to work with experienced manufacturers who care about quality and customer service. FLA Industrial & Trading Co., Ltd. has been making precise gear for almost 40 years and works with difficult marine, building, and industrial uses all over the world. Our certified grade 304 and 316 Stainless Steel Rope Clips go through a lot of quality control checks, such as tests to see what the materials are made of, checks to make sure the dimensions are correct, and tests to see how well they resist salt spray. Every product has ISO9001 and CE certifications, which means that the parts meet international safety standards.

Our engineering team can solve your problems in 7 to 15 days, whether you need standard sizes from our 2,000-ton collection or clips in special sizes for specific marine uses. For technical advice, dimensional sketches, or affordable bulk quotes, email our buying experts at sales@flaindustrial.com. Find out how our quick response time and proven quality help ship operators, contractors, and distributors finish jobs quickly and safely. You can look at all of our marine fastening options at flaindustry.com.
